Summary of Contents for Axesstel PX210
-

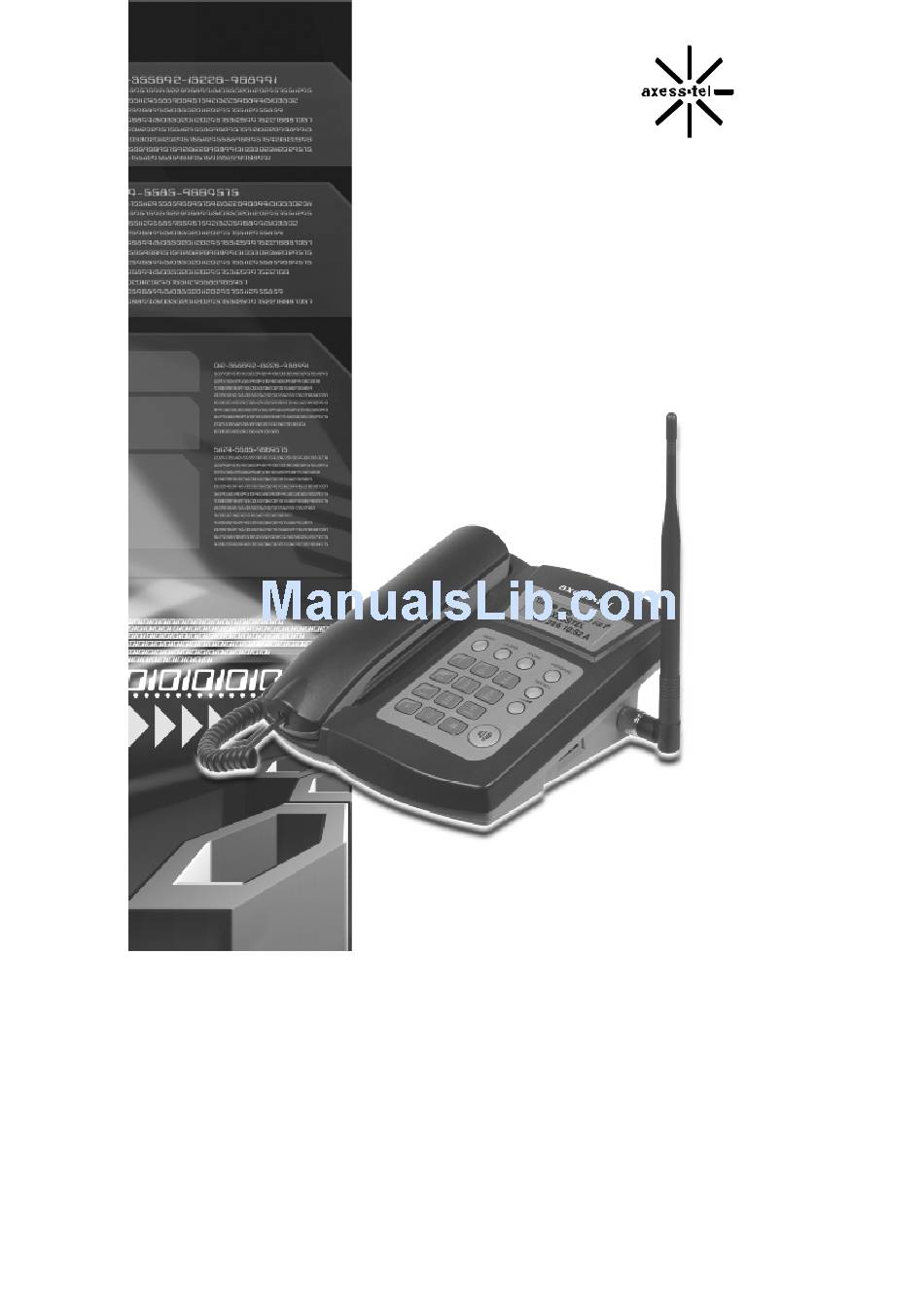

Page 1: User Manual
User Manual PX210 PX220 PX230... - Page 2 Axesstel CDMA 2000 Fixed Wireless Phone provides high quality and superior performance with many features such as superior voice quality, optional data service, caller ID, three-way calling, call waiting, short message service, etc.
-
Page 3: Table Of Contents
TABLES OF CONTENTS Advanced Features Safety Precautions……………………… 4 Changing Greeting Message……….. 27 Checking Parts .………………………… 5 System Reset………………………... 27 Starting R-UIM Card Restricting Use of the Phone………. 28 Setting up Your Phone ……….……….. 6 Locking / Unlocking the Phone…….. 28 Getting to Know Your Phone ……….…... -
Page 4: Safety Precautions
- The power cord is damaged. - The phone has been dropped or damaged in any way. 7. Use only the AXESSTEL provided adaptor. Do not use the AXESSTEL adaptor for any other purpose. 8. Use only the AXESSTEL provided antenna. Do not use the antenna for any other purpose. -
Page 5: Checking Parts
CHECKING THE PARTS Once you have unpacked your phone, make sure that you have all the parts shown below. If any piece is missing or broken, please call your customer service. 1. Main Unit 4. User Manual 2. Handset 5. Antenna 3. -
Page 6: Setting Up Your Phone
SETTING UP YOUR PHONE Installing the phone This phone operates by receiving DC power from the AXESSTEL power adaptor, this connects to an electrical outlet. The phone is equipped with a rechargeable battery as a back up in case of an AC power failure. - Page 7 SETTING UP YOUR PHONE Service Status Check Display in the Service Area When the power cord is connected properly, AXESSTEL all segments of the LCD window will turn on briefly. THU 10/09 5:24P The number of bars of signal strength indicator (antenna icon) indicates the strength of service signal of the area.
-
Page 8: Getting To Know Your Phone
GETTING TO KNOW YOUR PHONE 1. Antenna: Adjusting the position of antenna improves the sound quality of the call. 2. Menu: Press to access the phone's menus. 3. Clear: Lets you clear your last entry. 4. Store: Stores phone numbers, and any settings you select in the menu with in the phone's memory 5. -
Page 9: Display Icons
DISPLAY ICONS Icons display on the screen to indicate what features you are using, signal strength battery status and etc... AXESSTEL THU 10/09 5:24P Indicate the strength of the signal. More bars indicates stronger signal. Indicates the level of battery power. The more bars, the more power. -
Page 10: Function Keys
FUNCTION KEYS Press this key to display the phone's main menu. Clears information from display screen. - To erase one character from the display screen, press it once. - To erase all characters on the screen, press and hold. - To go back one step in the menu mode, press it once Press this key to retrieve messages. -
Page 11: Basic Operation
Basic Operation Boot With R-UIM Card (Optional) Making Calls Redial Receiving Calls Adjusting Volumes Choosing the Ring Tones FM Radio (Optional) Message Service... -
Page 12: Making Calls
3. The phone is ready to use after entering the correct PIN X TIMES LEFT code. * Default PIN code is provided by your service provider. AXESSTEL THU 10/19 2:32P MAKING CALLS 1. Make sure your phone is turned on. -
Page 13: Redial
REDIAL Redial the last number you dialed. 1. Pick up the handset or press <SPEACKER>. 2. Press <REDIAL>. NOTE: You may not redial when there is no last number dialed stored in the memory. "NO LAST CALL!" message is displayed on the LCD. RECEIVING CALLS When there is an incoming call, the phone rings blinks "Incoming Call"... -
Page 14: Adjusting Volumes
ADJUSTING VOLUMES You can control the sound volumes including the key tone, Earpiece, speaker and the ringer Adjusting key tone volume Press <volume key> repeatedly until it reaches proper volume. KEY VOLUME Adjusting external speaker volume Press <volume key> repeatedly during hands free call to adjust external speaker volume. - Page 15 FM Radio (Optional) Using FM Radio 1. Press<Volume> to turn on the Radio. 2. Entering Radio Mode, Preset Channel and Frequency RADIO ON display FM 107.1 MHz on the screen. 3. Press<Left> or <Right> lightly to move the preset channel. 4.
-
Page 16: Message Service
MESSAGE SERVICE Message service is network dependent feature and is available only when your service provider supports it. Check your service provider is providing message service before using this function. Sending New Text Messages 1: NEW MESSAGE 1. Press <MESSAGE> . Press <1>(New Message). 2: INBOX 2. - Page 17 Received Text Message 1. When text message arrives, 'MESSAGE! 10/12 4:04PM' displays shortly and appears in the icon line. MESSAGE! 2. Press <MESSAGE> , <2>(Inbox). 10/12 4:04 P 3. Press <Volume key> (or <*>, <#>) to select message you want to see and press <STORE>. 4.
- Page 18 Erasing All Messages 1. Press <MESSAGE> , <6>(Erase MSG). ERASE ALL? 2. Select 'YES' with <Volume key> (or <*>, <#>). ▶ 3. Press <STORE>. Setting/Releasing Message Alert 1. Press <MESSAGE>, <7>(MSG Option), <1>(MSG Alert). 2. Select ON or OFF with <Volume key>(or <*>, <#>). 3.
-
Page 19: Internal Phone Book
Phone book Internal phone Book Storing in phonebook Searching for Entries in Phonebook Erasing an Entry in Phonebook Erasing all Entries in Phonebook One-Touch Dialing Two-Touch Dialing... -
Page 20: Internal Phone Book
INTERNAL PHONE BOOK Your phone has an internal "Phone Book" in which you can store up to 99 frequently used names and numbers. STORING IN THE MEMORY PHONEBOOK NAME ? 1. Press <MENU> , <1> . 2. Enter the name by pressing the alphanumeric keypad and pressing <STORE>... -
Page 21: Searching For Entries In Phonebook
SEARCHING FOR ENTRIES IN PHONEBOOK You can search information stored in the phone book in various way and make a call directly from the phonebook. Searching by Name NAME ? 1. Press <MENU>, <1>(Phone book), <1> (Search), <1> (Name). 2. Enter all or part of the name and press <STORE>. Example) Enter A and press <STORE>... - Page 22 Searching by Phone Number 1. Press <MENU> (Phone book), <1>(Search), <2>(Number). 2. Enter all or part of the number you remember and PHONE NUMBER ? press <STORE>. 3. The phone displays the memory location and names which contain your entry. NOTE: “NO NAME MATCHES”...
-
Page 23: Erasing An Entry In Phonebook
ERASING AN ENTRY IN PHONEBOOK To Erase a Specific Number NAME ? 1. Press <MENU>, <1> (Phonebook) and <3> (Erase). 2. Press one of search options, <1> (Name), <2> (Number) or <3> (Memory). 3. Enter name, address, or phone number according to search option. -
Page 24: One-Touch Dialing
ONE-TOUCH DIALING Memory locations 01 ~ 09 are special one-touch dialing locations. You can dial the numbers stored in 01~09 by pressing just one key. 1. Pick up the handset or press <SPEACKER>. 2. Press and hold the number of the location (1~9) containing the number to be called for a moment. -
Page 25: Useful Features
Useful Features Call History Displaying Your phone Number Mute Selecting Time Mode Setting Time Mode Checking and Clearing Call Times Setting Warning Alerts... - Page 26 CALL HISTORY Your phone stores the last 30 outgoing calls, incoming, and missed Calls combined (only when Caller ID function is activated). You can display and redial these numbers. Redialing Outgoing Calls 1. Press <MENU>, <3> (Call History), <3> (Outgoing) NOTE: If there’s no outgoing call history.
-
Page 27: Mute
Erasing Call History 1. Press <MENU>, <7> (Security). 2. Enter lock code. NOTE: Default Lock code is last 4 digits of your ENTER LOCK CODE Phone number. To change lock code, see page 29. _ _ _ _ 3. Press <5> (Erase Logs). 4. -
Page 28: Setting The Alarm
AM/PM: Display 0~12 hours with A or P indicator 24 Hour: Display 00~24 hours 3. Press <STORE> to save the change. SETTING THE ALARM You can set the alarm sound daily or one time only. ALARM 1. Press <MENU>, <4>(Time), <1>(Alarm). ▶... - Page 29 CHECKING AND CEARING CALL TIMES Checking the Last call Time LAST CALL TIME 1. Press <MENU>, <4> (Time), <2>(Last Call). 3:25 2. Press <CLEAR> to exit the display. Checking Accumulated Incoming Call Time 1. Press <MENU>, <4> (Time), <3>(Total Time), INCOMING CALL <1>...
-
Page 30: Setting Warning Alerts
SETTING WARNING ALERTS You can set your phone to sound warning beeps that indicate: - each minute you are on a phone call - when you are out of the service area Setting/Releasing 1 Minute Alert 1. Press <MENU>, <5> (Sound), <4> (1 Min Alert). 2. -
Page 31: Advanced Features
Advanced Features Changing Greeting Message System Reset Restricting Use of the Phone Locking / Unlocking the Phone Changing the Lock Code Back Light... -
Page 32: Changing Greeting Message
CHANGING GREETING MESSAGE This feature lets you change the greeting message that the phone displays during standby mode. 1. GREETING ▼ 1. Press <MENU>, <6> (Configuration). 2. CHANGE CODE 2. Press <2>(Getting). Current greeting displays. 3. Press <STORE> to change greeting. 4. -
Page 33: Restricting Use Of The Phone
RESTRICTING USE OF THE PHONE You can restrict the use of the phone by unauthorized persons Restricting Outgoing Calls 1. Press <MENU>, <7> (Security). 1. OUTGOING ▼ 2. Enter lock code. INTERNATIONAL NOTE: Lock code is set as 0000 from the factory. To change lock code, see page 29. -
Page 34: Back Light
CHANSING THE LOCK CODE The lock code is preset to 0000 from the factory. You can Change the lock code to any 4 digit number. 1. Press <MENU>, <7> (Security). 2. Enter lock code. ENTER NEW CODE 3. Press <2> (Change Code). _ _ _ _ 4. -
Page 35: Optional Features
Optional Features Call Forwarding Call Waiting Three-way Calling Data Call Service... - Page 36 Connecting your PC repuires optional cable, available separately. 1. Connect the phone to your PC with the optional Axesstel serial or USB data cable. 2. Please refer to the manual provided with the cable for setting up a connection on...
-
Page 37: Miscellaneous
Miscellaneous Menu Table Specification... - Page 38 MENU OPTION TABLE Explanation NAME Used When searching for a phone number NUMBER SEARCH in the phone book by name/number/ MEMORY stored memory number LOCATION 1. PHONE Used when storing a phone number and BOOK STORE name in the phone book NAME Used when erasing a phone number in ERASE...
-
Page 39: Specifications
Reset to default settings PHONE RESET Reset to default settings and then user data SPECIFICATIONS Rx: 869 ~ 894 MHz Frequency Range PX210 Tx: 824 ~ 849 MHz Channel Bandwidth CDMA 1.25 MHz Stability of frequency 0.4 ppm External appearance (mm) -
Page 40: Sar Information
SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT ’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)energy Federal Communications... -
Page 41: Fcc Compliance Information
FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 42: Safety Information
Safety Information 1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS .POTE NTIALLY EXPLOSIVE ATMOSPHERES Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cauls e an explosion or fire resulting in bodily injury or even death.
