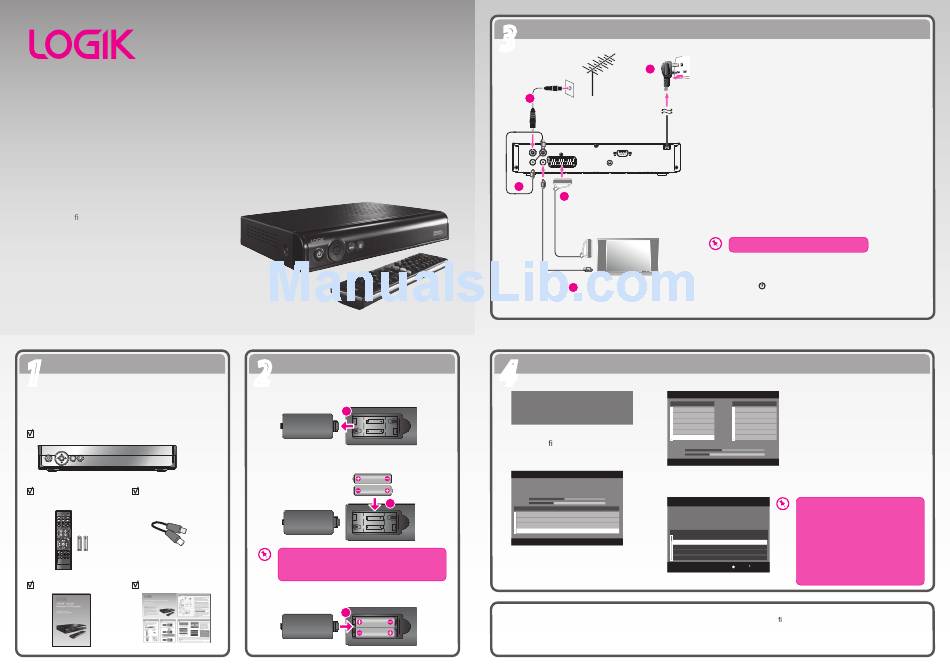

Logik L160STB11 Quick Start Manual

160GB / 250GB Freeview TV Recorder
Quick Start Guide
L160STB11 / L250STB11
Thank you
for purchasing your new Logik
160GB / 250GB Freeview TV Recorder.
Please follow this quick start guide for a
successful rst time set up.
We recommend that you spend some time
reading the instruction manual in order to fully
understand all the operational features it
offers.
Read all the safety instructions carefully before
use and keep the instruction manual for future
reference.
GB
1 1
Unpacking
Remove all packaging from the unit. Retain the
packaging. If you dispose of it please do so
according to any local regulations.
Main Unit
OK
MENU R
Remote Control Loop Through
and Batteries Cable x 1
Instruction Manual Quick Start Guide
2 2
Operating Your Remote Control
1. Remove the battery cover of remote control.
1
2. Insert 2 x AAA batteries in the correct position.
2
Install the batteries correctly by following the
polarity (+ and -) indications in the battery
compartment.
3. Close the battery cover.
3
3 3
Connection
Aerial
6
To mains
OR
socket
2
RF Cable
(not included)
Mains Cable
SERVICES ONLY
AC 230V~
50Hz 12W
RF IN 1 RF IN 2
RS232
RF OUT RF OUT
1 2 SPDIF
SCART
3
4
Loop
Through SCART Cable
Cable (not included)
(included)
To SCART socket TV
RF Coaxial
Cable
(not included)
To RF IN socket
5
4 4
First Time Installation
TUNE
Welcome!
TV
Please ensure the aerial is connected.
CBBC Channel
BBC Red Button
Press OK key to commence automatic tuning.
BBC NEWS
BBC THREE
1. When your unit is switched on
BBC TWO
BBC ONE
for the rst time, a Welcome
666.000 MHz
Progress
Screen will be displayed.
Signal
AUTO TUNE Tue, 1 Jun 00:01
TUNING - PLEASE WAIT
Carriers detected 4
Scanning details UHF 666.000 MHz
Bandwidth 8 MHz Channel no 45
Signal 43%
Band 2 29%
TV REGION SELECTION
CN Freq(MHz) FFT GI Const FEC
1 514.00 2K 1/32 QAM-64 2/3
Please select your preferred region.
2 530.00 8K 1/4 QAM-64 2/3
"Gloucestershine, West" is your currently selected region.
3 578.00 8K 1/4 QAM-14 3/4
4 650.00 2K 1/32 QAM-64 2/3
England
Carries detected 4
Gloucestershire, Central
BACK
Gloucestershire, West
Ruritania
2. Press the OK button to begin
Brigadoon
Ruritania, Brigadoon
the channel auto scan.
Well done,
your new Freeview TV Recorder is now ready to use. You will nd that there are many exciting features
available.
To get to know all these features, please take some time to read the instruction manual provided.
1. Make sure your TV and any other equipment you are
connecting to are switched off.
2. Connect one end of the RF coaxial cable (not
supplied) to the aerial socket on the wall and the
other end to the RF IN1 socket on the rear panel of
the unit.
3. Connect the female end of the loop through cable
(included) to the RF OUT1 socket and the male end
to the RF IN2 socket on the rear panel of the unit .
4. Connect one end of the SCART cable (not supplied)
to the SCART socket on the rear panel of the unit
and the other end to the SCART socket on your TV.
5. Connect another RF coaxial cable (not supplied) to
the RF OUT2 socket on the rear panel of the unit and
the other end to your TV.
6. Plug in the mains plug into the mains socket after
you have completed all the connections.
The unit will take awhile for loading.
7. The power indicator on the front panel will illuminate
red and "Stby" will be displayed on the LED display.
8. Press the button to turn the unit on, the power
indicator will illuminate green.
9. Turn on your TV.
3. The tuning progress screen will
page 1 of 1 Tue, 1 Jun 00:08
be displayed, showing you how
6 Radio 0
many channels have been
found and saved. The tuning
may take several minutes to
complete. When the tuning is
FFT 2K GI 1/32 QAM-16 FEC 3/4
0%
complete, your unit is ready to
71%
BACK
use. After tuning is complete,
the channels are arranged in a
preset order.
During tuning, your unit may receive
Fri, 4 Jun 10:33
signals from more than one
transmitter. If this happens when
you install your unit, the TV Region
Selection screen will appear. Please
select your preferred region. Making
this choice will ensure that you will
OK: Con rm BACK receive the correct regional news
BACK programmes.
(P.N.: 810-TB11LL-10)
