Summary of Contents for Logik L5SSTB13

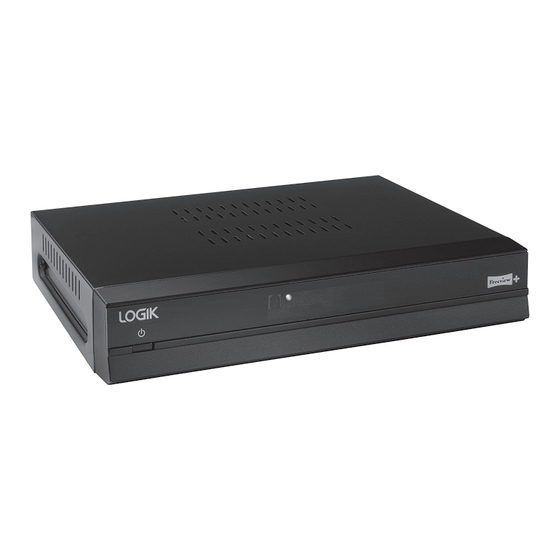

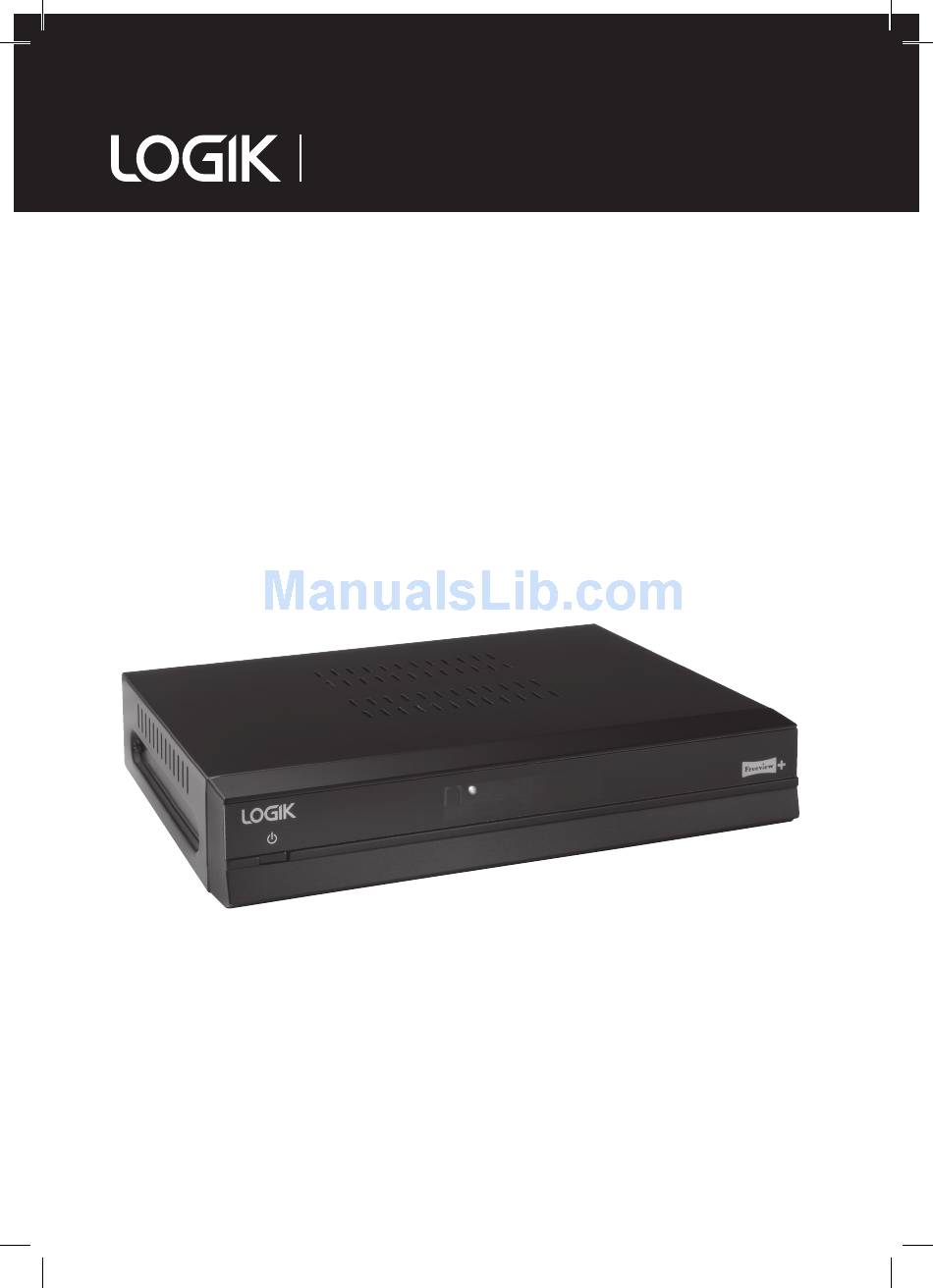

- Page 1 Instruction Manual 500GB Freeview+ TV recorder L5SSTB13 L5SSTB13_IB.indd 1 28/08/2014 11:53...
-
Page 2: Table Of Contents
Contents Safety Warnings .........................4 Unpacking ..........................6 Product Overview ........................7 Front View ................................7 Rear View ................................7 Remote Control ..............................8 Inserting the batteries into the Remote Control...................10 – Handling the Batteries ........................10 – Handling the Remote Control ......................10 Remote Control Operation Range......................10 Initial Set Up ..........................13 Plug In and Switch On ............................13 Auto Standby ..............................13... - Page 3 – Display Settings ...........................25 – Parental Lock ............................26 – Factory Reset ............................26 – Advanced Setting ..........................27 – Format HDD ............................28 – Retune ..............................28 – System Information ..........................29 Hints and Tips ..........................30 Specifications ...........................31 L5SSTB13_IB.indd 3 28/08/2014 11:53...
-
Page 4: Safety Warnings
Safety Warnings • Read all the instructions carefully before Ventilation using the unit and keep them for future • To prevent the risk of electric shock or fire reference. hazard due to overheating, ensure that • Retain the manual. If you pass the unit curtains and other materials do not obstruct onto a third party make sure to include this the ventilation vents. - Page 5 Supervision • Children should be supervised to ensure that they do not play with the unit and the remote control. • Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.
-
Page 6: Unpacking
Thank you for purchasing your new Logik 500GB Freeview+ TV recorder. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 7: Product Overview
Product Overview Front View Button • Switches the unit between the ON and STANDBY modes. Rear View Aerial IN Socket SCART TV Socket Aerial OUT Socket DC IN Socket • If you already have a Digital TV we recommend that you connect an RF lead from the RF OUT socket on the set top box to the aerial socket on your TV. -
Page 8: Remote Control
Remote Control Standby Button • Switches the unit on and into standby. 0-9 Buttons • Selects a channel. • Enter numeric values in the set-up menus. • Selects characters for renaming. CH LIST Button • Displays the Channel list menu. GUIDE Button •... - Page 9 Home Button • Returns to the first programme you have tuned in (usually BBC1). 16. Mute Button • Mutes the sound. 17. INFO Button • Displays information on the current and next programme. • Press again for more detailed information about the current programme.
-
Page 10: Inserting The Batteries Into The Remote Control
Inserting the batteries into the Remote Control Squeeze the cover lever and lift the battery cover to access the battery compartment of the remote control. Insert two AAA size batteries (included). Ensure the polarities (+ and –) of the batteries match the (+) and (–) ends indicated in the battery compartment. - Page 11 Connecting to a Digital TV Aerial Mains Adapter Cable RF Coaxial Cable (included) (not included) To Mains Socket To aerial wall socket RF Coaxial Cable To RF IN socket (not included) Digital TV SCART Cable (not included) To SCART socket Ensure your TV and any other equipment you are connecting to are switched off.
- Page 12 Connecting to an Analogue TV Aerial Mains Adapter Cable RF Coaxial Cable (included) (not included) To Mains Socket To aerial wall socket Analogue TV SCART Cable (not included) To SCART socket Ensure your TV and any other equipment you are connecting to are switched off. Connect one end of the RF coaxial cable (not supplied) to the aerial socket on the wall and the other end to the RF IN socket on the rear panel of the unit .
-
Page 13: Initial Set Up
Initial Set Up Plug In and Switch On Connect the mains adapter cable to the mains socket after you have completed all the connections and switch on. At this stage, the unit switches to standby mode. The red LED indicator will illuminate on the front panel of the unit. -
Page 14: First Time Installation
First Time Installation When your unit is switched on for the first time, First Time Installation it will go straight into the First Time Installation menu. Select Your TV Screen type using the arrow buttons The unit will take a while to load. 16:9 Widescreen Please ensure the aerial is connected Press OK to start the installation... -
Page 15: Basic Features
Basic Features Switching into Standby • When the unit is on, press the STANDBY button to switch it into standby. The indicator light is: Green when the unit is on. Orange when in standby. Red when in standby with a recording in operation. If you leave the unit unattended for a long time. -
Page 16: Programme Information
Programme Information Extended EPG (Now) Wed 08 Sep 16:52 You can view information about the current programme you are watching. 21:00 - 22:00 New Tricks 1/10 Dead Man Talking: UCOS reinvestigate the death of a Press the INFO button and the Extended wealthy nancier when a psychic tells his daughter to resolve his un nished business. -
Page 17: Pausing Live Tv
Pausing Live TV With this feature if you need to interrupt what you are watching you can pause the programme and play it again, from the paused point later. Pausing and playing TV While watching a programme press the Timeshifting 00:00:00 / 00:01:59 PLAY/PAUSE button. -
Page 18: Digital Text
Digital Text Your set top box gives you access to digital text information on news, weather and a variety of other topics. The digital text service isn’t available on every channel. Some channels show a red button on the screen when a text service is available. When you see this you can press the RED button to access the service. -
Page 19: Programme Guide Icons
Programme Guide Icons This programme has subtitles. [AD] This programme has audio description. [SL] This programme has sign language. A reminder has been set for this programme. This programme has been set to be recorded. L5SSTB13_IB.indd 19 28/08/2014 11:53... -
Page 20: Setting A Programme Reminder
Setting a Programme Reminder Use this feature to remind you that a programme is about to start. You can only set a reminder for a programme that hasn’t started yet. Press the GUIDE button to display the Programme Guide Wed 08 Sep 16:52 Programme Guide. -
Page 21: Setting A Recording
Setting a Recording With this set top box you can record 2 programmes at the same time. Press the GUIDE button to display the Programme Guide Wed 08 Sep 16:52 Programme Guide. 21:00 - 22:00 New Tricks Press the buttons to move around 1/10 Dead Man Talking: UCOS reinvestigate the death of a wealthy nancier when a psychic tells his daughter to resolve his un nished business. -
Page 22: Main Menu
Main Menu The main menu give you access to the Library, Channel Organiser, Settings, Retune and System Information menus. Recordings Library Main Menu Wed 08 Sep 16:52 Press the MENU button to view the Main Menu. Library Press the buttons to highlight Library Channel Organiser and press OK button. -
Page 23: Channel Organiser
Channel Organiser Main Menu Wed 08 Sep 16:52 In the Channel Organiser menu you can Delete, Lock, Hide or Move channels. Library Press the MENU button to view the Main Channel Organiser Menu. Settings Retune Press the buttons to highlight Channel System Information Organiser and press OK button. -
Page 24: Hiding A Channel
Hiding a Channel Channel Organiser Wed 08 Sep 16:52 Press the buttons to hightlight the channel that you would like to Hide. BBC ONE BBC TWO ITV 1 Press the YELLOW button, the magnifying Channel 4 glass symbol will appear next to the channel. FIVE ITV 2 Press OK to confirm. -
Page 25: Setting Menu
Setting Menu Main Menu Wed 08 Sep 16:52 From the Settings Menu you can access the following: Library • Display Settings Channel Organiser Settings • Parental Lock Retune • Factory Reset System Information • Advanced Settings • Format HDD Select Con rm BACK Return... -
Page 26: Parental Lock
Parental Lock Parental Lock Wed 08 Sep 16:52 In the Parental Lock menu you can change the set top boxes password and switch the Parental Lock ON and OFF. Parental Pin Press the MENU button to view the Main Old Password New Password Menu. -
Page 27: Advanced Setting
Advanced Setting Settings Wed 08 Sep 16:52 In this menu you can select the following: • Preferred Language Display Settings • Recommendation Parental Lock Factory Reset • Lip-Sync Advanced Settings • Show HDD Space as Format HDD • Auto Standby Select Con rm BACK... -
Page 28: Format Hdd
Format HDD Settings Wed 08 Sep 16:52 Selecting ‘Format HDD’ will format the hard drive. Warning Display Settings Do you want to format the Hard Disk Parental Lock All recording will be lost if you format Drive? Please note that all recordings Factory Reset will be lost. -
Page 29: System Information
If you have any problems with your set top box this information will be useful. System Information Manufacturer : Logik Model Number : L5SSTB13 Hardware Version : Main Board V1.1 Software Version : A30_1F_0102_T3 Subtitle Status : Language Status :... -
Page 30: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance please call our UK Call Centre on 0344 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm. -
Page 31: Specifications
Specifications Model L5SSTB13 Supply Voltage 220-240V AC ~50Hz Input Frequency 470 Mhz - 862 Mhz Maximum Power Consumption 12 W Standby Power Consumption <0.5 W Hard Disk 500GB Dimensions 218 x 175 x 44 mm Weight 0.8 kg Features and specifications are subject to change without prior notice. - Page 32 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Limited (Registered in England No.504877) Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK (IB-L5SSTB13-20140828-V2) L5SSTB13_IB.indd 32 28/08/2014 11:53...
