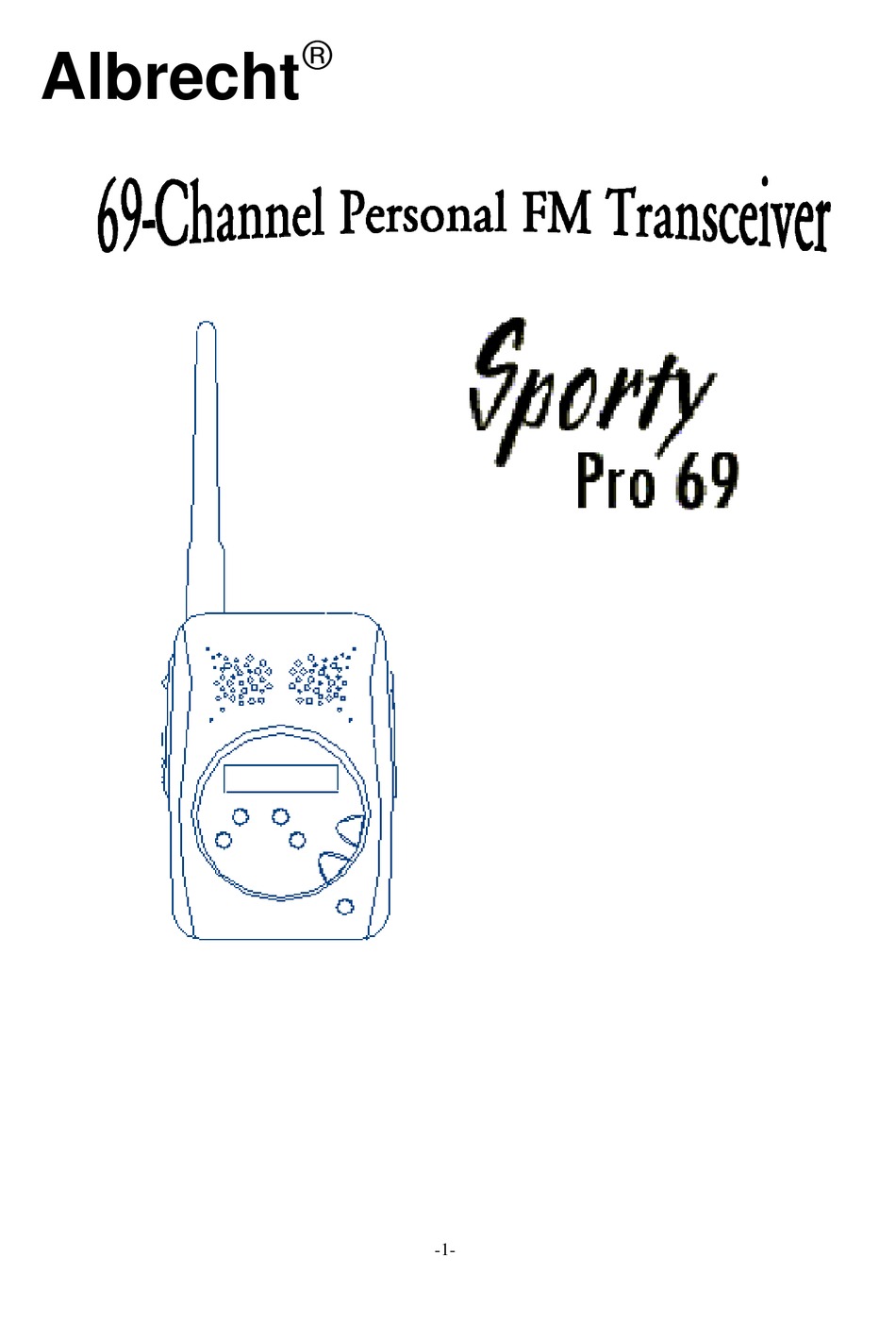

- Page 1 ® ® Albrecht...
-
Page 2: Table Of Contents
Table of Contents 1. CONTROLS..........................3 2. LCD ............................5 Squelch Level Representation ................... 6 Battery Level Representation .................... 6 3. SPECIFICATION ........................7 4. OPERATION ..........................8 Power On/Off / Volume Control..................8 Beep On/Off........................8 Channel Spacing....................... 8 Channel No./Frequency Display .................. -
Page 3: Controls
Controls Speak Mem-L / Up / Down / Function / DW / Call /... - Page 4 Power / Monit Speaker...
-
Page 5: Lcd
TRANSMISSION – see 4.6 Automatic Power Off – see 4.9 VOX -- see 4.12 Dual Watch – see 4.11 Function – see Memory – see 4.10 Channel No. or Channel Frequency – see 4.4 BUSY – Set when signal detected SCAN –... -
Page 6: Squelch Level Representation
Squelch Level Representation Only Strong signal can be received – better sound quality Medium strength signal can be received Poor strength signal can also Receiver Battery Level Representation Full Medium Battery Battery Empty- operation stopped, icons blink... -
Page 7: Specification
Specification General Frequency Ranges: 433.075-434.775 MHz Channel Steps: 12.5/25KHz Channel: 69/137 Channel ±5 (-10°C - +50°C) Frequency Stability: Emission Types: Antenna Impedance: 50ohm Supply Voltage: 2xAA Battery (2.4V-3V) RF Power Output <10dBm ±5KHz Maximum Deviation... -
Page 8: Operation
Operation Power On/Off / Volume Control Power Up / Volume Rotate the volume knob anti-clockwise until a tick sound is heard to power on the device. Rotate the knob further to volume up and vice versa. Power Down / Volume Down Beep On/Off The transceiver beeps each time you press a key. -
Page 9: Channel No./Frequency Display
Channel No./Frequency Display Either channel no. or channel frequency can be displayed on LCD. They can be toggle to each other form of display by pressing [DW] and [CALL] key together. MONITOR The Monitor function unmutes the speaker in any situation. Use this function when received signals are too weak to recognize or when you want to adjust the volume while... -
Page 10: Down / Apo
The second function of this key is scan control. Press FUNC and then SCAN to start channel scan at normal mode or memory scan at memory mode. The function can be disabled by pressing FUNC and then SCAN again or any key of PTT, CALL and LOCK. -
Page 11: Dw / Sq
Press FUNCTION and then MEM-S can activate memory save mode. The letter ‘M’ will be blinking and one of the memory no. will be shown on the LCD. To save any channel frequency at one of five memory address, press UP or DOWN to select. If there is no blinking memory address, press MEM-S to erase the selected memorized address and press MEM-S... -
Page 12: Call / Vox
4.12 CALL / VOX Pressing CALL key will transmit call tone continuously up to 5 second or until the key release. Press FUNCTION and VOX to activate voice operate Tx selection menu and an icon “VOX” will be blinking. By pressing UP or DOWN, user can select VOXHI (high sensitivity), VOXLO (low sensitivity) or VOXOF (disable VOX). -
Page 13: Frequency Chart
Frequency Chart 137- Frequency (MHz) 137- Frequency Channel Channel Channel Channel (MHz) 433.0750 433.0875 433.1000 433.1125 433.1250 433.1375 433.1500 433.1625 433.1750 433.1875 433.2000 433.2125 433.2250 433.2375 433.2500 433.2625 433.2750 433.2875 433.3000 433.3125 433.3250 433.3375 433.3500 433.3625 433.3750 433.3875 433.4000 433.4125 433.4250 433.4375 433.4500... - Page 14 434.2000 434.2125 434.2250 434.2375 434.2500 434.2625 434.2750 434.2875 434.3000 434.3125 434.3250 434.3375 434.3500 434.3625 434.3750 434.3875 434.4000 434.4125 434.4250 434.4375 434.4500 434.4625 434.4750 434.4875 434.5000 434.5125 434.5250 434.5375 434.5500 434.5625 434.5750 434.5875 434.6000 434.6125 434.6250 434.6375 434.6500 434.6625 434.6750 434.6875 434.7000 434.7125 434.7250...
