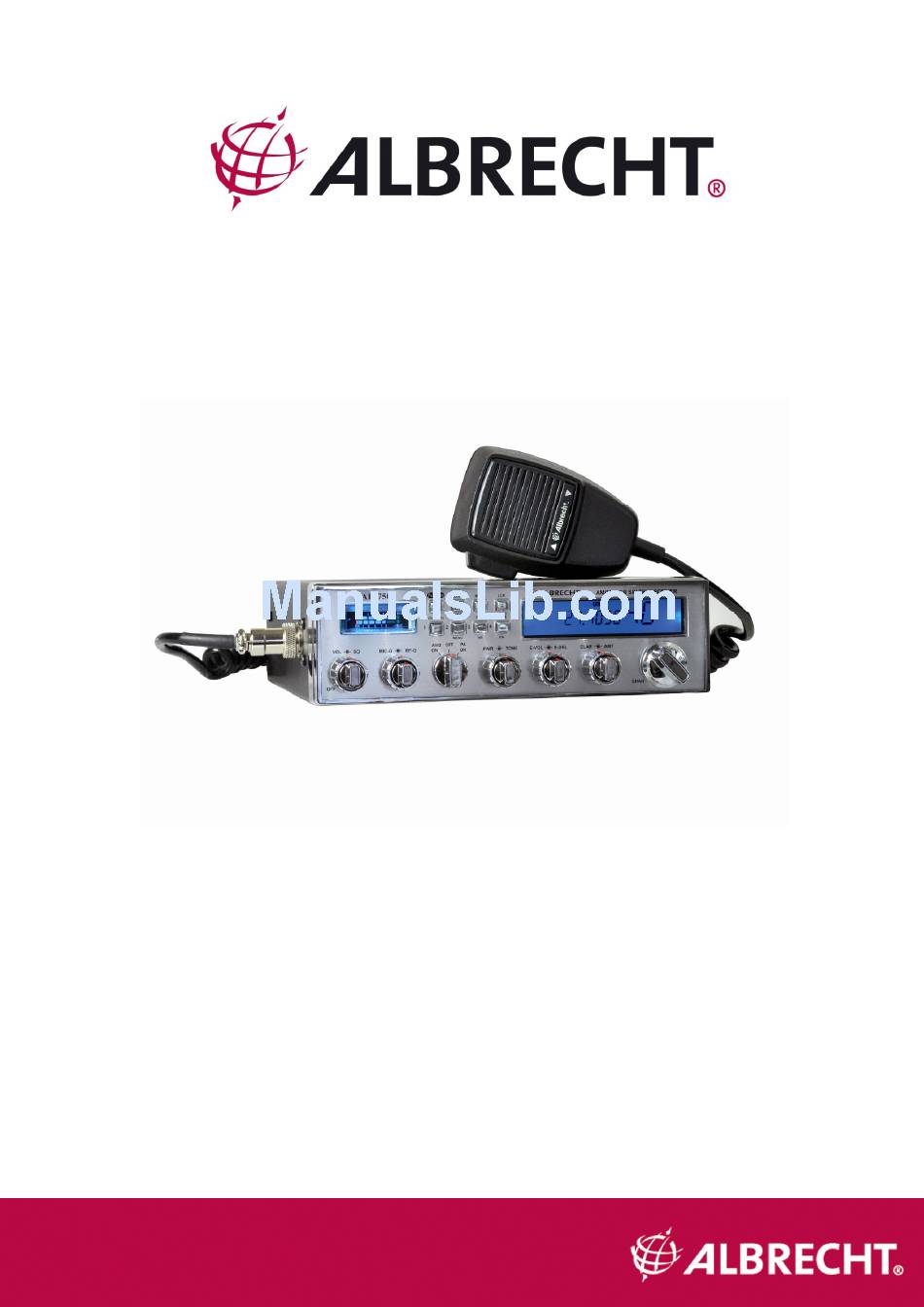

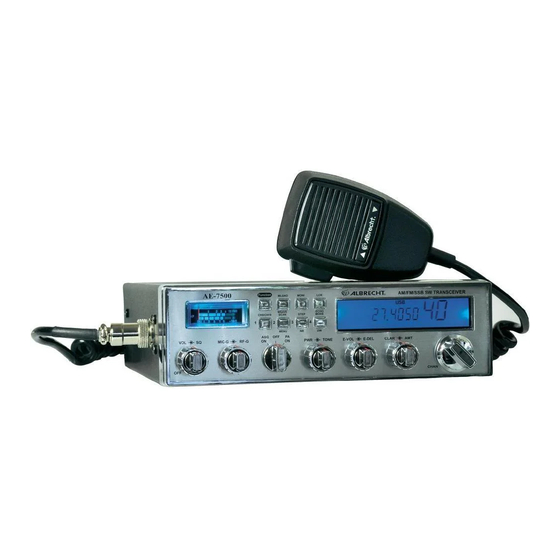

- Page 1 USER MANUAL AE7500 AM/FM/SSB CB-Transceiver English Downloaded from www.cbradio.nl English...
-
Page 2: Table Of Contents
Table of Contents Introduction ...................... 20 Safety Precautions ................... 21 Installation ......................21 Contents ....................21 Mounting the AE7500 ................21 Power Connection ..................21 Antenna Connection .................. 22 SWR Adjustment of the Antenna ............... 22 Country Code Setting ................22 Location of Controls .................. -
Page 3: Safety Precautions
A/C outlets. Installation Contents Unpack and inspect your AE7500 for missing or damaged components. Your AE7500 includes the following items: AE7500 Transceiver •... -
Page 4: Antenna Connection
RF transistors; this type of misuse and failure is not covered under warranty. Country Code Setting Every time the AE7500 is switched on, ‘HELLO’ is displayed, then the country code is shown, for a few seconds.. Description of all country codes... -
Page 5: Location Of Controls
Changing the Country Code Turn the device off. • Turn the device on again while pressing the MEMORY key. The programmed • country code is displayed. Select the desired country code with the channel selector. • Turn the device off and on again. •... - Page 6 (12) CHAN (channel selector) (13) METER The lower scale indicates the received signal strength in S-units, while the upper scale indicates the RF output power in Watts during transmitting. (14) CH 9/19 Direct Access (15) FUNCTION This key is used to operate the functions that are printed below the control keys. Press and release, FUNC will be displayed on the LCD indicating that the function command is activated.
-
Page 7: Lc Display And Indicators
UP and DOWN keys Located on the front of the microphone. Remote control of CHAN control. Press the up arrow to increase the channel number and press the down arrow to decrease the channel. LC Display and Indicators The LCD screen is the status display for the majority of the transceiver’s functions. 12 13 (1) FUNCTION Indicates the function button has been activated and that the function dependent... -
Page 8: Basic Operation
(12) Busy Indicates that the Squelch is open (13) ME Indicates that MLOAD or MSAVE was pressed (14) 5 DIGIT FREQUENCY DISPLAY Indicates transmit and receive operating frequencies (15) CHANNEL NUMBER (16) PEAK READING RF POWER METER Indicates relative peak RF output power. Only active when using SSB Basic Operation Power on The On/Off switch is combined with the volume control. - Page 9 The different modes for CB radios have historical reasons, as CB radio is already, since the 1950s in existence. AM mode (amplitude modulation) corresponds with the technical process of medium and short wave radio and is today, except for CB radio, only used for aircraft radio.
-
Page 10: Monitoring The Active Channel
Monitoring the active Channel The squelch and the ASQ function can be temporarily disabled by the MONI key. As long as this key is pressed, you can listen into that channel. Be careful if using FM, because of its loud background noise. Channel Memories Frequently used channels and their respective mode can be stored and retrieved via the MSAVE/MLOAD key with the in 4 memories. -
Page 11: Scan Mode
7.12 Scan mode Your AE 7500 has an automatic channel scan, which can be used to observe all channels consecutively. First choose the mode (AM or FM). Adjust the squelch control to the point at which the receiver should open or activate the ASQ. Start channel scan •... -
Page 12: Clarifier
Clarifier The CLAR control allows the fine tuning of the receiver frequency from 1kHz below to 1kHz over the indicated frequency. The clarifier is primarily used to adjust the tone and readability of an incoming SSB signal. For normal operation turn this knob to the center position. -
Page 13: Echo Function
8.10 All Mode Talkback The ATM function allows the operator to monitor the transmitted audio of the AE7500 in all modes. Turn this ATM control to adjust its volume to your convenience. In case of audio feedback, the ATM volume or the microphone gain must be reduced. To disable the talk back, turn this control full counter clockwise. -
Page 14: Technical Details
Technical Details TRANSMITTER Frequency Range: 26.565 – 27.9912 MHz Modulation Modes AM, FM, SSB Carrier Suppression: Better than 40 dB below peak output Unwanted Sideband Suppression: Better than 50 dB below peak output (1 kHz tone) Spurious Radiation: Better than 50 dB below peak output Frequency Accuracy: Better than +10 ppm from 0 –... -
Page 15: Declaration Of Conformity / Konformitätserklärung
(Signature) Dipl.-Ing. Norbert Dau Alan Electronics GmbH Diese Konformitätserklärung und der Albrecht Gerätepass werden regelmäßig aktualisiert und sind unter Diese Konformitätserklärung und der Albrecht Gerätepass werden regelmäßig aktualisiert und sind unter www.service.alan-electronics.de in der jeweils gültigen neuesten Version abrufbar. in der jeweils gültigen neuesten Version abrufbar. -
Page 16: Albrecht Radio Passport
Albrecht Radio Passport For your AE 7500 the following programming and Operation regulations apply in countries applying R&TTE directive: (Current state: January, 2013) Remarks No radios with country switch allowed. Please ask Austria your dealer for a special Austria version of the radio.
