Summary of Contents for Albrecht AE 485 S

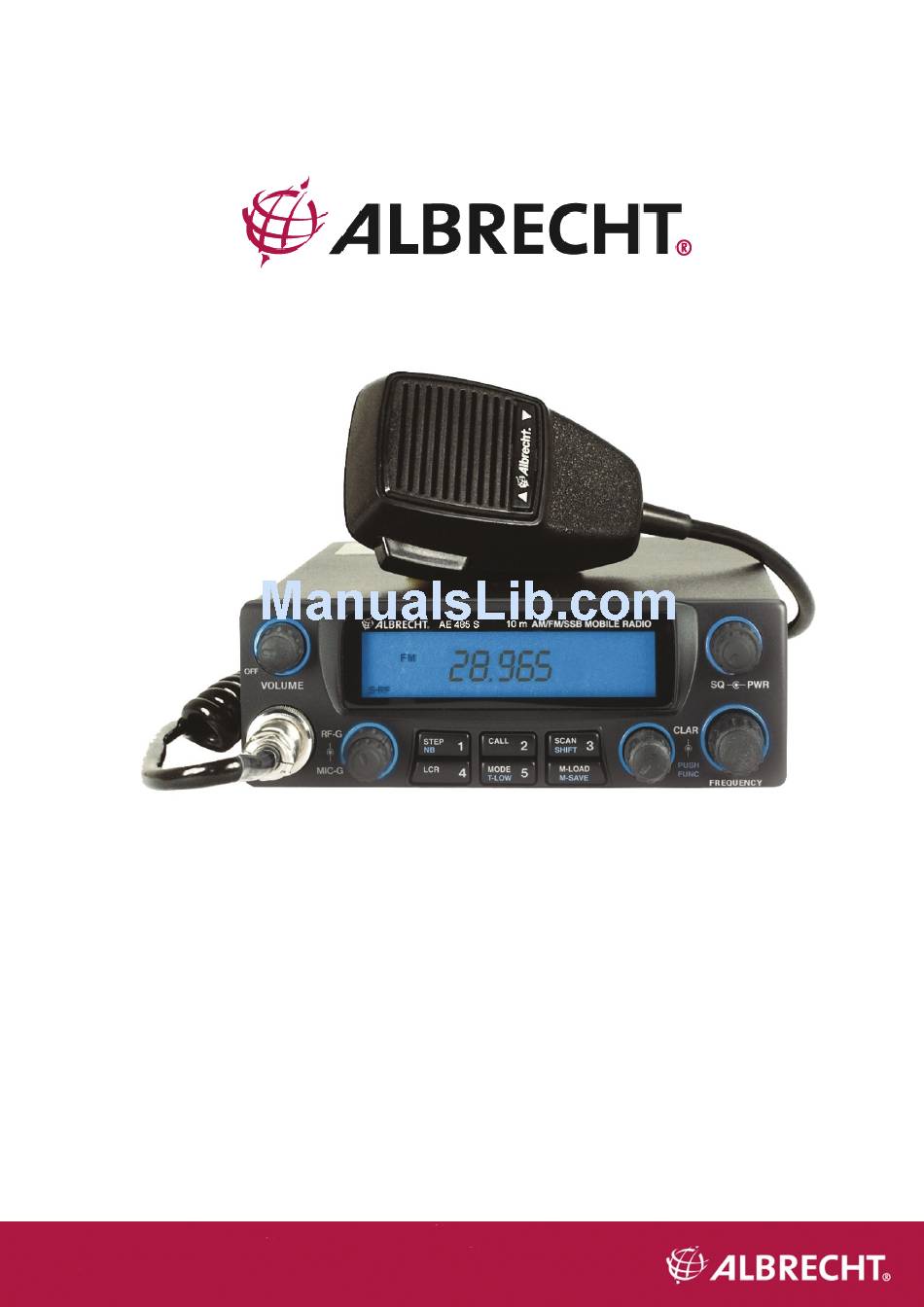

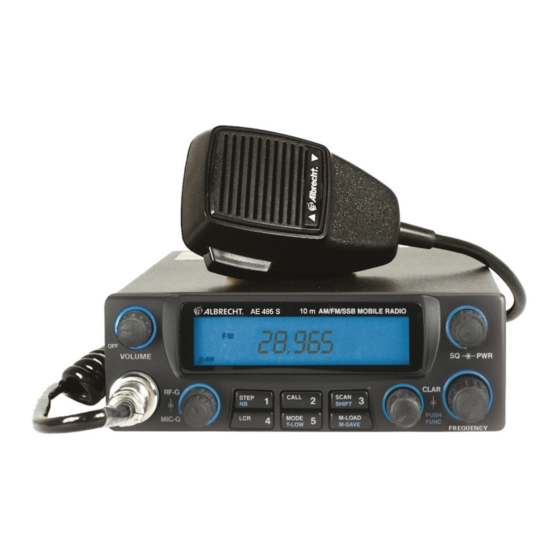

- Page 1 AE 485 S 10 meter Amateur Radio Transceiver for AM / FM / SSB according to EU standard EN 301 783 -2...
-
Page 2: Table Of Contents
Safety Precautions and Vehicle Installation .........................5 Select Antenna - Vehicle Antenna..........................5 Operation as Base Station............................6 Location of Controls AE 485 S (The picture is for the similar AE 5800 CB radio version)...........6 Controls and Switches ..............................6 On/Off, Volume and Squelch Setting..........................6 Mic Gain (3) ..................................6... -
Page 3: Legal And General Information
(editorial status: March 2010). The latest regulations, announcements and other documentation for this device are published in the service download area at www.hobbyradio.de or www.alan-albrecht.info. Please observe the country-specific regulations when using this device and take the obligatory registration in individual countries and possible operation restrictions serious! As Amateur Radio, there are important restrictions for use of this radio. - Page 4 CE- Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt Amateur Radio Albrecht AE 485 S satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen...
-
Page 5: Preparation For Use
General Use Instructions This AM-FM-SSB transceiver AE 485 S is a universal 10 m radio for 12VDC power supply. It an be connected to powerful 12V batteries, such as rechargeable lead batteries, but also via a suitable 12V power adapter with at least 6A stabilized constant current to 230V mains power supply. -
Page 6: Operation As Base Station
It goes without saying that your antenna is to be optimized in standing wave ratio. The AE 485 S output stage copes during operation with SWR of up to 1:2 at full capacity and short-term up to 1:3 (e.g. during adjustment). -
Page 7: Rf Gain (4)
RF Gain (4) Use the RF Gain knob (lower, outer dial of the dual control knob) to set the amplification in the RF receiver. Turn fully clockwise for the unit to have the highest amplification and sensitivity. This setting is optimal for most receiving ratios. -
Page 8: Frequency Steps (Channel Knob)
Your next frequency will be 29.148 MHz, 27.158 MHz and so on. Buttons AE 485 S (5-12) The buttons of your unit are multi-functional and change automatically – according to the mode – or in combination with the FUNC button (12) manually. -
Page 9: Set Transmission Power
for speaking only the frequencies upward of 28.500 to approximately 28.503 MHz, while in LSB mode the frequencies below 28.500 MHz to approximately 28.497 MHz are used. Both sidebands are mirror-inverted and this is why receiver and transmitter must be set to the same sideband. Otherwise you only receive some incomprehensible gibberish. -
Page 10: Last Channel Recall (Lcr)
Last Channel Recall (LCR) If you were scanning or listening a lot to other frequencies you may want to return to your last transmission channel by pressing a single button? Press the LCR (6) button to return to the last channel you used for transmission for more than 3 seconds. -
Page 11: Ports For Additional External Devices
No responsibility for damages and consequential damage caused by incompetent or not expressly by Albrecht explained programming steps and other interference. The end user warranty generally expires with opening the casing. -
Page 12: European Warranty 2 Years From Purchase Date
European Warranty 2 Years from Purchase Date The vendor of this device grants an implied warranty of two years from the date of purchase. This warranty includes all malfunctions caused by defective components of malfunctioning within the warranty period, but not malfunctions due to normal use, such as scratches on display or casing, defective casing, broken antenna, consumed light bulbs, damaged microphone cables and defects due to external forces, such as corrosion, overvoltage due to improper external power supply or the use of unsuitable accessories. -
Page 13: Service Contact Address (In Germany)
Service Contact Address (in Germany) You find technical documentation and the latest information regarding the regulation in individual EU countries in the service pages of the Albrecht and Alan websites and directly on the download server www.hobbyradio.de Alan Electronics GmbH Daimlerstr.
