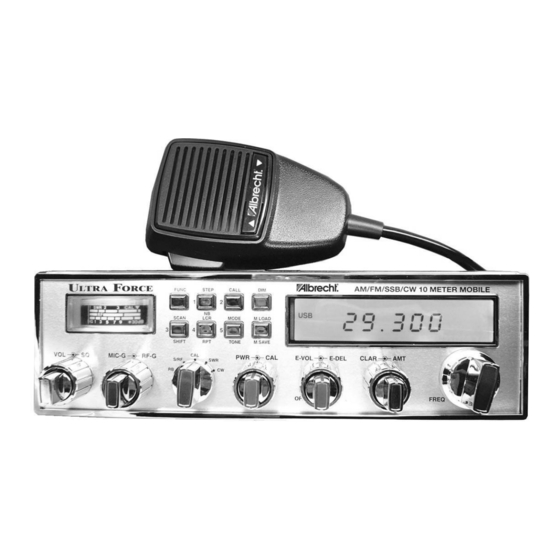

Amateur 10 m transceiver

Advertisement

Quick Links

UltraForce
Amateur 10 m
Transceiver
OPERATING MANUAL
2005 Edition
ALAN Electronics GmbH
www.albrecht-online.de
www.alan-germany.de
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UltraForce Amateur 10 m and is the answer not in the manual?

Questions and answers

Summary of Contents for Albrecht UltraForce Amateur 10 m

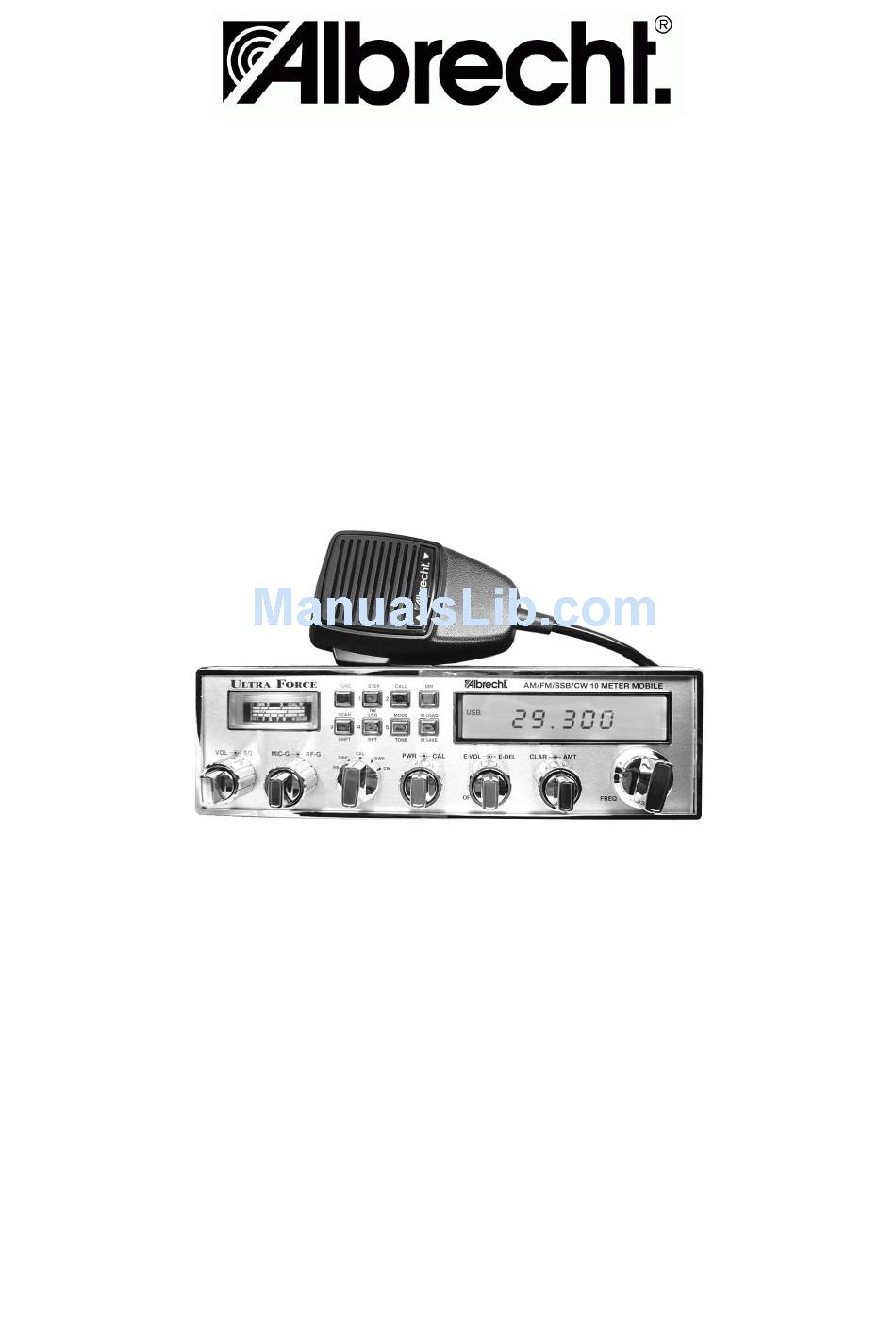

  • Page 1 UltraForce Amateur 10 m Transceiver OPERATING MANUAL 2005 Edition ALAN Electronics GmbH www.albrecht-online.de www.alan-germany.de...
  • Page 2: Table Of Contents

    INTRODUCTION Congratulations on your purchase of this Albrecht UltraForce 10 meter FM/AM/SSB/CW transceiver. Your transceiver is designed to provide years of enjoyment and trouble-free service. There are many features and functions designed into this transceiver. To ensure that your investment is enjoyed to it’s fullest extent please take a few moments and thoroughly...
  • Page 3: Installation

    If you are studying for your license and want to familiarize yourself with the operation of the radio, the receiver may be operated with or without a licensed operator present under the condition, that essential parts of the transmit section have been made temporarily inoperable. Under no circumstances it is allowed to use this amateur radio as “CB-Transceiver”...
  • Page 4: Front Panel Controls And Functions

    rules and instructions are valid for amateur radio installations as well as for any other transmitting device in cars. Connect the Antenna The transceiver will operate using any standard 50-ohm ground-plane, vertical, mobile whip, long wire or similar antenna. The antenna should be rated at 50 watts PEP minimum. A standard SO-239 type connector is provided on the rear panel of the transceiver.
  • Page 5 Used to eliminate background or “white” noise when monitoring strong signals. Also used to activate SCAN feature (see 14). To properly adjust squelch circuit, slowly rotate the control clockwise until the received audio disappears. Now turn the control slightly counterclockwise - this will keep the threshold right on the edge so you will not miss any incoming signals.
  • Page 6 (4) RF GAIN CONTROL Adjusts the receiver sensitivity to both signals and background noise. This affects the distance at which a signal can be detected. Turning the control counter-clockwise reduces the receiver sensitivity. This is par-ticularly useful in areas where large volumes of traffic (signals) are present.
  • Page 7 feature and increase the echo volume, rotate the control clockwise. To turn off the echo feature rotate the control completely counterclockwise to the OFF position. (10)ALL MODE TALK BACK CONTROL All Mode Talk Back is an independent talk back monitor. The AMT functions in all modes and allows the operator to monitor the transmitted audio of the UltraForce.
  • Page 8 once. +SHIFT is displayed on the LCD. The UltraForce will now transmit on the frequency that is XXX kHz greater than the displayed, or receive, frequency (XXX represents the programmed offset frequency in kHz units). To transmit on the frequency that is XXX kHz lower than the displayed, or receive, frequency press FUNC, then the SHIFT button.
  • Page 9 MEMORY CHANNEL 4 After programming, this button is memory channel 4. See M.LOAD \ M.SAVE control for programming in-structions. (17)STEP The STEP button selects frequency resolution in either 1 kHz, 10 kHz or 100 kHz steps. Press the STEP button, one of the digits will flash on and off. Press the STEP button again to change stepping resolution.
  • Page 10 To save in memory a specific frequency and operating mode, select the desired mode and rotate the FREQUENCY control to the desired frequency. Press the FUNC button, and then press the M.SAVE button. S will appear on the LCD next to the frequency. While S is displayed, immediately press any of the memory channel buttons (1 - 5).
  • Page 11 (22)LIQUID CRYSTAL DISPLAY The LCD screen is the status display for the majority of the transceiver’s functions. (3) +SHIFT \ -SHIFT Indicates that the split or offset frequency function is activated. (4) RPT Indicates that the repeater access tone burst function is active. (5) NB and ANL Indicates that both the noise blanker and the automatic noise limiter are active.
  • Page 12: Other Features

    Pin 5 : Ground Pin 6 : +13.8 VDC (26)EXTERNAL SPEAKER JACK (not shown) External speaker jack, marked EXP SP, is located on the rear panel of transceiver. For use with 4 to 8 ohm external speaker. (27) CW KEY JACK (not shown) The CW key jack is located on the rear panel.
  • Page 13: Specifications

    Power Consumption: 500 milliamps Dimensions: 7.75(L) x 10.75(W) x 2.5(H) Inches © ALAN Electronics GmbH, January 2005 Daimlerstr. 1 k D- 63303 Dreieich www.albrecht-online.de, www.alan-germany.de Service-Hotline : Phone (+49) (0)6103 9481 30 (+49) (0)6103 9481 60 e-mail: service@albrecht-online.de service@alan-germany.de Service-Download: www.hobbyradio.de...
  • Page 14 Frequenzy Table for UltraForce (channel mode activated) Channel Number 25.165 25.615 26.065 26.515 26.965 27.415 27.865 28.315 28.765 29.215 25.175 25.625 26.075 26.525 26.975 27.425 27.875 28.325 28.775 29.225 25.185 25.635 26.085 26.535 26.985 27.435 27.885 28.335 28.785 29.235 3° 25.195 25.645 26.095...
  • Page 15: Declaration Of Conformity

    Declaration of Conformity We hereby declare that our product: 10 m Amateur Radio AM/FM/SSB/CW Transceiver Brand: Albrecht Model: UltraForce satisfies all technical regulations applicable to the product within the scope of EU Council Directives and harmonised European Standards: 73/23/EEC, 89/336/EEC and 99/5/EC...
