SS-UV40 SPECTRA SERIES UV LED
SSUV40_USERS_MANUAL_REV_20200720

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPECTRA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altman SPECTRA Series

Summary of Contents for Altman SPECTRA Series

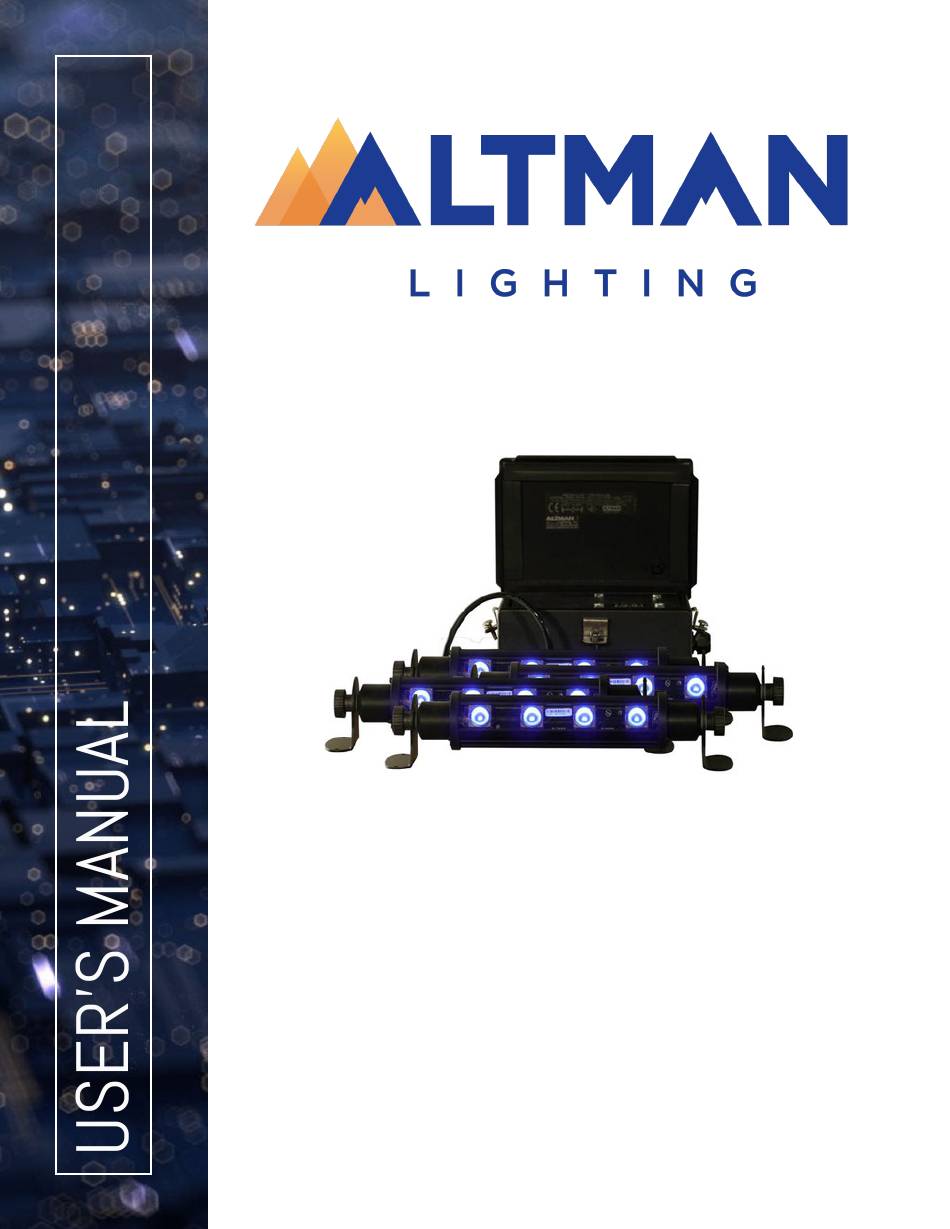

  • Page 1 SS-UV40 SPECTRA SERIES UV LED SSUV40_USERS_MANUAL_REV_20200720...
  • Page 2 Lighting no asume responsabilidad por errores o omisiones que puedan aparecer. Cualquier comentario, sug- erencia o corrección con respecto a este manual, favor de dirijirlo a la oficina de Altman Lighting más cercana. Der Inhalt dieses Handbuches ist nur für Informationszwecke gedacht, Aenderungen sind vorbehalten. Alt- man Lighting uebernimmt keine Verantwortung für Fehler oder Irrtuemer, die in diesem Handbuch auftreten.
  • Page 3 For this reason any current Altman Lighting product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise noted.

  • Page 4: Important Information

    SS-UV40 Installation & Users Manual Important Information Product Safety Notices When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Do not mount near gas or electric heaters. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
  • Page 5 Altman Lighting, Inc., a subsidiary of Altman Stage Lighting Company, Inc., herein referred to as Altman, war- rants each new product (except for spare parts or products Altman does not manufacture) for a period of TWO (2) years from date of shipment to correct by repair or replacement any part defect due to faulty material or workmanship.
  • Page 6 +1-303-500-7072 support@altmanlighting.com The return must be within THIRTY (30) days of receiving the RMA from Altman. Altman warrants for NINETY (90) days any spare part it manufactures. On spare parts or products Altman does not manufacture, such as lamps, sockets, lenses, roundels, electronics, ignitors, ballasts, etc. Altman will grant the same warranty given Altman by its vendors.

  • Page 7: Table Of Contents

    SS-UV40 Installation & Users Manual Table Of Contents Contents Contents Important Information Product Overview Installation And Setup Operation Cleaning And Care Page 7...

  • Page 8: Product Overview

    SS-UV40 Installation & Users Manual Product Overview Description The SS-UV40 LED is comprised of an array of IP65 rated ultraviolet lighting extrusion modules coupled to an IP65 enclosure with a water resistant power supply cord and male and female DMX-512 data supply cords. The overall construction of the fixture includes corrosion protected aluminum housing and includes mounting brackets.

  • Page 9: Installation And Setup

    SS-UV40 Installation & Users Manual Installation And Setup Mounting Control Enclosure & Modules Mounting brackets are provided on the UV LED module for permanent mounting to a wall, floor or ceiling. Use proper length screws or bolts to mount the module in the desired location using all four mounting holes provided on the UV LED module brackets.

  • Page 10: Operation

    Settings Spectra Series Products offer three (3) buttons to program the fixture. All settings for Modes, DMX address, and Personalities can be made by using the three buttons on the back of the unit while power is on. To activate the three digit display, press any of the three button.
  • Page 11 SS-UV40 Installation & Users Manual evenly over the 0-99 display range. NOTE: When entering or exiting fixed intensity mode, the display will go blank. Touch any button to turn on display. LOCKED MODE To Lock (or unlock) the buttons: Wait a few seconds until the display goes blank, Press and hold the [ ONES ] button Press and hold the [ HUNDREDS ] button Release the [ ONES ] button...
  • Page 12 SS-UV40 Installation & Users Manual Once personality is either accepted or rejected, the display will go back to the current DMX address. The default personality for a new unit is #02. EXAMPLE: To select personality #05, enter 605 on the display. After a few seconds the display will show? 05.
  • Page 13 SS-UV40 Installation & Users Manual 612 = Personality #12 16 Bit, Smoothing ON (uses 1 DMX channel) RESOLUTION is selectable as either: • 8 Bit (one DMX channel per color) this is normal resolution, • 16 Bit (two DMX channels per color Coarse+Fine high resolution similar to moving lights). SMOOTHING is selectable as ON or OFF and provides a smooth transition ramp from one level to another in a similar way to how an incandescent lamp behaves.
  • Page 14 SS-UV40 Installation & Users Manual NOTE: When entering or exiting fixed intensity mode, the display will go blank. Touch any button to turn on display. Page 14...

  • Page 15: Cleaning And Care

    SS-UV40 Installation & Users Manual Cleaning And Care Cleaning Routine cleaning of the SS-UV40 lighting fixture will provide years of prolonged use. Use a vacuum to remove any dust and dirt from the lens, electronics and heat sink. For the lens, use a soft lint-free cloth dampened with water to clean the lens of dust and dirt.
