- Page 1 User Manual Thanks for choosing ImportAppliances for your kitchen appliance purchase. We hope you are enjoying the convenience, quality and affordability of your new appliance. If you have any issues or questions, please contact us via email: info@ImportAppliances.com THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
- Page 2 Operating and installation instructions Ceramic hobs with induction To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time. en-GB M.-Nr. 10 023 450 THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
-
Page 3: Table Of Contents
Warning and Safety instructions................ 4 Caring for the environment ................ 13 Guide to the appliance .................. 14 Hob........................14 KM 6328-1...................... 14 KM 6366-1 / KM 6367-1 .................. 15 Controls / Indicators....................16 Cooking zones....................... 18 Before using for the first time ................ 20 Cleaning the hob for the first time................. - Page 4 Safety instructions for installation.............. 46 Safety distances .................... 47 Hob with frame or bevelled edge............... 51 Installation notes ....................51 Building-in dimensions ..................52 KM 6328-1...................... 52 KM 6366-1...................... 53 Installation ......................54 Flush-fitted hobs .................... 55 Installation notes ....................55 Building-in dimensions ..................
-
Page 5: Warning And Safety Instructions
They contain important notes on installation, safety, use and maintenance. Miele cannot be held liable for damage caused by non-compliance with these instructions. Keep these instructions in a safe place and ensure that new users are familiar with the content. - Page 6 Warning and Safety instructions Correct application This hob is intended for domestic use and use in other similar en- vironments. This hob is not intended for outdoor use. It is intended for domestic use only to cook food and keep it warm.
- Page 7 Warning and Safety instructions Safety with children Children under 8 years of age must be kept away from the hob unless they are constantly supervised. Children over 8 years of age may use the hob without supervision if its operation has been clearly explained to them and they are able to use it safely.
- Page 8 Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and re- pairs must only be carried out by a Miele authorised technician. Damage to the hob can compromise your safety. Check the hob for visible signs of damage.
- Page 9 Warning and Safety instructions Miele can only guarantee the safety of the appliance when genu- ine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts. The hob is not intended for use with an external timer switch or a remote control system.
- Page 10 Warning and Safety instructions Correct use The hob gets hot when in use and remains hot for a while after be- ing switched off. There is a danger of burning until the residual heat indicators go out. Oil and fat can overheat and catch fire. Do not leave the hob unat- tended when cooking with oil and fat.
- Page 11 Warning and Safety instructions You could burn yourself on the hot hob. Protect your hands with heat-resistant pot holders or gloves when handling hot pots and pans. Do not let them get wet or damp, as this causes heat to trans- fer through the material more quickly with the risk of scalding or burning yourself.
- Page 12 Warning and Safety instructions Because induction heating works so quickly, the base of the pan could, under certain circumstances, heat up to the temperature at which oil or fat self-ignites within a very short time. Never leave the hob unattended during use! ...
- Page 13 Warning and Safety instructions Cleaning and care Do not use a steam cleaning appliance to clean this hob. The steam could reach electrical components and cause a short cir- cuit. If the hob is built in over a pyrolytic oven, the hob should not be used whilst the pyrolytic process is being carried out, as this could trigger the overheating protection mechanism on the hob (see relev- ant section).
-
Page 14: Caring For The Environment
/ recycling centre for electrical and electronic ap- pliances, or contact your dealer or Miele for advice. You are also respons- ible (by law, depending on country) for deleting any personal data that may be stored on the appliance being disposed of. -
Page 15: Guide To The Appliance

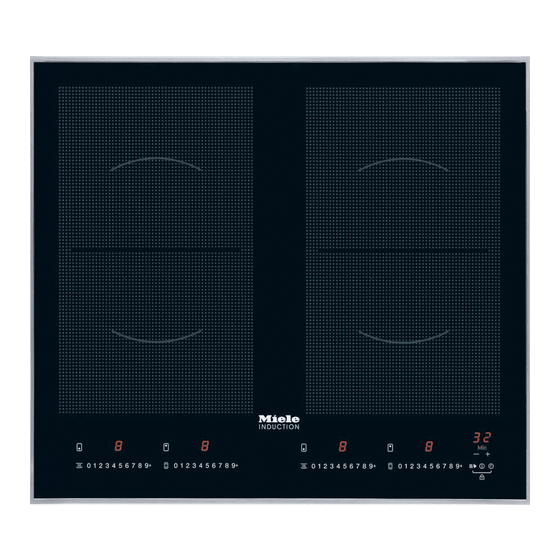

Guide to the appliance KM 6328-1 a PowerFlex cooking zone with TwinBooster b PowerFlex cooking zone with TwinBooster ab can be combined to form a PowerFlex cooking area c PowerFlex cooking zone with TwinBooster d PowerFlex cooking zone with TwinBooster... -
Page 16: Km 6366-1 / Km 6367-1
Guide to the appliance KM 6366-1 / KM 6367-1 a PowerFlex cooking zone with TwinBooster b PowerFlex cooking zone with TwinBooster ab can be combined to form a PowerFlex cooking area c PowerFlex cooking zone with TwinBooster cf can be combined to form a PowerFlex cooking area d PowerFlex cooking zone with TwinBooster de can be combined to form a PowerFlex cooking area e PowerFlex cooking zone with TwinBooster... -
Page 17: Controls / Indicators
Guide to the appliance Controls / Indicators Sensor controls a On/Off b For activating/deactivating Stop&Go ab For activating/deactivating the system lock/safety lock c Timer - For switching on/off - For switching between timer functions - For selecting a cooking zone (see “Switching a cooking zone off automatic- ally”) d For setting a minute minder / switch-off time e For switching the keeping warm function on and off... - Page 18 Guide to the appliance f For setting the power level g For switching the PowerFlex cooking area on and off Indicator lights h The system lock has been activated k Timer i Cooking zone display Cooking zone ready for use ...
-
Page 19: Cooking Zones
Guide to the appliance Cooking zones Cooking zone KM 6328-1 Ø in cm* Rating in watts for 230 V** 15–23 Normal 2100 TwinBooster, level 1 3000 TwinBooster, level 2 3650 15–23 Normal 2100 TwinBooster, level 1 3000 TwinBooster, level 2 3650 ... - Page 20 Guide to the appliance Cooking zone KM 6366-1 / KM 6367-1 Ø in cm* Rating in watts for 230 V** 15–23 Normal 2100 TwinBooster, level 1 3000 TwinBooster, level 2 3650 15–23 Normal 2100 TwinBooster, level 1 3000 TwinBooster, level 2 3650 ...
-
Page 21: Before Using For The First Time
Before using for the first time Please stick the extra data plate for Switching on the hob for the the appliance supplied with this doc- first time umentation in the space provided in The metal components have a protect- the “After sales service”... -
Page 22: Induction
Induction How it works When the appliance is switched on either deliberately or by mistake, An induction coil is located under each or when there is residual heat cooking zone. When a cooking zone is present, there is the risk of any metal switched on, this coil creates a mag- items placed on the hob (e.g. -
Page 23: Noises
Induction Noises When using an induction cooking zone, the following noises can occur in the pan, depending on what it is made of and how it has been constructed. On the higher power settings, it might buzz. This will decrease or cease alto- gether when the power setting is re- duced. -
Page 24: Pans
Induction – Often the maximum diameter quoted Pans by manufacturers refers to the dia- The following pan types are suitable: meter of the top rim of the pot or pan. The diameter of the base (gener- – Stainless steel with a base that can ally smaller) is more important. -
Page 25: Tips On Saving Energy
Tips on saving energy – Use a lid whenever possible to min- imise heat loss. – Select a smaller pan when cooking small quantities. A smaller pan uses less energy than a larger pan with very little in it. – Cook with as little water as possible. –... -
Page 26: Power Level Range
Power level range Setting range Melting butter 1–2 Dissolving gelatine Making milk puddings Warming small quantities of liquid Cooking rice Defrosting frozen vegetables Cooking pulses Warming liquid and semi-solid foods Making omelettes or lightly frying eggs Steaming fruit Cooking dumplings Steaming vegetables, fish Defrosting and reheating frozen food Bringing large quantities of food to the boil, e.g. -
Page 27: Operation
Operation How the hob is operated Malfunction due to dirty and/or covered sensor controls. The glass ceramic hob is equipped with If the sensor controls are dirty or electronic sensor controls which react covered this could cause them to fail to finger contact. -
Page 28: Switching On
Operation Residual heat indicator Risk of fire with overheated food. Unattended food can overheat and If the cooking zone is still hot, the resid- catch alight. ual heat indicator will light up after it has been switched off. Do not leave the hob unattended whilst it is being used. -
Page 29: Powerflex Cooking Area
Operation PowerFlex cooking area The PowerFlex cooking zones can be combined to form a PowerFlex cooking area (see “Guide to the appliance - Hob”). Settings for the linked cooking area are controlled by the front or the left PowerFlex cooking zone (depending on model). -
Page 30: Auto Heat-Up
Operation Auto heat-up Continued cook- Heat-up time ing setting [min : sec] When Auto heat-up has been activated, the cooking zone switches on automat- approx. 0 : 15 ically at the highest power setting and approx. 0 : 15 then switches to the continued cooking setting. -
Page 31: Booster
Operation Cooking zones are networked in pairs Booster to supply the power for the booster The cooking zones are equipped with a function. When the booster function is Booster or TwinBooster (see “Guide to selected, a proportion of energy is the appliance –... - Page 32 Operation To switch on the Booster Switching off the Booster / Twin- Booster Touch the 9 sensor for the cooking Select a different power level. zone you wish to use twice. will appear in the cooking zone dis- play.
-
Page 33: Keeping Warm
Operation Switching the keep-warm setting on/ Keeping warm This function is for keeping food warm Touch the sensor for the cooking which has just been cooked and is still zone you wish to use. hot. It is not for reheating food that has gone cold. -
Page 34: Timer
Timer Switching a cooking zone off You can select a time up to a max- automatically imum of 99 minutes. You can set a time at the end of which a The timer can be used for two different cooking zone will switch off automatic- functions: ally. -
Page 35: Using Both Timer Functions At The Same Time
Timer If you want to show the times remaining Using both timer functions at which are counting down in the back- the same time ground: The minute minder and automatic Touch the sensor repeatedly until switch-off functions can be used at the the display you require appears. -
Page 36: Additional Functions
Additional functions Stop&Go Recall When Stop&Go is activated, the power If the hob is accidentally switched off of all cooking zones in use is reduced to during use, you can use this function to power level 1. restore all the settings. The hob must The cooking zone power levels and the be switched on again within 6 seconds. -
Page 37: Safety Features
Safety features System lock The system lock is deactivated if there is an interruption to the power supply. Your hob is equipped with a system lock to prevent it being switched on by mistake. If an unavailable sensor is touched whilst the system lock is activated ... -
Page 38: Safety Switch-Off
Safety features Safety switch-off if the sensors are Safety switch-off covered Safety switch-off with an overlong Your hob will switch off automatically if cooking time one or several sensors remain covered The safety switch-off mechanism is for more than about 10 seconds, for ex- triggered automatically if one of the ample by finger contact, food boiling cooking zones is heated for an unusu-... -
Page 39: Overheating Protection
– the set power level will be reduced. If, despite removing the cause, the – the cooking zone will switch off auto- overheating protection mechanism trig- matically. will flash in the display. gers again, contact Miele Service. THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE. -
Page 40: Cleaning And Care
Cleaning and care Clean the hob after every use. Risk of burning due to hot cook- ing zones. Dry the hob thoroughly after cleaning with water to avoid limescale residue. The cooking zones will be hot after use. - Page 41 Then clean the ceramic glass surface still hot, using a scraper blade suit- with the Miele ceramic and stainless able for use on glass. steel hob cleaner (see “optional ac- Afterwards, clean the ceramic surface cessories”) or with a proprietary...
-
Page 42: Problem Solving Guide
There is no power to the hob. zones will not switch Check whether the mains fuse has tripped. Con- tact an electrician or Miele Service (for the min- imum fuse rating, see data plate). There may be a technical fault. - Page 43 and numbers are The hob is incorrectly connected. flashing in the cooking Contact Miele. The hob must be connected to the zone displays and a mains according to the wiring diagram. tone sounds. THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
- Page 44 There is an electronic unit fault. Interrupt the power supply to the hob for approx. 1 minute. If the problem persists after power has been re- stored, please contact Miele. THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
-
Page 45: Optional Accessories
Miele dealer. Microfibre cloth Pans Miele offer a wide range of pans which are perfect for Miele hobs. Please refer to the Miele website for more details on individual products. Removes finger marks and light soiling –... -
Page 46: Con@Ctivity
(see the operating and installation in- connected hob. structions for the cooker hood). Further information regarding Con@ctiv- ity is available on the Miele internet and in the instruction manuals of the various components. Signing on To sign the hob on to Con@ctivity, first sign on the cooker hood. -
Page 47: Safety Instructions For Installation
Safety instructions for installation Damage risk from incorrect installation. Incorrect installation can cause damage to the hob. The hob must only be installed by a qualified person. Risk of electric shock. Incorrect connection to the mains supply may result in an electric shock. The hob must be connected to the electrical supply by a qualified person only. -
Page 48: Safety Distances
Safety distances Safety distance above the hob A minimum safety distance must be maintained between the appliance and the cooker hood above it. See the cooker hood manufacturer's operating and installation instructions for details. If the manufacturer's instructions are not available for the cooker hood or if any flammable objects (e.g. - Page 49 Safety distances Safety distances to the sides and back of the hob Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear or a tall unit or wall on one side (right or left) (see illus- trations).
- Page 50 Safety distances Minimum safety distances un- Interim shelf derneath the hob It is not necessary to fit an interim shelf underneath the hob but one may be fit- To ensure sufficient ventilation to the ted if you wish. hob, a certain gap must be left between the underside of the hob and any oven, Leave a gap of 10 mm at the back of interim shelf or drawer.
- Page 51 Safety distances Safety distance when installing the appliance near a wall with additional niche cladding A minimum safety distance must be maintained between the worktop cut-out and any niche cladding to protect it from heat damage. If the niche cladding is made from a combustible material (e.g. wood) a minimum safety distance ...
-
Page 52: Hob With Frame Or Bevelled Edge
Hob with frame or bevelled edge Tiled worktop Installation notes Seal between the hob and the work- Grout lines and the hatched area un- derneath the hob frame must be smooth and even. If they are not the hob will not sit flush with the worktop and the sealing strip underneath the Do not use sealant between the hob hob will not provide a good seal... -
Page 53: Building-In Dimensions
Hob with frame or bevelled edge Building-in dimensions KM 6328-1 a Front b Casing depth c Mains connection box d Con@ctivity connection Mains connection cable (1440 mm long), supplied separately THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE. -
Page 54: Km 6366-1
Hob with frame or bevelled edge KM 6366-1 a Front b Casing depth c Mains connection box d Con@ctivity connection Mains connection cable (1440 mm long), supplied separately THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE. -
Page 55: Installation
Hob with frame or bevelled edge Install the hob Installation Feed the mains connection cable Prepare the worktop down through the cut-out. Create the worktop cut-out as shown Place the hob centrally in the cut-out. in the building-in diagram. Remember When doing this make sure that the to maintain the minimum safety dis- seal of the appliance sits flush with... -
Page 56: Flush-Fitted Hobs
Flush-fitted hobs The hob can be installed Installation notes – in a suitable cut-out in a natural stone Flush fit hobs are only suitable for in- worktop. stallation in natural stone (granite, marble), tiled or solid wood worktops. – in a suitable cut-out in a tiled or solid Certain models are suitable for build- wood worktop or a glass worktop ing into glass worktops - please see... -
Page 57: Building-In Dimensions
Flush-fitted hobs Building-in dimensions KM 6367-1 a Front d Stepped cutout b Casing depth e Con@ctivity connection c Mains connection box Mains connection cable (1440 mm long), supplied separately Please observe the detailed diagrams for cut-out dimensions in natural stone worktops. -
Page 58: Installation
Flush-fitted hobs Solid wood, tiled and glass worktops Installation Natural stone worktops a Worktop a Worktop b Hob b Hob c Gap c Gap d Wooden frame 13 mm (to be provided on site) As the ceramic glass and the worktop cut-out have a certain dimensional tol- As the ceramic glass and the worktop erance, the size of gap ... - Page 59 Flush-fitted hobs Prepare the worktop Create the worktop cut-out as shown in the hob and inset diagrams. Re- member to maintain the minimum safety distances (see “Safety dis- tances”). Solid wood, tiled and glass worktops: Fix a wooden frame 7 mm below the top edge of the worktop (see dia- gram).
-
Page 60: Electrical Connection
It must match the household erable danger for the user. supply. Miele cannot be held liable for dam- age or injury caused by unauthorised Please see wiring diagram for connec- installation, maintenance or repair tion. - Page 61 Residual current device (RCD) nection cable, type H 05 VV-F (PVC-in- Switch the main switch from 1 (on) to sulated), available from Miele. 0 (off) or press the test button. The connection data is quoted on the data plate.
- Page 62 Electrical connection Wiring diagram a b c d e 200-240 V~ 200-240 V~ 200-240 V~ (L3) 200-240 V~ 200-240 V~ b c d (L2) 200-240 V~ THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
-
Page 63: After Sales Service
In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or Miele Service. Contact information for Miele Service can be found at the end of this document. Please note that telephone calls may be monitored and recorded for training pur- poses and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet. -
Page 64: Product Data Sheets
Information for domestic electric hobs In acc. with regulation (EU) No. 66/2014 MIELE Model name / identifier KM 6328-1 Number of cooking zones and/or areas For circular cooking zones: diameter of useful sur- 1. = 230x390 mm face area/cooking zone 2. - Page 65 Product data sheets Information for domestic electric hobs In acc. with regulation (EU) No. 66/2014 MIELE Model name / identifier KM 6367-1 FL.BDG. Number of cooking zones and/or areas For circular cooking zones: diameter of useful sur- 1. = 230x390 mm face area/cooking zone 2.
