CAMDEN CV-110SPK Installation Instructions Manual

1. Packing List
Qty Name
1 Keypad
1 User manual
1 Screwdriver
2 Wall plugs
2 Self-tapping screws
1 Torx screw
2. Description

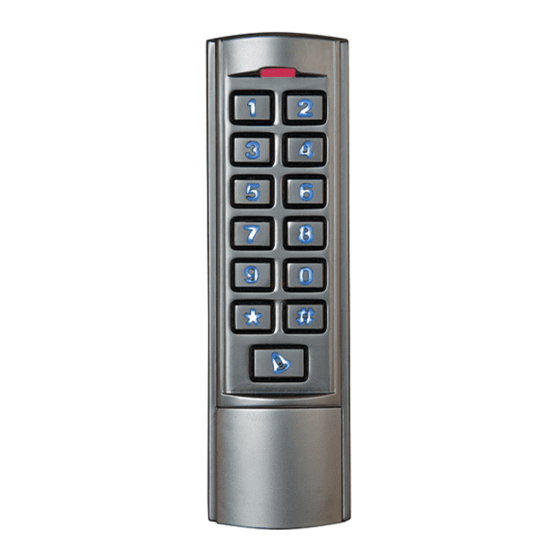

The CV-110SPK is a single door multifunction standalone
keypad with a wiegand output for interfacing to an access
control system or remote card reader. It is suitable for
mounting either indoor or outdoor in harsh environments.
It is housed in a strong, sturdy and vandal proof Zinc Alloy
electroplated case. The electronics are fully potted so the
unit is waterproof and conforms to IP68. This unit supports
up to 2000 users in either a Card, 4 digit PIN, or a Card +
PIN option. The built-in prox card reader supports 125KHZ
EM cards. The unit has many extra features including lock
output current short circuit protection, wiegand output, and a
backlit keypad. These features make the unit an ideal choice
for commercial and industrial applications such as factories,
warehouses, laboratories, banks and prisons.
Standalone Keypad/Prox Access Control
Remarks
0.8" x 2.4"Φ(20 mm×60 mm)
0.24" x 1.2"Φ (6 mm×30 mm)
0.16" x 1.1"Φ(4 mm×28 mm)
0.12" x 0.24"Φ(3 mm×6 mm)
Installation Instructions
5 15 "
16
[150mm]
1 3 4 " [44mm]
3. Features
• 2000 users, supports Card, PIN, Card + PIN
• Backlit keys
• Zinc Alloy Electroplated anti-vandal case
• Waterproof, conforms to IP68
• Easy to install and program
• Wiegand 26 output for connection to a controller-
• Full programming from the keypad
• Can be used as a stand-alone keypad
• Wiegand 26 input for connection to external reader
• Adjustable Door Output time, Alarm time, Door Open time
• Very low power consumption (30mA)
• Fast operating speed, <20ms with 2000 users
• Lock output current short circuit protection
• Built in light dependent resistor (LDR) for anti-tamper
• Built in buzzer
• Red, Yellow and Green LEDS status indicators
Page 1 of 8
CV-110SPK
1 2
3 4
5 6
7 8
9 0
*
#
