Air Conditioning Control System

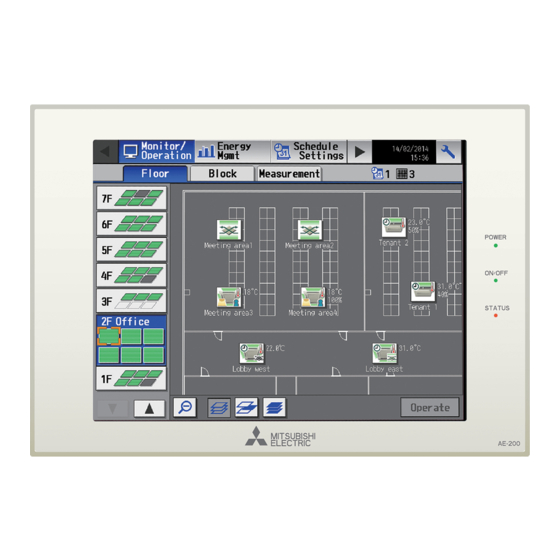

Centralized Controller
AE-200A/AE-50A/EW-50A
AE-200E/AE-50E/EW-50E
Update Tool
Before using the controller,
please read this Instruction
Book carefully to ensure proper
operation.
Retain this manual for future
reference.
For distribution to dealers and contractors
Contents
1. Introduction .........................................................................3
1-1. What is AE-200 Update Tool? .....................................................3
1-2. PC requirements .........................................................................3
1-3. System descriptions ....................................................................4
1-4. System restrictions .....................................................................5
2. Preparation .........................................................................6
2-1. How to obtain the update file ......................................................6
2-2. Installation procedures of Update Tool........................................6
2-3. Setting the PC's IP address ........................................................8
2-4. Installation procedures of .NET Framework ................................9
3. Usage instructions ............................................................10
3-1. Main screen ..............................................................................11
3-2. Inputting the IP addresses of centralized controllers ................13
3-3. Checking the versions of the centralized controllers ................15
3-4. Selecting the update file ...........................................................17
3-5. Updating the centralized controllers .........................................18
3-6. Saving the IP addresses of centralized controllers ...................21
4. Troubleshooting ................................................................22
<ORIGINAL>
Instruction Book
Advertisement
Table of Contents
Related Manuals for Mitsubishi AE-200A
Summary of Contents for Mitsubishi AE-200A
-
Page 1: Table Of Contents
<ORIGINAL> Air Conditioning Control System Centralized Controller AE-200A/AE-50A/EW-50A AE-200E/AE-50E/EW-50E Update Tool Instruction Book For distribution to dealers and contractors Contents 1. Introduction .................3 1-1. What is AE-200 Update Tool? .............3 1-2. PC requirements .................3 1-3. System descriptions ..............4 1-4. System restrictions ..............5 2. - Page 2 Terms used in this manual - “Centralized Controller AE-200A/AE-200E” is referred to as “AE-200”. - “Centralized Controller AE-50A/AE-50E” is referred to as “AE-50”. - “Centralized Controller EW-50A/EW-50E” is referred to as “EW-50”. WT08302X01...
-
Page 3: Introduction
1. Introduction 1-1. What is AE-200 Update Tool? Update Tool is a tool that can update the software of all AE-200/AE-50/EW-50 controllers that are connected in the air conditioning control system at once. Update file AE-200/AE-50/EW-50 Update file Max. 50 controllers AE-200/AE-50/EW-50 Update file AE-200/AE-50/EW-50... -
Page 4: System Descriptions
1-3. System descriptions The system configuration image is shown below. AE-200 AE-200 AE-50/EW-50 AE-50/EW-50 AE-50/EW-50 AE-50/EW-50 AE-50/EW-50 AE-50/EW-50 AE-50/EW-50 AE-50/EW-50 Max. 50 controllers Important • When connecting the AE-200/AE-50/EW-50 via a LAN, be sure to use the “LAN1” port. WT08302X01... -
Page 5: System Restrictions
1-4. System restrictions • AE-200 Update Tool is exclusively used for AE-200/AE-50/EW-50. Do not use this tool for other products. • The AE-200/AE-50/EW-50 software cannot be downgraded to an earlier version. • Up to 50 AE-200/AE-50/EW-50 controllers can be updated at the same time. Note •... -
Page 6: Preparation
2. Preparation 2-1. How to obtain the update file For how to obtain the latest update file, contact the dealer from which the Update Tool was obtained. 2-2. Installation procedures of Update Tool Important • If your OS is Windows 7, check beforehand that .NET Framework version 4.0 or later is installed. Refer to section 2-4 “Installation procedures of .NET Framework”... - Page 7 5. The “Select Installation Folder” screen will appear. Select the save destination folder and click [Next]. Note • To allow all users who can login the PC to have access to the Update Tool, check that the [Everyone] checkbox is selected and then click [Next].
-
Page 8: Setting The Pc's Ip Address
2-3. Setting the PC’s IP address Set the PC’s IP address so that settings data can be sent from the Update Tool to the AE-200/AE-50/EW-50. When setting the PC’s IP address, set a network address in the same system as the IP address for the AE-200/AE-50/EW-50. -
Page 9: Installation Procedures Of .Net Framework
5. In the [Internet Protocol Version 4 (TCP/IPv4) Properties] window, check the radio button next to [Use the following IP address]. 6. Enter the PC’s IP address (e.g., [192.168.11.150]) in “IP address”. 7. Enter the subnet mask [255.255.255.0] (unless otherwise specified) in “Subnet mask”. -
Page 10: Usage Instructions
3. Usage instructions See the entire flowchart below to use the Update Tool. For details of each process, refer to the reference section shown in the table below. (1) Main screen (2) Inputting IP address of centralized controller Click “Acquire data”. (3) Checking the version of the centralized controller (4) Selecting the update file Click “Update”. -
Page 11: Main Screen
3-1. Main screen 3-1-1. Screen configuration When the Update Tool is started up, a main screen will appear. ① Menu bar ② Update file selection ⑤ Centralized controller status ③ IP address setting ⑦ [Update] ④ Centralized controller system information ⑥... - Page 12 3-1-2. List of menu bar operations Help Displays [4] version information File of this software. Executes [1] Open TXT file, [2] Save TXT file, and [3] Exit Update Tool. [1] Open TXT file Click [File] > [Open] in the menu bar to load the TXT file in which the destination IP addresses are entered. [2] Save TXT file Click [File] >...
-
Page 13: Inputting The Ip Addresses Of Centralized Controllers
3-2. Inputting the IP addresses of centralized controllers 3-2-1. When inputting IP addresses directly Procedures 1. Enter the IP address of the centralized controller to be updated in each “Destination IP address” column. Important • Enter the IP address in one-byte characters in the following formula. [XXX.XXX.XXX.XXX] (XXX: Integer number between 0 and 255) Example: [192.168.1.1] Do not enter any characters other than the above (including tab and space). - Page 14 2. Click [File] > [Open]. 3. A screen to select a file will appear. Select the TXT file that was created in step 1 above, and click [Open]. 4. The IP addresses of the centralized controllers to be updated will be loaded and displayed in the “Destination IP address”...
-
Page 15: Checking The Versions Of The Centralized Controllers
3-3. Checking the versions of the centralized controllers Procedures 1. Click [Acquire data]. 2. The information shown in the next page will appear in the “Status” column for each destination IP address. WT08302X01... - Page 16 Display information in the “Status” column Explanation Acquiring data... The centralized controller data are being acquired. The message will appear in black. Data acquisition succeeded The centralized controller data have been successfully acquired. The message will appear in black. When the data acquisition is successfully completed, the model name, version, and serial number of the centralized controller will be displayed on the main screen.
-
Page 17: Selecting The Update File
3-4. Selecting the update file Procedures 1. Click [Browse...]. 2. A screen to select a file will appear. Select the update file, and click [Open]. 3. If the update file exists, the file name will be displayed in the text box. Note •... -
Page 18: Updating The Centralized Controllers
3-5. Updating the centralized controllers Procedures 1. Click [Update] to display the “Authentication information input” screen. 2. Enter the ID and password for initial settings for the centralized controller to be updated. If the ID and password are the same as the ones for the centralized controller No. 1, check the checkbox next to [Same as No. - Page 19 4. The update status will appear in the “Status” column of the main screen. Display information in the “Status” column Explanation Display order Authentication succeeded The centralized controller authentication has been successfully completed. The message will appear in black. Authentication failed The centralized controller authentication has failed.
- Page 20 Note • The following is the approximate time required for update. The time varies with the number of centralized controllers and software versions. Time required for update [min] Number of centralized Ver. 7.24 or earlier Ver. 7.31 or later controllers to be updated •...
-
Page 21: Saving The Ip Addresses Of Centralized Controllers
3-6. Saving the IP addresses of centralized controllers 1. Click [File] > [Save]. 2. A screen to select a file will appear. Specify any arbitrary name in “File name”, and click [Save]. Note • When the saving the IP addresses is completed, the following window will appear. WT08302X01... -
Page 22: Troubleshooting
4. Troubleshooting See the table below and troubleshoot accordingly. Problem Possible cause Solution An error occurs • The TXT file is not • Check if the TXT file when the TXT file created according to is created according is loaded. the specified format. - Page 23 Problem Possible cause Solution An error occurs • The data acquisition • Check the when [Update] is of all centralized “Destination IP clicked on the main controllers has not address” and “Status” screen. been completed. columns of the main screen to see if there are any centralized controllers whose data have not been...
- Page 24 Problem Possible cause Solution An error occurs • The LAN connection • Check for proper LAN when the with the centralized connection between centralized controller is cut off. the PC with the controllers are • The ID and password Update Tool installed updated.
- Page 25 WT08302X01...
- Page 26 WT08302X01...
- Page 27 WT08302X01...
- Page 28 Please be sure to put the contact address/telephone number on this manual before handing it to the customer. HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN MANUFACTURER: MITSUBISHI ELECTRIC CORPORATION Air-conditioning & Refrigeration Systems Works WT08302X01 5-66, Tebira 6 Chome, Wakayama-city, 640-8686, Japan...
