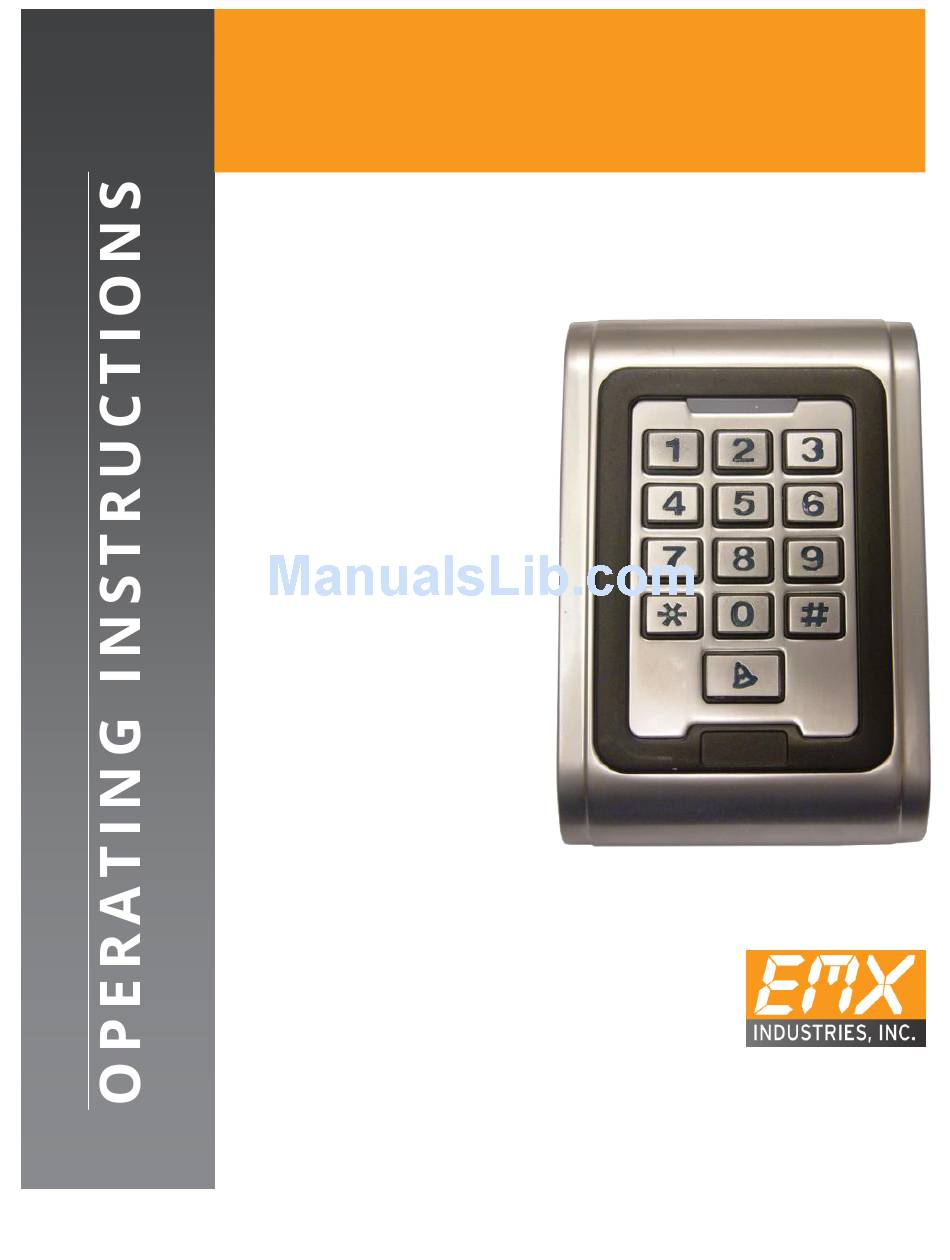

- Page 1 CR-2000 K E Y P A D / C A R D R E A D E R 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com www.emxinc.com...
-
Page 2: Table Of Contents
Contents Product Overview Indicators and Controls Specifications Connections Installation Programming Ordering Information Warranty CR-2000 Instructions Rev 1.5 Date 6/28/2018... -
Page 3: Product Overview
Product Overview The CR-2000 is an inductive contact-less card reader in a metal water proof housing that also acts as a keypad control. The CR-2000 provides safe secure access control for any combination of 2000 users by the use of the Mifare pass card or individual user pass codes. -
Page 4: Specifications
AC/DC+ Power 9-25V DC + Input AC/DC- Black Power 9-25V DC - Input Blue Relay Internal Contact (Normally Open) Purple Relay Internal Contact (Common) Orange Relay Internal Contact (Normally Closed) Shield Ground (Earth Ground) CR-2000 Instructions Rev 1.5 Date 6/28/2018... - Page 5 Connections (Continued) CR-2000 Instructions Rev 1.5 Date 6/28/2018...
-
Page 6: Installation
3. Make sure wires are routed so they are not damaged or shorted 4. Make connections per site requirements see schematics (Figure 2.0, 2.1, 2.2) 5. Install front cover to back cover and tighten unit in place. 6. Proceed to programming CR-2000 Instructions Rev 1.5 Date 6/28/2018... -
Page 7: Programming
You are still in program mode indicated by the solid RED light. You may exit the program mode by pressing the key or wait until the unit has timed out, indicated by flashing RED light. CR-2000 Instructions Rev 1.5 Date 6/28/2018... - Page 8 A. If door is ajar after 1 minute the alarm will trip sounding the built in buzzer for 1 minute and then turn off. B. If door is forced open the built in alarm and the external alarm will trigger. CR-2000 Instructions Rev 1.5 Date 6/28/2018...
- Page 9 11. Administrator Functions 11.1 Remove Alarms See section 1 page 3 Enter administrator password # 11.2 Administering users, passwords, alarm settings, timing functions CR-2000 Instructions Rev 1.5 Date 6/28/2018...
- Page 10 12.2 Press the # button 12.3 Restore power while holding the # button for 4 seconds 12.4 The CR-2000 will beep twice 12.5 Release the # button 12.6 Reset should be complete Note: Restoring to factory setting will not delete user(s) data.
-
Page 11: Ordering Information
EMX Industries option of a part or parts found not conforming to the warranty. In no event shall EMX Industries Inc. be liable for damages, including but not limited to damages resulting from non-conformity, defect in material or workmanship. - Page 12 BLANK PAGE CR-2000 Instructions Rev 1.5 Date 6/28/2018...
- Page 13 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America www.emxinc.com Technical Support: (216) 834-0761 technical@emxinc.com Sales: (216) 518-9888 Fax: (216) 518-9884 salessupport@emxinc.com CR-2000 Instructions Rev 1.5 Date 6/28/2018...
