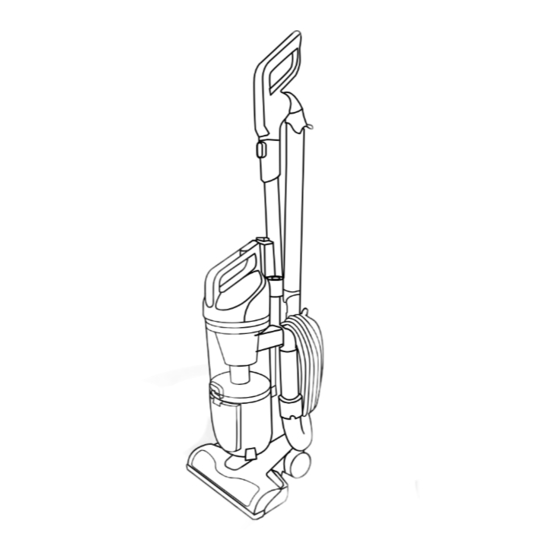

Dirt Devil Lift + Go UD70300B Manual

Dual cyclonic upright and vac+dust floor tool with swipes
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

LIFT+GO
Dual Cyclonic Upright and
Vac+Dust Floor Tool with SWIPES
TM
Model # UD70300B
MANUAL
#961151122 ID109041 R1 2/14
©2014 All rights reserved
Español - página E1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lift + Go UD70300B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dirt Devil Lift + Go UD70300B

Summary of Contents for Dirt Devil Lift + Go UD70300B

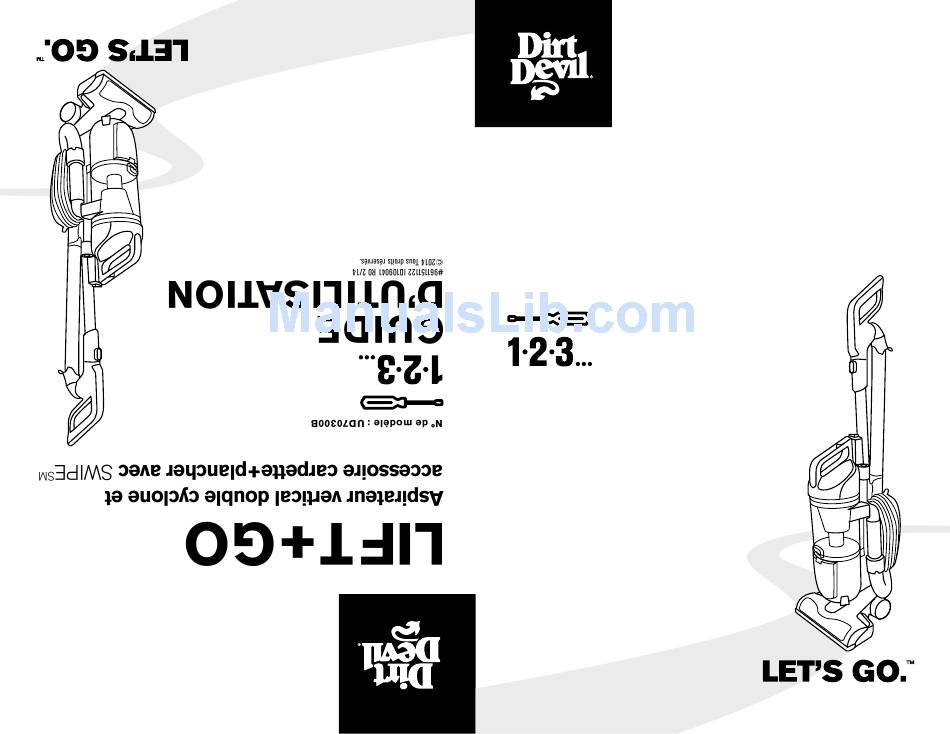

  • Page 1 LIFT+GO Dual Cyclonic Upright and Vac+Dust Floor Tool with SWIPES Model # UD70300B MANUAL #961151122 ID109041 R1 2/14 ©2014 All rights reserved Español - página E1...

  • Page 2: Product Registration

    Be sure to register your product online at www.DirtDevil.com or call 1-800-321-1134 to register by phone. Hint: Attach your sales receipt to this Owner’s manual. Verification of date of purchase may be required for warranty service of your Dirt Devil product. ®...
  • Page 3 TABLE OF CONTENTS Quick Start Assembly Tools 9-12 How to 13-19 Troubleshooting Limited Warranty...
  • Page 4 IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIALLY WARRANTY IS VOID. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
  • Page 5 • Not to be used for grooming a pet. • WARNING: This product contains chemicals, known to the State of California to cause cancer and birth defects or other reproductive harm. WASH HANDS AFTER USING CAUTION: TO REDUCE THE RISK OF DAMAGE: •...

  • Page 6: Need Help

    NEED HELP? Go to dirtdevil.com/support or contact our Customer Service Department at (800) 321-1134 8:00 a.m. - 7:00 p.m. EST Mon. - Fri. or Sat. 10:00 a.m. - 6:00 p.m. EST. POP THE WAND INTO THE BASE. SNAP SECURE YOUR HOSE HERE PRESS THE 2 TABS ON THE AND HERE.
  • Page 7 WRAP ATTACH THE TOOLS* HERE NOW, WRAP THE CORD AND HERE. AROUND THE HOOKS. POWER HOLD HERE WITH FOOT AND PRESS HERE TO POWER UP. PULL BACK ON THE HANDLE. (I=ON), (0=OFF) *Available on select models.
  • Page 8 PRESS HERE AND HERE NOW LIFT+GO TO CLEAN TO REMOVE WAND (1) AND HARD TO REACH PLACES. CANISTER (2). YOUR LIFT+GO IS READY TO NEED HELP? Go to dirtdevil.com/support or CLEAN! contact our Customer Service Department at (800) 321-1134 8:00 a.m. - 7:00 p.m. EST Mon. - Fri. or Sat.
  • Page 9 ON-DEMAND CLEANING WAND 1. Press the wand release 2. Pull wand up & out. button here. 3. Push on tools for convenient cleaning. When you’re done, twist & pull to take them off.
  • Page 10 WARNING CAUTION Unplug vacuum before connecting Not to be used for hose, wand or tools. grooming a pet. COMPLETE ON-BOARD TOOLKIT 2-in-1 Combo Tool: Use the Crevice Tool for tight spaces, corners and along stair edges and baseboards. Try the Dusting Brush for furniture, table tops, lamps, blinds and more.

  • Page 11: Stair Cleaning

    STAIR CLEANING The tools make stair cleaning easy. Use the Turbo Tool* for carpeted stairs. For hard surfaced stairs use the 2-in-1 Combo tool. CAUTION Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor.
  • Page 12 ABOVE FLOOR CLEANING WITH SWIPES ™ Trap dust and debris with DirtLock Technology. ™ The Dusting Pad can easily be removed to convert to a PET tool that works great on upholstery. The tool can bend up to 150º making it perfect for cleaning ceiling fans and tough to reach areas of your home.

  • Page 13: Empty The Dirt Cup

    WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. EMPTY THE DIRT CUP 1. Dump the dirt when it’s full. 2. Push the release button then pull out the dirt cup. Full 3. Now, ditch the dirt by pushing 4.

  • Page 14: Clean The Rinsable Filter

    WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. CLEAN THE RINSABLE FILTER 1. Twist and open the dirt cup. 2. See the fabric tab on the filter? Pull it. TWIST & UNLOCK 3. Rinse with water until the dirt 4.

  • Page 15: Clean The Exhaust Filter

    WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. CLEAN THE EXHAUST FILTER 1. Pop the dirt cup off. 2. Push the tab on the front of the cover to pivot out. 3. Lift out filter, dust off then rinse 4.

  • Page 16: Clean The Cyclonic Filter Assembly

    WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

  • Page 17: Clean The Brushroll

    Remove any debris and/or hair from brushroll. For additional maintenance required for belt or brushroll please contact DIRT DEVIL ® customer service at 1-800-321- 1134. LUBRICATION: The motor and brushroll are equipped with bearings which contain sufficient lubrication for their lifetime.
  • Page 18 CLEAN THE HOSE 1. Press the 2 tabs on the hose 2. Align notch on hose to the for removal. Clean out any body. Push until it clicks. debris in the hose. SNAP CLICK WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing.
  • Page 19 WARNING To reduce the risk of injury from moving parts - unplug before servicing. CLEAN THE TURBO TOOL* 1. Remove Turbo tool* 2. Lift cover and clear out from vacuum and slide the clog. off the rubber O-Ring. 0-ring 3. Replace cover by 4.
  • Page 20 Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use. WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing.

  • Page 21: Limited Warranty

    Warranty Period, We will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada. HOW TO MAKE A WARRANTY CLAIM If this product is not as warranted, take or send the product to a Dirt Devil ® Authorized Warranty Service Dealer along with proof of purchase.
  • Page 22 Find GENUINE Replacement Parts at www.dirtdevil.com This product uses the following parts: PRE-MOTOR FILTER EXHAUST FILTER Call our Customer OUR VACS Service Department SPEAK VOLUMES (800) 321-1134 8:00 a.m. - 7:00 p.m. EST Mon. - Fri. or Sat. 10:00 a.m. - 6:00 p.m. EST. Facebookcom/DirtDevil www.dirtdevil.com Twitter@DirtDevil...
  • Page 23 LIFT+GO Accesorio vertical ciclónico dual y accesorio para piso Vac+Dust con SWIPES™ Modelo # UD70300B MANUAL #961151122 ID109041 R1 2/14 ©2014 Todos los derechos reservados.

  • Page 24: Registro Del Producto

    Sugerencia: Adjunte el recibo de compra a este manual del propietario. Es posible que se necesite verificar la fecha de compra para hacer válido el servicio de garantía de su producto Dirt Devil®. Para una referencia rápida, registre la información de su electrodoméstico a continuación.

  • Page 25: Resolución De Problemas

    ÍNDICE Guía de inicio rápido E6-E8 Si necesita piezas de repuesto originales, visite Accesorios E9-E12 en www.dirtdevil.com Cómo utilizar E13-E19 Este producto utiliza las siguientes piezas: FILTRO PREVIO AL MOTOR FILTRO DE ESCAPE Resolución de problemas NUESTRAS ASPIRADORAS Garantía limitada HABLAN POR SÍ...

  • Page 26: Garantía Limitada

    USAR ESTE APARATO LO QUE ESTÁ CUBIERTO POR ESTA GARANTÍA Siempre que el uso y el mantenimiento de su producto Dirt Devil® se realicen en condiciones de uso ADVERTENCIA: PARA REDUCIR EL RIESGO doméstico normales y según el Manual del usuario, el producto estará garantizado contra defectos originales en el material y la fabricación.

  • Page 27: Después De Utilizar

    • Tenga especial cuidado al limpiar escaleras. Para evitar lesiones per- sonales o daños, y evitar que la aspiradora se caiga, siempre colóquela al pie de la escalera o sobre el suelo. No coloque la aspiradora sobre escaleras ni muebles, ya que puede ocasionar lesiones o daños. •...

  • Page 28: Necesita Ayuda

    ADVERTENCIA LIMPIE EL ACCESORIO Para reducir el riesgo de lesiones causadas por las TURBO COLOCAR partes móviles, desconecte antes de dar servicio. 1. Retire el accesorio ¿NECESITA AYUDA? turbo* de la aspiradora Visite dirtdevil.com/support y deslice el anillo de 2. Levante la tapa y limpie la o comuníquese con nuestro sujeción de goma para obstrucción.
  • Page 29 LIMPIE LA MANGUERA 1. Presione las 2 lengüetas de 2. Alinee la muesca de la la manguera para eliminar la manguera con el cuerpo de la suciedad. Retire los residuos aspiradora. Presione hasta que ENROLLAR que puedan quedar atascados oiga un clic. en la manguera.
  • Page 30 ADVERTENCIA Para reducir el riesgo de lesiones causadas por las partes móviles, desconecte antes de dar servicio. LIMPIE EL CEPILLO GIRATORIO 1. Voltee la Lift+Go de modo que la parte inferior mire hacia arriba. Retire cualquier residuo y/o cabello del cepillo giratorio.
  • Page 31 ADVERTENCIA Cualquier otra tarea de mantenimiento debe ser realizada por un representante de mantenimiento TUBO DE LIMPIEZA POR SOLICITUD autorizado. Advertencia: para reducir el riesgo de lesiones Si el aparato no está funcionando adecuadamente, se personales, desconecte antes de dar servicio. dejó...
  • Page 32 ADVERTENCIA PRECAUCIÓN Desconecte la aspiradora antes de No se debe utilizar para acicalar conectar la manguera, el tubo o los mascotas. ADVERTENCIA accesorios. LIMPIE EL FILTRO DE Advertencia: para reducir el riesgo de lesiones KIT DE ACCESORIOS COMPLETOS INTEGRADOS ESCAPE personales, desconecte antes de dar servicio.

  • Page 33: Limpieza De Escaleras

    ADVERTENCIA LIMPIEZA DE LIMPIE EL FILTRO Advertencia: para reducir el riesgo de lesiones ESCALERAS ENJUAGABLE personales, desconecte antes de dar servicio. 1. Gire y abra el contenedor para 2. ¿Ve la lengüeta de tela del Los accesorios permiten limpiar polvo. filtro? Jálela.

  • Page 34: Vacíe El Contenedor Para Polvo

    LIMPIEZA DE SUPERFICIES SUPERIORES CON SWIPES™* ADVERTENCIA Advertencia: para reducir el riesgo de lesiones VACÍE EL CONTENEDOR La tecnología DirtLock™ atrapa el polvo y los desechos. personales, desconecte antes de dar servicio. PARA POLVO El paño quitapolvo se puede retirar fácilmente para convertirse en un accesorio para aspirar el pelo de los 1.
