Pro Power
Carpet + Hard Floor Cyclonic Upright
Model # UD70172
MANUAL
# 961151967 / ID115045 / R0 6/15
964A00125
©2015 All rights reserved
Español - página E1
REMANUFACTURED
UD70172RM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Power UD70172RM and is the answer not in the manual?

Questions and answers

Summary of Contents for Dirt Devil Pro Power UD70172RM

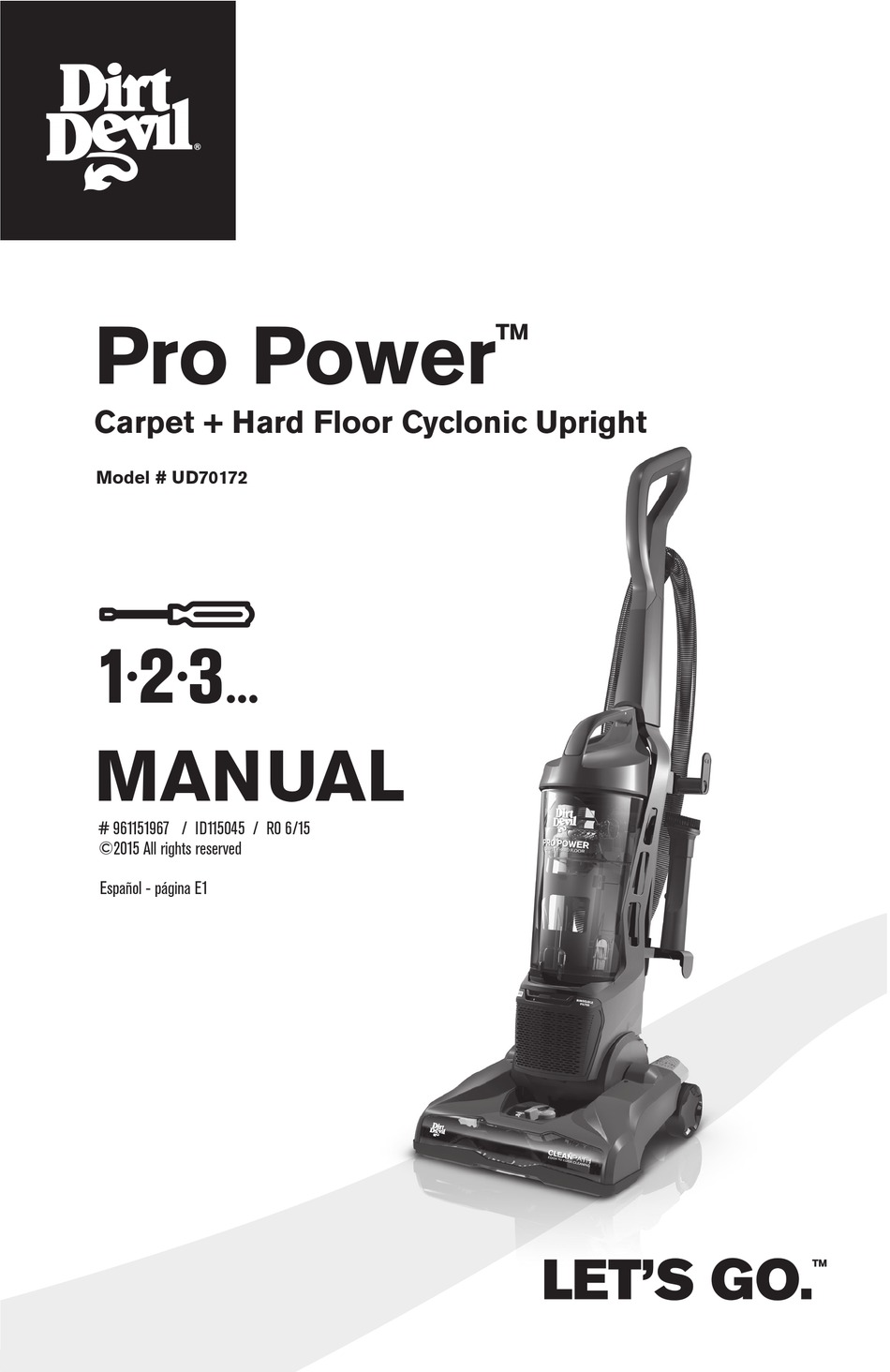

  • Page 1 REMANUFACTURED UD70172RM Pro Power ™ Carpet + Hard Floor Cyclonic Upright Model # UD70172 MANUAL # 961151967 / ID115045 / R0 6/15 964A00125 ©2015 All rights reserved Español - página E1...
  • Page 2: Product Registration

    Be sure to register your product online at www.DirtDevil.com or call 1-800-321-1134 to register by phone. Hint: Attach your sales receipt to this Owner’s manual. Verification of date of purchase may be required for warranty service of your Dirt Devil product. ®...
  • Page 3 TABLE OF CONTENTS Quick Start Assembly Tools How to Troubleshooting Limited Warranty...
  • Page 4: Important Safety Instructions

    WARNING IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIALLY WARRANTY IS VOID. IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: •...
  • Page 5 CAUTION: TO REDUCE THE RISK OF DAMAGE: • Avoid picking up hard, sharp objects with this product, as they may cause damage. • Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures. • Brushroll continues to turn while product is turned on and the handle is in the upright position.
  • Page 6 INSERT HANDLE TURN KNOB COUNTER- WITH KNOB IN CLOCKWISE TO LOCK ( ). UNLOCKED ( ) POSITION. PLUG IN THE CORD AND SET YOUR HEIGHT ADJUST PRESS HERE TO POWER FOR MAXIMUM CLEANING PERFORMANCE. NOTE: See page 8 for details.
  • Page 7 PUSH HERE AND PULL WRAP CORD AROUND HANDLE BACKWARDS CORD HOOKS AND ATTACH TO RECLINE. PLUG END TO THE CORD. YOUR PRO POWER IS READY ™ TO CLEAN! NEED HELP? Go to dirtdevil.com/support or contact our Customer Service Department at (800) 321-1134 Pick up the conversation on...
  • Page 8 THE FOLLOWING HEIGHT SETTINGS ARE RECOMMENDED FOR MAXIMUM CLEANING PERFORMANCE. 1. Hard Floor Setting: Great 2. Low Carpet Setting: Great for tile, hardwood, linoleum for low pile carpet, door mats and more. and area rugs. 3. Mid Carpet Setting: Great for 4.
  • Page 9: Above Floor Cleaning

    ABOVE FLOOR CLEANING 1. Pull hose grip out of bottom 2. Push the tools on the tube for above floor cleaning. Removable Hose for convenient cleaning. When you're done, twist & pull to take them off. CAUTION Not to be used for grooming a pet. CAUTION Use extra care when cleaning on stairs.
  • Page 10: Crevice Tool

    *Accessories not included on all models. COMPLETE Unplug vacuum before connecting hose, wand or tools. ON-BOARD TOOLKIT CREVICE TOOL DUSTING BRUSH 2-IN-1 COMBO TOOL: Use TURBO TOOL : For upholstered ® the Crevice Tool for tight furniture, draperies, mattresses spaces, corners and along and stairs.
  • Page 11: Empty The Dirt Cup

    WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place. EMPTY THE DIRT CUP 1. Dump the dirt when it's full. 2. Push the release button (A) then pull out the dirt cup.
  • Page 12: Clean The Rinsable Filter

    CLEAN THE RINSABLE FILTER 1. Remove the dirt cup. 2. See the filter beneath the dirt cup? Lift it. 3. Rinse with water until the dirt 4. Put it back in all the way disappears. Let it air dry for 24 to the bottom.
  • Page 13: Clean The Exhaust Filter

    WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place. CLEAN THE EXHAUST FILTER 1. Push the tab on the front of the 2. Pull out the filter, rinse dirt cover to pivot out.
  • Page 14 WARNING To reduce the risk of personal injury – Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place. CLEAN THE CYCLONIC ASSEMBLY 1. Twist counter clockwise to open 2. Tap out loose dust and debris. the dirt cup.
  • Page 15: Clean The Brushroll

    CAUTION To reduce the risk of injury from moving parts - Unplug before servicing. CLEAN THE BRUSHROLL 1. Turn your Pro Power over. 2. Clean the brushroll. ™ Use a Phillips screwdriver to take off the 6 screws. Remove the bottom plate. 3.
  • Page 16: Replace The Belt

    CAUTION To reduce the risk of injury from moving parts - Unplug before servicing. REPLACE THE BELT 1. Turn your Pro Power over. ™ 2. Then take off that old belt. Use a Phillips screwdriver to Slide on a new belt with the take off the 6 screws.
  • Page 17 Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use. WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing.
  • Page 18 Period, We will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada. HOW TO MAKE A WARRANTY CLAIM If this product is not as warranted, take or send the product to a Dirt Devil Authorized Warranty Service ®...
