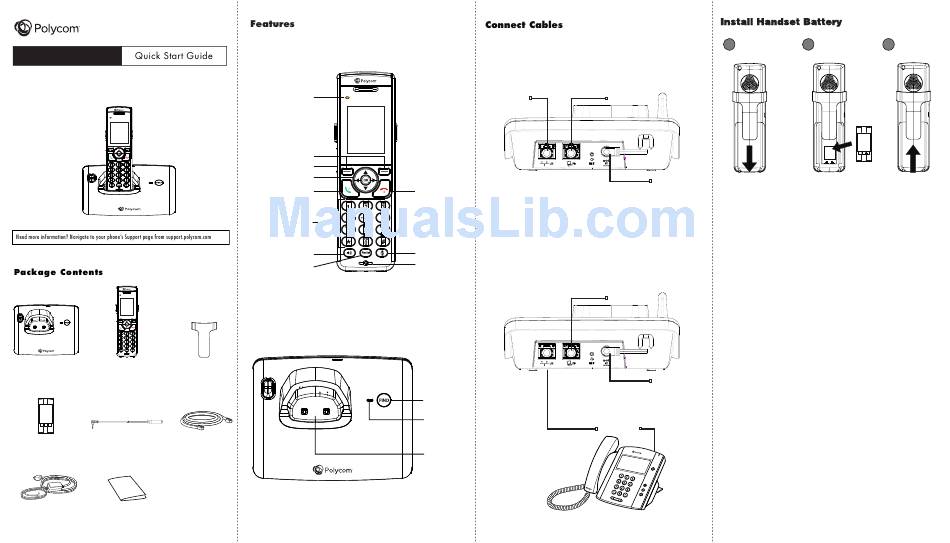

Polycom VVX D60 Quick Start Manual

Polycom ® VVX ® D60
Wireless Handset & Base Station
Polycom VVX D60
Wireless Handset and Base Station
VVX D60 VVX D60 Belt Clip
Base Station Wireless Handset
VVX D60 2.5mm to 3.5mm Network Cable
Battery Headset Adapter
AC Power Cord Quick Start
and Adapter (optional) Guide
Handset
Message Waiting
Indicator
Soft keys
Headphone port
Navigation keys
Power Off /
Power On /
Answer Call End Call
Keypad
Mute
Speaker
Microphone
Redial
Base Station
Find
LED
Indicator
Charging
cradle
Option 1
Plug the network cord into the Pass through Ethernet
LAN port on the Base Station connection to PC (optional;
and into a LAN outlet. extra cable not included)
To LAN port To PC port
To power outlet
Connect the power adapter to
the base station if Power over
Ethernet (PoE) is not available.
Option 2
Pass through Ethernet
connection to PC (optional;
extra cable not included)
To PC port
To power outlet
Connect the power adapter to
the base station if Power over
Ethernet (PoE) is not available.
To PC port
Connect the network cord
from the LAN port on the
base station to the PC port
on the VVX phone.
1 2 3
CAUTION: Risk of explosion if battery is replaced by an incorrect type
Dispose of used batteries according to the instructions
To get a replacement AC adaptor, visit our website at support.polycom.com.
Power adaptor supplier information: Battery supplier information:
TEN PAO INTERNATIONAL LTD. YIYANG CORUN BATTERY CO., LTD.
MODEL NO.: S008ACM0500120 MODEL NO.: Ni-MH 50AAA800*2
