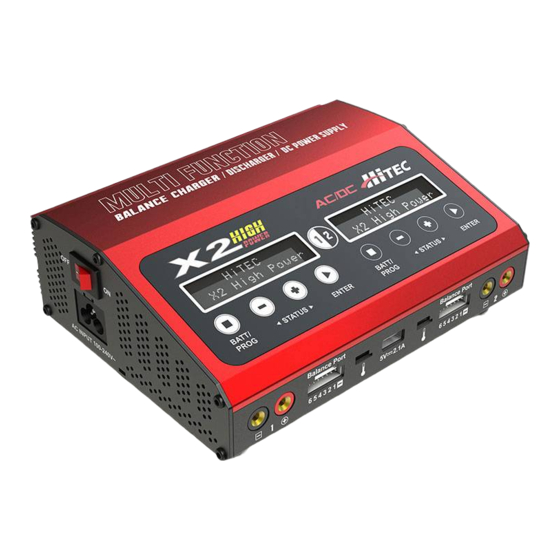

HITEC X2 High Power Operation Manual
  1. Manuals
  2. Brands
  3. HITEC Manuals
  4. Battery Charger
  5. X2 Ultima
  6. Operation manual

HITEC X2 High Power Operation Manual

Hide thumbs Also See for X2 High Power:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
WARNING: THE CHARGING AND DISCHARGING OF RC HOBBY BATTERIES CAN BE DANGEROUS.
FAILURE TO FOLLOW THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL MAY RESULT IN
PROPERTY DAMAGE AND/OR LOSS OF LIFE.
