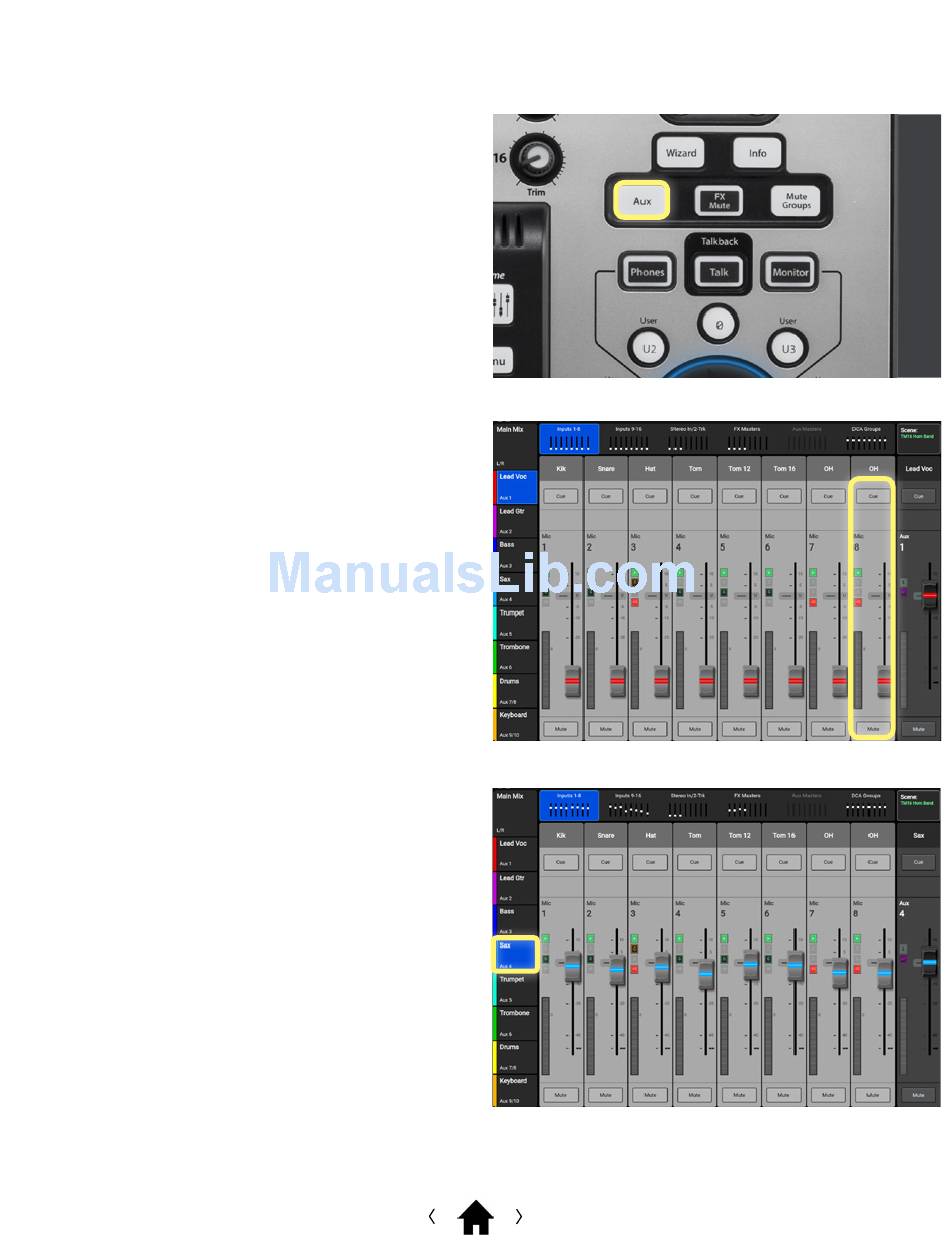

7. AUXES

The TouchMix 16 has 6 Mono Auxiliary Outputs
and two stereo auxiliary outputs, allowing for a
total of 8 separate Aux mixes.
Touchmix 8 has a total of 4 Mono Auxes with a
stereo output jack paralleled to Aux channels
3 and 4.
To set up an Aux Mix:
• The select buttons are displayed on the left
Aux
side of the screen. Touch "
display the faders for Aux 1.
The faders will look a little different than the main
HOME screen. Also, the fader on the right will
change to the Aux 1 main fader. You can now
create your mix for Aux 1 (Image 7.2).
To setup a mix on another Aux:
• Touch " " (
Aux 4 Image 7.3
screen to navigate to another aux mix.
TouchMix Self-Guided Tour
" ( ) to
Aux 1 Image 7.1
) on the left of the
Image 7.1
Image 7.2
Image 7.3
