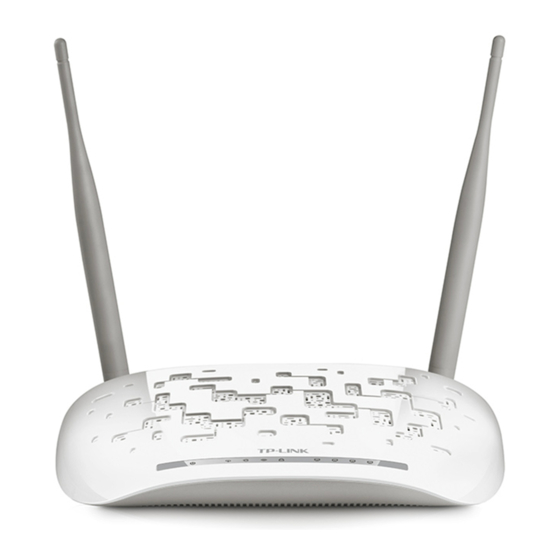

TP-Link TD-W8961N Quick Installation Manual

Quick Installation Guide

300Mbps Wireless N ADSL2+ Modem Router
Please select the appropriate setup wizard.
CD Setup Wizard
For Windows users only
Web-based Quick Setup Wizard
For users unable to run the Resoure CD
TD-W8961N
MODEL NO.
Web-based Quick Setup Wizard
1
Connect your devices step by step following the gure.
Wall Socket
ON/OFF Button
Computer
3
2
Ethernet Cable
7106504615 REV1.0.0

Package Contents

TD-W8961N Power Adapter Resource CD
(Only for Windows)
Ethernet Cable ADSL Splitter Phone Cable x 2
Quick Installation Guide
300Mbps Wireless N ADSL2+ Modem Router
Please select your appropriate setup wizard.
CD Setup Wizard
For Windows users only
Web-based Quick Setup Wizard
For users unable to run the Resoure CD
MODEL NO. TD-W8961N
QIG
Necessary Information
For a smoother setup, we suggest you consult your ISP for the
following information rst. The information will be necessary
during the con guration stage.
VPI/VCI: Connection Type:
Encapsulation Type (Optional):
( For users unable to run the Resoure CD )
Phone Cable
Splitter
PHONE MODEM
4 3 2 1 ADSL
1
Phone Cable
CD Setup Wizard
( For Windows users only )
1 Insert the TP-LINK Resource CD into the CD-ROM drive.
Select TD-W8961N and click Start Setup.
2
For the advanced con gurations, please refer to the User Guide on the Resource CD provided.
Press the ON/OFF button of your modem router and make
2
sure the LEDs (especially the ADSL LED) display as shown
below.
POWER: Solid light
WLAN: Solid light or ashing
ADSL: Solid light or ashing LAN: Solid light or ashing if the
corresponding port is connected
3 Set your computer to Obtain an IP address / DNS server
address automatically. For details, please refer to T1 in
Troubleshooting.
Follow the pop-up ash video to connect your devices, then
3
click to continue.
Please check the LEDs (especially the ADSL LED). Then click
4
NEXT and follow the step-by-step instructions until you
complete the con guration.
Open your browser and type in http://192.168.1.1 in the
4
address eld, then press Enter. Use the default username
admin and password admin to log into the web-based
management page.
5 Choose Quick Start in the main menu and click RUN WIZARD.
The next screen will appear as below, and then click NEXT.
