Roland MDS-12 Owner's Manual

Thank you for purchasing the Roland Drum Stand MDS-12.
201a
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES."
These sections provide important information concerning the proper operation of the unit. Additionally, in order to
feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should
be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

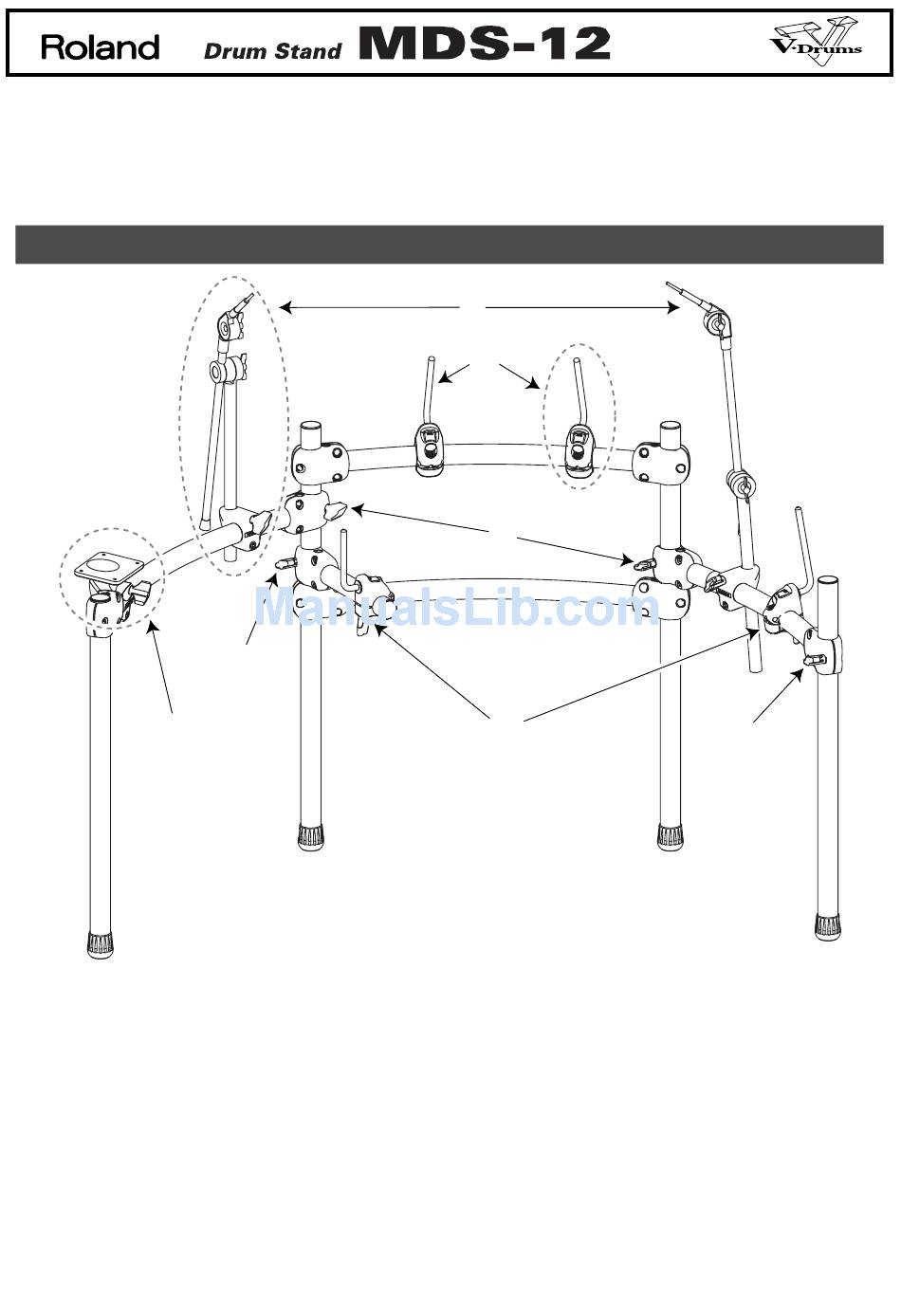

How to Set Up the Stand
fig.001e
E
Sound Module Mount
1. Loosen the two "A" Hand Knobs and open the stand
legs.
2. Loosen the one "B" Hand Knob and pull the snare
pipe into position.
3. Take the Pad Mounts (C, 4 sets), Cymbal Mounts (D,
2 sets), and Sound Module Mount (E, 1 set) out of the
box.
4. Attach them to the stand as shown in the figure.
202
B
Hand Knob
Copyright © 2005 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced
in any form without the written permission of ROLAND CORPORATION.
Cymbal Mounts
D
Pad Mounts
C
A
Hand Knobs
C
Pad Mounts
5. Use the four Hand Knobs (A x 2, B, and F) to adjust
the degree of opening the stand legs, height of the
snare pipe, and horizontal pipe for the floor toms.
6. After finishing the adjustment, make sure to tighten
all the Hand Knobs completely.
* Regarding the way of mounting a Sound Module, Pads, or
Cymbals, please refer to the Owner's Manual supplied with
them.
Owner's Manual
F
Hand Knob
08795-8000 1UL
