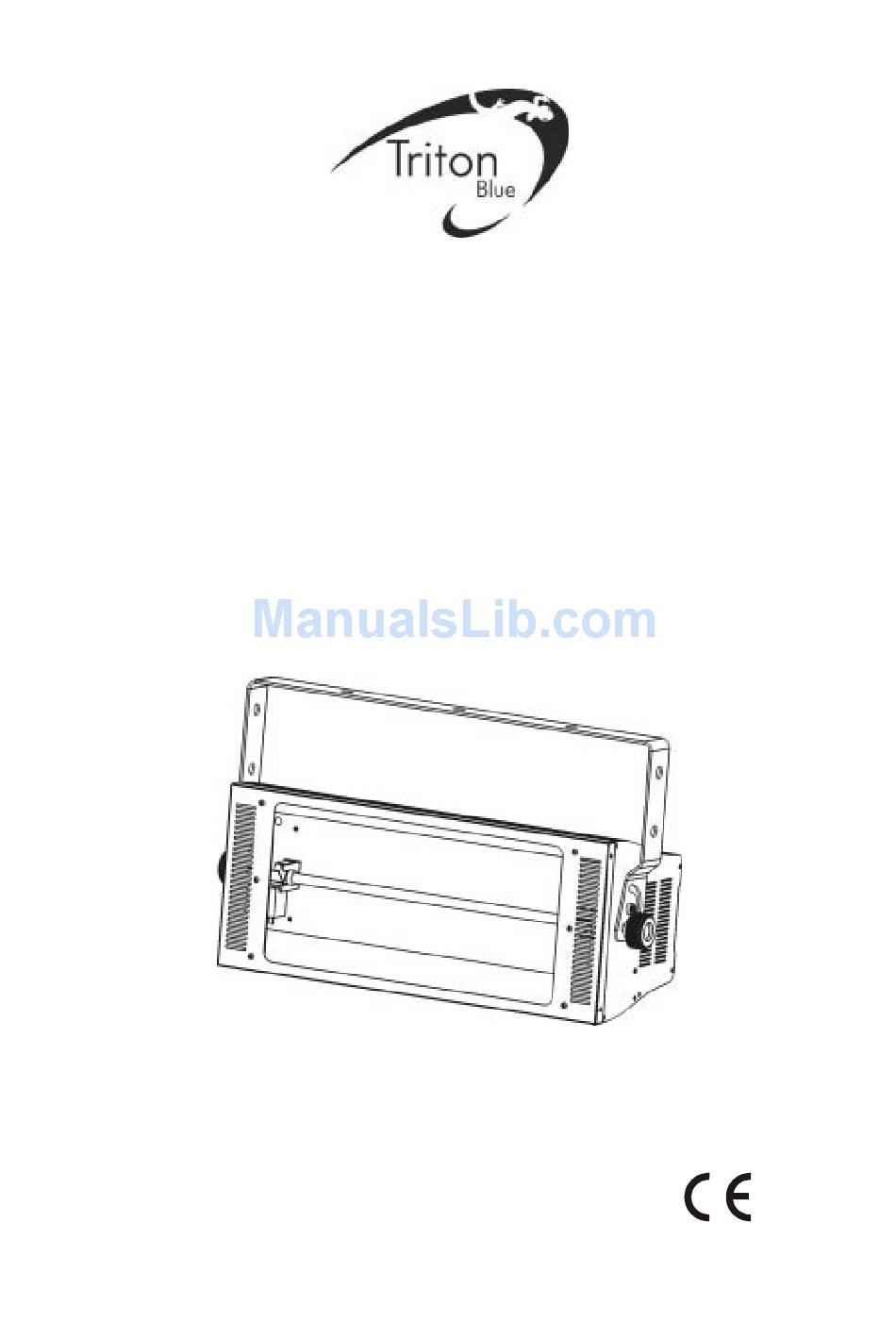

- Page 1 PROFESSIONAL STROBE USER’S MANUAL TB-1500S KEEP THIS MANUAL FOR FUTURE NEEDS...
- Page 2 For your own safety, please read this user manual carefully before installing the device. Keep this device away from rain and moisture ! Unplug mains lead before opening the housing. Every person involved with the installation, operation and maintenance of this device has to: -be qualified -follow carefully the instructions of this manual INTRODUCTION:...
-
Page 3: Safety Instructions
Overview: 1: Lamp 2: Mounting bracket 3: Housing 4: Fixation screw 5: Power 6: Safety eyelet 7: Dip-switches 8: Intensity 9: Speed or MIC sensitivity 10: Analog signals input 11: Analog signals output 12: Status indicator 13: DMX in 14: DMX out SAFETY INSTRUCTIONS Be careful with your operations.With a dangerous voltage you can Suffer a dangerous electric shock when touching wires! -
Page 4: General Guidelines
The device shall only be used with rate dvoltage and frequency. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS a) Installing or replacing the lamp Only install the lamp with the device unplugged from the mains. The lamp has to be replaced when it is damaged or deformed. Before replacing the lamp let the lamp cool down, because during operation, the lamp can reach very high temperature. -
Page 6: Installation Method Via Clamp
weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing the fixture. The operator has to make sure the safety relating and machine technical installations are approved by an expert before taking the device into operation for the first time. - Page 7 Screw one clamp each via a M12 screw and nut onto the Omega holders. Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device. Tighten the quick-lock fasteners fully clockwise. Install the second Omega holder. Pull the safety-rope through the holes on the bottom of the base and over the trussing system or a safe fixation spot.
- Page 8 FUNCTION LIST Switch Status 0=OFF 1=ON VALUE FUNCTION DIP DP10 DP11 DP12 120Ω terminator connected ADDR SETTING Normal Slave Stand Alone by manual Stand Alone by Sound Alone by Auto run Stand Master Sound Master by Auto run From”DP1”to”DP12”, 12 dip switches. 5 different functions available according to different dip switch settings.
- Page 9 Stand Master by Sound Mode: No matte what value set from DP1 to DP8, this unit work in Stand Master by Sound activated. (Status indicator- Red green flash) Master by Auto run Mode: No matte what value set from DP1 to DP8, this unit work in Master by Auto run activated.
-
Page 10: Dmx-512 Connection With Dmx Terminator
DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. -
Page 11: Technical Specifications
CAUTION Disconnect from mains before starting maintenance operation. We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alcohol or solvents. There are no serviceable parts inside the device except for the lamp. Please refer to the instructions under “Installation instructions”.
