Summary of Contents for Triton Blue TR-L72

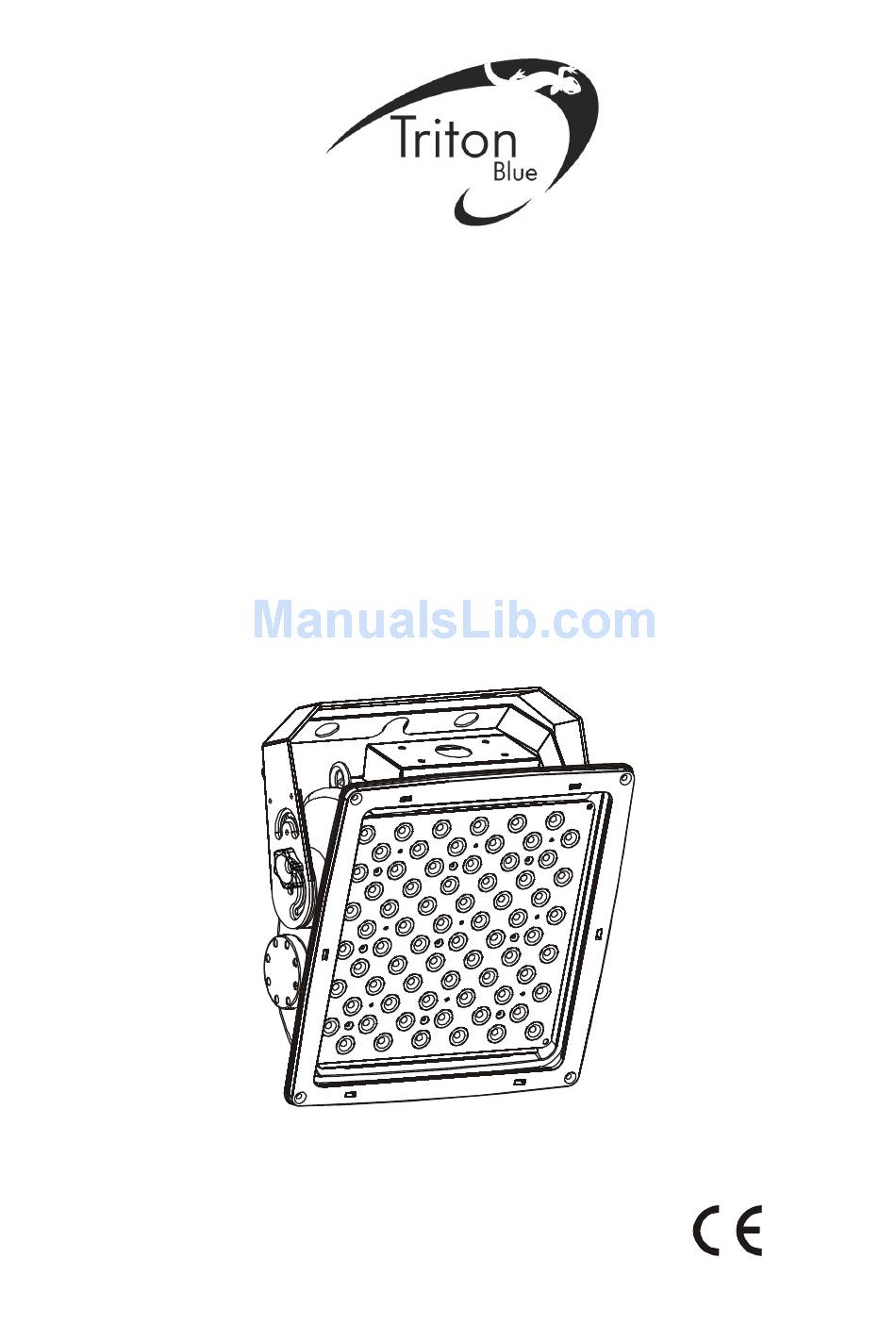

- Page 1 PROFESSIONAL HIGH POWER LED USER’S MANUAL TR-L72 KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to - be qualified - follow the instructions of this manual - consider this manual to be part of the total product - keep this manual for the entire service life of the product - pass this manual on to every further owner or user of the product - download the latest version of the user manual from the Internet INTRODUCTION:... - Page 3 This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately.
-
Page 4: Description Of The Device
Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep away from children and non-professionals. Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. - Page 5 • DMX-controlled operation or stand alone operation with Master/Slave-function • Strobe-effect with 1-18 flashes per second • Programmed chaser • Rainbow-effect with adjustable speed • Advantages of LED-technology: Extremely long life, low power consumption, minimal heat emission, defact maintenance free with brilliant light radiation •...
-
Page 6: Dmx-512 Control Connection
DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the LED lighting. You can chain multiple LED lighting together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. -
Page 7: Overhead Rigging
Please note: to ensure maximal stability, when the voltage is 120V, only five devices may be connected together in this manner! From the sixth device, please connect to power supply to get power for the second link; when the voltage is over 220V, only ten devices may be connected together in this manner! From the eleventh device, please connect to power supply to get power for the second link. -
Page 8: Operation
OPERATION 1：DMX Mode（3 Optional Mode ） ： 1） ：15 channel mode（Each group can be control alone） CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12 CH13 CH14 CH15 Preset Strobe Dimming program and speed 2） ：6 DMX Mode（red, green, blue can be control alone） Preset program Strobe Dimming and speed... -
Page 9: Manual Mode
71--100 Program 3 101--130 Program 4 131--160 Program 5 161--190 Program 6 191--220 Program 7 221--255 Program 8 When running the preset program, the last channel will be the speed channel（from slow to fast） When no preset program，the last channel will be the dimming channel（from close to open） 2：Manual mode：... - Page 10 Green value Pre value: XXX Set green value New value: 0 – 255 Blue value Pre value: XXX Set blue value New value: 0 – 255 Flash value Pre value: XXX Set strobe value New value: 0 – 255 PRESET CHASE 1 Running Speed Pre value: XXX New value: 1 –...
- Page 11 Flash value Pre value: XXX New value: 0 – 255 PRESET CHASE 9 Running Speed Pre value: XXX New value: 1 – 255 Flash value Pre value: XXX New value: 0 – 255 PRESET CHASE 10 Running Speed Pre value: XXX New value: 1 –...
-
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents! There are no servicable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers. Should you need any spare parts, please use genuine parts.
