Polytron PSQ 508 C User Manual

Description

The POYLTRON multiswitch series PSQ is used for the
economical distribution of 4 SAT-IF polarizations and
terrestrial signals.
The cascadable multiswitches PSQ...C extend the
possible number of the participants/ receivers provided with
the processed signals. The number of cascadable units
depends on the LNB-output level and the length of the
cables. If required, a power supply can be connected to the
cascade system, thus the SAT trunk lines are supplied with
power. If a cascadable multiswitch is used at the end of a
cascading system the trunk outputs need to be terminated
with DC-blocked terminators (FAW-75DC).
By using the PSQ 505 AMP amplifier, the number of
subscriber lines can be extended.
The stand-alone/ cascade end multiswitches PSQ...P
are equipped with a power supply unit to feed the LNBs.
It provides a supply voltage of 15 V=.
The types ...508 P, ...512 P and ...516 P are additionally
equipped with a 22 kHz generator and are therefore
suitable for Quattro and Quad LNBs. The type ...505 AMP
is a pure amplifier. The types ...508 C, ...512 C, ...516 C,
...524 P and ... 532 P are suitable for Quattro LNBs.
The IF levels are selected using the switchover criteria
14/18V and 0/22 kHz by the connected receivers.
Delivery without power supply (...C and ...AMP);
ordering data: PMP-NG 15/3300 * Article no.: 9267644

Important Notes:

Please check the coaxial cable regarding short circuit
before starting. The mounting ground should be:

even and flame proof

dust-free

protected against humidity

not under direct impact of sunlight

not adjacent to heating sources
The ventilation slots of the associated power supply unit
may not be covered.
Pay attention to the input levels of the SAT-polarizations
having the equivalent level. All installation and fixing of
components should only be executed when the units are
disconnected from the mains supply. Avoid short-circuits!
The instructions for operating the device must be observed.
Copyright © Polytron-Vertrieb GmbH
All rights reserved to the editor. All information is provided
without guarantee and is subject to changes.
Polytron-Vertrieb GmbH
Langwiesenweg 64-71, 75323 Bad Wildbad, Germany

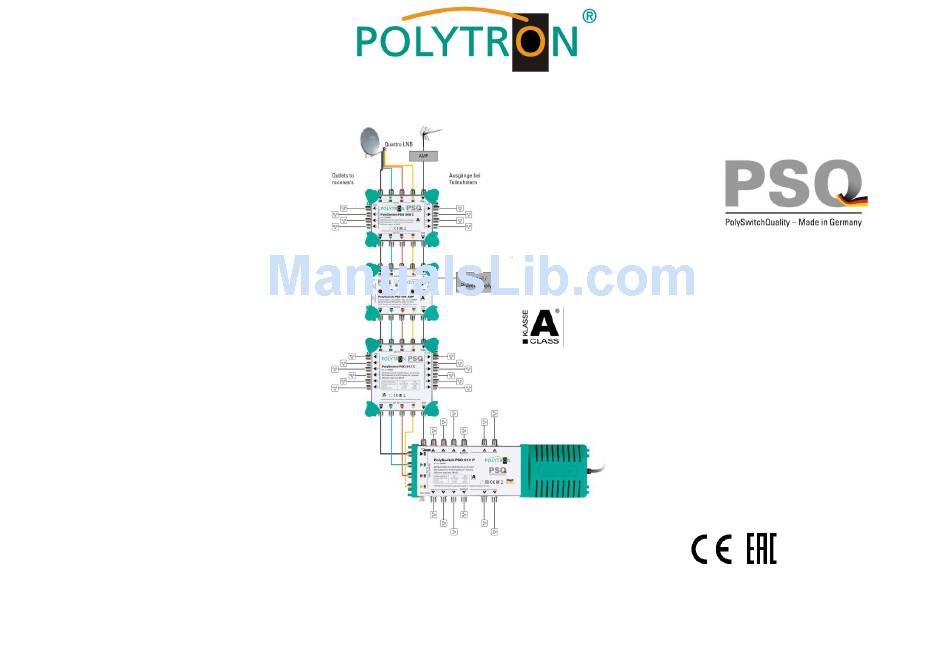

SAT Multischalter 5 Eingänge
SAT multiswitches 5 IN
zur Verteilung von 4 SAT-ZF-Ebenen und
terrestrischen Signalen
for distribution of 4 SAT-IF-polarizations
and terrestrial signals
Kaskaden-Multischalter
Cascadable multiswitches
PSQ 508 C (Terr. aktiv / active)
PSQ 512 C (Terr. aktiv / active)
PSQ 516 C (Terr. aktiv / active)
Einzel-/ End-Multischalter
Stand-alone/ Cascade end multiswitches
PSQ 508 P (Terr. aktiv / active, 22 kHz)
PSQ 512 P (Terr. aktiv / active, 22 kHz)
PSQ 516 P (Terr. aktiv / active, 22 kHz)
PSQ 524 P (Terr. passiv / passive)
PSQ 532 P (Terr. passiv / passive)
Linienverstärker
Line amplifier
PSQ 505 AMP
Bedienungsanleitung
User manual
0901855 V3
