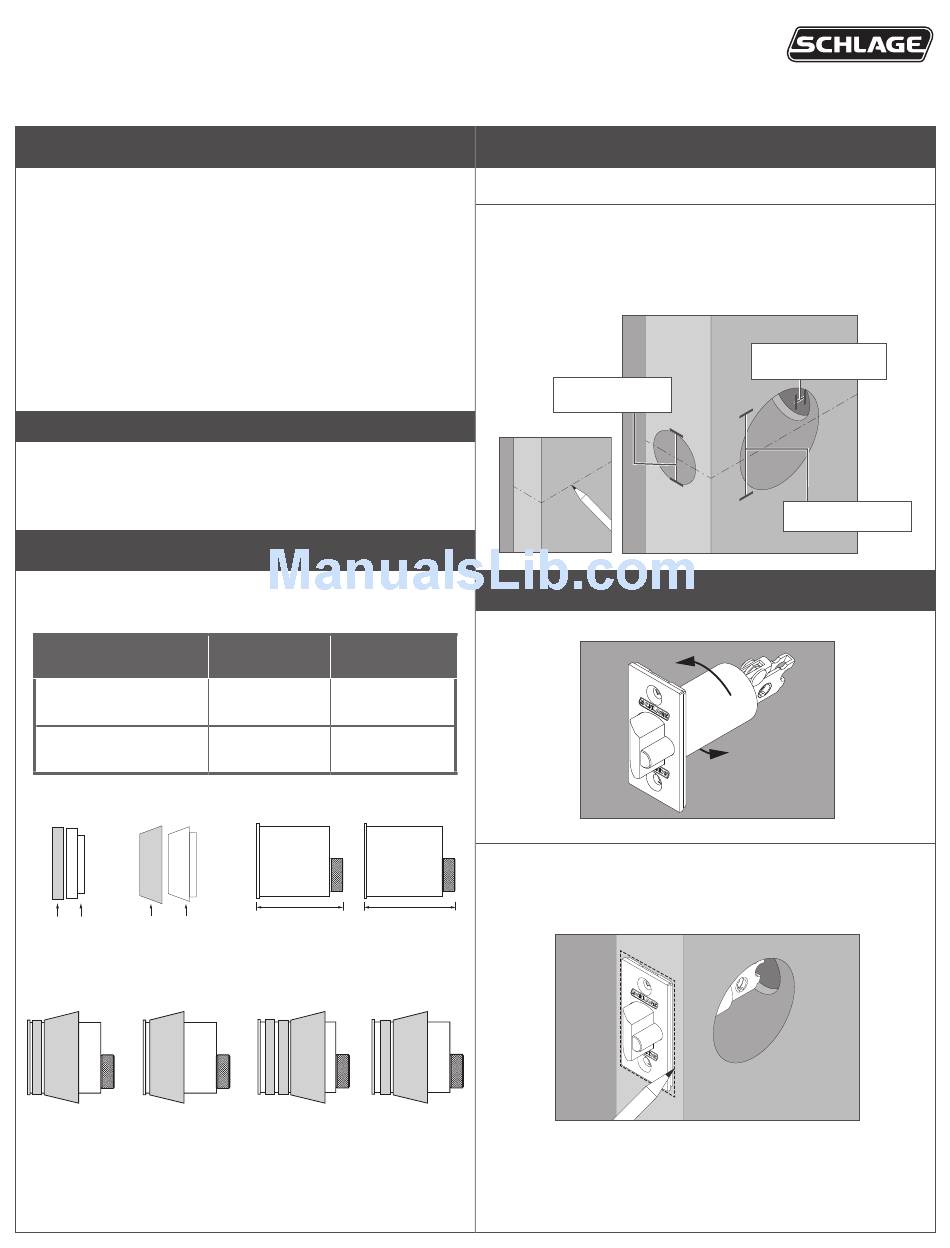

Schlage B250PD Installation Instructions

*P513-174*
P513-174
Model B250PD

Parts Included

• (2) Keys
• (1) Cylinder
• (1) M\zn" (11 mm) ring &
hardened steel insert
• (1) Z\," (3 mm) ring &
hardened steel insert
• (1) Driver bar
• (1) Latch
• (2) Mounting screws,
cylinders
Depending on size ordered, may include (2) Z\," (3 mm) rings and
hardened steel inserts.
Hollow metal doors must be properly reinforced for latch
support. If door reinforcement is not furnished, contact door
manufacturer, or use Schlage reinforcer #37-001 (specify door
1
Select rings and inserts.
Use chart to choose rings and inserts for door thickness
adjustment.
Door Thickness
1C\," (35 mm)
1C\v" (44 mm)
A B
Ring Insert Ring Insert
5 Pin
1C\," (35 mm) 1C\v" (44 mm)
door door
B-Series Single Cylinder
• (1) Strike
• (1) Strike dust box
• (1) Strike reinforcer
• (2) 3" (76 mm) mounting
screws, reinforcer
• (4) Mounting screws, latch
and strike
• (1) Thumbturn
NOTE:
thickness)
5 Pin Cylinder 6 Pin Cylinder
B and A B and (2) A
B B and A
5 Pin
1C\zn" (30 mm) 1B\zn" (33 mm)
6 Pin
1C\," (35 mm) 1C\v" (44 mm)
door
Lock
2
Prepare the door.
2a Mark centerline on door face and edge.
2b Place template on door and drill a 1Z\x" (38 mm)
hole through the door face (from both sides to avoid
damaging wood).
Drill a 1" (25 mm) hole in door edge. Drill C\," (10 mm) deeper
as illustrated.
1" (25 mm) Hole
3
Install latch.
3a Rotate to adjust latch so that bolt faces door jamb.
6 Pin
3b Insert latch into hole. Line up and trace around
faceplate.
Use chisel to remove wood until the faceplate fits flush when latch
is fully inserted.
door
Installation Instructions
C\," (10 mm) deeper
1Z\x" (38 mm) Hole
