Vent-a-Hood PYD18 Installation Instructions

INSTALLATION INSTRUCTIONS
FOR PYD18 EUROPA VENT-A-HOODS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Installation Work and Electrical Wiring Must Be Done By
Qualified Person(s) In Accordance With All Applicable
Codes And Standards, Including Fire-Rated Construction.
B. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
C. Ducted fans must always be vented to the out-
doors.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

Read and Save These Instructions

All Hoods Should Be Installed By A Qualified Installer

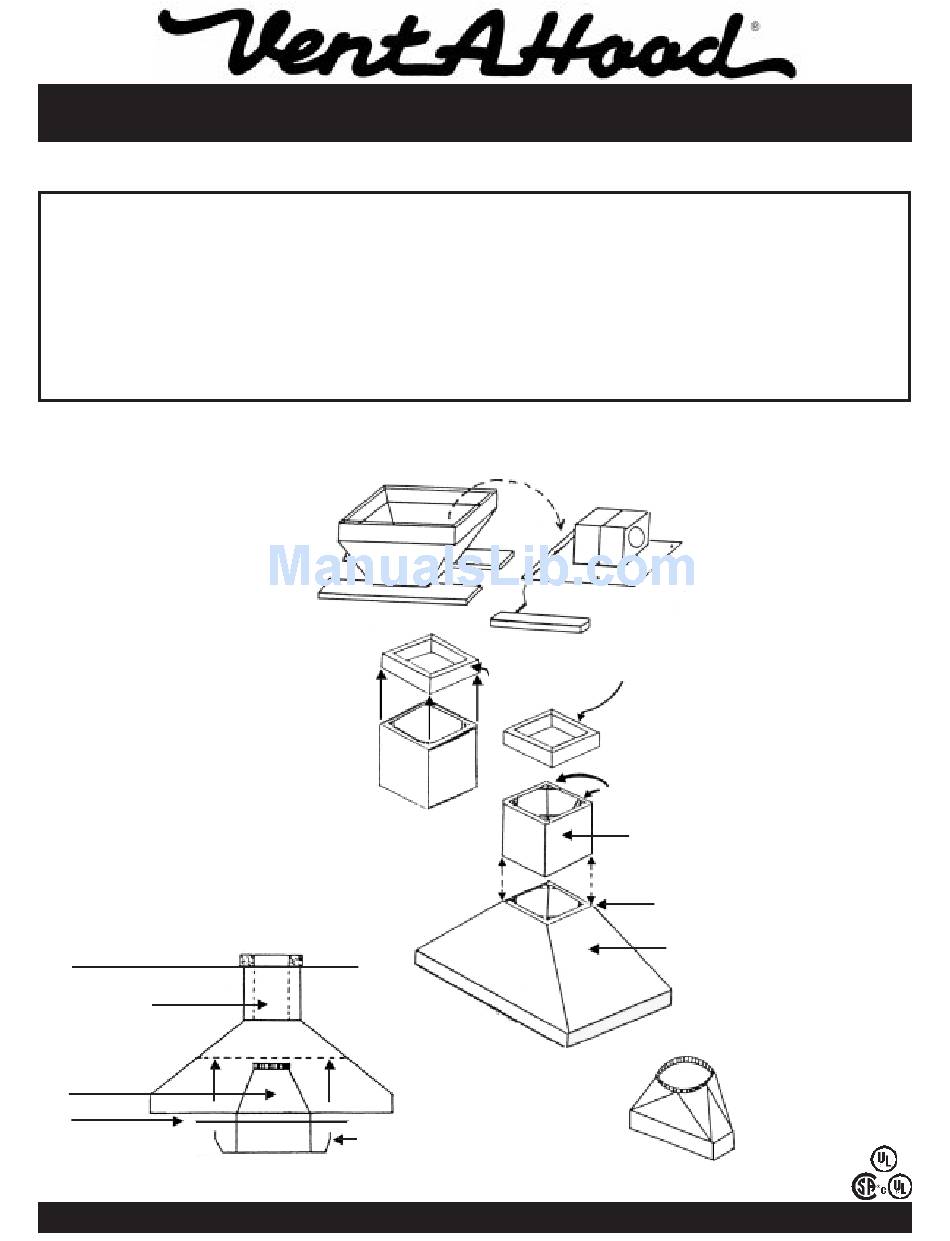

Step 1 . . .
Set hood on floor with
wood pallet still attached
to top.
Step 3 . . .
Install duct cover to load
bearing framing in
ceiling. For additional
stability in duct covers
over 24” tall, use 1/4” all-
threaded rods.
Step 5 . . .
Attach hood to bottom of duct cover
and re-install blower and light units.
LOAD BEARING FRAMING
8” DUCT
TRANSITION
DECK
CEILING
T200 BLOWER
Turn Page For More Instructions
D. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting. Follow the
heating equipment manufacturer’s guideline and safety
standards such as those published by the NationaI Fire
Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and local code authorities.
LOAD BEARING FRAMING
(furnished by others)
MOUNTING PLATES ON EACH CORNER
DUCT COVER
4 MOUNTING HOLES
LOCATED IN CORNERS
Step 2 . . .
Remove blower deck, light
assembly and transition from
hood.
Step 4 . . .
Run 8” diameter duct and
wiring through ceiling with
section long enough to
reach transition on hood.
HOOD
5” x 16” to 8” DIAMETER
VP546
TRANSITION
FURNISHED
WITH HOOD
