- Page 1 DENTAL AIR SYSTEM Installation and Operation Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Congratulations . -
Page 3: Congratulations
. Warranty is void if equipment is installed or serviced by other than dealer service personnel authorized by Air Techniques . Air Techniques, Inc . is not liable for indirect or consequential damages or loss of any nature in connection with this equipment . -
Page 4: Key Parts Identification

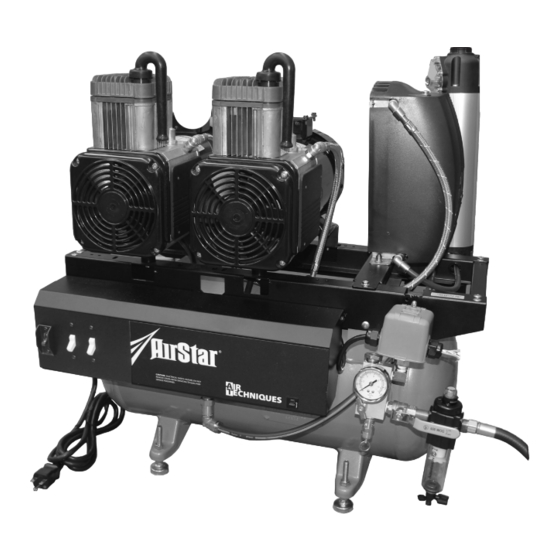

KEY PARTS IDENTIFICATION Membrane Dryer Sound Reducing Cooler Intake Filters Membrane Dryer Control Motor Circuit Breaker Motor Power Switches Main Tank Check Valve 24V Circuit View B. Right -Side View Breaker View A. Front View Supplied Pressure Air Outlet Switch Hose Moisture Monitor... -
Page 5: Sizing Guide
SIZING GUIDE Choosing the correct size AIRSTAR for your practice depends on the number of air users and the anticipated air demand . To assure optimum compressor operation, the air demands should not exceed the number of air handpiece users shown in the chart below: Recommended Number of... -
Page 6: Site Requirements
SITE REQUIREMENTS AirStar Model AIRSTAR AIRSTAR AIRSTAR AIRSTAR AIRSTAR AIRSTAR Requirement Voltage Min/Max * (VAC) 105/125 105/125 200/250 200/250 200/250 200/250 Frequency (Hz) Full Load Amps 8 .0 15 .0 8 .0 8 .0 16 .0 24 .0 Minimum Circuit Breaker Rating (Amps) Minimum. -
Page 7: Overall Site Requirements
SITE REQUIREMENTS Connection without Connection to 24 V Switch Only Type Style 24 V Switch Compressor Interconnect Cable Remote Switch AS10 5-20R Green Yellow 2 NEMA AS21 AS22 6-20R Brown 4 Green NEMA AS30 Orange 3 AS50 Hard for Future Use Wired AS70 Use 18 Gauge, 4 Conductor, Interconnect Cable Between Compressor and Remote Switch... -
Page 8: Installation Information
INSTALLATION INFORMATION AIRSTARs are installed by authorized Air Techniques dealer service technicians. Please review these installa- tion guidelines to make sure that your AIRSTAR will work to capacity for your office. (See Site Requirements, pages 6 and 7) Your AIRSTAR should be installed in a well ventilated area, with at least 12 inch ... - Page 9 INSTALLATION INFORMATION POST INSTALLATION CHECK Make Sure Everything Is Running Properly After your AIRSTAR has been installed and before it is put into operation, be sure to follow the check-out procedure detailed below: Check that Intake Filter(s) are fully seated into the compressor head(s) and that the Tank ...
-
Page 10: Troubleshooting
. Check 24 Volt remote connections . c . Defective circuit breaker . c . Circuit breaker needs to be replaced . Call your authorized Air Techniques dealer for service . 2 .Motor tries to start, a . Voltage too low .If each a . - Page 11 Test heads by turning ONE on at a time. If the motor fails to start, or the circuit breaker trips, the problem may be in that compressor head. Leave the power switch for the effective head in the OFF position. Call your Authorized Air Techniques dealer for service.
-
Page 12: Maintenance
MAINTENANCE Like all precision products, your AIRSTAR requires a certain amount of care on a regularly scheduled basis . A well-organized maintenance program aids dependable equipment operation and reduces problems to a minimum . Routine checks help to detect general overall wear, and replacement of parts can often be made before a problem occurs . -
Page 13: Airstar Filter Location
MAINTENANCE Important: In dusty environments, the Intake Filter, PN 89938, may need to be changed more often than once a year . Always dispose of the removed filter in accordance with local codes . Filter Replacement - Yearly Refer to Figure 5 for the location of filters to be replaced using the preventative mainte- nance kit for the specific AIRSTAR mode listed below . -
Page 14: Replacement Parts
REPLACEMENT PARTS Description Part No. 5 Micron Replacement Filter 87168 Filter Replacement Kits AirStar Model Kit Part No. AS10 87351 AS21 AS22 AS30 87352 AS50 87353 AS70 87354 OPTIONAL ACCESSORIES Description Model Part Number 85491 AirStar 10 85492 AirStar 21, 22, 30 REMOTE AIR INTAKE KIT 85493 AirStar 50... -
Page 15: Product Specifications
PRODUCT SPECIFICATIONS AirStar Model AirStar AirStar AirStar AirStar AirStar AirStar Requirement Horsepower/Kilowatts 0 .75/0 .56 1 .5/1 .1 1 .5/1 .1 1 .5/1 .1 3 .0/2 .2 4 .5/3 .3 Voltage Rating 208/230 208/230 208/230 208/230 Frequency (Hz) Voltage Min./Max . (VAC) 105/125 105/125 200/250... - Page 16 For over 50 years, Air Techniques has been a leading innovator and manufacturer of dental products. Our priority is ensuring complete satisfaction by manufacturing reliable products and providing excellent customer and technical support. Whether the need is digital imaging, utility room equipment or merchandise, Air Techniques can provide the solution via our network of authorized professional dealers.
