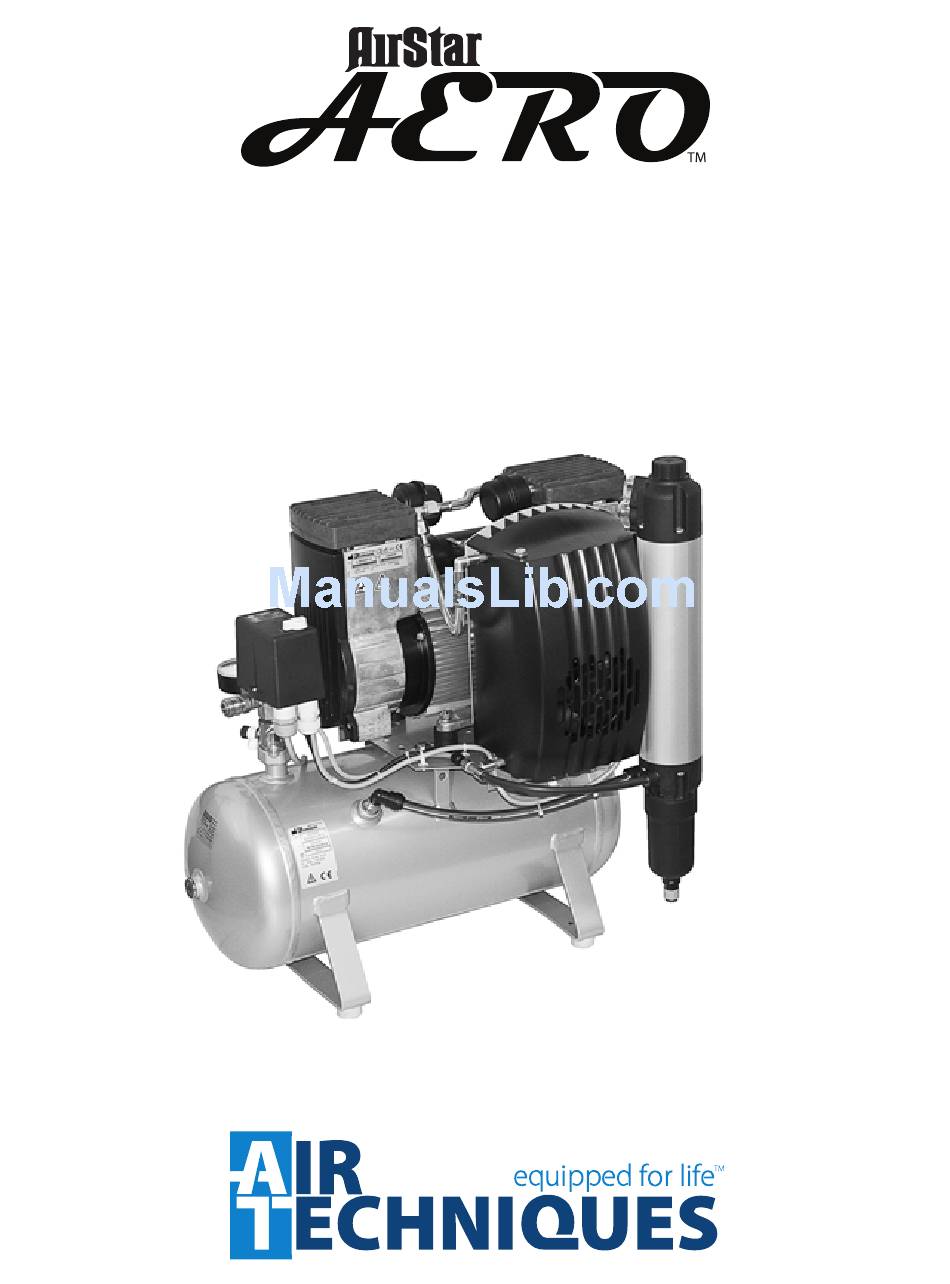

- Page 1 • • • AERO100 AERO100M AERO200 AERO200M OPERATING INSTRUCTIONS AERO200M...
- Page 2 If service and maintenance work is neglected or carried out improperly, our warranty will be invalidated. Should you have any problems understanding the operating instructions please contact your local Air Techniques rep- resentative or distributor from which the unit was purchased.
-
Page 3: Table Of Contents
Repairs ..........................15 Shutdown and disposal ..................... 15 Operating Instructions Vessel ..................16 Appendix Appendix 1: Technical data ........................17 Appendix 2: Trouble shooting ........................18 Appendix 3: Spare Parts ......................... 19 Appendix 4: Contacts ..........................22 Air Techniques, Inc. Page 3... -
Page 4: Introduction And General Advice
Operator Authority: Responsible for the safe installation, regular servicing and cleaning of the product. Qualified personnel: Trained by the operating authority or by authorised Air Techniques personnel who are aware of the dangers of the product and familiar with the technical aspects of the product. Qualified personnel are trained to carry out service and repair on the product. -
Page 5: Product Description
The product is designed for operation in a dry, well ventilated room. Never expose the compressor station to rain. The product should not operate in a damp or wet environment. In addition, operating near gases or flammable fluids is forbidden. Air Techniques, Inc. Page 5... -
Page 6: Function Description Without Drying Installation
A safety valve (10) prevents the maximum permitted tank pressure being exceeded Compressor Condensate solenoid Safety valve Pressure tank Pressure hose Vibration damper Pressure switch Suction filter Capacitor Starter solenoid Pressure gauge Figure 1a. AERO100 Key Components Page 6 Air Techniques, Inc. -
Page 7: Function Description With Drying Installation
A safety valve (10) prevents that the maximum permitted tank pressure is exceeded. Compressor Pressure tank Pressure switch Cooler Membrane dryer Pressure hose Suction filter Pressure gauge Safety valve Vibration damper Capacitor Figure 1b. AERO200M Key Components Air Techniques, Inc. Page 7... -
Page 8: Transport, Storage, Initial Operation
The motor ventilator normally ensures an effective pressurized cooling of the product. To do this the air must be able to flow unhindered. Ventilation openings must be large enough to allow this to happen. In unsuitable cases, e.g. when the product is built-in an independent air cooling system might be required. Page 8 Air Techniques, Inc. -
Page 9: Compressed Air Connection
The motors are equipped with a thermal protection switch to prevent overheating of the motor windings. In the case of too high an ambient temperature, the thermal protection switch shuts down the unit by cutting off the operating current. Air Techniques, Inc. Page 9... -
Page 10: Circuit Diagram
• Listen during operation for unusual noises. • Check the switch-off pressure of the product. • Check the switch-on pressure of the station by releasing the pressure. • Check the safety valve for correct function. Page 10 Air Techniques, Inc. -
Page 11: Operation
According to the regulations pressure receivers up to 25 l, corresponding to the pressure tank contents p x l < 200, are allocated to group 1 of paragraph 8 classification and not subject to recurrent tests pursuant to paragraph 10. The pressure tank conforms to the EU guidelines 87/404 EEC. Air Techniques, Inc. Page 11... -
Page 12: Pressure Reducer
(-) pressure by turning the regulator knob counterclockwise. When the pressure is set, push the regulator knob downwards and let it engage. The set pressure is now fixed. It can be read on the pressure gauge (2). Page 12 Air Techniques, Inc. -
Page 13: Maintenance
2 x yearly, drain when necessary Change suction filter 4.2.2 Yearly Check safety valve 4.2.3 Half yearly Inspect carbon brushes 4.2.4 Half yearly Change filter of membrane dryer 4.2.5 Yearly Air Techniques, Inc. Page 13... -
Page 14: Changing Suction Filters
Turn the valve filter again in a clockwise direction until it is closed. Figure 6. Filter Figure 7. Safety Valve 1 Knob Figure 8. Replace Sintered Filter Page 14 Air Techniques, Inc. -
Page 15: Change Of Filter For Membrane Dryer
The disposal has to be carried out in an appropriate way. The national laws and stipulations have to be followed. For further questions please contact Air Techniques. Air Techniques, Inc. Page 15... -
Page 16: Operating Instructions Vessel
The vessel is resistant to fatigue strength at a pressure variation range of 2 bar (10% PS) Remarks: The condensation drain must be performed under interior pressure according to the operating instruction of Air Techniques. Page 16 Air Techniques, Inc. -
Page 17: Appendix 1: Technical Data
Since our products are subject to a process of continuous improvement, the technical specification may have changed. If you propose to base your planning on these Directions for Use, please contact us beforehand for details of current data and dimensions. Specifications AirStar AERO100/100M* AirStar AERO200/200M* Dimensions 68 x 64 x 49... -
Page 18: Appendix 2: Troubleshooting
Moisture indicator at change the colour back into blue. the membrane dryer is pink. • During operation there is a malfunction • Exchange of drying installation. of the dryer, insufficient air drying. Page 18 Air Techniques, Inc. -
Page 19: Appendix 3: Spare Parts
87619 87620 Safety Relief Valve 87621 Tank Drain Valve 87622 Starting Sphere C1188 AERO100 and AERO200 ONLY Non return valve (receiver) 87623 AERO100M and AERO200M ONLY Non return valve (receiver) 87624 AERO100 and AERO200 ONLY Tank Rubber Mount 87625 Unloader valve... - Page 20 Appendix 3: Spare Parts Figure 10. AERO100 and AERO200 Parts Location (AERO100 shown) Page 20 Air Techniques, Inc.
- Page 21 Appendix 3: Spare Parts (Nozzle Not Shown) Internal Membrane Dryer Filters Note: Membrane Dryer is shipped with a fine filter (17). A sterile filter (18) is an option. Figure 11. AERO100M and AERO200M Parts Location (AERO200M shown) Air Techniques, Inc. Page 21...
-
Page 22: Appendix 4: Contacts
When returning products, if possible use the original packing. • Always pack the product in synthetic packaging material. • I f possible use recyclable packing material. Address for return shipment - Please contact your local distributor where you purchased the AERO compressor. Page 22 Air Techniques, Inc. - Page 23 Notes Air Techniques, Inc. Page 23...
- Page 24 For over 50 years, Air Techniques has been a leading innovator and manufacturer of dental products. Our priority is ensuring complete satisfaction by manufacturing reliable products and providing excellent customer and technical support. Whether the need is digital imaging, utility room equipment or merchandise, Air Techniques can provide the solution via our network of authorized professional dealers.
