Integrated Fridge
User Guide
&
Installation & Service Instructions
U110831-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTFR18/INT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rangemaster RTFR18/INT

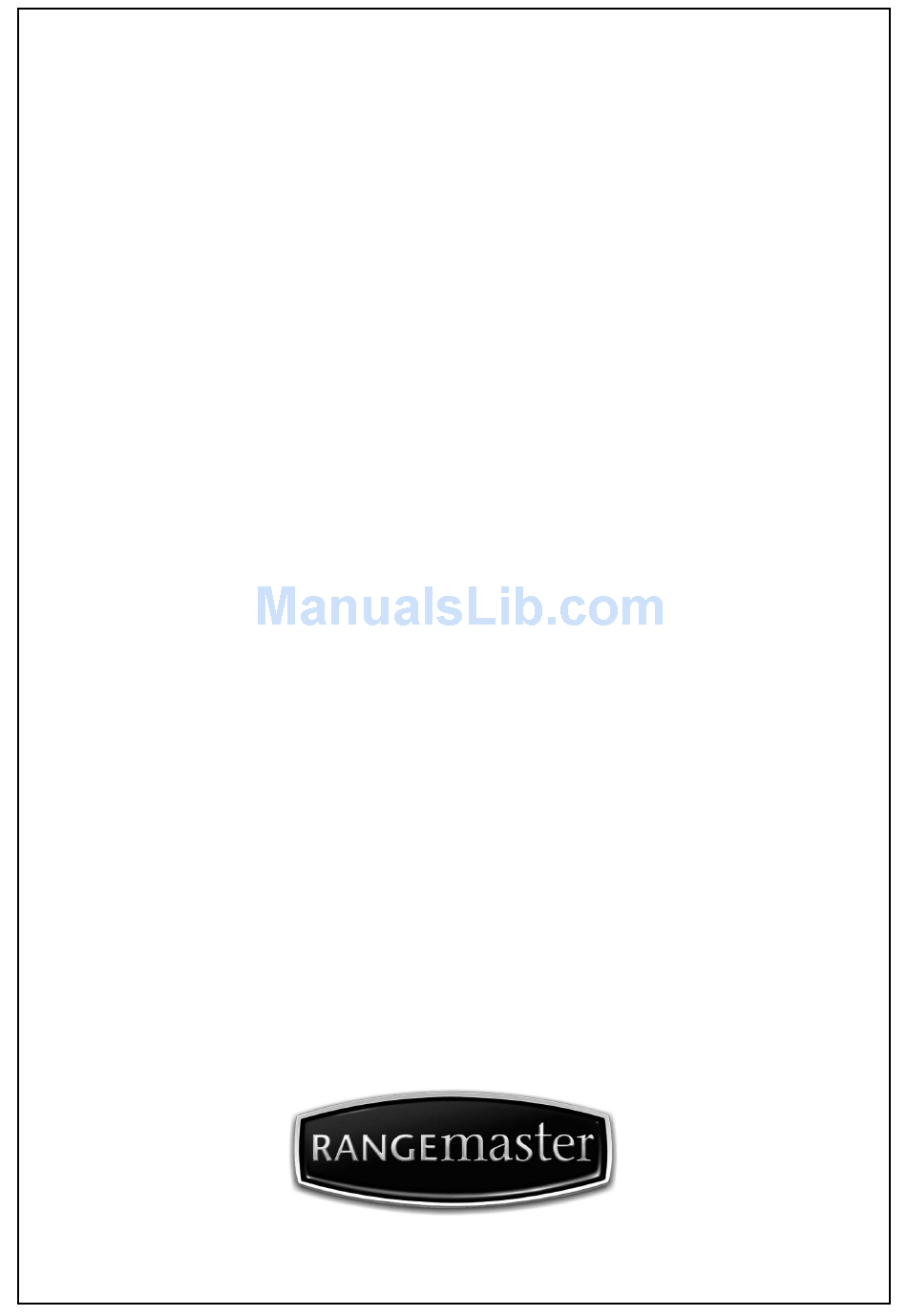

  • Page 1 Integrated Fridge User Guide & Installation & Service Instructions U110831-01...
  • Page 2: Table Of Contents

    Contents Before You Start Safety Electrical Safety CE Declaration of conformity Disposal of your old appliance Packaging and the Environment About Your fridge Using the Control Panel Operating your Fridge Accessories Food Storage Tips Food storage Tips on Storing Fresh Food Cleaning and Maintenance Cleaning When not in use...
  • Page 3: Before You Start

    Before You Start Thank you for buying a Rangemaster appliance. We hope that it provides a stylish yet practical solution to your cooling Icon Type Meaning needs. We hope that this handbook supplies you with all the WARNING Serious injury or death risk information you require.
  • Page 4 elements, move your appliance away from open WARNING: DO NOT use electrical appliances inside flames or heat sources and ventilate the room where the food storage compartments of the appliance, the appliance is located for a few minutes. unless they are of the type recommended by the manufacturer.
  • Page 5: Electrical Safety

    Electrical Safety CE Declaration of conformity WARNING: When positioning the appliance, ensure • We declare that our products meet the applicable the supply cord is not trapped or damaged. European Directives, Decisions and Regulations and the requirements listed in the standards referenced. WARNING: DO NOT locate multiple portable socket- outlets or portable power supplies at the rear of the Disposal of your old appliance...
  • Page 6: About Your Fridge

    About Your fridge Fig. 2.1 The fridge is shown in Fig. 2.1 and has the following features: Fig. 2.2 Range Fresh Preserver Control panel Opti-lift™ Even-Circ™ Bottle shelf 10. Fridge shelves LED light 11. Upper crisper cover Egg tray Wine rack 12.
  • Page 7: Using The Control Panel

    Using the Control Panel Fig. 3.1 Using the Control Panel Fig. 3.2 Fridge temperature set button Super cooling symbol (Super cooling LED) Alarm symbol (Alarm LED) Fridge adjusted temperature indicator Operating your Fridge Fridge Temperature Set Button This button allows setting temperature of the fridge. In order to set values for fridge partition, press this button.
  • Page 8 Fridge Temperature Settings Fig. 3.3 • The initial temperature of the setting display is 5°C. • Press fridge setting button once. • Every time you press the button, the setting temperature will increase. (2°C, 4°C, 5°C, 6°C, 8°C, Super cooling) •...
  • Page 9: Accessories

    Accessories Fig. 3.4 The Fresh Dial (Fig. 3.4) If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within. The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.
  • Page 10: Food Storage Tips

    Food Storage Tips Food storage Food Maximum How and where storage time to store Fridge Compartment Vegetables and fruits 1 week Vegetable bin • To reduce humidity and avoid the consequent Meat and fish 2 - 3 Days Wrap in plastic foil, formation of frost, always store liquids in sealed bags, or in a meat container and store on...
  • Page 11: Tips On Storing Fresh Food

    Tips on Storing Fresh Food • Beverages with high alcohol content should be stored vertically in tightly sealed bottles. • Make sure that foods, which have been cooked and • Delicate foods should be stored in the coolest part of require chilling, are at room temperature before placing the appliance.
  • Page 12: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning Disconnect the appliance from the power supply before cleaning. Do not wash your appliance by pouring water on it. DO NOT use harsh abrasives, or aggressive cleaners as these can damage the interior of the appliance. The fridge is heavy.
  • Page 13: When Not In Use

    Defrosting the Fridge Compartment (Fig. 5.1) Fig. 5.1 Defrosting occurs automatically in the fridge compartment during operation. The water is collected by the evaporator tray and evaporates automatically. The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the fridge instead of flowing out.
  • Page 14: Troubleshooting

    Troubleshooting Before calling for service, please first read the following table: this could save you time and money. Error type Meaning What to do “Failure” Warning There is/are some part(s) out of order or there Check the door is open or not and check if is a failure in the cooling process.
  • Page 15: Tips For Saving Energy

    There is a build-up of humidity inside the fridge Service Centre. Check if: This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common • All food is packed properly. Containers must be dry use.
  • Page 16: Installation

    Installation Installation warnings Before using your appliance for the first time, please pay attention to the following points: • Your appliance may have an odour when it is operated for the first time. This is normal and the odour will fade when your appliance starts to cool.
  • Page 17: Positioning Your Appliance

    Positioning Your Appliance The fridge must be carried by at least 4 people. The original packaging and foam may be kept for re- transportation (optional). Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation given on the package.
  • Page 18: Electrical Supply Connection

    Electrical Supply Connection During Usage • DO NOT connect your appliance to the mains electricity Connect the appliance to the electrical supply (220-240 V ~ supply using an extension lead. 50 Hz) with the plug and lead, which are fitted. • DO NOT use damaged, torn or old plugs. Connections to the mains supply should be in accordance with local regulations.
  • Page 19 (1 x) (1 x) (1 x) (1 x) (2 x) (25 x) (1 x) (4 x) e d ) e n d o m m ( R e c (2 x) (4 x) (4 x) 200cm² min.75 mm min.75 mm 200cm²...
  • Page 20 (1 x) (2 x) (1 x) (2 x) 90°...
  • Page 21 (8x)
  • Page 22 (1 x) (5 x) (1 x) (4 x) (4 x) (4 x) (12 x)
  • Page 23: Circuit Diagram

    Circuit diagram ArtNo.095-0003 - Circuit diagram - 90 induction 20BD53 DISPLAY 1 2 3 4 5 6 7 8 9 10 11 12 FRIDGE SENSOR SERPANTIN SENSOR DOOR SWITCH 1 2 3 4 1 2 3 4 5 6 7 8 20BD52 MAINBOARD 1 2 3 4 5 1 2 3...
  • Page 24: Technical Data

    Technical Data DocNo.600-0008 - Technical data - DxD 910 INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Left-hand side of the fridge compartment. COUNTRY OF DESTINATION: GB, IE. Dimensions 1770 Max. 110° All dimensions in mm Door Clearances This illustration is prepared according to 20mm furniture thickness.
  • Page 25 Ratings Brand RANGEMASTER Model identification RTFR18/INT Product category 1 (Refrigerator) Mass Number of cavities Energy class Annual energy consumption* 144 kWh Total gross volume 303 litres Total net volume 300 litres Refrigerator gross volume 303 litres Refrigerator net volume 300 litres...
  • Page 26: 10. Warranty/After Sales Service

    10. Warranty/After Sales Service If consultation or technical assistance is needed, please provide the local authorised service agent with the purchase invoice and the product code/serial number. Please refer to the Technical Data to locate the product number/serial number. The 2 years free maintenance for the operation of the appliance started from the date of purchase of this product.
  • Page 27 Notes...
  • Page 28 Notes...
  • Page 29 NOTE...
  • Page 30 NOTE...
  • Page 31 NOTE...
  • Page 32 • DocNo.000-0001 - Back cover Rangemaster Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. w w w.ran gemaster.co. uk...
