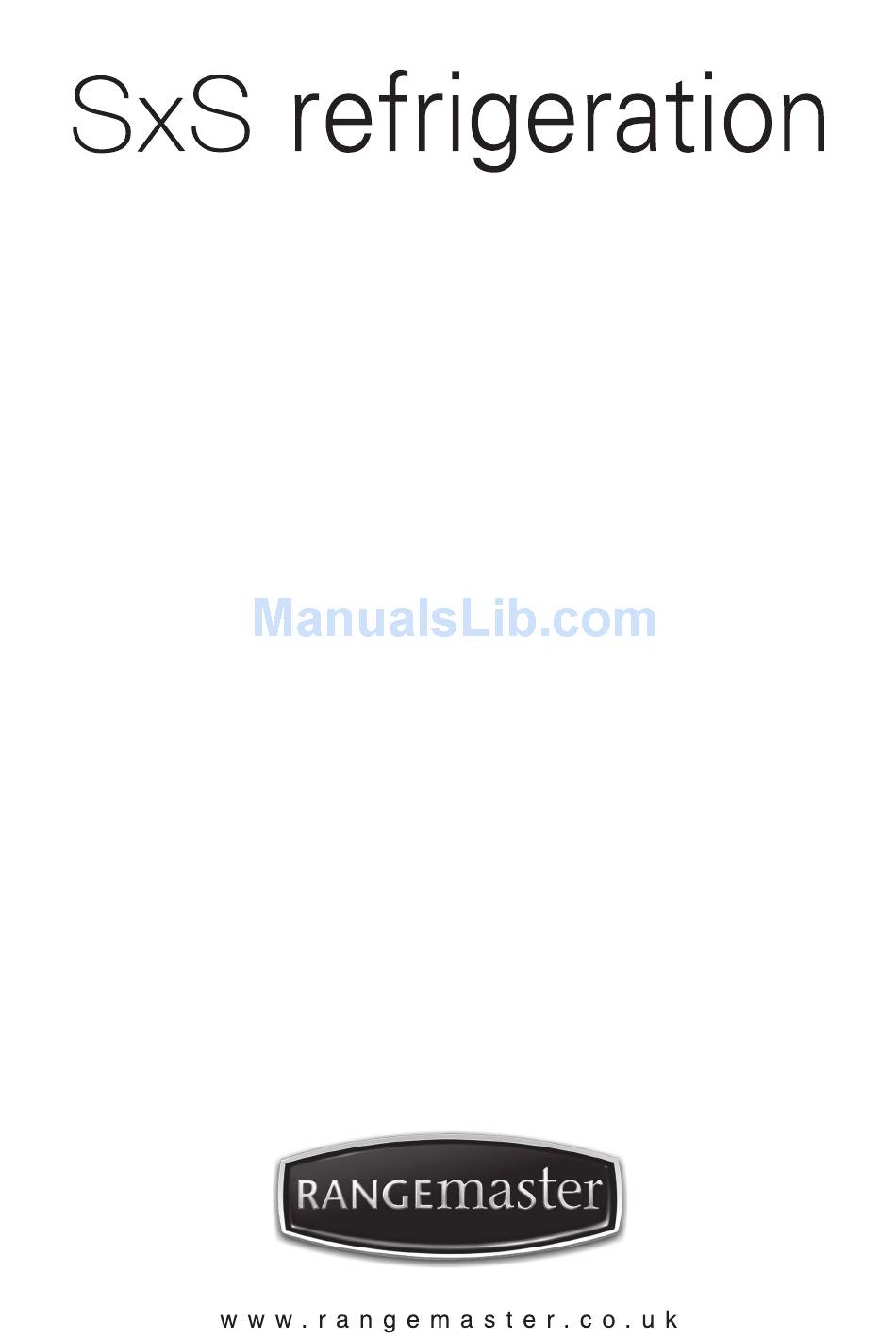

- Page 1 Users Guide & Installation U109100 - 02...
-
Page 2: Diagram Of Parts
Cantilever shelf Restrainer Storage shelf Freezer draw Before using your new appliance please read this instruction carefully. Note: Layout of the refrigerator that you have just purchased may vary. Ice Maker (inside ice bin) Refrigerator compartment Bottle cover Cantilever shelf... -
Page 3: Table Of Contents
Contents Diagram of parts Safety precautions Location Preparation Operation Functions Refrigerator compartment Precautions Suggestions Freezer compartment Precautions Operation of icemaker and cold water supply Removing and installing the ice cube bin Dispenser operation Crushed ice and cool water supply Precautions for dispenser operation... -
Page 4: Safety Precautions
• Replacement of one of the light bulbs. Never store infl ammable, explosive or corrosive materials in the refrigerator. Do not install the refrigerator near petrol or other infl ammable articles. Do not swing on or apply excessive pressure to the refrigerator door. - Page 5 Disassembly, renovation or cooling system maintenance of refrigerator must only be carried out by an authorised engineer. Unplug the refrigerator in the event of a power interruption or during cleaning. Allow at least 5 minutes lapse before restarting the refrigerator.
-
Page 6: Location
Location The refrigerator should be placed on a fl at and solid surface. If the refrigerator is placed on a plinth, fl at, strong and fi re-resistant materials must be used. The front feet of the refrigerator can be adjusted... -
Page 7: Preparation
Caution: Some time will be required for the refrigerator to reach the set level after temperature is reset. The length of this period is determined by diff erence in the existing and set temperatures, the... -
Page 8: Functions
FUZZY A. Fuzzy control setting B. Super freezing selection C. Freezer temperature adjustment D. Refrigerator temperature adjustment E. Ice/water option When appliance is connected to power supply for the fi rst time, the intelligent operation and crushed ice supply are activated automatically. -
Page 9: Error Display
Press the button, and the icon will blink. Every press of FUZZY the button will increase the refrigerator temperature by 1°C between 2°C and 10°C. If the button is pressed when 10°C is reached, the cycle will start again from 2°C... -
Page 10: Refrigerator Compartment
220-240V~/25W E14 (lamps exceeding 25W must not be used) Clip the lamp cover back into position. NOTE! - When fi rst installed, the refrigerator will NOT commence cooling until the freezer NOT commence cooling until the freezer NOT commence cooling until the freezer... -
Page 11: Precautions
Storage areas As cold air circulates inside the refrigerator, temperature diff erences exist inside the storage compartments. Diff erent foods should be placed in diff erent areas according to their properties. Dismounting the crisper cover Lift the shelf by the rear edge (1) and then move the shelf out of the compartment (2). -
Page 12: Suggestions
Egg holder can be relocated whenever necessary in the refrigerator. Onions, garlic, ginger and other root vegetables should not be stored in the refrigerator, as these foods are suitable for long- term storage at normal temperatures. Leaves of carrots or turnips should be removed before storage. -
Page 13: Freezer Compartment
Freezer compartment Long-term storage of food As the freezer storage temperature is very low, fresh food can be stored in the freezer compartment for a long time. Food requiring long-term storage can be stored in the frozen food compartment. Dismounting the food shelves for cleaning 1 Lift the shelf by holding the outer side, then 2 pull to remove. -
Page 14: Operation Of Icemaker And Cold Water Supply
Only remove the required amount of food from the refrigerator. Defrosted food cannot be re-stored in the freezer unless it is fi rst cooked. Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5kg. -
Page 15: Removing And Installing The Ice Cube Bin
• After the appliance is installed, ensure that the water tube is properly arranged to avoid indents or damage. • This appliance is installed with an MSEH10 icemaker. • Installation of the icemaker must be carried out by an authorised agent. •... -
Page 16: Dispenser Operation
Hold the glass as close as possible to the dispenser to avoid spillage of crushed ice. NOTE! - The refrigerator has an automatic cut off switch to prevent dispensing ice continuously for 3 minutes or more than 4 minutes in any 30 minute period. -
Page 17: Defrosting And Cleaning
Dry water droplets on surfaces of the refrigerator with a piece of cloth. Caution: Do not use excessive amounts of water for cleaning the refrigerator. Use a dry cloth to clean the switch and the lamp. • Always keep the door gasket clean... -
Page 18: Turning The Appliance Off
Turning the appliance off If the refrigerator is to be turned off for an extended period, unplug the refrigerator and clean it as previously described. Keep the door of refrigerator open when the power is turned off... -
Page 19: Troubleshooting
fi rst started. When the refrigerator is fi rst operated, the case may become warm. This is designed to prevent condensation. Liquid refrigerant fl owing in the evaporator may produce a slight sound similar to that of fl... - Page 20 Set temperature not reached. Door is not properly closed, or the door is opened for long period; Refrigerator is in direct sunlight, or close to a heat source; The area is poorly ventilated, or the two sides of the refrigerator are covered by too much dust.
-
Page 21: Warranty/After-Sales Service
Water supply valve is not turned on. Turn the water supply valve. • • Refrigerator or freezer compartment door is not closed. Close all the doors of the appliance. We recommend that the inline water filter is changed every 2 years. -
Page 22: Setting The Water Level
Setting the Water Level to diff ering water pressures within the UK, the water setting level pressure will vary. There are 8 levels that can be selected to control how much water is supplied to the Icemaker. The factory setting is Level 1. If the size of the ice cubes produced are too small, then the following steps can be taken to increase the water supply to the Icemaker There are 2 buttons - FRZ. - Page 24 70406...
