Minebea CSD-581-15 Instruction Manual

Digital indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

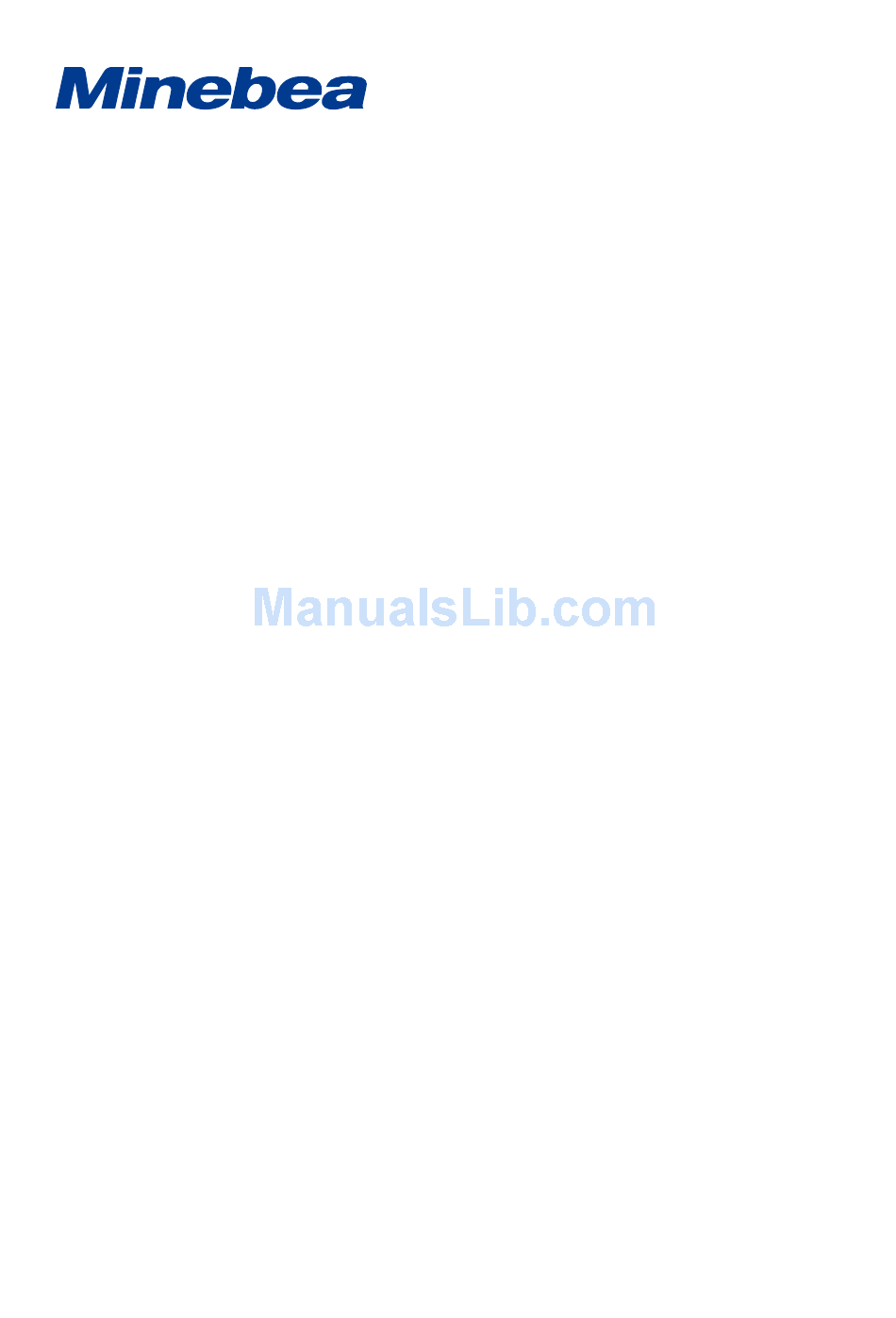

DIGITAL INDICATOR
CSD-581-15
Instruction Manual
EN294-1107-M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSD-581-15 and is the answer not in the manual?

Questions and answers

Ricardo Garcia
May 30, 2025

How can I adjust the load display

0
1 comments:
Mr. Anderson
May 30, 2025

To adjust the load display on a Minebea CSD-581-15, follow these steps:

1. Press the “FUNC.” key for about one second. The display will show “FUNC”.
2. Press the “A/ZA” key multiple times to cycle through modes: “FUNC” → “CCAL” → “ACAL” → “LCAL” → “ZERO” → “SPAN” → “TARE” → “CHECK” → “MONIT” → “F−END” → back to “FUNC”.
3. To adjust zero (fine adjustment):
- Stop at “ZERO”, press “ENTER”.
- Use “A/ZA” or “A/ZOFFY” keys to set the current load value to zero.
- Press “ENTER” again to save and exit. Display will show “T−END”.
4. To adjust span (fine adjustment):
- Ensure tare weight cancellation (A/Z) and zero tracking are not active.
- Enter span fine mode through the same function sequence.
- Set the actual load value applied to the load cell using “A/ZA”, “A/ZOFFY”, or “CHECK” keys.
- Press “ENTER” to confirm.

Make sure the load value is within the display range (−10% to +110% of the maximum display value). If below or above this range, the display will show “−OL” or “OL”.

This answer is automatically generated

0

Related Manuals for Minebea CSD-581-15

Summary of Contents for Minebea CSD-581-15

  • Page 1 DIGITAL INDICATOR CSD-581-15 Instruction Manual EN294-1107-M...
  • Page 3 FOREWORD Thank you very much for your purchasing our Digital Indicator CSD−581−15. This manual explains installation procedures and connecting method and also operating method for Digital Indicator CSD−581−15. Make use of it properly after reading through the manual carefully. Be sure to deliver the manual to the end user. Moreover, the end user should keep the manual at hand after reading it over.
  • Page 4 Marks and arrangement used in this manual The following marks are attached to the explanation on the matters that indicate “Don’t do this.”, “Take care.” and “For reference”. Be sure to read these items where these marks are attached. ● It means a precaution which must be followed to prevent the ...
  • Page 5 For safe operation Be sure to read this manual before use. 1. Installation place  ● Use the instrument where the temperature/humidity specifies within the range as follows: Environmental temperature：−10 ℃ to 50 ℃ Environmental humidity：Less than 85 %R.H. Non condensing.) (1) Location where installation is not allowed.
  • Page 6 (2) Installation  Warning ● There are a lot of electrical parts installed on the P .C. board of the instrument, so there have fears to occur electrostatics destruction. Because of this, operator should discharge electricity from him/her by touching to some metal sections other than the instrument before use.
  • Page 7 Each dimensions of the instrument and required dimensions for the environmental spaces are as follows: Dimensions for installation 6−φ4 land □6 CN202 DIP202 DIP203 Unit：mm Dimensions when the optional metal cover(CSD581−P80) is installed. (37.6) 4−φ6 (152.5) (73) (24.5) Unit：mm...

  • Page 8: Power Supply

    2. Power supply  Warning ● Be sure to check that power supply is off when installing each cable. If the work is done with the power fed, there may have the possibility of electric shock to the operator or even the possibility of destroying the instrument.
  • Page 9  Warning ● Do not shock the instrument such as throwing something on it. If neglected, it may cause destruction of the parts and damage to the electrical circuits.  Warning ● Don’t push the key switch section on the instrument with unnecessary strong force nor push it with sharp−edge object such as driver.
  • Page 10 U301 Battery MOD301 CN202 DIP202 DIP203  Warning ● Don’t supply the power when the instrument is placed directly on the conductive material such as metal, and also when it is covered in conductive bag for packaging. If neglected, it may cause the damage in the instrument or electric shock to the operator.

  • Page 11: Storage Case

    Conformity of CE standard The instrument has conformed to the following standard. EN61326−1：2013 “Electrical instruments for measurement, control, and laboratory use−EMC request” “Immunity test require ments for equipment intended for use in industrial locations” "Technical documentation for the assessment of electrical EN50581：2012 and electronic products with respect to the restriction of hazardous substances"...

  • Page 12: Connecting Wires

    2. Connecting wires (1). Shield processing Please give certain shield processing by using “Shielded cable”, “Conduit piping”, and “Shield wiring material besides” for connecting the I/O cables of the instrument. The main point to shield is shown below. D When you use the shield connector plug of a shielded cable and a metallic shell, the shield must be touched directly with the cable clamp section of the connector as shown in the figure below.
  • Page 13 (2). Power supply Please execute the following items for the power supply and wiring by which DC24 V is supplied to the instrument. D Please set up the DC24 V power supply used in the same storage case as the instrument.
  • Page 14 (3). Ground Please execute the ground of the instrument surely according to the following items. D Please make the single ground of the instrument, or make the single ground of the storage case after connecting the instrument with the storage case when you store only the DC24 V power circuit for the instrument and the instrument in the storage case.
  • Page 15 ”Immunity test requirements for equipment intended for use in industrial locations” Due to ECN.FN10−02026 Feb. 2010 DRW. NO.EN294-1107-J − Change − Front cover’s logo is changed. Due to ECN.FN10−02140 Oct. 2010 DRW. NO.EN294-1107-K − Change − Minebea logo is changed. XIII...
  • Page 16 Date Instruction manual No. Details of revised point Due to ECN FN17-02017 ・Delete the company name in the contents. Due to FN17-02066E Jan.2018 DRW. NO.EN294-1107-L Add and correct the applicable standard. - Add [EN50581･2012] - Correct from [EN61326-1:2006] to [EN61326-1:2013] Due to ECN FN15-02132B －Correct miswriting－...

  • Page 17: Table Of Contents

    CONTENTS ............FORWARD Ⅰ...
  • Page 18 6−2−2. Operation in another modes ........6−3.
  • Page 19 8−3. Target for BCD output ..........

  • Page 21: General

    1. General The instrument is a digital indicator for the application of strain gage applied transducers. 1−1. Features Main features for CSD−581−15 are as follows : (1) P .C. board type Only one piece of P .C. board can perform the function of digital indicator with BCD output applied, and it is suitable for the application inside of control panel.

  • Page 22: Each Name And Function

    2. Each name and function ⑩ ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ① CN202 DIP202 DIP203 ⑯ ⑮ ⑭ ⑪ ⑫ ⑬ Load display The load data is shown in Measurement mode, and status display will be shown in various kinds of Calibration modes and Setting mode.
  • Page 23 Used when ON/OFF operation of CHECK value is required. “ENTER” key Used for registering the set value at the time of various kinds of settings. Position of pasting the Unit seal As necessity requires, paste the Unit seal attached. Terminals 1 Connects with various kinds of strain gage applied transducer such as load cell, ground earth wire and DC power supply.

  • Page 24: Installation Procedures

    3. Installation procedures 3−1. Installation place  ● Use the instrument where the temperature/humidity specifies within the range as follows: ：−10 ℃ to 50 ℃ Environmental temperature ：Less than 85 %R.H.(Non condensing.) Environmental humidity 3−2. Location where installation is not allowed. ...

  • Page 25: 3−3. Installation

    3−3. Installation  Warning ● There are a lot of electrical parts installed on the P .C. board of the instrument, so there have fears to occur electrostatics destruction. Because of this, operator should discharge electricity from him/her by touching some conductive metal sections before use. Besides, take care not to touch electrical parts when you operate.
  • Page 26 Each dimensions of the instrument and required dimensions for the environmental spaces are as follows: 6−φ4 land □6 CN202 DIP202 DIP203 Unit：mm Dimensions when the optional metal cover(Option：CSD581−P80) is installed (37.6) 4−φ6 (152.5) (73) (24.5) Unit：mm...

  • Page 27: Connecting Method

    4. Connecting method 4−1. Layout of terminals and BCD output connector There are 2 pieces of terminals, one has 11 pieces of terminal points (Terminals 1) and the other has 3 pieces of terminal points (Terminals 2) and also attached BCD output connector.

  • Page 28: 4−2. Note On Connection

    4−2. Note on connection  Warning ● In case of connection with the instrument, keep strictly to the following items. If neglected, it may cause an unexpected failure or a damage to the instrument. ● Please observe the condition shown in the paragraph of “Conformity of CE standard in the FORWARD”...

  • Page 29: 4−3. Connections

    4−3. Connections 4−3−1. Connection with strain gage applied transducers The instrument can connect with strain gage applied transducers, such as load cell, pressure transducer and so on. Here, we will describe the example of connections with load cell, so connect with another type of strain gage applied transducers in the same way. ...
  • Page 30  ※1 When tension is applied with the application of tension type or universal(compression/tension) type of load cell, and display of “+” direction is required, connect “Green” with Terminal No.9 at terminals 1, and “Blue” with Terminal No.8 at terminals 1 individually.
  • Page 31 B−304 Internal terminal connection To Load cell YEL(shield) Suitable crimp−type terminal lugs：1.25−4 or 2−4 Terminal pitch 9.5 mm YEL(shield) To CSD−581−15 ii) In case of application of CAB−501(6 cores cable) CN202 DIP202 DIP203 Junction box B−304 CAB−501 ※3 (Length of CAB−501 should be Enlarged figure for connecting section within 100 m totally.) B−304 Internal terminal connections...
  • Page 32  ※1 When tension is applied with the application of tension type or universal(compression/tension) type of load cell, and display of “+” direction is required, connect “Green” with Terminal No.9 at terminals 1, and “Blue” with Terminal No.8 at terminals 1 individually.
  • Page 33 B−307 Internal terminal connections YEL(shield) CSD−581−15 YEL(shield) YEL(shield) YEL(shield) YEL(shield) ii) In case of application of CAB−501(6 cores cable) CN202 DIP202 DIP203 Junction box B−307 CAB−501 ※3 (Length of CAB−501 should be Enlarged figure for connecting section 100 m totally.)
  • Page 34 B−307 Internal terminal connections YEL(shield) to CSD−581−15 YEL(shield) YEL(Shield) YEL(shield) YEL(shield)
  • Page 35  ※1 When tension is applied with the application of tension type or universal(compression/tension) type of load cell, and display of “+” direction is required, connect “Green” with Terminal No.9 at terminals 1, and “Blue” with Terminal No.8 at terminals 1 individually.
  • Page 36 SB−310 Internal terminal connections Short bars Output Port Input port No. 1 To CSD−581−15 WHGN BLYE Input port No. 2 Input Port WHGN BL No. 4 Input port No. 3 A：3.2 mm or less Suitable crimp−type B：7 mm or less terminal lugs ･Y type ･Round type...

  • Page 37: 4−3−2. Connection With External Control Input

    Internal terminal connections for SB−310 Short bars Output Port Input port No.1 To CSD−581−15 WHGN BLYE Input port No.2 Input Port GN BL No.4 Input port No.3 Suitable crimp−type A：3.2 mm or less terminal lugs B：7 mm or less ･Y type ･Round type 4−3−2.

  • Page 38: 4−3−3. Connection With Open Collector Output

    4−3−3. Connection with open collector output Connection with open collector output “RUN” ,“ERROR” and external load should be made as the following figure. At the same time, care should be taken fully, so that the load doesn’t exceed the rated open collector.

  • Page 39: 4−3−4. Connection With Power Supply And Ground

    4−3−4. Connection with power supply and ground Connection with power supply and ground should be made as follows: Besides, grounding should be the D class with single ground. Power supply voltage DC24 V (DC18 V to DC36 V) Power consumption Approx.

  • Page 40: Calibration Procedures

    5. Calibration procedures  Warning ● Before using the new instrument or after exchanging the strain gage applied transducer with a new one, be sure to make calibration. If calibration is not made, correct measured results may not be obtained, or it may cause malfunction to the instrument and it may damage the peripheral equipment.

  • Page 41: 5−2−1. Calibration Method To Register The Output Of Strain Gage Applied Transducer At The Time Of Maximum Display After Setting The Loa

    5−2−1. Calibration method to register the output of strain gage applied transducer at the time of maximum display after setting the load to zero.  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration. If calibration shall not be made, correct measured results may not be obtained nor may cause malfunction in the instrument and there may exist damage in peripheral equipments.
  • Page 42 Procedures Press the “A/Z A ” key once. The load display will show “CCAL ”. Press the “ENTER” key. “CCAL ” mode can be entered, then the load display will show “D−01” and it will light on and off. When the calibration has completed already, the set value of minimum scale which has registered at that time will be displayed.
  • Page 43 Procedures Press the “ENTER” key. The load display will show “2000”, and the digit of minimum display will lights on and off. When the calibration has completed already, the registered value of maximum display at that time will be displayed. ...
  • Page 44 Procedures Press the “ENTER” key”. The load display will show “0.3000”, and the digit of 10 will flash on and off. In case that calibration has completed already, the registered output value of load cell at that time will be displayed. Set the output value for load cell corresponding to the maximum display value that has set in step 5 with “A/Z A”, “A/Z OFF Y”...
  • Page 45 Procedures Press the “ENTER” key. The load display will show “−−−−−” with lighting display on and off, then zero adjustment can be started.  ： Warning At the same time, take care not to apply load vibration due to vibration and so on. When load vibration is applied, there will be possibilities that zero point is unstable, and precise reading of zero will not be obtained.

  • Page 46: 5−2−2. Calibration Method To Register The Output Of Strain Gage Applied Transducer At The Time Of Zero And The Maximum Display

    5−2−2. Calibration method to register the output of strain gage applied transducer at the time of zero and the maximum display  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration. If calibration shall not be made, correct measured results may not be obtained nor may cause malfunction in the instrument and there may exist damage in peripheral equipments.
  • Page 47 Procedures Press the “FUNC.” key for about one second. The load display will show “FUNC”. Press the “A/Z A ” key twice. It will make the load display proceed as “FUNC” →“CCAL ”→“ACAL ”. Press the “ENTER” key. The ACAL mode can be entered, then the load display will show “D−01”...
  • Page 48 Procedures Press the “ENTER” key. The load display will become “2000”, and the digit of minimum display will light on and off. When the calibration has been already completed, maximum display value registered at that time will be displayed.  By the setting of minimum scale, the digit of minimum display that lights on and off will be as follows:...
  • Page 49 Procedures Press the “ENTER” key. The load display will become “0.0000”, and the digit will light on and off. When the calibration has been already completed, the output value of load cell registered at that time will be displayed. Set the output value of load cell with the initial load application by using “A/Z A ”, “A/Z OFF Y”...
  • Page 50 Procedures Press the “ENTER” key. The load display will become “3.0000”, and the digit of 10 will light on and off. When calibration has been already completed, the output value of load cell registered at that time will be shown. Set the output value for load cell corresponding to the maximum display value set in step 5 with the “A/Z A”, “A/Z OFF Y”...

  • Page 51: 5−2−3. Calibration Method To Register By Reading Output Value Of Strain Gage Applied Transducer In The Conditions At Zero And Actual Lo

    5−2−3. Calibration method to register by reading output value of strain gage applied transducer in the conditions at zero and actual load applied individually.  Warning ● Before using a new instrument or exchanging the strain gage applied transducer for a new one, be sure to make calibration. If calibration shall not be made, correct measured results may not be obtained nor may cause malfunction in the instrument and there may exist damage in peripheral equipments.
  • Page 52 Procedures Press the “FUNC.” key for about one second. The load display will show “FUNC”. Press the “A/Z A ” key three times. It will make the load display proceed as “FUNC” →“CCAL ”→“ACAL ”→“LCAL ”. Press the “ENTER” key. “LCAL ”...
  • Page 53 Procedures Press the ”ENTER” key. The load display will show “2000”, and the digit of minimum display will lights on and off. When the calibration has been already completed, that maximum display value registered at that time will be displayed. ...
  • Page 54 Procedures Press the “ENTER” key. The load display will show “2000”, and the digit of 10 will light on and off. When the calibration has been already completed, the output value of load cell registered at that time applied actual load will be displayed. ...
  • Page 55 Procedures Press the “ENTER” key. The load display will become “−−−−−” with flashing display on and off, then zero adjustment can be started.  ： Warning At the same time, be careful not to apply load vibration due to vibration and so on. When load vibration is applied, it may have the possibilities that zero point becomes unstable, and precise reading of...
  • Page 56 Procedures Press the “ENTER” key. The load display will show “−−−−−” with lighting on and off, and Span adjustment will be started.  ： Warning At the same time, be careful not to apply load vibration due to vibration and so on. When load vibration is applied, it may have the possibilities that span will become unstable, and precise reading of span will...

  • Page 57: 5−2−4. Fine Adjustment On Zero

    5−2−4. Fine adjustment on zero  ● During tare weight cancellation (A/Z) and zero set is executed, and also during zero tracking is effective, zero fine adjustment mode can’t be entered.(Displays ERR−5.) After executing tare weight cancellation clear (A/Z OFF) and cancellation for compensated data for zero set (Executes F−98.) and setting OFF the zero tracking (F−07 &...
  • Page 58 Procedures Press the “ENTER” key. Zero fine adjustment mode can be entered, then display of load will show the present load value and light on and off. At the same time, set the present load value to “0” with “A/Z A” key or “A/Z OFF Y”...

  • Page 59: 5−2−5. Fine Adjustment On Span

    5−2−5. Fine adjustment on span  ● During Tare weight cancellation (A/Z) and zero set is executed, and also during zero tracking is effective, span fine mode can’t be entered (Displays ERR−5). After executing tare weight cancellation clear (A/Z OFF) and cancellation for compensated data for zero set (Executes F−98) and setting OFF the zero tracking (F−07 &...
  • Page 60 Procedures Press the “ENTER” key. It will proceed to the fine adjustment mode of span, and then indication of load display will become the actual load value and light on and off. At this time, adjust the indication of load value to be equal to the value applied on the load cell.

  • Page 61: 5−2−6. Calibration Procedure To Apply Registration Again For Zero Point Only

    5−2−6. Calibration procedure to apply registration again for zero point only  Warning ● At the time of executing the calibration, be sure to set tare weight cancellation clear, cancellation of compensated data at zero set (Execution of F−98) and zero tracking OFF(Setting of F−07, and F−08 to “00000”).
  • Page 62 Procedures Press the “ENTER” key. The TARE mode can be entered, then the indication on the load display will light on and off, and tare cancellation will be started.  ： Warning At the same time, care should be taken not to apply load variation due to vibration and so on.

  • Page 63: 5−3. Selection Of Calibration Procedures On Each Condition

    5−3. Selection of calibration procedures on each condition The instrument prepares calibration procedures shown in the paragraph in 5−2. Calibration methods, here we’ll show some conditions to execute actual calibration. (1) When executing calibration on the new instrument (In case that our combined inspection has not executed.) D When load condition and output condition of load cell are clarified.
  • Page 64 For example, we will show the calibration procedures in the following procedures, that is, 3 points of load cells with 3 mV/V of rated output and 5 t of rated capacity. Tare weight 1.5 t Weighing capacity Maximum display 5 000 Calculate the output of load cell at maximum display from the above conditions.
  • Page 65 As necessity requires, execute fine adjustment on Zero and Span according to the paragraph 5−2−4 and 5−2−5. (3) When load condition is clear, but output condition of load cell is unclear In the case of using the existed load detecting instrument, and only adopting this digital indicator newly, it is necessary to execute calibration after checking the output of load cell of which output is not clarified.

  • Page 66: 5−3−2. In Case Of Executing Re−Calibration

    When the load at the section of load cell can’t make it initial load application due to failure on the existing CSD−581−15, execute calibration, execute calibration by referring to the procedures as below. However, when initial load condition can be obtained, make calibration according to the procedures of (1) and (2).

  • Page 67: Operating Procedures

    6. Operating procedures We’ll show the operating procedures for the instrument on each key on the front panel.  Warning ● Operation with each key should be made after interrupting the measurement. If it is made during measurement, it may cause an unexpected malfunction.

  • Page 68: 6−2−2. Operation In Another Modes

    6−2−2. Operation in another modes When the “A/Z OFF Y” key is pressed with the displaying condition of various kinds of set values, set value makes increment one count by one from 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, and 0 again continuously.

  • Page 69: Function And Operation

    7. Function and operation 7−1. External control input signal and open collector output signal The external control through various kinds of input/output signals is available on this instrument. 7−1−1. External control input signal Activates by shortening with COM. (pin No. 1,19) in the output connector of BCD. BCD output Name Operation...

  • Page 70: 7−1−2. Open Collector Output Signal

    7−1−2. Open collector output signal Terminal 2 Name Operation Terminal No. ON when the instrument is in the Measurement mode. OFF at the time of CHECK ON. ERROR ON when various kinds of errors are occurred. COM. Common for open collector output (Terminals 2: Terminal No.

  • Page 71: 7−2. Bcd Output

    7−2. BCD output  Warning ● When the instrument will be turned on with the condition of shorting the HOLD signal of external control input, BCD output will be as follows: When the display is set as the target of HOLD with F−50, and the target of BCD output is set as display, BCD output will output “00000”.

  • Page 72: 7−2−3. Bcd Output Connector Pin Configuration

    (2) Output data 5 digits of parallel output POL.(Polarity) output ON at minus, output OFF at plus P .C.(Print command) ERROR OVR.(over) (3) Input data Refer to the paragraph 7−1−1 External control input signal. (4) Output target Changeable for display(Setting of F−02), Net weight, Gross weight and external selection (SEL.1, SEL.2).

  • Page 73: 7−2−4. Equivalent Circuit For Input/Output

    7−2−4. Equivalent circuit for input/output (1) Equivalent circuit for input section ＋5V 680Ω 0.1μ INPUT COM. (2) Equivalent circuit for output section OUTPUT COM. =DC30 V ,Ic=20 mA MAX. 7−2−5. Timing chart  Warning ● When reading each output data of BCD output through sequencer and so on, read with the timing that P .C.(Print command) is “at the edge from ON to OFF”.
  • Page 74 (2) When data is over. DATA POL. P .C. OVR.  ● At the time of OVR output, output transistor of OVR signal will become ON (Negative logic electrically). Moreover, all of P .C., DATA and POL. will OFF condition of output transistor at the time of ERROR output(Positive logic electrically).

  • Page 75: 7−2−6. Output Condition

     ● P .C. output transistor will be OFF (Positive logic electrically) at the time of HOLD signal input. However, as for P .C., it will be OFF condition after one shot of operation is over. ● After inputting HOLD signal, the following response times will be required until DATA and POL.
  • Page 76 (1) Selection of P .C. logic Selection can be made by the ON/OFF at DIP201:1,2 as the below table. Negative logic Positive logic DIP201：1 DIP201：2  Warning ● Never set ON or OFF both of 1 and 2 on DIP201 at the same time. If neglected, P .C.

  • Page 77: 7−3. How To Use Filter

    7−3. How to use filter The instrument prepares digital filter that can stabilize transferred data into digital through processor.  Warning ● When setting filter is not adequate, correct measurement can’t be made and it may cause unexpected accident, so care should be taken fully.

  • Page 78: 7−4. Zero Tracking

    7−4. Zero tracking The instrument prepares zero tracking function in order to compensate for slow drift of zero. 7−4−1. What is zero tracking? D Zero tracking is a function to compensate slow drift of zero within the constant condition, and also to follow the zero point of the instrument in order to stabilize zero point. D When data variation width within the set time with Function F−08 is within range of set value set with F−07 against zero point, then the input will be cancelled as zero point.

  • Page 79: 7−4−4. Cancellation For Data Compensation By Zero Tracking

    7−4−4. Cancellation for data compensation by Zero tracking Cancellation for data compensated by zero tracking can be executed with the function F−98.  ● To change the target of Zero tracking, be sure to cancel the data compensated by Zero tracking at first with the function F−98.

  • Page 80: 7−5. Stabilizing Filter

    7−5. Stabilizing filter This instrument prepares Stabilizing filter that can filter through digital filter strongly when variable width for load is within the constant value and also when the condition is frozen for more than a constant period. 7−5−1. What is stabilizing filter? As for stabilizing filter, when the variation width of load is within the value set by Function F−97 and also when the condition is continued for more than the set period by the Function F−10, the digital filter for stabilizing filter set by the Function F−09 will become effective.
  • Page 81 Load variation width Setting of F−10 Setting of F−10 Load variation width Data width for Data width for stabilizing filter stabilizing filter Setting of F−10 Load variation width Data width for stabilizing filter time Effective Digital filter for stabilizing filter Ineffective...

  • Page 82: 7−6. Various Kinds Of Functions Related With Display

    7−6. Various kinds of functions related with display 7−6−1. Selection of target of display on load display The load display on the instrument can select the target from “Net weight” and “Gross weight”. These selections can be made in the Function mode. (Related Function F−02) As for default, “Net weight”...

  • Page 83: 7−7. Change Of Bridge Power Supply Voltage

    7−7. Change of bridge power supply voltage  Warning ● Prior to change the bridge power supply voltage, set the power OFF for the instrument. If neglected, there may cause unexpected failure. The instrument can select bridge power supply from “10 V“ and “2.5 V”. This selection can be made with the SW1 “Changeover SW for bridge power supply”...

  • Page 84: 7−8. Tare Weight Cancelation (A/Z)

    7−8. Tare weight cancelation (A/Z) The instrument prepares Tare weight cancellation (A/Z) function. Pressing the “A/Z A” key makes Tare weight cancellation (A/Z) function operated and when the load display becomes net weight display, the “A/Z” lights up on the display and load display value becomes “0”...

  • Page 85: 7−11. Key Lock

     ● When Tare weight cancellation (A/Z) is executed in effective condition of digital Tare weight cancellation, the display value will be shown as follows: (Indication when Tare weight cancellation in effective condition of digital tare weight cancelation) ＝（Gross weight）−（Tare weight cancellation value) 7−11.

  • Page 86: 7−13. Memory Position For Setting Data And So On

    7−13. Memory position for setting data and so on The instrument memories each data into RAM and EEPROM as follows: Since the EEPROM is non−volatile, it will be stored almost indefinitely. Also, RAM is charged by battery. Back−up life will be about 10 years when it is stored in the room temperature.

  • Page 87: 7−14−1. Operating Procedures For The Check Mode

    7−14−1. Operating procedures for the Check mode  ● Every time the “A/Z A” key is pressed from the condition of “FUNC” on load display, the indication will change as the following arrow sequence. “FUNC”→“CCAL ”→”ACAL ”→“LCAL ”→“ZERO”→”SPAN“→ ”TARE”→“CHECK”→“MONIT”→“F−END”→“FUNC”→ “CCAL ”・・・・（Hereinafter over and over again.） Procedures Press the “FUNC.”...
  • Page 88 Procedures ・ Check on ROM version Press the “ENTER” key. Entering into Check mode, and “ROM” will display on the load display. By pressing the “ENTER” key again, ROM version will be appeared on the load display.  In the Check mode, when the indication on the load display shows whichever one in the below, display can be changed with the key operation of “A/Z A”...
  • Page 89 Procedures ・ Check the input signal for external control Press the “ENTER” key. The load display will show “IN”. By pressing the “ENTER” key again, the load display will change “−IN−0”. At this time, ON/OFF condition for external control input signal can be monitored on LED for status display, and on load display section.
  • Page 90 Procedures ・ Check on the output signal of open collector Press the “ ENTER ” key. The load display will show “OUT”. Pressing the “ENTER” key again, indication on the load display will change to “−OUT−”. At this time, each open collector output will vary by the right key operation and LED of status display will light up as well.
  • Page 91 Procedures Press the “ENTER” key. The load display will show “C−END”. By pressing the “ENTER” key again, it will quit from the Check mode and will enter into the Measurement mode, then displays load value.

  • Page 92: 7−15. Monitor Mode

    7−15. Monitor mode In Monitor mode, the applied load on the strain gage applied transducer at present can be displayed after it is converted into the unit of mV/V. For example, when load cell is used, and the output value is unclear, apply actual load in order to read the output value at the time of initial load application and also at the time of the maximum load application by using this function and make calibration with the value as a base.
  • Page 93 Procedures Press the “FUNC.” key for about one second. The load display will show “FUNC”. Press the “A/Z A” key at 8 times. The load display will change as “CCAL ”→ “ACAL ”→“LCAL ”→“ZERO”→“SPAN”→“TARE” →“CHECK”→“MONIT”. Press the “ENTER” key. Monitor mode can be entered, and converted value into mV/V for the present input value for the transducer will flashing display on the load display.

  • Page 94: Function Mode

    8. Function mode  Warning ● During the Function mode, the instrument suspends measurement. In due course, even when input of strain gage applied transducer may change, various kinds of outputs will not change, which may cause destruction in equipment due to malfunction in peripheral equipments.
  • Page 95 Procedures Press the “ENTER“ key. Contents of setting Function that has selected will be displayed and the digit of 10 will light on and off. Change the setting with the right keys. Suspend the setting of Function mode, then Measurement mode can be returned by pressing the “FUNC.”...

  • Page 96: 8−2. Function On Function Data

    8−2. Function on Function data D F−01 Selection of decimal point display position Initial value=00000 00000＝Non 00001＝10 00002＝10 00003＝10 00004＝10 D F−02 Selection of target for display 00000＝Net weight (Interlocked with A/Z.) Initial value＝00000 00001＝Net weight (Interlocked with A/Z.) 00002＝Gross weight ※When “Net weight”...
  • Page 97 D F−07 Setting data width of zero tracking Initial value＝00000 00000＝Zero tracking OFF Setting range ：00000 to 00099 Unit ：0.5D Data width of 49.5D with the setting of “00099”. ※Effective only when the value from 00001 to 00099 is set with the F−08. D F−08 Setting zero tracking time width Initial value＝00020...
  • Page 98 D F−21 Selection of output logic of BCD data Initial value＝00000 00000＝Negative logic 00001＝Positive logic D F−22 Selection of output logic of BCD polarity (POL) Initial value＝00000 00000＝Negative logic 00001＝Positive logic D F−23 Selection of output logic for BCD flag(ERROR、OVR) Initial value＝00000 00000＝Negative logic 00001＝Positive logic...
  • Page 99 D F−72 Actual load value (For reference) ※The actual load value set when calibration (LCAL) is applied can be referred ※When the calibration except LCAL is made, this value will not change. ※In this function, change of setting can’t be made. D F−73 Zero calibration value (For reference) ※The input voltage value which is read as initial load value at the time of...

  • Page 100: 8−3. Target For Bcd Output

     Warning ● Never use the following functions because they may destroy the functions in internal of the instrument. F−00 F−05 F−11 F−12 F−13 F−14 F−15 F−16 F−17 F−18 F−19 F−24 F−25 F−26 F−27 F−28 F−29 F−30 F−31 F−32 F−33 F−34 F−35 F−36...

  • Page 101: Trouble ・Shooting

    9. Trouble ・shooting When abnormal point(s) is/are found during the operation of the instrument, check by the following procedures. However, when you can’t find applicable item nor you can’t solve the symptom of trouble even after you have taken some measures, contact us. Supply power, again.

  • Page 102: 9−1. Executing Trouble・Shooting

    9−1. Executing trouble・shooting To execute trouble shooting. Does supply power voltage satisfy the specifications ? Supply power source suitable for specifications. Display is wrong. Open collector output doesn’t operate. External control input doesn’t operate. Connecting method is good. Key operation doesn’t work.
  • Page 103 Displays. Display doesn’t vary. Displays optional values. Display fluctuates abnormally. Apply re−calibration according to OL display section 5. Calibration procedures. −OL display Same situation Make the HOLD input Start of open. measurement External input or HOLD of BCD  output is used No display when HOLD is shorted at the time of feeding...
  • Page 104 RUN output doesn’t make ON. Status display RUN doesn’t light up. CHECK is ON. Set the CHECK OFF. In the mode other than Return the the the Measurement mode Measurement mode. Following causes can be considered. Failure in open collector by ERROR doesn’t using other than the rated make ON.
  • Page 105 ZERO input doesn’t work. A/Z is ON. Set the A/Z to OFF. A/Z input doesn’t work. A/Z OFF input doesn’t work. LOCK input doesn’t work. Input of SEL.1,SEL.2 doesn’t work. Setting of selection of the target for BCD output is “00003=External selection”...
  • Page 106 Set the LOCK for external LOCk on status display control input open. lights up. Cancel the key lock with the Key lock has set with the Function F−06. Function F−06. External control input Set the HOLD input open. or HOLD of BCD output is used.
  • Page 107 Make connection (wiring) with Connected correctly. external equipments referring to the paragraph 7−2. Adjust the setting related with BCD output with the specifications for external connecting equipments. ●F−21 Selection of output logic for BCD data ●F−22 Selection of output logic for BCD Other than BCD polarity is output.
  • Page 108 ① Remove the connecting cable from the terminals at the strain gage applied transducer. ② Measure the voltage between terminal A and terminal C on the terminals.  Set the connection range to DC･V for the measuring instrument such as tester and so on.
  • Page 109 ① Remove the connecting cable from the terminals on the strain gage applied transducer. ② Measure the voltage between terminal A and terminal C.  Set the connection range to DC･V for the measuring instrument such as tester and so on. The voltage between A and C Contact us.
  • Page 110 ① Remove the connecting cable from the terminals on the strain gage applied transducer. ② Measure the voltage between terminal A and terminal C.  Set the connection range to DC･mV for the measuring instrument such as tester and so on. Inform us about the The voltage between A and C is just like the...

  • Page 111: 9−2. Error Display

    9−2. Error display Error code Contents of error Remedy Execute zero set exceeding ±10 % of ERR−0 Apply zero set after making within ±10 % of maximum display value. maximum display value. At the time of CHECK ON, zero set Execute zero set or tare cancellation after or tare weight cancellation is setting the CHECK OFF.
  • Page 112 Error code Contents of error Remedy Displays when 110 % of the maximum display value is exceeded Adjust so that the load display shows during calibration. within the range of −10 % to 110 % of within the range of −10 % to 110 % of −OL Displays when −10 % of the maximum display value.

  • Page 113: Specifications

    10. Specifications 10−1. Specifications for analog DC10 V±0.5 V within 120 mA (DC2.5 V is changeable.) Bridge power supply Remote sensing applied. Up to 4 pieces of strain gage applied transducers (350 Ω) can be Applicable transducers connectable. Input range F.S.

  • Page 114: 10−5. Bcd Output

    10−5. BCD output Specifications ・BCD 5 digits Output Parallel output with polarity (POL) (Output ON with minus and outputs OFF with plus.) ・P .C.(Print command) ON during a certain period after conversion of BCD output is completed. ・ERROR ON at the time of various kinds of errors are occurred. ・OVR (over) ＝DC30 V , Ic＝DC20 mA MAX Above are open collector output...

  • Page 115: 10−8. Standard Specifications At The Shipment

    10−8. Standard specifications at the shipment Bridge power supply DC10 V Span adjustment 2 000 display at the input of 0.3 mV/V Tare weight 0 mV/V The minimum scale Decimal point 10−9. Accessories Instruction manual 1 piece Midget fuse of 5 A 1 piece Short bars for A−F, C−G 2 pieces...

  • Page 116: 10−11. Outline Dimensions

    10−11. Outline dimensions 6−φ4 land □6 CN202 DIP202 DIP203 Unit : mm Dimensions when an option is installed.（Option：CSD581−P80） (37.6) 4−6 (73) (152.5) (24.5) Unit :mm...

  • Page 117: Warranty

    11. Warranty 11−1. Warranty D The instrument is covered by a warranty for a period of one year from the date of delivery. D As for repairs and/or after service is required during the period of warranty, contact our sales office or sales agency from which you have purchased. 11−2.

  • Page 118: Appendix

    12. Appendix 12−1. Replacement of fuse  Warning ● When installation method for fuse is wrong and/or capacity of installed fuse is inadequate, it causes an unexpected faulty of the instrument. Set OFF the power supply for the instrument. Replace the fuse located at the lower part in the left of the board. CN202 DIP202 DIP203 Fuse...

  • Page 119: 12−2. Attachment/Removal Of Optional Metal Cover(Csd581−P80)

    12−2. Attachment/removal of optional metal cover(CSD581−P80) Proceed the installation of metal cover CSD−581−P80 as follows: 6−bind machine screw M3×10 Cover(with direction) CSD−581−※ 4−Spacer SQ−25 （Accessories） Base(with direction) 6−stud (upon base)

  • Page 120: 12−3. Character's Pattern For Display

    12−3. Character’s pattern for display The followings are the patterns to show display patterns used at 7 segments display on the instrument.
  • Page 122 1-1-1, Katase, Fujisawa-shi, Kanagawa-ken, 251-8531 Japan Tel: +81-466-23-2681 Fax: +81-466-22-7191 Sensing Device Business Unit FUJISAWA PLANT 1-1-1, Katase, Fujisawa-shi, Kanagawa-ken, 251-8531 Japan Tel: +81-466-22-7151 Fax: +81-466-22-1701 KARUIZAWA PLANT 4106-73 Miyota, Miyota-machi, Kitasaku gun, Nagano-ken 389-0293 Japan Tel: +81-267-31-1309 Fax: +81-267-31-1353 HOMEPAGE ADDRESS http://www.minebea-mcd.com...
