Questtel 1L-HDMI-FE4K User Manual

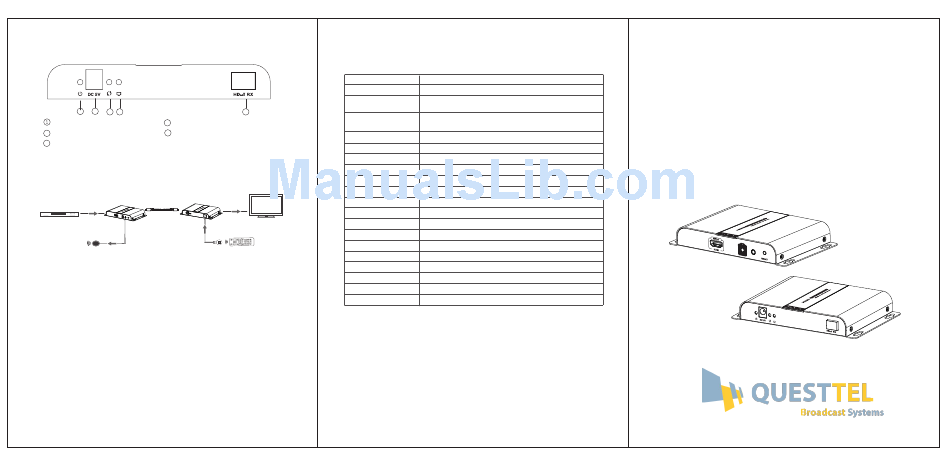

5.4 Front Panel of RX
1 2 3 4
Power status indicator Power input (DC5V)
2
Data transmission indicator Network connection indicator
4
3
HDbitT RX
5
6. Connection and operation
HDMI EXTENDER TX HDMI EXTENDER RX
SENDER RECEIVER
DVD HDMI IN
FIBER optic CABLE
IR IN
IR OUT
7. FAQ
Q: TV display" waiting for connection"o n the bottom right corner?
A: Please check if the power supply of TX (sender) and the fiber optic
cables are well connected.
Q: TV display" HDbitT Reminder: Please check the TX input signal" ?
A: 1) please check if there is an HDMI signal input of sender TX.
2) Try to connect the source device directly with display device to
see if there is signal output from source device or change the source
device and HDMI cables to retest.
Q: Display not fluent and stable?
A: Press"reset"b utton on the TX/RX panel or reconnect power.
8. Specification
Item
HDMI signal
Transportation
protocol
5
Support resolution
DDC signal voltage
TMDS bandwidth
Central wave length
Transmission distance
Link loss
Output light power
Receive sensitivity
HDMI OUT
Return loss
IR remote control
TV
Power supply
Power consumption
Working temperature
Enclosure material
Product dimension
Weight
Color
Disclaimer
* The product name and brand name may be registered trademark of
related manufacturers.TM and ® may be omitted on the user manual.
The pictures on the user manual are just for reference, and there may
be some slight difference with the real products.
We reserve the rights to make changes without further notice to a product
or system described herein to improve reliability, function or design.
Specification
Full compatible with HDCP
HDbitT
480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,
1080i@50/60Hz,1080p@50/60Hz 4Kx2K@25/30Hz,4Kx2K@25/30Hz
5Vp-p(TTL)
10.2Gpbs
1310nm
20km
≤14dB
≥-11dBm
≤-32dBm
15dB
Support 20~60KHz IR remote control
DC5V/2A * 2pcs
TX<5W RX<4W
0℃～60℃
Aluminum alloy
151 . 5 x 95 x 22mm (LxWxH) *2pcs
TX: 360 g RX: 360 g
Black
HDMI Over Fiber
Transmitter and Reciever
Extender with IR
1L-HDMI-FE4K
User Manual
