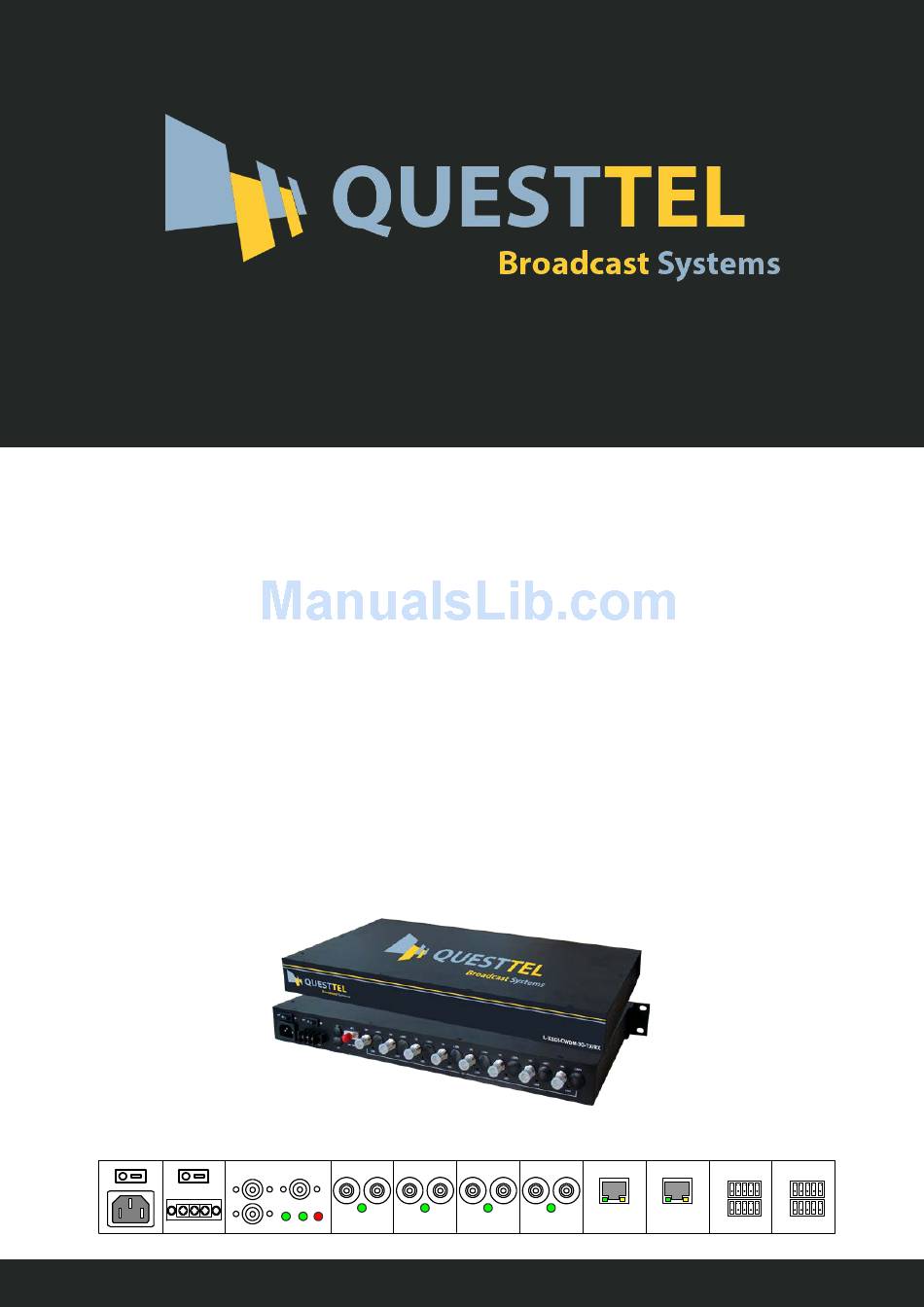

8Ch CWDM 3G-SDI + Gigabit Ethernet Fiber
Extender kit - Transmitter & Receiver
O FF
O N
O FF
P G N D G N D +2 4 V
www.questtel.com
User Manual
L-XSDI-CWDM-3G-GE-TX/RX
S D I
λ1
OPT
O N
P W R 1 P W R 2 LIN K
LOCK
IN
LO O P
λ2
S D I
S D I
S D I
LOCK
LOCK
LOCK
IN
LO O P
O U T1
O U T 2
OU T1
O U T2
E TH
E TH
1 2 3 4 5
A U X1
A U X2
1 0 /10 0 /1 0 00 M
1 0/ 10 0 /1 00 0 M
1 2 3 4 5
sales@questtel.com
1 2 3 4 5
A U X1
A U X2
1 2 3 4 5
Advertisement
Related Manuals for Questtel L-XSDI-CWDM-3G-GE-TX/RX
Summary of Contents for Questtel L-XSDI-CWDM-3G-GE-TX/RX
- Page 1 8Ch CWDM 3G-SDI + Gigabit Ethernet Fiber Extender kit - Transmitter & Receiver User Manual L-XSDI-CWDM-3G-GE-TX/RX S D I S D I S D I S D I E TH E TH λ1 1 2 3 4 5 1 2 3 4 5...
-
Page 2: Table Of Contents
L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit Contents CHAPTER 1. INTRODUCTION........................2 1.1 O ..............................2 VERVIEW 1.2 F ..............................2 EATURE 1.3 A .............................. 3 PPLICATION CHAPTER 2. EQUIPMENT VIEW........................ 4 2.1 F ............................4 RONT ANEL 2.2 R .............................. -
Page 3: Chapter 1. Introduction
Chapter 1. Introduction 1.1 Overview The L-XSDI-CWDM-3G-GE-TX/RX is a high performance, and reliable, 1~8 3G/HD/SD-SDI multi-service optical transceiver, which is designed as a modular system to support up to 8 3G/HD/SD-SDI, up to 2 gigabit Ethernet, up to 8 phoenix terminal groups for audio, RS232, RS422, RS485 and contact closure, up to 2 optical wavelength signal for outside device. -
Page 4: Application
L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit 1.3 Application S D I S D I S D I S D I E TH E TH λ1 1 2 3 4 5 1 2 3 4 5 O FF O FF... -
Page 5: Chapter 2. Equipment View
L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit Chapter 2. Equipment View 2.1 Front Panel LINK PWR 1 PWR2 Figure 2-1-1 Front Panel of Transmitter and Receiver Table 2-1-1 Indicators on Front Panel Name Description LINK Receiving status at optical port. - Page 6 L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit SLOT4 Service slot4, supports 3G/HD/SD-SDI SLOT5 Service slot5, supports 3G/HD/SD-SDI, GE, Note: if AUX interface is selected, both SLOT5 and SLOT6 must be AUX interface SLOT6 Service slot6, supports 3G/HD/SD-SDI, GE, SLOT7 Service slot7, supports 3G/HD/SD-SDI, GE,...
- Page 7 L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit Name Description LINK Optical port status indicator. RED/GREEN. RED ON: Optical signal loss is detected at the port. GREEN ON: Normal. PWR1,PWR2 Power1/Power2 indicators, GREEN ON: the power works normally OFF: the power is abnormal or absence.
- Page 8 L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit OUT2 unidirectional audio Audio channel -2 output Output Ground AUX212 OUT3 Audio channel -3 output OUT4 Audio channel -4 output 2-channel Audio channel -1 input AUX207- unidirectional audio AUX208 in pairs Audio channel -2 input...
- Page 9 L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit COM2 Command contact second channel contact closure 2-channel bi- RS485 channel-1 differential signal A AUX204- directional RS485 AUX204 in pairs AUX204 RS485 channel-1 differential signal B RS485 channel-2 differential signal A RS485 channel-2 differential signal B...
-
Page 10: Chapter 3. Technical Specification
L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit Chapter 3. Technical Specification Table 3-1 Technical Specification Item Typical Value SDI Interface Connector Bit rate 2970Mb/s, 1485Mb/s and 270Mb/s auto adaptive Standard Comply with SMPTE-424M 3G-SDI,SMPTE-292M HD- SDI and SMPTE-259M SD-SDI Impedance 75Ω... - Page 11 L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit Default working mode Auto-negotiation Bit rate 10/100/1000Mb/s Duplex Half/full duplex Flow Control Enable as default Standard IEEE802.3ab 1000Base-T / IEEE802.3u 100Base-TX / IEEE802.3 10Base-T Analog Audio Interface Connector Phoenix connector Input impedance 10KΩ...
- Page 12 L-XSDI-CWDM-3G-GE-TX/RX 8Ch CWDM 3G-SDI Fiber Extender kit Note: 1. The default transmission distance is 20Km. Please declare when ordering if longer distance is required. 2. In order to prevent the damage of optical modules, an attenuator(10dB in general) must be inserted into the short fiber tail that sometimes used to connects the two devices for test purposes.
- Page 13 This unit outputs continuous invisible light, which may be harmful to the WARNING! eyes; use with caution. For additional safety, plug the attached dust caps into the optical transceivers when the fiber optic cable is unplugged. Direct viewing into optical connectors should be avoided at all times! www.questtel.com sales@questtel.com...
