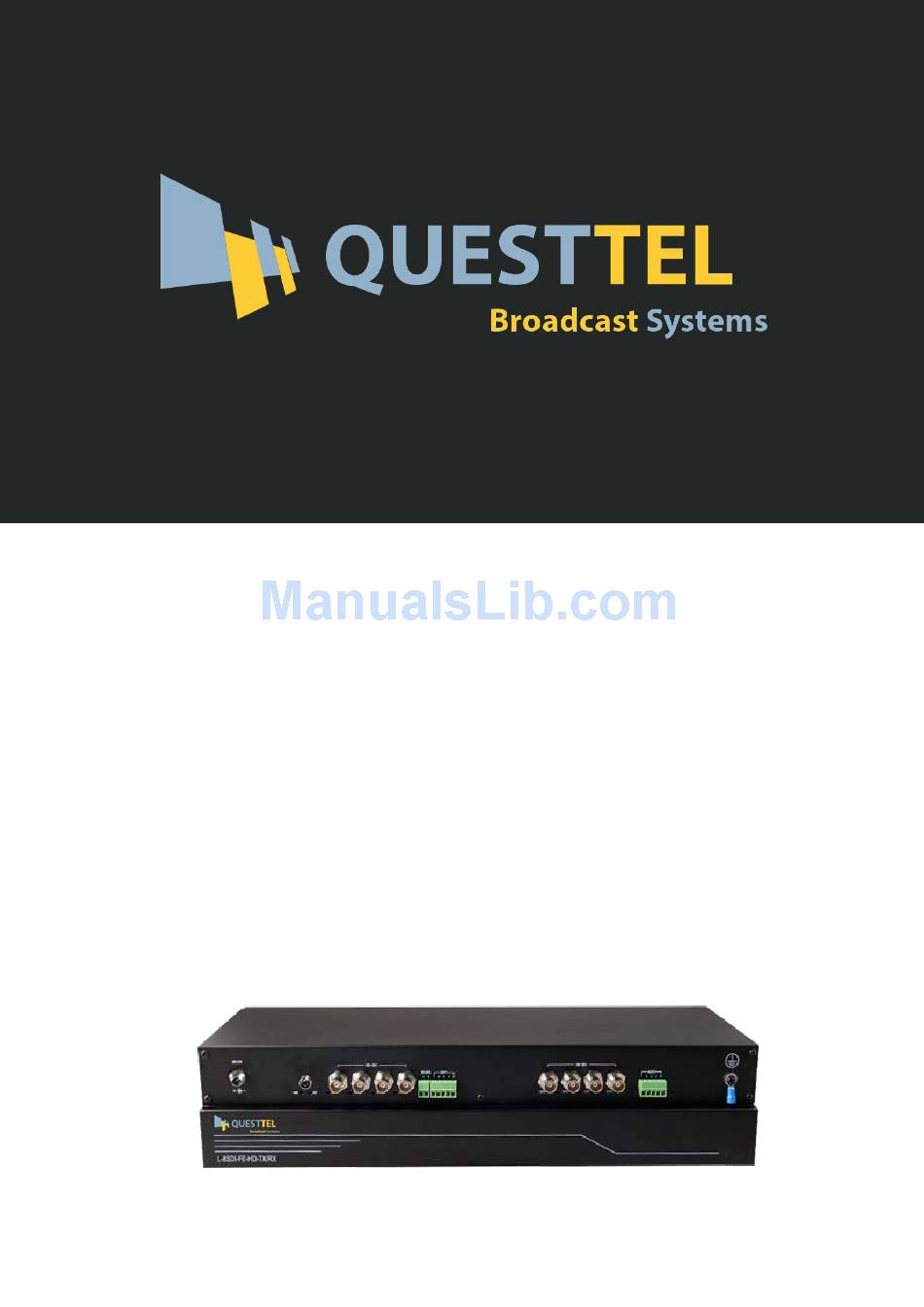

Page 1: User Manual
8 Chanel HD SDI Over Fiber Transmitter and Reciever Extender User Manual L-8SDI-FE-HD-TX/RX... -
Page 2: Table Of Contents
CHAPTER 2. 2.1 F ...........................4 RONT ANEL 2.2 R .............................7 ANEL L-8SDI-FE-HD-TX/RX RACK MOUNTING CHASSIS ..........8 CHAPTER 3. L-8SDI-FE-HD-TX/RX RACKPANEL ......................8 TECHNICAL SPECIFICATION ..................10 CHAPTER 4. CHAPTER 5. NTSC/PAL CONFIGURATION ..................12 APPENDIX1 SERIAL MANAGEMENT INTERFACE（CONSOLE） ........... 14 www.questtel.com... -
Page 3: Chapter 1. Introduction
Chapter 1. Introduction 1.1 Overview The L-8SDI-FE-HD-TX/RX is a high performance, and reliable, 8-channel HD-SDI video optical transceiver, which perform real-time, loss-free and high-quality HD/SD-SDI transmission（audio embedded) over an optical line. Besides, L-8SDI-FE-HD-TX/RX provides one bi-directional RS485 data channel, and optional... -
Page 4: Application
SDI Over Fiber User Manual L-8SDI-FE-HD-TX/RX 1.3 Application www.questtel.com sales@questtel.com... -
Page 5: Chapter 2. L-8Sdi-Fe-Hd-Tx/Rx Desktop Equipment
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 Figure 2-1-2 L-8SDI-FE-HD-RX Front Panel Table 2-1-1 Interfaces on L-8SDI-FE-HD-TX/RX front Panel Name Description Optical interface, bi-directional, adopts FC connector IN [1:8] HD-SDI input 1~8 HD-SDI OUT [1:8] HD-SDI output1~8 RS485 interface, adopts PHOENIX connector... - Page 6 SDI Over Fiber User Manual L-8SDI-FE-HD-TX/RX ON: video input normally. OFF: video input abnormally. The SD/ HD-SDI output status indicator, green. OUT[1：8] ON: output normally. OFF: output abnormally. RS485 link indicator, green. Blink: There are data transmitting and receiving; OFF: No data transmit or receive;...
- Page 7 (AUX205) RS232 signal output 2 RS232 signal input 2 Note1: The AUX interface of L-8SDI-FE-HD-TX/RX are used in pairs, e.g. if L-8SDI-FE-HD-TX use 4- channel unidirectional audio output interface, L-8SDI-FE-HD-RX should use 4-channel unidirectional audio input interface. Note2: If the auxiliary channel is used as the audio channel, the embedded audio channel in the HD-SDI signal will be unavailable.
-
Page 8: Rear Panel
SDI Over Fiber User Manual L-8SDI-FE-HD-TX/RX 2.2 Rear Panel DC12V Figure 2-2-1 L-8SDI-FE-HD-TX/RX Rear Panel Table 2-2-1 L-8SDI-FE-HD-TX/RX Rear Panel Name Description DC 12V power input interface DC12V Adopts AC220V/DC12V power adapter, provides 12V power supply Protective ground (PGND) screw, connect with the chassis. -
Page 9: Chapter 3. L-8Sdi-Fe-Hd-Tx/Rx Rack Mounting Chassis
220V AC power card PWR100AC power consumption is 100W, supports power management control. Note: The HD-SDI optical receive card supports hot-pluggable, which won't affect other working cards. 3.1 L-8SDI-FE-HD-TX/RX RACK panel HD- SDI AUX2 OUT5 OUT6 OUT7 OUT8... - Page 10 SDI Over Fiber User Manual L-8SDI-FE-HD-TX/RX 3.3 The rear view of rack mounting chassis 220VIN -48VIN -48V GND PGND Figure 3-2-1 The rear view of rack mounting chassis Table 3-2-1 The rear view of rack mounting chassis Name Description -48VIN -48VDC power interface, the voltage range：-36~-72V。...
-
Page 11: Chapter 4. Technical Specification
SDI Over Fiber User Manual L-8SDI-FE-HD-TX/RX Chapter 4. Technical Specification Table 4-1 Technical Specification Item Typical value SDI Interface Connector Bit rate 1.485Gb/s and 270Mb/s auto adaptive Impedance 75Ω Return loss >15dB Output level 800mVp-p±10% ≤270ps Rise and fall time（HD-SDI）... - Page 12 SDI Over Fiber User Manual L-8SDI-FE-HD-TX/RX Connector RJ45 Bit rate 10Mb/s or 100Mb/s auto adaptive Power and Consumption for desktop equipment Power supply DC 12V DC input voltage range 8V~14V Power consumption 3W± 10％ Power and Consumption for rack mounting chassis...
-
Page 13: Chapter 5. Ntsc/Pal Configuration
SDI Over Fiber User Manual L-8SDI-FE-HD-TX/RX Chapter 5. NTSC/PAL Configuration The transmitter can automatically detect the HD-SDI/SD-SDI standard of the input video, the receiver supports a PAL/NTSC dial switch to configure the standard of the output video. When the input video is 1080P@30,25,24, 1080I@60,50, 720P@60,50,30,25,24, the receiver should be configured as PAL;... -
Page 14: Appendix1 Serial Management Interface（Console
SDI Over Fiber User Manual L-8SDI-FE-HD-TX/RX Appendix1 Serial management interface（CONSOLE） Table A-1 Pin description of CONSOLE interface Definition Remarks PIN1 Null PIN2 Null PIN3 Null PIN4 Null PIN5 Null PIN6 Ground PIN7 RSNM-IN Serial network management channel input PIN8 RSNM-OUT... -
Page 15: Safety Instructions
This unit outputs continuous invisible light, which may be harmful to the WARNING! eyes; use with caution. For additional safety, plug the attached dust caps into the optical transceivers when the fiber optic cable is unplugged. Direct viewing into optical connectors should be avoided at all times! sales@questtel.com www.questtel.com...
