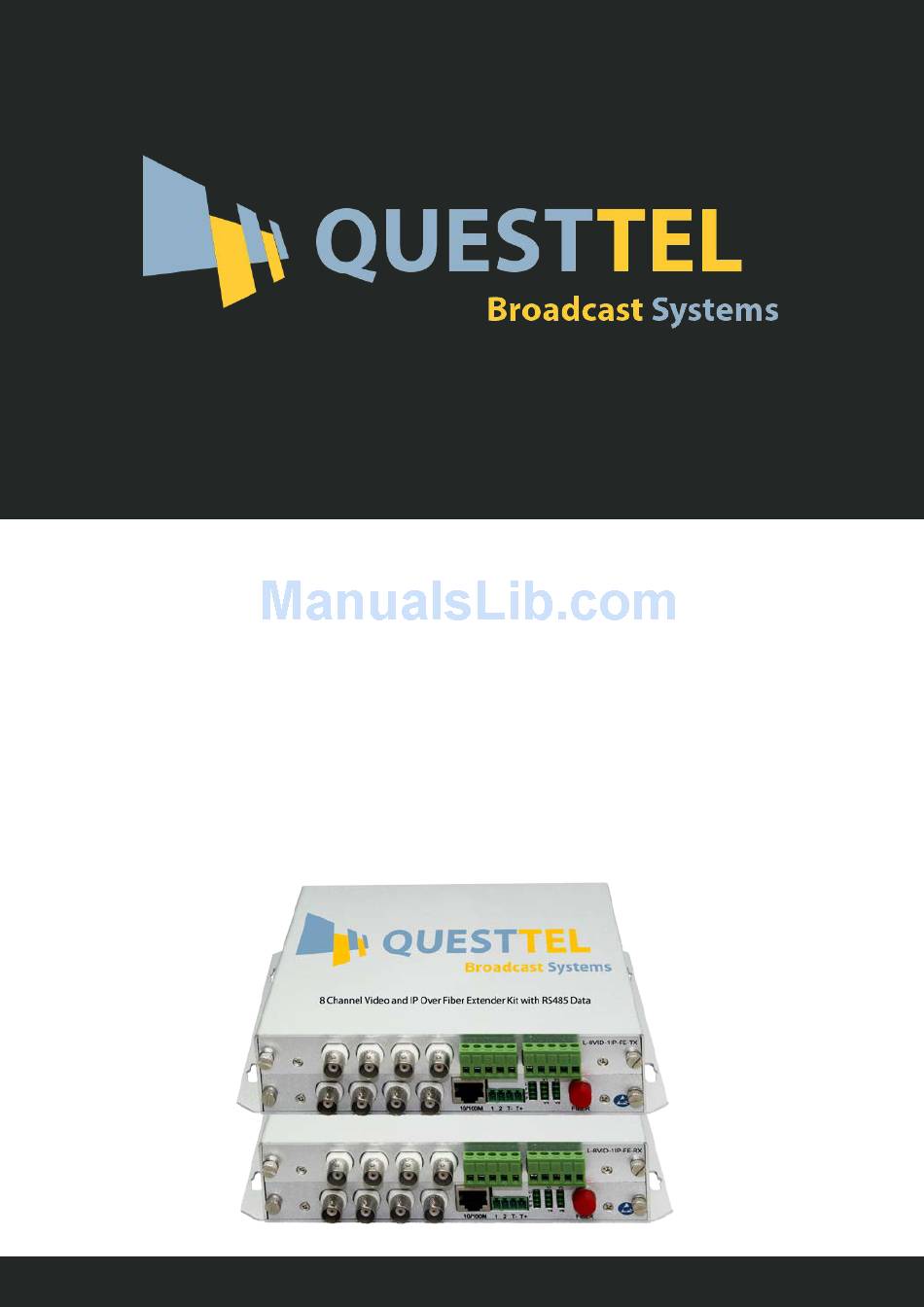

Page 1: User Manual
8 Channel Video and IP Over Fiber Extender Kit with RS485 Data User Manual L-8VID-1IP-FE-TX-RX www.questtel.com sales@questtel.com... - Page 2 L-8VID-1IP-FE-TX-RX Video + Ethernet Over Fiber User Manual Application Drawing: www.questtel.com sales@questtel.com...
- Page 3 Video + Ethernet Over Fiber User Manual Description: The L-8VID-1IP-FE-TX-RX is a 8 Channel Video + 1 Channel reverse Data +10/100M Ethernet optical transceiver adopts the most advanced international technology of digital video and optical fiber transmission, performing synchronous, undistorted, uncompressed and high quality signal transmission over all kinds of optical fiber.
- Page 4 L-8VID-1IP-FE-TX-RX Video + Ethernet Over Fiber User Manual Differential phase: （ 10%-90%APL） DP <0.8°( Typical value) Video SNR: S/N ≥ 70dB （Maximum optical link path loss） Data Features： Applications：supporting 1-ch reverse data, compatible with all kinds of Keyboard, ,DVR , alarm data industrial application transmission Interface：standard industrial connecting terminals...
-
Page 5: Safety Instructions
For additional safety, plug the attached dust caps into the optical transceivers when the fiber optic cable is unplugged. Direct viewing into optical connectors should be avoided at all times! WARNING ! www.questtel.com sales@questtel.com...
