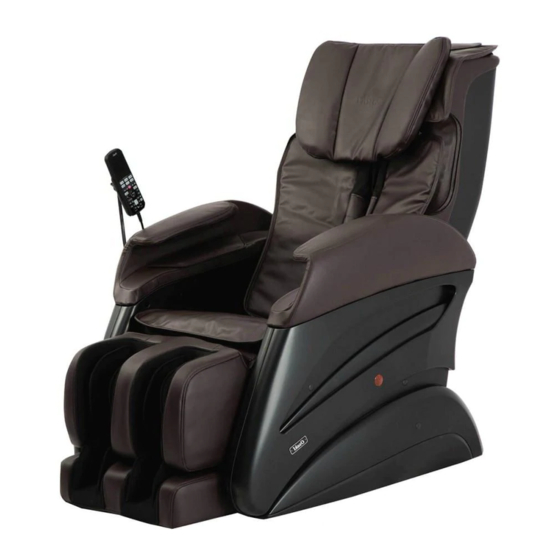

TW-Chiro 3D Massage Chair
User's Manual
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
................................................................
Thank you for your purchase of our massager.
Please read this manual carefully before use.
Please Keep this manual well.
1
5
8
10
11
14
17
18
23
25
26
27
28
28
28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TW-Chiro and is the answer not in the manual?

Questions and answers

Related Manuals for Osaki TW-Chiro

Summary of Contents for Osaki TW-Chiro

  • Page 1: Table Of Contents

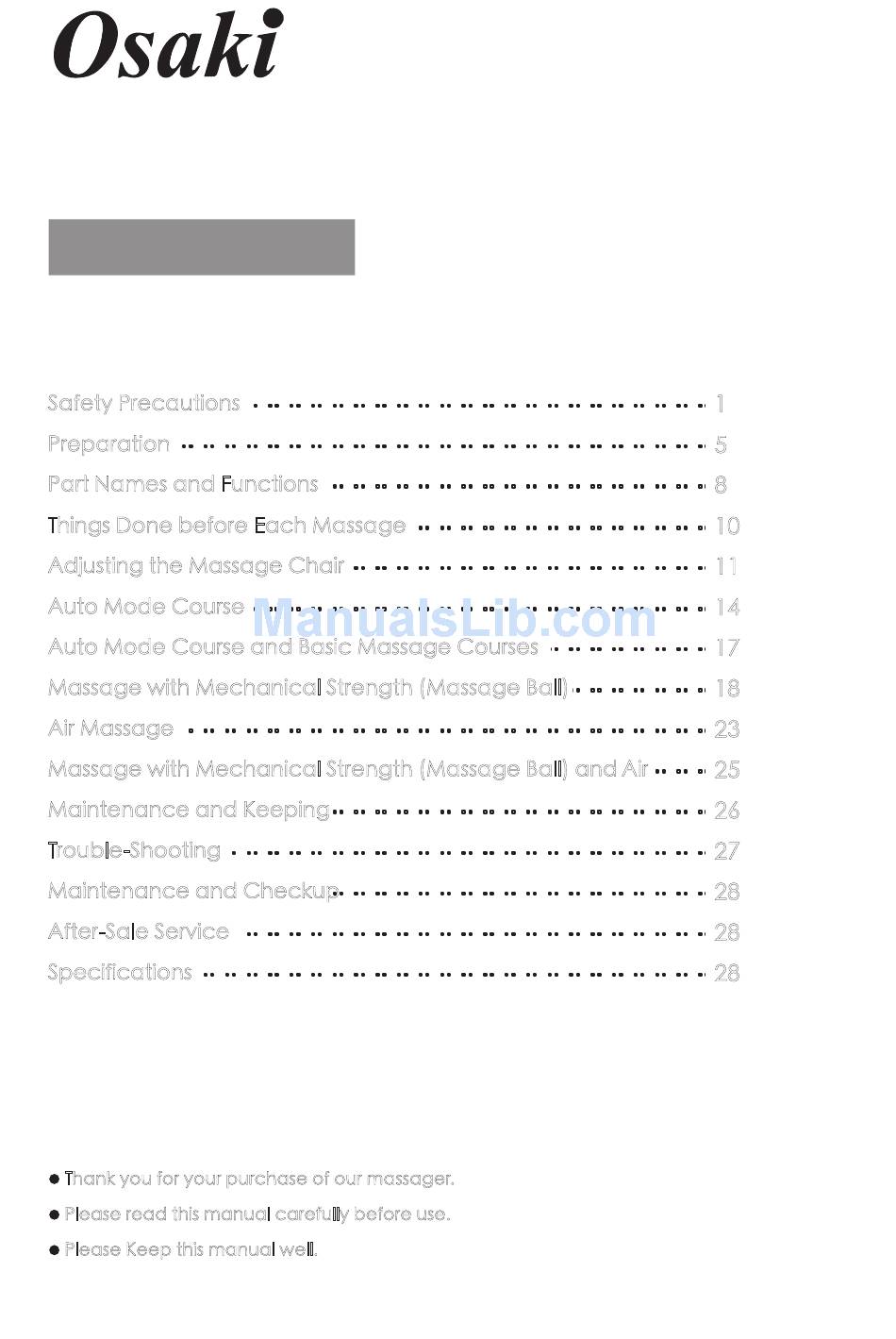

    TW-Chiro 3D Massage Chair User's Manual Safety Precautions ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ Preparation ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ Part Names and Functions ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ Things Done before Each Massage ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ Adjusting the Massage Chair ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ Auto Mode Course ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ Auto Mode Course and Basic Massage Courses ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ Massage with Mechanical Strength (Massage Ball) ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥...

  • Page 2: Safety Precautions

    Safety Precautions Please read these precautions before use and follow it carefully. These warnings are made for your correct use of this massager in order to prevent you from any injury and damage. Please notice there are Warning and Notice used to mark the degree of possible injuries or damages and the emergency by wrong operation.
  • Page 3 Safety Precautions Warnings People listed as below cannot use the massage chair unless they consult with doctors. Malignant Tumor Patients ● Pregnant women or menstrual women ● Illness with high fever ● Illness with acute diseases or soreness ● Osteoporosis patients ●...
  • Page 4 Safety Precautions Warnings Do not place it in bathrooms or other damp places in order to avoid any electric shock, fire,breakdown and rust. Do not engage dismantling, repair and re-fix except the repairing technicians in order to prevent fire and electric shock. Notices Control the using time in 15 minutes.
  • Page 5 Safety Precautions Warnings Please make sure the earth wire is plugged in to prevent electric shock from any breakdowns or electric leakage.And please contact the dealer for detail of installation. Please plug completely into outlet and ensure there are no pins or garbage sticking on it to avoid electric shock,short circuit and fire.

  • Page 6: Preparation

    Preparation Take out the massage chair and accessories from the packing case. Accessories Massage Chair Back Cushion Pillow Hole Cover Remote Control Stand User's Manual Assembling and Folding Backrest Move the backrest in the direction of the arrow Press down the stop dog under the backrest in and make sure the stop dog ( indicated in the ○...
  • Page 7 Preparation Assembling the Remote Control Stand Fasten the remote control stand with screws for Finished. installation onto the left arm of the chair Notice Fix them firmly,or the parts will fall off. It will cause injuries or breakdowns. Adjustment of Remote Control Stand Finished Image Turn the fixing screw to fix the remote control stand on the ball.
  • Page 8 Preparation Placing the Massage Chair Keep some space surrounding and place the massage chair on the flat places. Suggestion : The footrest will rise up when you lay down the backrest. Keep a space of 70 cm in the front of and behind of the chair to avoid any collision.

  • Page 9: Part Names And Functions

    Part Names and Functions Massage Chair Pillow Put the pillow on the backrest during massage Backrest Back Cushion Whole back massage Please relax yourself on it Shoulder Air massage for shoulders Hand Massager Remote Control Air massage for hand. Remote Control Stand Seat Air massage for bottom and thigh...
  • Page 10 Part Names and Functions Remote Control Display information 6 AUTO PROGRAMS • refresh • rejuvenate • deep 4 MASSAGE POSITIONS • relax • neck • • whole body • gentle • waist • point MANUAL Select preferred STOP massage from 5 modes. Stop all massages.(Press AUTO PROGRAM this button to stop the...

  • Page 11: Things Done Before Each Massage

    Things Done before Each Massage Switching on the Power 1.Insert the plug into the socket. 2.Turn on the switch. The power switch is located in the back of the left armrest. After the power is switched on, the “ON/OFF” button will flash. Check 1.

  • Page 12: Adjusting The Massage Chair

    Adjusting the Massage Chair How to Use the RECLINER Press “▼” of the backrest to lat it down. Keep pressing “▼” to lay down the backrest and raise the footrest. The bigger angle between the seat and the backrest is , the stronger the strength of the massage balls will be.
  • Page 13 Adjusting the Massage Chair How to Use the FOOTREST Press “▲” of the FOOTREST to raise it. Keep pressing to raise the footrest. Press “▲” of the FOOTREST while it reaches to the suitable angle. Press “▼” to lay down the footrest Keep pressing “▼”...
  • Page 14 Adjusting the Massage Chair How to Use the FOOTREST Press “ ” of the FOOTREST to raise the foot at a suitable angle. Press “ ” of the FOOTREST to lay down the foot. When raising footrest,tread forward to stretch the footrest. When resetting the footrest, the footrest will be shortened automatically.

  • Page 15: Auto Mode Course

    ATTO Mode Course At the Beginning When the power is switched on, the “ON/OFF” button will flash. After pressing “ON/OFF” button, the LCD will display below image. PREPARING Press ON/OFF ●Display standby on screen. ●Relax yourself when sitting on the chair and put your head on the backrest.
  • Page 16 AUTO Mode Course Start massage after finishing body scanning. If the detecting position of shoulder doesn't fit, press for slight adjustment. AUTO PROGRAM REFRESH REJUVENATE D E E P Press“ ”、“ ”to adjust the air strength. RELAX A I R GENTLE Press“...
  • Page 17 ATUO Mode Course 。 The massage balls will return to initial position automatically after AUTO mode ends. Please cut off the power after use. Notrice Please cut off the power after use to avoid any accidents from wrong operation of remote control by children.

  • Page 18: Auto Mode Course And Basic Massage Courses

    AUTO Mode Course and Basic Massage Courses Suggestions: Body Scanning The function of body and sitting posture detection before massage is only for AUTO mode. It can enhance the effects of massage by fitting the curve of body. AUTO mode Massage position or function can be selected from the 16 kinds of AUTO mode.

  • Page 19: Massage With Mechanical Strength (Massage Ball)

    Massage with Mechanical Strength (Massage Ball) At the Beginning After power on, the “ON/OFF” button will flash. After pressing “ON/OFF” button, the LCD will display the following image. PREPARING Press ON/OFF Display standby on screen. PREPARING Press “MANUAL” then choose the massage you want by “...
  • Page 20 Massage with Mechanical Strength (Massage Ball) 、STRETCH 、 There are 3 manual functions (3D EXTREME) can be used with, but not every action can be used. Please refer to “function combination table.” 、 whole 、 You can set the massage area (neck waist 、...
  • Page 21 Massage with Mechanical Strength (Massage Ball) You can use “ ”and “ “ to adjust the 3D strength. There are 7 sections for 3D strength. You can press WIDTH to adjust the width of massage balls. There are 3 sections for the width of massage balls. You can press SPEED to adjust the massage speed.
  • Page 22 Massage with Mechanical Strength (Massage Ball) FUNCTION COMBINATION TABLE: V → adjustable X→ unadjustable MASSAGE AREA 3D STRENGTH WIDTH SPEED MASSAGE TYPE MUNUAL FUNCTION NECK 、WHOLE 、WAIST 、POINT KNEAD NECK 、WHOLE 、WAIST 、POINT KNEAD STRETCH NECK 、WHOLE 、WAIST 、POINT KNEAD EXTREME NECK 、WAIST KNEAD...
  • Page 23 Massage with Mechanical Strength (Massage Ball) Massage with Mechanical Strength (Massage Ball) The massage balls will return to initial position automatically after finishing the selecting function. Please cut off the power after use. Notice Please cut off the power after use to avoid any accidentsfrom wrong operation of remote control by children.

  • Page 24: Air Massage

    Air Massage At the Beginning After power on, the “ON/OFF” button will flash. After pressing “ON/OFF” button, the LCD will display the following image. PREPARING Press ON/OFF Display standby on screen. Relax yourself when sitting on the chair and put your head on the backrest.
  • Page 25 Air Massage After the selecting function ends,the massage balls will return to initial position automatically. Please cut off the power after use. ●To avoid starting massage by touching remote control carelessly. Notice Please cut off the power after use to avoid any accidents from wrong operation of remote control by children.

  • Page 26: Massage With Mechanical Strength (Massage Ball) And Air

    Massage with Mechanical Strength (Massage Ball) and Air Conduct air massages in the course of mechanical massage Compound massage of shoulder/waist/hand/buttocks/leg Press AIR MENU button Display massage positions on screen. Choose the part you want by “ ”or“ ” AUTO PROGRAM then set up “ON”or”OFF”by “...

  • Page 27: Maintenance And Keeping

    Maintenance and Keeping Maintenance Massage Chair cover, cushion for leaning on, back cushion, pillow and cushion Suggestion Use a neutral cleanser with soft clothes to wipe the leather, remove the remained cleanser with clean water and then clean it with dry clothes and make it air-dry. (Too much cleanser will damage the cover).

  • Page 28: Trouble-Shooting

    Trouble-Shooting lt is related to the structure itself if there are some sounds or your Warnings feelings as mentioned below during using the massage chair. They are the normal conditions and will not be influenced on the product life. Do not dismantle, repair and transform it by your- Sounds from massage balls’...

  • Page 29: Maintenance And Checkup

    After stopping production, there are functional parts for repair massage chair itself by keeping for 6 years. Functional parts are meant to the necessary parts for keeping massage chair's functions working normally. Specification Product Massage Chair TW-Chiro Type Power 100 ~ 120V (50~60Hz) 220 ~ 240V (50~60Hz)
