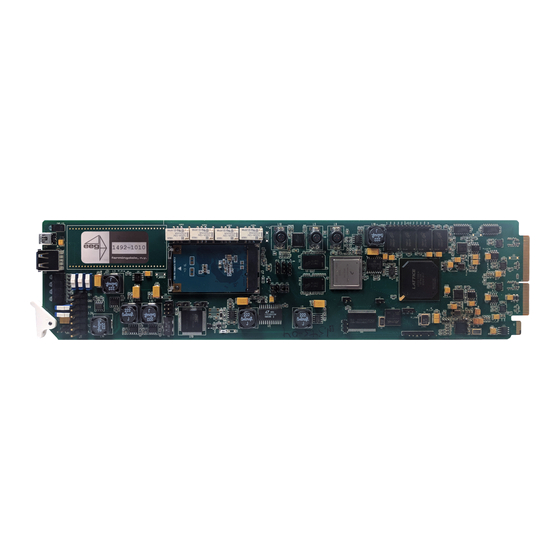

- Page 1 EEG HD1492 HD Encoder Frame Card Product Manual EEG Enterprises, Inc. 586 Main Street Farmingdale, New York 11735 TEL: (516) 293-7472 FAX: (516) 293-7417 Copyright © EEG Enterprises, Inc. 2018 All rights reserved.
-
Page 2: Table Of Contents
HD1492 HD Encoder Frame Card Contents 1 Introduction 1.1 Product Description ..... . . 2 Installation 2.1 Rear Modules ...... - Page 3 HD1492 HD Encoder Frame Card Copyright 2018, EEG Enterprises, Inc. All rights reserved. The contents of this manual may not be transmitted or reproduced in any form without the written permission of EEG. The revision date for this manual is April 3, 2018.
-
Page 4: Introduction
DashBoard software, which is available for Windows, Mac and Linux op- erating systems and streamlines setup of the HD1492. Like the 1RU HD492, the HD1492 streamlines and integrates the Line 21/HD-VANC encoding process into one powerful solution, supporting a wide variety of powerful ancillary data software on-board. The HD1492 includes connection software for EEG’s iCap™... -
Page 5: Installation
HD1492 HD Encoder Frame Card 2 Installation 2.1 Rear Modules There are two back panel configurations available for the HD1492. The single-width rear panel is shown here, followed by a guide to the con- nectors it contains. 2.1.1 Single-Width Rear Module... - Page 6 Both serial ports can be used as inputs for configuration. 1000-Base Ethernet port for connection to LAN. After configuring your HD1492’s net- work settings in DashBoard (see below), you can view the Web Configuration site for your card by navigating to its local IP ad-...
-
Page 7: Double-Width Rear Module
HD1492 HD Encoder Frame Card 2.1.2 Double-Width Rear Module The double-width rear module provides a modem connector, in addition to the I/O included on the single-width rear module, and takes up 4 card slots in the openGear®frame, instead of 2. - Page 8 Web Configuration site for your card by navigating to its local IP ad- dress in your web browser. Modem Standard phone jack data port. Connect to a phone line to enable dial–up captioning. This feature is optional on the HD1492.
-
Page 9: Hd1492 Operation
HD1492 HD Encoder Frame Card 3 HD1492 Operation 3.1 Front Panel The front of the HD1492 card is depicted in the following diagram: Power LED The power LED will be green when the card is receiving power from the frame. - Page 10 Setup menu on the right side. At the bottom of the interface, you will find the Upload button, which can be used to upgrade your HD1492’s DashBoard interface firmware, and the Reboot button, which can be used to reboot your HD1492.
- Page 11 The setup section in the right half of the tool is broken up into mul- tiple tabs: System, iCap, Encoding, SCTE-104, TCP/IP , and CCMatch. Note that the SCTE-104 and CCMatch tabs will only be present if your HD1492 has been licensed to use the respective software modules.
-
Page 12: System
HD1492 HD Encoder Frame Card 3.2.1 System The System tab contains network configuration and general setup fields. MAC Address Displays the encoder’s MAC address. Configuration Selects between static and DHCP network settings. IP Address Selects the IP address the unit will be as- signed on your LAN (read-only in DHCP mode). -
Page 13: Icap
HD1492 HD Encoder Frame Card 3.2.2 iCap™ The iCap™ setup menu allows configuration and monitoring of audio for iCap™. Audio Group Selects the SDI embedded audio channel group that the iCap™mix is sourced from. Up to 4 channel groups can be carried on an SDI sig- nal, though most commonly Group 1 carries the primary audio program. - Page 14 HD1492 HD Encoder Frame Card Input Level Adjust- Adjusts the audio input level without adjusting ment (dB) the output level of your source. The built–in digital input trim can boost or cut the audio in- put level by as much as 12 dB.
-
Page 15: Encoding
HD1492 HD Encoder Frame Card 3.2.3 Encoding Various aspects of the operation of your encoder can be configured here. Insertion Selects the operating mode of the en- coder and specifies whether data is be- ing inserted. VANC Readahead Determines the processing delay (ex-... - Page 16 HD1492 HD Encoder Frame Card Test Caption Mode Allows you to enable a stream of caption text on the 608 channel selected below. The test captions will stop if any other port enters caption mode on the same channel and will automatically change the mode to Disabled.
-
Page 17: Scte-104
HD1492 HD Encoder Frame Card 3.2.4 SCTE-104 If your HD1492 is licensed to use SCTE-104 insertion application, the SCTE-104 tab will be visible and will contain controls and status infor- mation for that application. Date/Time of Last Trigger Displays the date and time of the last SCTE-104 insertion trigger received. - Page 18 HD1492 HD Encoder Frame Card LAN Port If the Allow LAN Connections setting is turned on, this field determines the port on which LAN connections will be accepted. Insert Immediately If set to Yes, a SCTE-104 packet will be inserted into VANC immediately when...
-
Page 19: Tcp/Ip
HD1492 HD Encoder Frame Card 3.2.5 TCP/IP This tab allows you to configure an optional TCP/IP connection into your encoder, which provides an additional means of captioning, data entry, and monitoring via Smart Encoder commands. Connection Status When a connection into the specified TCP/IP port is active, this field will display... -
Page 20: Ccmatch
HD1492 HD Encoder Frame Card 3.2.6 CCMatch If your HD1492 is licensed to use CCMatch application, the CCMatch tab will be visible and will contain controls for that application. Delay Master Video Checking this box will delay the master video channel by the amount specified in the Delay Length field. -
Page 21: Web Configuration
Advanced configuration of the HD1492 can be set through the RS-232 serial ports labeled P1 and P2. The settings for these ports default to 1200 baud, 7 data bits, odd parity, and one stop bit. The HD1492 uses the EEG Smart Encoder command set. Encoder commands are recog- nized by a leading control code of <CTRL+A>, also represented by the... -
Page 22: Local Entry Modes
HD1492 HD Encoder Frame Card To send the encoder commands through the serial input ports, connect a standard 9-pin straight cable between your PC’s serial port and one of the DB9 connectors marked P1 or P2. You can now send commands to the encoder, from your PC, using a communications application such as HyperTerminal, which is bundled with most versions of Windows. -
Page 23: Regeneration Mode
HD1492 HD Encoder Frame Card for secondary language captioning. When 608 data is up-converted to create 708 data, CC1 data is assigned to Service 1, and CC3 data is assigned to Service 2. Text and XDS data is preserved in 608 down- compatibility bytes, but is not up-converted. - Page 24 The HD1492 Encoder will automatically create all necessary control and formatting codes. When RealTime mode is ended, the channel will re- turn to upstream Regeneration.
-
Page 25: Xds Insertion
HD1492 HD Encoder Frame Card The input text may be formatted to fit on 32 character lines by sending a carriage return at word boundaries approaching the 32 character limit. If sufficient data to fill a line is not available within a reasonable amount of time, a carriage return should be sent to ensure timeliness for the queued data. - Page 26 HD1492 HD Encoder Frame Card automatically whenever the Encoder is operating. Packets are inserted into output video signals using EEG’s proprietary Stochastic Scheduling Algorithm. The Stochastic Scheduling Algorithm is a finely tuned solution to the Field 2 bandwidth limitations that cause difficulties in XDS packet transmission.
- Page 27 HD1492 HD Encoder Frame Card Load XDS Packet: <CTRL+A>P Packet Duration Content [Priority] <ENTER> Creates an XDS packet and loads it into the XDS queue. The Encoder will begin inserting the packet immediately. Packet Packet sets the XDS Class and Type of the packet that will be created.
- Page 28 HD1492 HD Encoder Frame Card Duration Duration sets the transmission duration of the newly created packet. When a packet’s duration period ex- pires, it will be deleted from the XDS queue. A dura- tion setting of -1 will cause the packet to be inserted until it is deleted by a future command.
- Page 29 HD1492 HD Encoder Frame Card inserted for the next thirty minutes. Refer to CEA-608B for a listing of hex codes for other possible program ratings. Load Default XDS Packet: <CTRL+A>P LPacket Duration Content [Holdoff] <ENTER> Loads an Upstream Priority XDS packet. This is called a "default" packet because it will be output only when no XDS packet of the specified Class...
- Page 30 HD1492 HD Encoder Frame Card Format and Ending describe the packet’s duration. A Format value of RE indicates an indefinite or integer duration, and a value of EL indi- cates an Elapsed Time duration. Ending displays the duration value. Priority displays the packet’s Priority rating. Packets with smaller nu-...
-
Page 31: Additional Features
The EEG iCap™system is a real-time IP-based captioning system de- signed exclusively for use with the EEG Smart Encoder platform. With iCap™, the HD1492 Encoder and a single LAN connection replace both an older encoder used with a dial-up modem line, and an external audio coupler with an additional phone line, while improving system security, quality of service, logging, and monitoring. - Page 32 Refer to the iCap™ manual in the ‘Manuals’ section on the HD1492 con- figuration page for complete details about getting started with iCap™.
-
Page 33: Lexi™ Automatic Captioning
4.2 Lexi™ Automatic Captioning Lexi™ is the premier cloud-hosted automatic captioning service acces- sible through EEG closed caption encoders. No additional hardware is required to access Lexi; simply obtain a subscription, activate the ser- vice on your EEG encoder, and start captioning. - Page 34 HD1492 HD Encoder Frame Card Hybrid Workflows Supported For a hybrid approach, caption data from Lexi™ can be automatically interspersed with existing captions from a teleprompter system and/or human captioner to ensure coverage of only the unscripted segments, such as weather reports, to meet FCC full coverage mandates.
-
Page 35: Serial Port Configuration
HD1492 HD Encoder Frame Card 4.3 Serial Port Configuration Change Baud Rate: Changes <CTRL+A>I P2 Baud Bits Parity <ENTER> the baud rate on P2, the AUX RS-232 input port. A change in communi- cation settings takes effect immediately; thus, after entering this com- mand, you must immediately begin communicating at the new settings you entered. -
Page 36: A General-Purpose I/O
HD1492 HD Encoder Frame Card A General-Purpose I/O Each of the 2 GPIO input banks, Bank A and Bank B, has the following pinout: Bank A provides GPI inputs 1-4: Input Pins 4 (D) 7, 8 3 (C) 5, 6... -
Page 37: B Serial Port Connector
The single-width and double-width rear modules both contain a single IDC-10 connector, providing the interface for serial ports P1 and P2. P1 can be configured as RS-232, RS-422 (Sony), or RS-422 (EEG), via the DashBoard interface. P2 operates as RS-232 only. The following image... -
Page 38: C Video/Connector Specifications
HD1492 HD Encoder Frame Card C Video/Connector Specifications SDI Video Inputs Number of Inputs Connector BNC per IEC 169–8 Format 2.97 Gb/s SMPTE 424M, 1.485 Gb/s SMPTE 292M, or SMPTE 259M 270 Mb/s Input Level / Impedance 800 mV p–p...
