SSV Works MRB2 Installation And User Manual page 2

KIT INCLUDES
- Bluetooth Media Controller - Retention Clip
- Master Control Unit - 3.5mm Cable
- USB / 3.5mm AUX Input - Plastic Screws x2
TOOLS NEEDED
- 1.75" and 1" Hole Saw
(1.75" for flush mount installation only)
- Wire Strippers
BLUETOOTH PAIRING
®
1. Open the Bluetooth setup program
®
on the mobile device and activate the
Bluetooth feature.
2. Turn on MRB2 using the power button
(MODE button will start blinking)
3. The device will show up as "SSVworks
MRB2". Select this device.

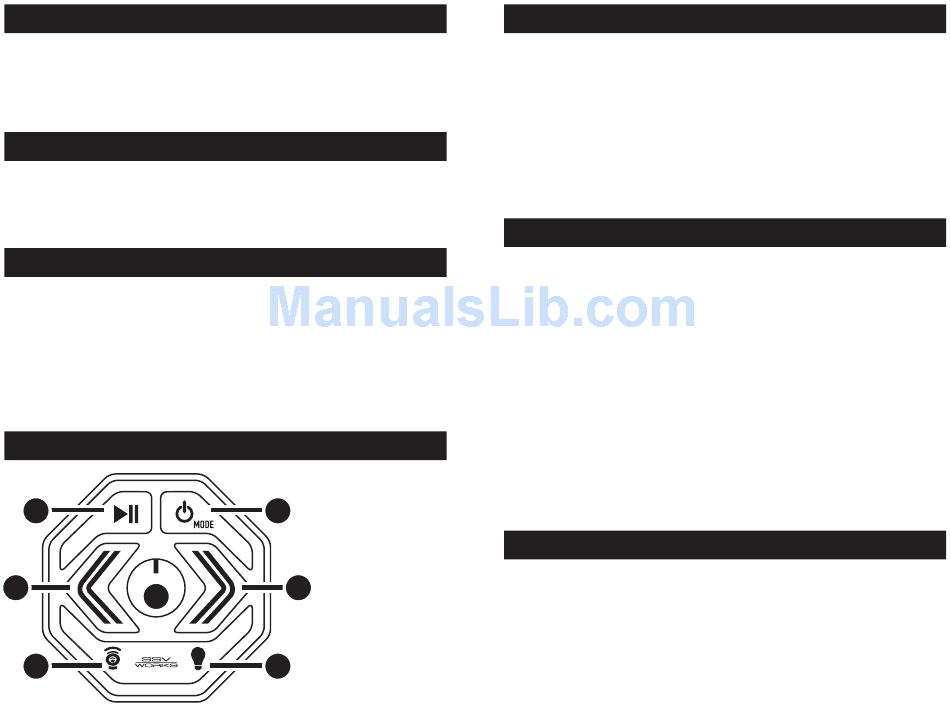

BUTTON LOCATIONS AND FUNCTIONS
2
3
7
4
- Power/Ground Harness
- Zip Ties
- Double stick foam disc
- Wire Crimpers
- Phillips Screwdriver
4. The MODE button will go solid to indi-
cate pairing is complete.
Note: A previously paired Bluetooth
®
mobile device will automatically
connect to the MRB2 when unit is
turned on and within range.
1. Power and Aux Souce Input
2. Play/Pause
1
3. Track Back
4. Rear Speaker
/Subwoofer Attenuation:
-6/-3/OFF*
6
5. Dome Light On/Off
6. Track Forward
7. Volume
5
*
OFF is only active when
using a separate amplifier
for Rear/Sub output
INSTALLATION PLANNING
There are 3 components you will need to account for when installing your MRB2:
- Media Controller Unit
- Master Control Unit
- USB Charge/AUX Input Port
It is recommended to find suitable mounting locations for all 3 components before
starting your installation. Due to wiring lengths, your maximum width between the media
controller unit and the USB charge/AUX input port can not exceed 60".
CONTROLLER MOUNTING INSTRUCTIONS
There are two mounting options for the MRB2 Controller:
A) Surface Mount
B) Flush Mount
A) Surface Mount:
- Find a suitable mounting location for the MRB2.
- Clean surface with alcohol or similar cleaner.
- Peel double stick tape & adhere to back of MRB2 then adhere it to mounting location
B) Flush Mount:
- Find a suitable mounting location for the MRB2 controller.
- Ensure you have adequate clearance on the back side of your selected mounting
location to access screws for mounting clip and a secure location to mount the master
control unit
- With a 1.75" hole saw, drill a hole in your selected location.
- Insert the MRB2 control unit in the hole and attach retention clip with the 2 screws.
USB CHARGE / AUX INPUT PORT MOUNTING
- Locate a suitable mounting location for the input port.
- Ensure you have at least 2.5" of clearance on the back side of your selected mounting location.
- With a hole saw, drill a 1" hole in your selected location.
- Remove the mounting nut from the input port.
- Route the wires through the hole you drilled and secure the input port into the hole with the
mounting nut.
- Route your wiring to the location where you will mount the master control unit.
