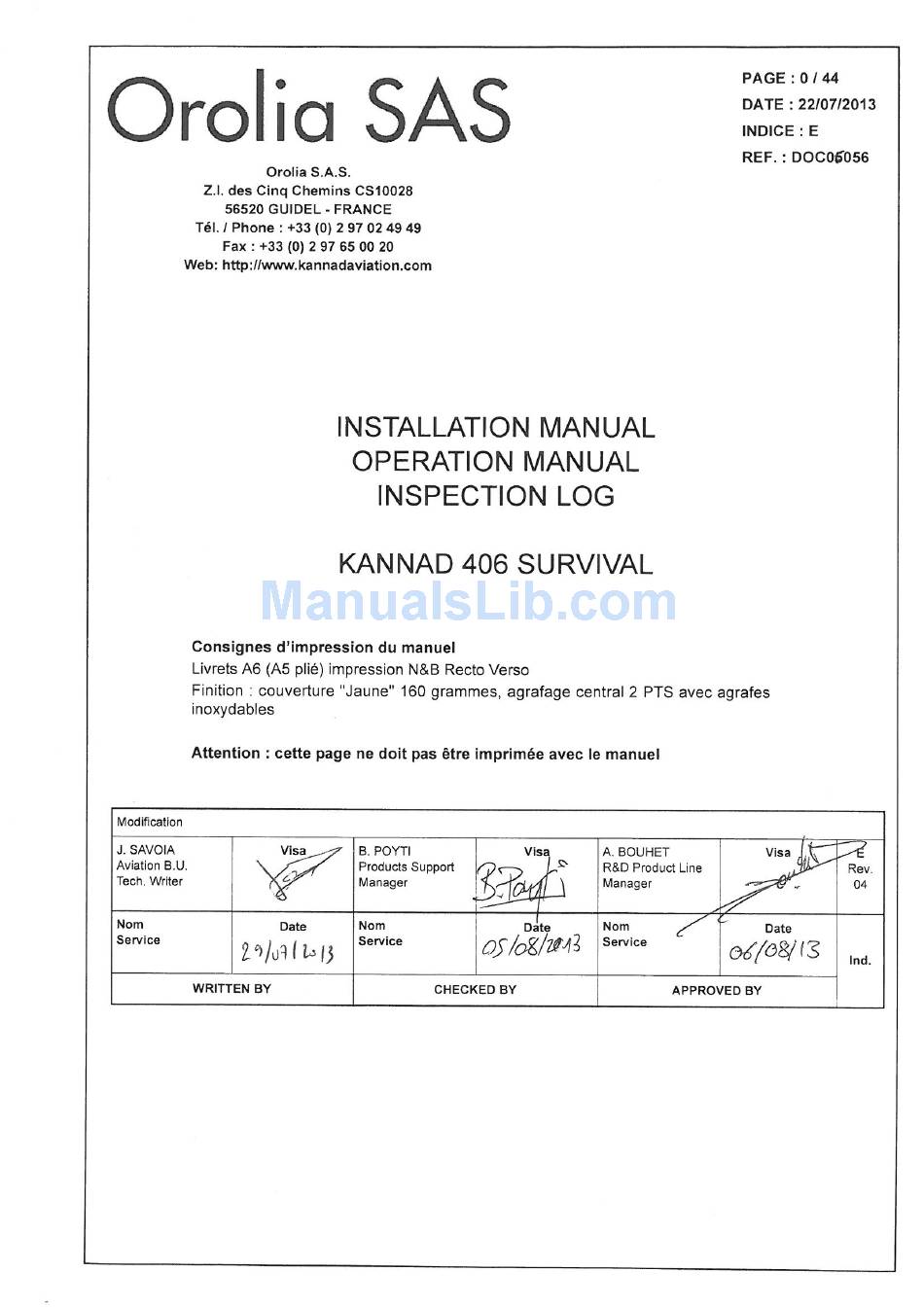

  • Page 2 DOC06056E Ref. 0141392E Orolia S.A.S Z.I. des Cinq Chemins CS10028 56520 GUIDEL - FRANCE INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL P/N : S1823502-05 ELT, KANNAD 406 SURVIVAL P/N : S1820511-02 MOUNTING BRACKET, AS P/N : S1820511-05 MOUNTING BRACKET, AS-PLUS P/N : S1820511-03 CARRY-OFF BAG, AS P/N : S1820511-04...
  • Page 3 Users are kindly requested to notify Orolia S.A.S. of any discrepancy, omission or error found in this manual. Please report to our customer support: E-mail: support.sar@orolia.com Tel.: +33 (0)2 97 02 49 00...
  • Page 4 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL RECORD OF REVISIONS REV. Nb REVISION DATE INSERTION DATE FEB 23/2006 FEB 23/2006 J. S. NOV 08/2006 NOV 08/2006 J. S. FEB 01/2008 FEB 01/2008 J. S. JUN 25/2008 JUN 25/2008 J. S. JUL 08/2013 JUL 08/2013 J.
  • Page 5 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL RECORD OF REVISIONS PAGE INTENTIONALLY LEFT BLANK ROR PAGE: 2 JUL 08/2013...
  • Page 6 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL LIST OF EFFECTIVE PAGES SUBJECT PAGE DATE Title Page JUL 08/2013 Record of Revisions JUL 08/2013 JUL 08/2013 List of Effective Pages JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 Table of Contents JUL 08/2013 JUL 08/2013 Introduction...
  • Page 7 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL LIST OF EFFECTIVE PAGES SUBJECT PAGE DATE JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 Installation / Removal JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 Check...
  • Page 8 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL LIST OF EFFECTIVE PAGES SUBJECT PAGE DATE Servicing JUL 08/2013 JUL 08/2013 JUL 08/2013 JUL 08/2013 LEP PAGE: 3 JUL 08/2013...
  • Page 9 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL LIST OF EFFECTIVE PAGES PAGE INTENTIONALLY LEFT BLANK LEP PAGE: 4 JUL 08/2013...

  • Page 10: Table Of Contents

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL TABLE OF CONTENTS INTRODUCTION ..................1 SYSTEM OVERVIEW ................1 COSPAS-SARSAT System ..............1 Description ......................1 World coverage with the COSPAS-SARSAT system ..........2 Environmental improvements of ELTs ..............2 KANNAD 406 SURVIVAL Presentation ..........3 Design features ..................
  • Page 11 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL TABLE OF CONTENTS 3+1 flashes ..................... 401 3+2 flashes ..................... 401 3+3 flashes ..................... 401 3+4 flashes ..................... 401 Other faults detected ................. 401 Buzzer ....................... 401 Buzzer does not operate ................. 401 Buzzer operates permanently when ELT in ARM mode .........

  • Page 12: Introduction

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL INTRODUCTION The instructions in this manual provide the information necessary for the installation and the operation of the KANNAD 406 SURVIVAL ELT. Servicing instructions are normally performed by shop personnel. For servicing and maintenance instructions, refer to CMM 25-63-01. FOR REGULATORY REQUIREMENTS, PLEASE CONSULT YOUR NATIONAL AVIATION AUTHORITY.
  • Page 13 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL PAGE INTENTIONALLY LEFT BLANK PAGE INTRO 2 JUL 08/2013...

  • Page 14: System Overview

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL SYSTEM OVERVIEW 1. COSPAS-SARSAT System A. Description Launched in the early eighties by the four founder countries (Canada, France, Russia, USA), the COSPAS-SARSAT system provides satellite aid to search and rescue (SAR) operations for maritime, aeronautical and terrestrial vehicles anywhere in the world.

  • Page 15: World Coverage With The Cospas-Sarsat System

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL B. World coverage with the COSPAS-SARSAT system The major improvement is the use of the COSPAS-SARSAT system for processing aeronautical emergencies. The difference with the 121.5 / 243 MHz is that the 406 MHz transmission carries digital data which enable the identification of the aircraft in distress and facilitate SAR operation (type of the aircraft, number of passengers, type of emergency).

  • Page 16: Kannad 406 Survival Presentation

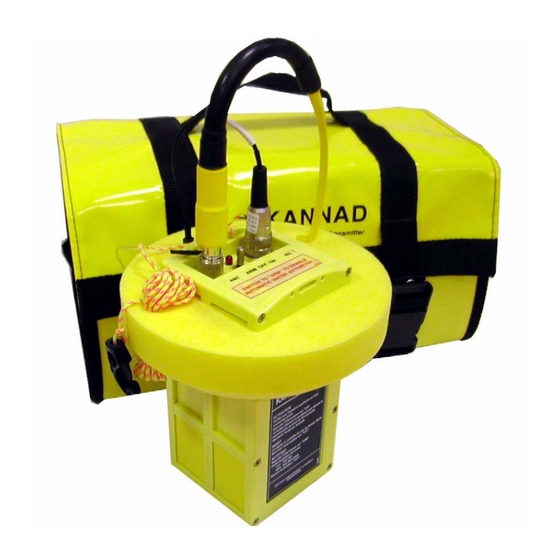

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 2. KANNAD 406 SURVIVAL Presentation The KANNAD 406 SURVIVAL is composed of: a transmitter; an optional mounting bracket (2a) and locking pin (2b); a float; an auxiliary antenna; a water switch sensor; an optional "Programming Dongle" for pin-programming function. a tether ended by a hook.
  • Page 17 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL Figure 3: KANNAD 406 SURVIVAL Presentation with Mounting Bracket AS- PLUS NOTE: Mounting Bracket AS-PLUS cannot store a programming dongle. The Hook and Loop Fastener Strap used to retain the ELT is made of BMS8-285 Type IV Class2 material (BMS - BOEING MATERIAL SPECIFICATION), In addition it is fitted with snaps to secure the fixing method.

  • Page 18: Design Features

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 3. Design features A. General KANNAD 406 SURVIVAL is a survival ELT intended to be removed from the aircraft and used to assist SAR teams in locating survivors of a crash. KANNAD 406 SURVIVAL is a standalone equipment equipped with an auxiliary antenna and activated manually by survivors or automatically by a "Water Switch Sensor"...
  • Page 19 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL PAGE INTENTIONALLY LEFT BLANK PAGE: 6 JUL 08/2013...

  • Page 20: System Functional Description And Operation

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL SYSTEM FUNCTIONAL DESCRIPTION AND OPERATION 1. Transmitter The KANNAD 406 SURVIVAL is designed to transmit on three frequencies (121.5, 243 and 406 MHz).The two basic aeronautical emergency frequencies (121.5 and 243 MHz ) are mainly used for homing in the final stages of the rescue operations.

  • Page 21: Working Mode Information

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 3. Working mode information The visual indicator gives an indication on the working mode of the beacon: • after a self test, a series of short flashes indicates the self test failed, one long flash indicates that the self test is OK.

  • Page 22: Technical Specifications

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 5. Technical Specifications TYPE BATTERY • Three-frequency ELT KIT BAT300, P/N : S1820516-99 (121.5 / 243.0 / 406.025 MHz) 3 x LiMnO D type cells for transmitter • Survival power supply COSPAS-SARSAT Class II •...

  • Page 23: Manual Activation

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 6. Manual Activation • Switch to "ON" position. Switch ON • Try to keep the antenna vertical. - The ELT starts with the self-test sequence. - 121.5 / 243 MHz transmission starts immediately after the self-test. - 406 MHz transmission starts after 50 seconds.

  • Page 24: Water Switch Activation

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 7. Water Switch Activation The ELT switch must be in "ARM" position and the Water Switch Sensor must be connected. Fasten the ELT to the liferaft with the tether line. Put the ELT in the water to float safely. Check that buzzer operates and visual indicator flashes periodically.

  • Page 25: Reset

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 8. Reset In case of unintentional activation, the ELT can be stopped manually. No transmission must be interrupted unless every means are used to contact and inform the Air Traffic Controller of this action. Important notice : As 406 MHz transmission is effective 50 seconds after the ELT activation, if it is reset within this delay, no further radio contact will be necessary.

  • Page 26: Installation / Removal

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL INSTALLATION / REMOVAL 1. Registration and Programming The ELT must be registered prior to installation on board. The registration card available from the local registration authority must be completed and returned to this authority. The "Programming Datasheet"...
  • Page 27 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL this Programming Dongle and the "ELT" is switched to "ARM", it automatically updates its own memory with the identification data contained in the Programming Dongle memory. When the ELT is removed from the aircraft, it keeps its identification data. For maintenance purposes, it is possible to delete the identification information of the ELT by connecting a "Maintenance Dongle"...

  • Page 28: Installation

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 2. Installation "The location of the ELT shall be chosen to minimise the potential for inadvertent activation, damage by impact, fire and contact by passengers or baggage" (RTCA DO-183) "The ELT must be attached to the aircraft in such a manner that the probability of damage to the transmitter in the event of a crash impact is minimised."...

  • Page 29: Installation With Mounting Bracket

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL B. Installation with mounting bracket (1) Brackets models The mounting brackets are rectangular bases matching the exact shape of the ELT. They are fitted with a hook and loop fastener strap used to restrain the ELT during accident impact and with a locking pin to avoid accidentaly switching the ELT in OFF position when installed in the mounting bracket Two models of mounting brackets may be used:...

  • Page 30: Bracket Installation

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL (2) Bracket installation • Determine the location of the ELT on board according to FAR/RTCA recommendations. CAUTION: Do not install the ELT in a location directly exposed to the sun. • Drill 3 holes Ø 5,5 mm in the aircraft structure according to "Drilling mask" page 503 of this document.
  • Page 31 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL • Slide the antenna through the hole provided in the floating collar. • Slide the locking pin as shown hereunder. • Install the ELT on the mounting bracket with "lower cover" facing the mounting bracket.

  • Page 32: Sealing

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL • Fasten the hook and loop fastener strap tightly • When installed on mounting bracket S1820511-05, secure the hook and loop fastener strap by pressing the two snaps. • Switch the ELT to the "ARM" position. (4) Sealing It is possible to seal the ELT on its bracket to prevent misuse.

  • Page 33: Removal

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 3. Removal A. Deployment from carry-off case The ELT shall only be deployed in a safe area. • Press the buckles to open the bag top cover. • Turn the ELT sideways to release it from the wedging form.
  • Page 34 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL B. Deployment from mounting bracket • Unfasten the hook and loop fastener strap. • Remove the ELT with the antenna from the bracket. • The locking pin will be extracted from the ELT while remaining attached to the mounting bracket.
  • Page 35 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL • Deploy the antenna and check that it is connected correctly. PAGE: 210 JUL 08/2013...

  • Page 36: Check

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL CHECK 1. Self-test A. Periodicity It is recommended by the manufacturer to test the ELT to detect any possible failure. It is recommended to perform a self-test once a month but it should not be done more than once a week.
  • Page 37 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL PAGE INTENTIONALLY LEFT BLANK PAGE: 302 JUL 08/2013...

  • Page 38: General

    INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL TROUBLESHOOTING 1. General Procedure for fault isolation on board uses the visual indicator of the ELT’s front panel. This visual indicator is activated by a self-test capability within the ELT. 2. Faults on Self-test A.
  • Page 39 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL PAGE INTENTIONALLY LEFT BLANK PAGE: 402 JUL 08/2013...
  • Page 40 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL SCHEMATICS & DIAGRAMS 1. Outline Dimensions Note: all dimensions are in millimeters (inches in brackets) PAGE: 501 JUL 08/2013...
  • Page 41 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL Note: all dimensions are in millimeters (inches in brackets) 172 (6.77) 300 (11.81) 300 (11.81) PAGE: 502 JUL 08/2013...
  • Page 42 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL 2. Drilling Mask PAGE: 503 JUL 08/2013...
  • Page 43 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL PAGE INTENTIONALLY LEFT BLANK PAGE: 504 JUL 08/2013...
  • Page 44 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL SERVICING 1. Maintenance Schedule Battery replacement: Carried out by an accredited PART 145 or FAR 145 (or equivalent) maintenance station. Periodic inspection: Depending if the ELT is opened or not, PART 145 or FAR 145 (or equivalent) may be required.
  • Page 45 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL C. Battery replacement Battery replacement is mandatory: • after more than 1 hour of real transmission (cumulated duration); • before or on the battery expiration date. Only original battery pack included in battery kit (KIT BAT 300, P/N S1820516-99) supplied by Orolia S.A.S.can be installed.
  • Page 46 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL NOTES PAGE: 603 JUL 08/2013...
  • Page 47 INSTALLATION MANUAL OPERATION MANUAL KANNAD 406 SURVIVAL NOTES PAGE: 604 JUL 08/2013...
  • Page 49 Distributed by Manufactured by Orolia S.A.S Z.I. des Cinq Chemins CS10028 56520 GUIDEL - FRANCE Tél. / Phone : +33 (0) 2 97 02 49 49 Fax : +33 (0) 2 97 65 00 20 Web: http://www.kannadaviation.com DOC06056E Ref: 0141392E...
