mcmurdo
mcmurdo
mcmurdo
mcmurdo

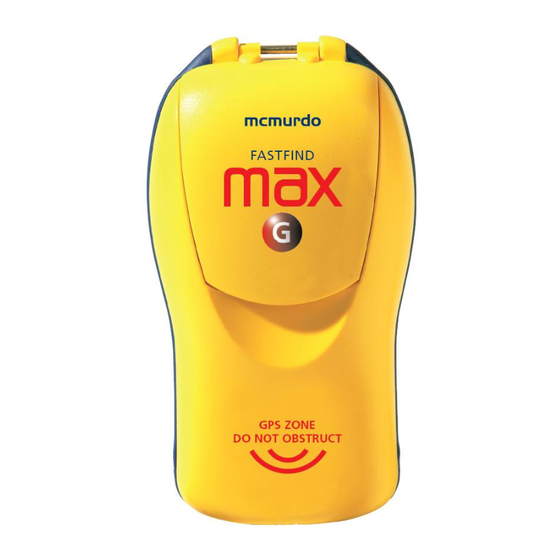

Fastfind PLB
(including Max, MaxG and Plus versions)
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fastfind Max and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mcmurdo Fastfind Max

Summary of Contents for mcmurdo Fastfind Max

  • Page 1 Fastfind PLB (including Max, MaxG and Plus versions) Service Manual...
  • Page 3 Table of Contents Introduction ........................1 1.1. Scope........................1 1.2. Applicability ......................1 1.3. Servicing equipment ....................2 1.4. Safety notices ......................2 1.5. False alarms ......................4 Assessment........................5 2.1. Maintenance tasks ....................5 2.2. Routine testing ......................5 2.3.

  • Page 5: Introduction

    • McMurdo Fastfind Plus – all variants • McMurdo Max and Max G – all variants • NOTE: The method of distinguishing the various versions of PLB is by serial number. This is located on the label underneath the battery pack and also in the User Manual supplied with the unit.

  • Page 6: Servicing Equipment

    All agents are obliged to possess specialised equipment to ensure that PLBs are serviced correctly. A message reader (ARG5410 or equivalent) is mandatory. Equipment: Message reader PLB programming kit (FPROG – McMurdo P/N 85-923/924) Thermometer (required for leak testing) Hand tools: Antenna rewind key (McMurdo P/N 85-753)
  • Page 7 Commercial in confidence 85-909 Lithium batteries Hazardous chemicals Wear gloves The batteries used in these products contain Lithium (Li). Lithium is inflammable, reacts violently with water and constitutes a biological hazard. These batteries are HAZARDOUS if short-circuited, punctured, incinerated or deformed. Lithium batteries must not be short circuited.

  • Page 8: False Alarms

    De-activating a live PLB Press and hold the OFF/Test button; wait for the red LED to extinguish. If the LED does not extinguish, remove the battery (refer to section 3.8) and return the PLB to McMurdo for investigation. PLB service manual Issue 4...

  • Page 9: Assessment

    Servicing agents are reminded that it is their responsibility to ensure that the procedures are followed, that only McMurdo approved parts are fitted, and that good practice is observed. False alarms caused by inadvertent activation must be avoided. We recommend that PLB testing is only done in self-test mode to avoid false alarms.
  • Page 10 Commercial in confidence 85-909 Assessment and service flowchart RECEIPT Assessment Inspect Self test Message read Programming Antenna Battery Test required deployed expiry only Rewind Program Fit battery Print forms & labels Fit tamper cover Fit seal Remove battery Replace battery Fit labels if necessary Fit battery...
  • Page 11 Commercial in confidence 85-909 PLB ASSESSMENT Ref No Date Customer Address Battery Type Man. Serial No expiry date Country Battery part no. 85-720 85-740 Customer comments Warranty YES/NO claim INSPECTION Battery pins OK Switches clean Tamper seal intact Battery within date Lanyard OK Flip lid present Battery voltage...

  • Page 12: Maintenance Procedures

    Commercial in confidence 85-909 3. MAINTENANCE PROCEDURES 3.1. Inspection Tamper seal Check tamper seal is intact. If seal is damaged or is non-standard in any respect, battery state must be considered suspect. Contact customer to confirm any history of PLB activation. Plastic damage Check that the flip lid is present.

  • Page 13: Functional Tests

    Commercial in confidence 85-909 3.2. Functional tests Self test Slide a finger under the red anti-tamper cover, press and hold down the OFF/Test button The red LED should come on After approximately 10 seconds the green light must flash 3 times and the buzzer must sound three times to confirm self-test has passed.
  • Page 14 Commercial in confidence 85-909 GPS Test The GPS system should be tested only when its operation is suspect. Because of the time required to obtain a GPS position, it is necessary to operate the PLB in the live transmission mode, and hence it must be contained in a screened enclosure for the duration of this test.

  • Page 15: Message Read

    Commercial in confidence 85-909 3.3. Message read NOTE: When the antenna is not deployed, the transmission power is greatly reduced. The Message Reader must be very close to the PLB to detect this weak signal. Use a "Message Reader" to verify the unique ID. A typical instrument is the ARG5410, which is used here to describe the process.
  • Page 16 Commercial in confidence 85-909 Common problems with message read Audio tone If not heard then reduce range from 1m to 0.3 m to help. Frequency If outside limits, repeat self-test several times to provide a warm-up. Bad frame/Data error/ This error message occurs if the Reader fails to Self test bad/ synchronize.

  • Page 17: Internal Inspection

    6. Remove PLB from water, wipe thoroughly dry. 7. Replace the flip-top lid Any escape of bubbles indicates a fault. Return the PLB to McMurdo for servicing. 3.7. Battery replacement If the PLB has been activated, it is recommended that the battery is replaced regardless of the duration of activation.
  • Page 18 Commercial in confidence 85-909 Contents of kit Battery pack –20 °C 85-720-004 Battery pack –40 °C 85-740-004 ‘O’ ring 85-725 x 2 Screw M3x20 85-728 The replacement procedure is the same for both types of battery. NOTE: Later –20 °C battery packs are larger than the original versions; this modification enables the PLB to float when fitted with the later battery pack.

  • Page 19: Antenna Rewinding

    Commercial in confidence 85-909 WARNING: The ‘O’ rings and lanyard must be fitted correctly, otherwise the PLB will not be watertight. Battery disposal Hazardous chemicals Use gloves Lithium battery packs should be discharged slowly, then disposed of through an approved environmental disposal agent, or in accordance with local regulations.
  • Page 20 Commercial in confidence 85-909 Rewinding the antenna Once activated, the PLB has the antenna extended. The tamper cover, with seal and retaining pin, is usually absent – in any case, a tamper cover should NOT be re-used. Inspect the antenna for damage, such as cracks, creases or delamination of the coating. Ensure that the antenna is fit for re-use.
  • Page 21 Commercial in confidence 85-909 5. Place the cover in position and engage the retaining pin in the holes in the antenna. Keep pressure on the tamper cover to prevent it springing off, then withdraw the winding key. 6. Fit the screw to the tamper cover and tighten it to a torque of 25 cNm.

  • Page 22: Programming

    McMurdo. Several countries which allow PLBs to be classified as non-SOLAS EPIRBs do so because they do not maintain a national serial number database, and rely on the ITU MMSI database for ownership and contact details.
  • Page 23 Commercial in confidence 85-909 When to reprogram The PLB should be reprogrammed in the following situations: Where the information is absent or needs to be changed • Whenever there is any doubt about what is programmed into the PLB • When the PLB is transferred to a new owner (depends on country and regulations •...

  • Page 24: Fault Finding

    ‘off’ state. To do this you will need a Digital Voltmeter (DVM) capable of measuring micro amps. The current should be less than 1uA. If the unit is drawing current then the unit will need to be returned to McMurdo Customer Service for further investigation.

  • Page 25: Spares

    85-508A Generic PLB 406.037MHz, unprogrammed, with ‘O’ rings and labels, no battery Fastfind Max 85-893A Fastfind Max G 85-892A User manuals (Note: these can be downloaded from the website www.mcmurdo.co.uk) Fastfind/Fastfind Plus 85-902-004 Fastfind/Fastfind Plus Morse 85-902-820 Fastfind Max/G 85-902-880...

  • Page 26: Appendix 1 : Specification

    Commercial in confidence 85-909 APPENDIX 1 : SPECIFICATION For the specification please see the user manual. This will be available as delivered with each unit or on our website. PLB service manual Issue 4 Page 22...
  • Page 27 Commercial in confidence 85-909 PLB service manual Issue 4 Page 23...
  • Page 28 McMurdo (a division of Signature Industries Ltd Silver Point, Airport Service Road, Portsmouth, United Kingdom PO3 5PB Telephone: Int +44 (0)23 9262 3900 WebSite: www.mcmurdo.co.uk 85-909 Issue 4...
