MFR-16AAIEX/16AAOEX
st
Installation Guide
1
1. Overview
MFR-16AAIEX is an input expansion card for MFR main units.
MFR-16AAOEX is an output expansion card for MFR main units.

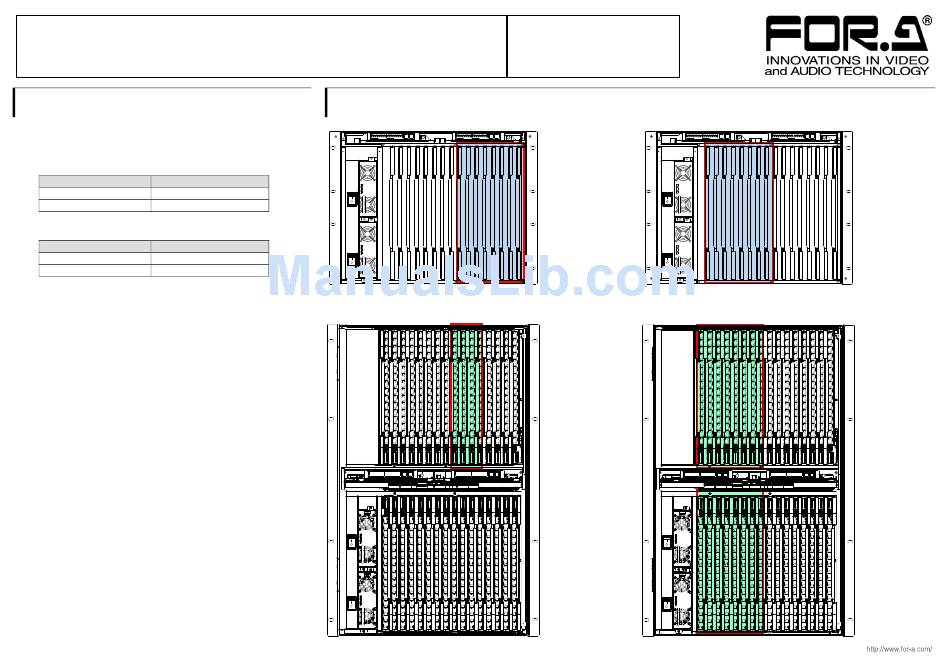

Input/Output Card Installation Slots (MFR-5000)
Input/Output Card
MFR-16AAIEX
MFR-16AAOEX
Input/Output Card Installation Slots (MFR-8000)
Input/Output Card
MFR-16AAIEX
MFR-16AAOEX
09 - 16, 25 - 32
Edition
2. Input/Output Card Installation Slots
MFR-5000
Slot
01 - 08
09 - 16
Slot
05 - 08
MFR-8000
What is in the Box
Input/output card
(MFR-16AAIEX/16AAOEX)
Rear panel
Installation Guide (This sheet)
MFR-16AAIEX
Up to 8 cards can be
installed into the
following slots:
No. 01 - 08
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
MFR-16AAIEX
Up to 4 cards can be
installed into the
following slots:
No. 05 - 08
← Slot No
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
MFR-16AAOEX
Up to 8 cards can be
installed into the
following slots:
No. 09 - 16
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
MFR-16AAOEX
Up to 4 cards can be
installed into the
following slots:
No. 09 - 16, 25 - 32
← Slot No
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
