INSTRUCTIONS FOR INSTALLATION AND USE

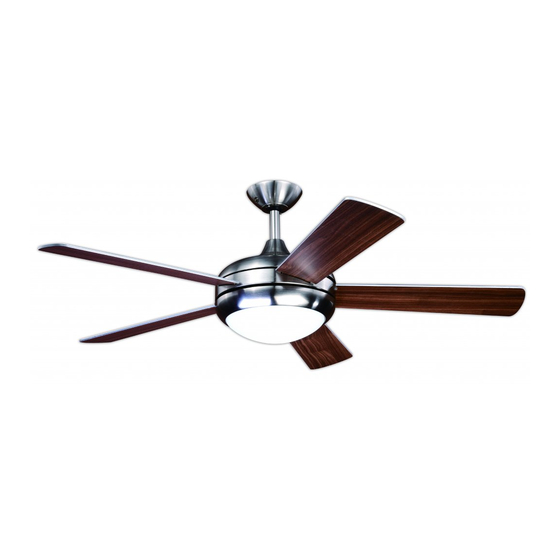

Ceiling Fan Model Ursa (FN75539/FN75537)
BEFORE YOU START
Proper use:
-
This product is intended exclusively for non-commercial use as ceiling fan.
-
The product has to be installed and used in accordance with these instructions.
-
Any use of this product that is not in accordance with these instructions will void the
legal warranty of the manufacturer.
Please keep the original carton and packaging material as the warranty will only be honored if
product is returned in complete original packaging.
FOR YOUR OWN SAFETY
General safety instructions:
-
For the safe use of this product, you need to have read and understood these instructions
before installing or using the product.
-
Please follow all safety instructions! If you ignore these safety instructions, you will endanger
yourself and others.
-
Keep these instructions for future reference.
-
All parts of this product have to be installed properly in order to ensure safe operation.
-
Modification of the product and use of non-approved parts are prohibited.
-
This product is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the product by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the product.
Electrical safety:
-
The electrical installation must be performed by a qualified electrician and must be in
accordance with national and local regulations.
-
Use a fault-current circuit breaker with a rated residual current of no more than 30 mA.
-
Make sure to install an all-pole disconnection switch having a contact separation of at least
3mm between poles in the supply wiring to the ceiling fan.
-
Before connecting the appliance to the electrical grid, make sure that it will only be
operated within the specified parameters.
-
The fan must be properly grounded to avoid the risk of electric shocks.
-
Switch off the power before connecting, repairing or cleaning the fan.
-
Install only bulbs of the type intended for your fan.
Storage and transport:
-
Always store the fan in a dry environment.
-
Protect the fan from damages during transport.
F A N
C O
171117
1
Advertisement
Related Manuals for aireRyder FN75539
Summary of Contents for aireRyder FN75539
- Page 1 INSTRUCTIONS FOR INSTALLATION AND USE Ceiling Fan Model Ursa (FN75539/FN75537) BEFORE YOU START Proper use: This product is intended exclusively for non-commercial use as ceiling fan. The product has to be installed and used in accordance with these instructions. Any use of this product that is not in accordance with these instructions will void the legal warranty of the manufacturer.
-
Page 2: Installation
Safety instructions specific to this fan: Attach the fan only directly to ceiling structure. The carrying capacity of the ceiling structure from which the fan is hung must be at least three times the weight of the fan. The minimum distance between the blades of the fan and the floor must be 2.3m. Never mount the fan outside or in a humid or wet enviroment. - Page 3 Attach the hanger bracket to the ceiling with spring washers, flat washers and 2 mounting screws. Hange r Bracket Note: For sloped ceiling installation, make Flat Washer sure that the hanger bracket is installed so Spring Washer Fig.1 that the guide pin is facing upward. Guide Pin Fig.2 Turn off the electric circuit at the...
- Page 4 1. Make house wire connections. Follow diagram on the right and make sure that all exposed wires are tightened by screw on terminal block. Note: a.) The terminal block shown in right graph is pre-installed on the mounting bracket. b.) After wiring is completed, gently push wires into hanger bracket with terminal block facing upward (if applicable). 2.
- Page 5 Fig.16 Fig.15 Fig.17 Push the Glass Fig.15 1. Install the battery (AAA) to the transmitter. 2. OPERATING TRANSMITTER: * Press "HI" to turn on the fan at high speed. * Press "MED" button to turn the fan in medium speed. * Press "LOW"...
-
Page 6: Malfunctions - Trouble Shooting
CLEANING Risk of injury: Before cleaning the fan, always switch off the power at the main circuit breaker and wait until the fan has come to a complete stop. Clean the fan with a dry or damp soft cloth. Do not use any liquids or detergents. DISPOSAL Disposal of the fan: You are required to dispose of electric and electronic appliances separately from your household waste.
