INSTRUCTIONS FOR INSTALLATION AND USE

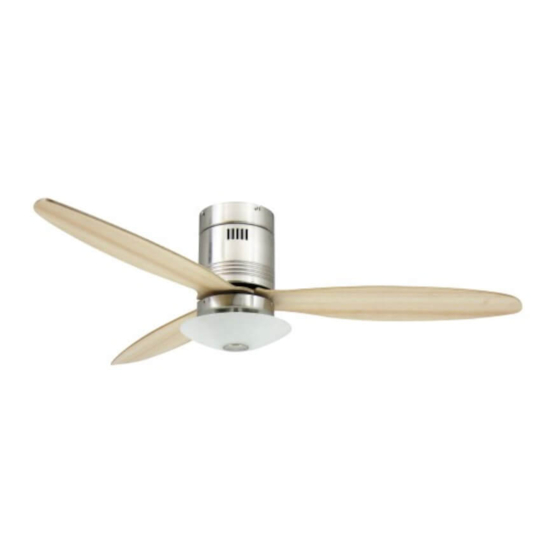

Ceiling Fan Model : FN73335
BEFORE YOU START
Proper use:
This product is intended exclusively for non-commercial use as ceiling fan.
-
The product has to be installed and used in accordance with these instructions.
-
Any use of this product that is not in accordance with these instructions will void the legal
-
warranty of the manufacturer.
Please keep the original carton and packaging material as the warranty will only be honored if product
is returned in complete original packaging.
FOR YOUR OWN SAFETY
General safety instructions:
For the safe use of this product, you need to have read and understood these instructions
-
before installing or using the product.
Please follow all safety instructions! If you ignore these safety instructions, you will endanger
-
yourself and others.
Keep these instructions for future reference.
-
All parts of this product have to be installed properly in order to ensure safe operation.
-
Modification of the product and use of non-approved parts are prohibited.
-
This product is not intended for use by persons (including children) with reduced physical,
-
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the product by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the product.
Electrical safety:
The electrical installation must be performed by a qualified electrician and must be in
-
accordance with national and local regulations.
Use a fault-current circuit breaker with a rated residual current of no more than 30 mA.
-
Make sure to install an all-pole disconnection switch having a contact separation of at least
-
3mm between poles in the supply wiring to the ceiling fan.
Before connecting the appliance to the electrical grid, make sure that it will only be operated
-
within the specified parameters.
The fan must be properly grounded to avoid the risk of electric shocks.
-
Switch off the power before connecting, repairing or cleaning the fan.
-
Install only bulbs of the type intended for your fan.
-
Storage and transport:
Always store the fan in a dry environment.
-
Protect the fan from damages during transport.
-
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for aireRyder FN73335
Summary of Contents for aireRyder FN73335
- Page 1 INSTRUCTIONS FOR INSTALLATION AND USE Ceiling Fan Model : FN73335 BEFORE YOU START Proper use: This product is intended exclusively for non-commercial use as ceiling fan. The product has to be installed and used in accordance with these instructions. Any use of this product that is not in accordance with these instructions will void the legal warranty of the manufacturer.
-
Page 2: Installation
Safety instructions specific to this fan: Attach the fan only directly to the ceiling structure. The carrying capacity of the ceiling structure from which the fan is hung must be at least 100kg. The minimum distance between the blades of the fan and the floor must be 2.3m. Never mount the fan outside or in a humid or wet environment. - Page 3 1. Pass the supply wires through 3. There is a frequency-setter in 2. Lift the fan assembly and the hole in the mounting bracket. both the transmitter and receiver. hand onto the hook on mounting Secure the mounting bracket to a This "DIP Switch"...
- Page 4 9. Fasten blade onto motor 7. Remove the light kit housing 8. Insert blades into fan blade assembly through rectangular by loosening 3 screws on the holes. hole using the washer & motor side. screws provided from hardware bag. 10. Fan light housing installation Loosen screws on terminal block first, for accepting new wires from ceiling fan.
-
Page 5: Operating The Fan
OPERATING THE FAN Check the fan before switching it on! Risk of injury: The fan can only be operated if no defects have been found upon inspection. In case a part is defective, it will have to be replaced before using the fan. Risk of injury: Before changing the fan rotating direction, the fan has to be switched off and come to a complete stop. -
Page 6: Malfunctions - Trouble Shooting
MALFUNCTIONS – TROUBLE SHOOTING Risk of injury: Inappropriate repairs can lead to the fan not functioning safely. This can cause a hazard for yourself and your environment. Most malfunctions are caused by small errors which you can easily resolve by yourself. Please check the following table before contacting your retailer. -
Page 7: Antes De Empezar
INSTRUCCIONES DE INSTALACION Y USO Ventilador de techo modelo Aero (FN73335) ANTES DE EMPEZAR Uso correcto: Este producto está diseñado exclusivamente como ventilador de techo con fines no comerciales. El producto debe instalarse y usarse de acuerdo con estas instrucciones. -
Page 8: Instalación
Instrucciones de seguridad específicas para este ventilador: Fije el ventilador directamente a la estructura del techo. La capacidad de carga de la estructura del techo de la que se cuelgue el ventilador debe ser de al menos 100 kg. La distancia mínima entre las palas del ventilador y el suelo debe ser de 2,3 m. No monte nunca el ventilador en exteriores ni en un ambiente húmedo o mojado. - Page 9 1. Pase los cables de suministro 2. Levante la caja de montaje y a través del agujero del soporte cuelguela en el gancho del de montaje Asegure el soporte soporte de montaje. Esto le de montaje a una viga del techo u permitirá...
- Page 10 5-1. nstale ahora el receptor del mando a 6-1. Deslice el embellecedor hasta el techo y gírelo de distancia en el embellecedor y fijelo con una tal manera hasta que los dos tornillos del soporte de cinta adhesiva doble en su dorso. montaje entren en los huecos con forma de L del embellecedor.
- Page 11 FUNCIONAMIENTO Revise el ventilador antes de encenderlo! Riesgo de daños: El ventilador solo puede ponerse en funcionamiento si no se han encontrado defectos al revisarlo. Si alguna parte estuviera defectuosa, esta deberá reemplazarse antes de utilizar el ventilador. Riesgo de daños: Antes de cambiar la dirección de rotación del ventilador, este se ha de apagar y dejar que se detenga por completo.
-
Page 12: Datos Técnicos
FALLOS-SOLUCIÓN DE PROBLEMAS Riesgo de daños: Las reparaciones inapropiadas pueden dar lugar a un funcionamiento inseguro del ventilador, que pueden constituir un riesgo para usted y su entorno. La mayoría de los fallos tienen su origen en pequeños errores que usted puede resolver con facilidad.Compruebe la siguiente tabla antes de ponerse en contacto con su distribuidor. -
Page 13: Before You Start
INSTRUCTIONS FOR INSTALLATION AND USE Deckenventilator Modell Aero (FN73335) BEFORE YOU START Proper use: This product is intended exclusively for non-commercial use as ceiling fan. The product has to be installed and used in accordance with these instructions. Any use of this product that is not in accordance with these instructions will void the legal warranty of the manufacturer. - Page 14 Safety instructions specific to this fan: Attach the fan only directly to the ceiling structure. The carrying capacity of the ceiling structure from which the fan is hung must be at least 100kg. The minimum distance between the blades of the fan and the floor must be 2.3m. Never mount the fan outside or in a humid or wet environment.
- Page 15 1. Pass the supply wires through 3. There is a frequency-setter in 2. Lift the fan assembly and the hole in the mounting bracket. both the transmitter and receiver. hand onto the hook on mounting Secure the mounting bracket to a This "DIP Switch"...
- Page 16 9. Befestigen Sie die Rotor- 7. Entfernen Sie das Leuchten 8. Führen sie die Rotorblätter in blätter am Motor mit den gehäuse indem Sie die drei die Aussparungen im Motor- Schrauben und Unterleg- seitlichen Schrauben lösen. gehäuse ein. scheiben. Stellen Sie sicher, dass alle Schrauben gleichmäßig satt angezogen sind.
- Page 17 OPERATING THE FAN Check the fan before switching it on! Risk of injury: The fan can only be operated if no defects have been found upon inspection. In case a part is defective, it will have to be replaced before using the fan. Risk of injury: Before changing the fan rotating direction, the fan has to be switched off and come to a complete stop.
- Page 18 MALFUNCTIONS – TROUBLE SHOOTING Risk of injury: Inappropriate repairs can lead to the fan not functioning safely. This can cause a hazard for yourself and your environment. Most malfunctions are caused by small errors which you can easily resolve by yourself. Please check the following table before contacting your retailer.
