INSTRUCTIONS FOR INSTALLATION AND USE

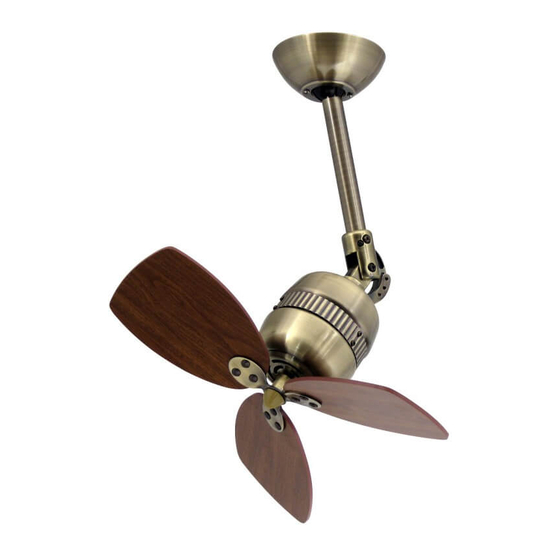

Ceiling Fan Model Toledo (FN11146 / FN11156)
BEFORE YOU START
Proper use:
This product is intended exclusively for non-commercial use as ceiling fan.
-
The product has to be installed and used in accordance with these instructions.
-
Any use of this product that is not in accordance with these instructions will void the legal
-
warranty of the manufacturer.
Please keep the original carton and packaging material as the warranty will only be honored if product
is returned in complete original packaging.
FOR YOUR OWN SAFETY
General safety instructions:
For the safe use of this product, you need to have read and understood these instructions
-
before installing or using the product.
Please follow all safety instructions! If you ignore these safety instructions, you will endanger
-
yourself and others.
Keep these instructions for future reference.
-
All parts of this product have to be installed properly in order to ensure safe operation.
-
Modification of the product and use of non-approved parts are prohibited.
-
This product is not intended for use by persons (including children) with reduced physical,
-
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the product by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the product.
Electrical safety:
The electrical installation must be performed by a qualified electrician and must be in
-
accordance with national and local regulations.
Use a fault-current circuit breaker with a rated residual current of no more than 30 mA.
-
Make sure to install an all-pole disconnection switch having a contact separation of at least
-
3mm between poles in the supply wiring to the ceiling fan.
Before connecting the appliance to the electrical grid, make sure that it will only be operated
-
within the specified parameters.
The fan must be properly grounded to avoid the risk of electric shocks.
-
Switch off the power before connecting, repairing or cleaning the fan.
-
Storage and transport:
Always store the fan in a dry environment.
-
Protect the fan from damages during transport.
-
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Toledo FN11146 and is the answer not in the manual?

Questions and answers

Philip
June 29, 2025

Is this remote control? I can see a wall controller but not a remote?

Summary of Contents for aireRyder Toledo FN11146

  • Page 1 INSTRUCTIONS FOR INSTALLATION AND USE Ceiling Fan Model Toledo (FN11146 / FN11156) BEFORE YOU START Proper use: This product is intended exclusively for non-commercial use as ceiling fan. The product has to be installed and used in accordance with these instructions. Any use of this product that is not in accordance with these instructions will void the legal warranty of the manufacturer.
  • Page 2: Installation

    Safety instructions specific to this fan: Attach the fan only directly to the ceiling structure. The carrying capacity of the ceiling structure from which the fan is hung must be at least three times the weight of the fan. The minimum distance between the blades of the fan and the floor must be 2.3m. Never mount the fan outside or in a humid or wet environment.
  • Page 3: Installation Instructions

    Installation Instructions: Mounting Bracket Mounting Bracket Assembly Screw 1. Turn off power at breaker 2. Pass the supply wires through the box to avoid possible mounting bracket. Secure the mounting electrical shock. bracket to a ceiling joist or other structural 3.
  • Page 4 a. at wall (Fig.1): Line out to fan Supply in from house 1. Connect supply in from house to wall control Brown node marked “TO HOT”. (AC-L) 2. Connect line out to fan to wall control node marked “FAN”. Note: The “TO LIGHT” node on wall control is not applicable for this fan.
  • Page 5 7. Set up fan configuration a. Remove the set screw between yokes and adjust motor to preferable position Motor Yoke b. Possible fan configurations are shown below. Line up the motor yoke and pipe yoke for the desired configuration, as shown below.
  • Page 6: Malfunctions - Trouble Shooting

    8. Blade Installation Propeller Spindle Propeller Nut Propeller Nut a. Attach Propeller to spindle. b. Thread the propeller nut counter-clockwise on spindle until fully tightened. CLEANING Risk of injury: Before cleaning the fan, always switch off the power at the main circuit breaker and wait until the fan has come to a complete stop.
