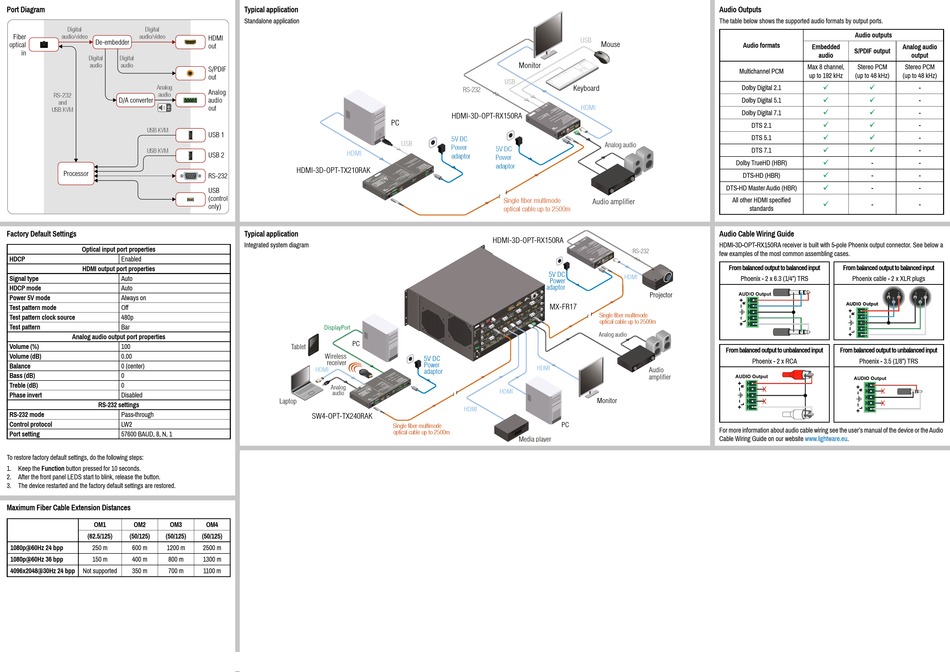

Lightware HDMI-3D-OPT-RX150RA Quick Start Manual page 2

Port Diagram
Digital Digital
Fiber audio/video audio/video
De-embedder
optical
in
Digital Digital
audio audio
Analog
audio
RS-232
D/A converter
and
USB KVM
USB KVM
USB KVM
Processor
Factory Default Settings
Optical input port properties
HDCP Enabled
HDMI output port properties
Signal type Auto
HDCP mode Auto
Power 5V mode Always on
Test pattern mode Off
Test pattern clock source 480p
Test pattern Bar
Analog audio output port properties
Volume (%) 100
Volume (dB) 0.00
Balance 0 (center)
Bass (dB) 0
Treble (dB) 0
Phase invert Disabled
RS-232 settings
RS-232 mode Pass-through
Control protocol LW2
Port setting 57600 BAUD, 8, N, 1
To restore factory default settings, do the following steps:
1. Keep the Function button pressed for 10 seconds.
2. After the front panel LEDS start to blink, release the button.
3. The device restarted and the factory default settings are restored.
Maximum Fiber Cable Extension Distances
OM1 OM2 OM3
(62.5/125) (50/125) (50/125)
1080p@60Hz 24 bpp 250 m 600 m 1200 m
1080p@60Hz 36 bpp 150 m 400 m 800 m
4096x2048@30Hz 24 bpp Not supported 350 m 700 m
Typical application
Standalone application
HDMI
out
S/PDIF
out
Analog
audio
out
USB 1
HDMI
USB 2
HDMI-3D-OPT-TX210RAK
RS-232
USB
(control
only)
Typical application
Integrated system diagram
DisplayPort
PC
Tablet
Wireless
receiver
HDMI
Analog
audio
Laptop
IN
IO2
6 AUD
RE
APE SC RTU MM
ER OUT PUT
LAS
SW4-OPT-TX240RAK
OM4
(50/125)
2500 m
1300 m
1100 m
Monitor
USB
RS-232
HDMI-3D-OPT-RX150RA
PC
5V DC
USB
Power
5V DC
adaptor
Power
adaptor
: 2.1 mm
PIN
-23 2
RS DC
1A
12V
TX RX
ACT IVE
LIVE ER LIN K
FIB LAS 232 ER
RS-
2 IN T
DIO MI OU
6 AU HD
E
MM TUR
SC AP T ER
ER OU TPU
LAS
Single fiber multimode
optical cable up to 2500m
HDMI-3D-OPT-RX150RA
5V DC
Power
adaptor
MX-FR17
5V DC
Power
HDMI
adaptor
m
: 2.1m
2 PIN
RS -23
1A DC
IO 12V
GP RX TX
HDMI
5 6 7
IVE 3 4
LIVE ER LINK ACT 1 2
FIBE LAS R 32
RS-2
I OUT
HDM
HDMI
Single fiber multimode
optical cable up to 2500m
Media player
Audio Outputs
The table below shows the supported audio formats by output ports.
USB
Mouse
Multichannel PCM
Keyboard
HDMI
Analog audio
Dolby TrueHD (HBR)
DTS-HD Master Audio (HBR)
All other HDMI specified
Audio amplifier
Audio Cable Wiring Guide
HDMI-3D-OPT-RX150RA receiver is built with 5-pole Phoenix output connector. See below a
RS-232
few examples of the most common assembling cases.
From balanced output to balanced input
HDMI
Phoenix - 2 x 6.3 (1/4") TRS
Projector
Single fiber multimode
optical cable up to 2500m
Analog audio
From balanced output to unbalanced input
Audio
amplifier
Monitor
PC
For more information about audio cable wiring see the user's manual of the device or the Audio
Cable Wiring Guide on our website www.lightware.eu.
Audio outputs
Audio formats
Embedded Analog audio
S/PDIF output
audio output
Max 8 channel, Stereo PCM Stereo PCM
up to 192 kHz (up to 48 kHz) (up to 48 kHz)
Dolby Digital 2.1   -
Dolby Digital 5.1   -
Dolby Digital 7.1   -
DTS 2.1 -
 
DTS 5.1   -
DTS 7.1 -
 
 - -
- -
DTS-HD (HBR) 
 - -
- -

standards
From balanced output to balanced input
Phoenix cable - 2 x XLR plugs
2 1
3 3
AUDIO Output
From balanced output to unbalanced input
Phoenix - 2 x RCA Phoenix - 3.5 (1/8") TRS
2
