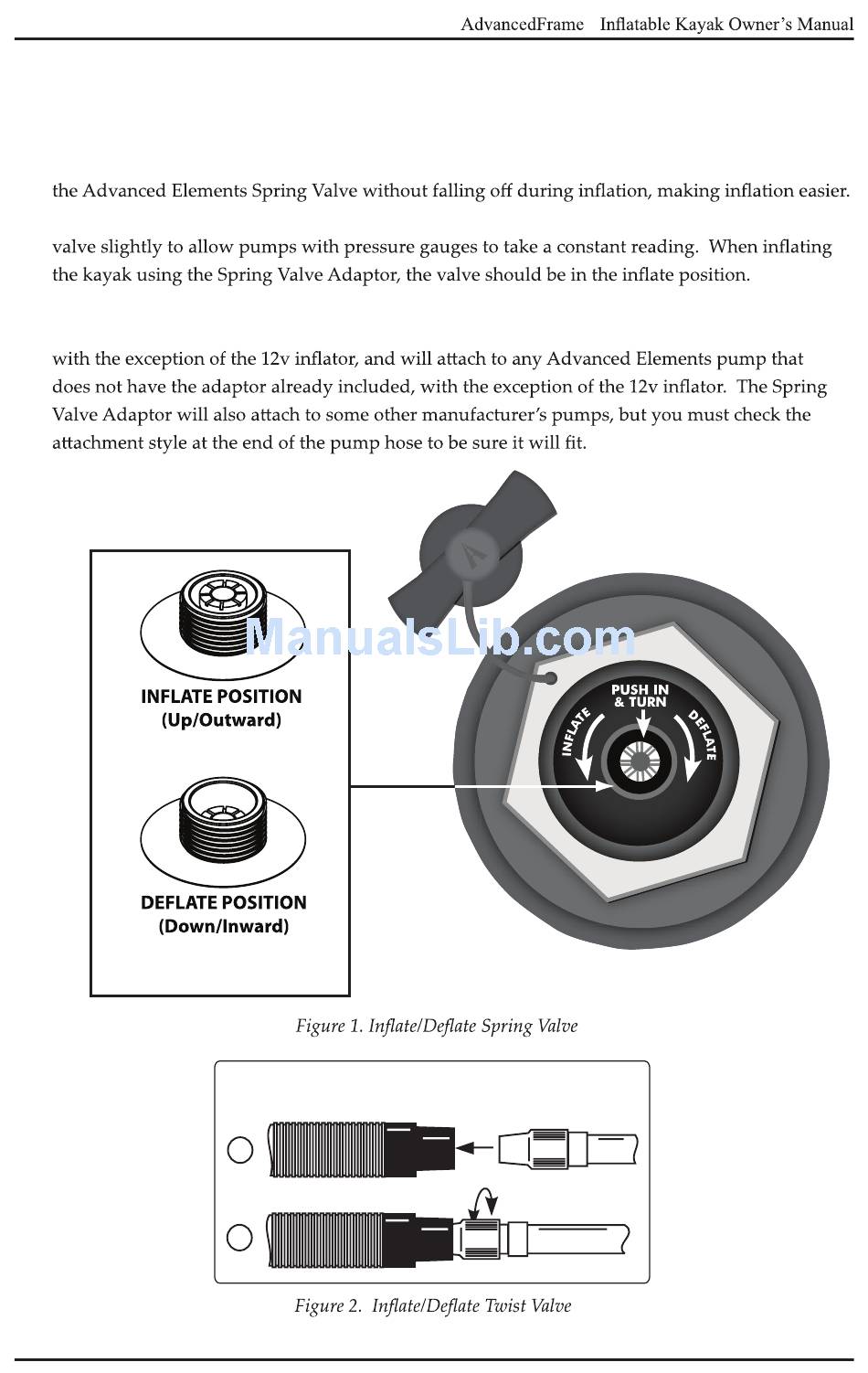

Advanced Elements AdvancedFrame AE1012 Owner's Manual page 9

®
Using the "Screw-on" Spring Valve Adaptor with your Main Inflation Valves:
The screw-on Spring Valve Adaptor was designed to enable the pump hose to securely connect to
The valve adaptor also has a semi-circle protrusion that depresses the valve stem, opening the
Special Note: The Spring Valve Adaptor comes with all current Advanced Elements pumps,
Valve Stem Closeup Spring Valve Top View
OPERATING THE "TWIST" VALVES
TWIST TO OPEN / INFLATE / THEN CLOSE
INSERT
1
TWIST VALVE
PUMP HOSE
2
9
