Respirex PRPS Instructions For Use Manual

Powered respirator protective suit
Hide thumbs Also See for PRPS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Instructions for use of
Powered Respirator Protective Suit
PRPS
BS\065\B\2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRPS and is the answer not in the manual?

Questions and answers

Related Manuals for Respirex PRPS

Summary of Contents for Respirex PRPS

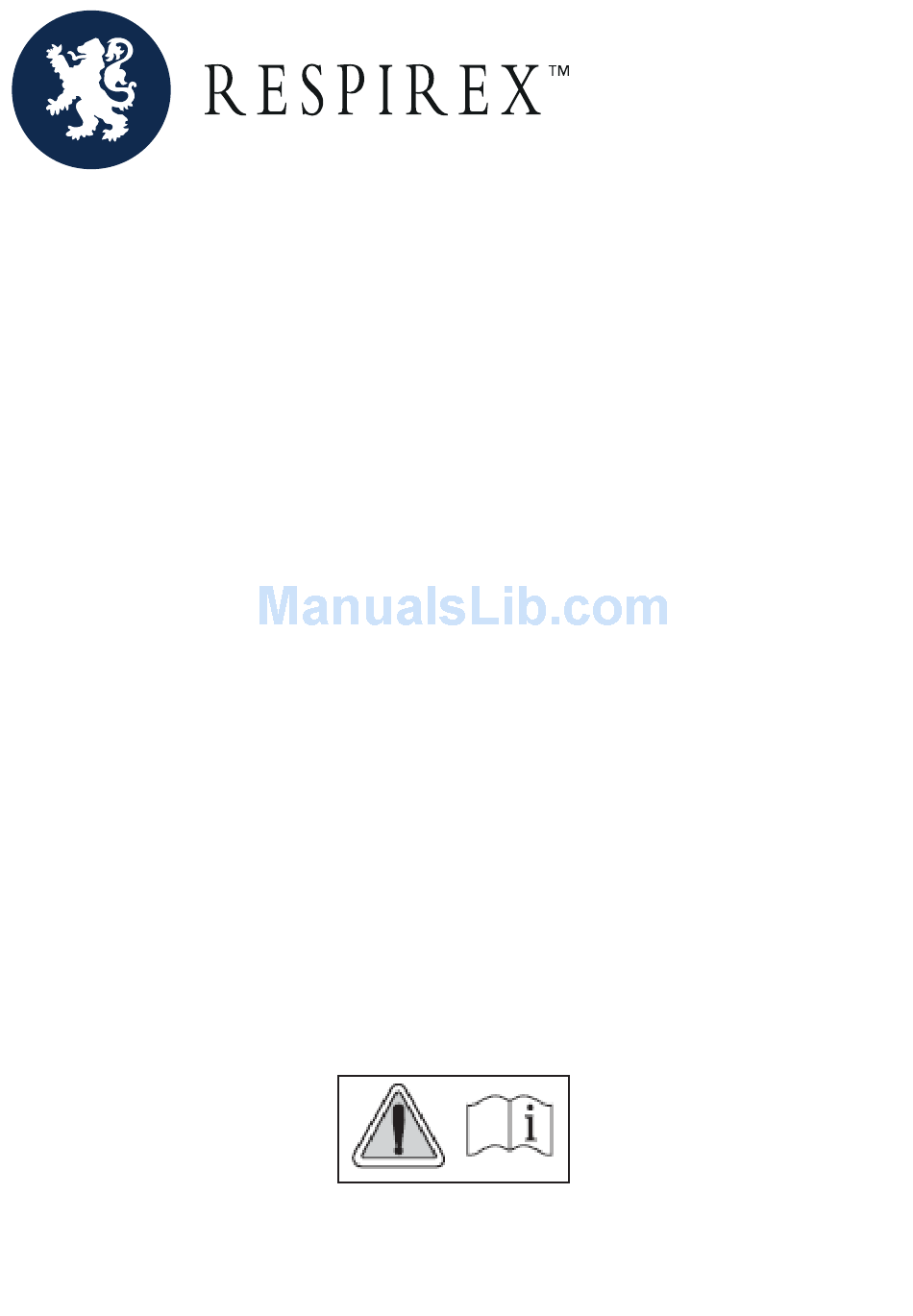

  • Page 1 Instructions for use of Powered Respirator Protective Suit PRPS BS\065\B\2017...

  • Page 2: Table Of Contents

    Table Of Contents Introduction ......Pg 1 General Information ......Pg 2 Limitations of Use .

  • Page 3: Introduction

    EN943-2:2002. However, the specification for a full facemask has been replaced by that for a visor. Note: the total mass of the PRPS exceeds that stipulated for a normal EN12941:1998 filtering device. For changes to manufacturer’s designed duration refer to 3M Jupiter™...

  • Page 4: General Information

    · Exterior attachment point for distress signal unit The PRPS is designed as a limited-use garment, i.e. designed to be worn until chemical contamination has occurred and disposal is required. A full hygienic cleaning service using specialist equipment is provided by Respirex.

  • Page 5: Limitations Of Use

    Only for use by trained competent personnel. PRPS suits should not be used in areas immediately dangerous to life or health (IDLH). Tychem®TK. fabric is designed specifically for limited-use garments. Excessive flexing or folding can lead to weaknesses in the structure of the fabric which may have an adverse effect on the chemical resistance offered by the suit.

  • Page 6: Storage

    In order to maintain the level of protection offered, care should be taken to minimize the risk of damage occurring to the PRPS suits during transportation between work areas. It is recommended that all PRPS suits are transported in a suitably sized rigid container resistant to penetration by sharp objects, abrasive surfaces, chemicals, oils, solvents etc.

  • Page 7: Suit Label

    Suit label 1. Manufacturer of garment; Respirex International Ltd. 2. Manufacturer’s Model number 3. Manufacturer’s Style number 4. Serial number. 5. Material of Manufacture. 6. Manufacturer’s Order No. 7. Customer Name. 8. Date of manufacture; RILS0002 Day/Month/Year. 9. Flask Pictogram denoting protection against chemical hazards 10.

  • Page 8: Preparation For Use

    Preparation for use The suit is supplied in a sealed bag, fully tested and in full working order. Nevertheless it is advisable for the following checks to be carried out in a clean area prior to donning the suit: 1. Visually inspect the suit for any damage that may reduce the level of protection;...
  • Page 9 6. Fit the battery to the AFU (fig 3). 7. Switch on the AFU. The AFU will beep, the lights on the remote warning device will cycle for a short time, then the green light will remain illuminated (fig 4). At this point the 60 minute timer begins. Note: Lights as viewed from exterior of suit Green light...
  • Page 10 9. An optional airflow check can be carried out as follows. I. Remove the breathing tube from the air filter unit. II. Insert the airflow indicator tube into the air filter unit outlet. III. Hold the AFU so that the tube is vertical and at eye level. IV.

  • Page 11: Indicator Lights And Warnings

    Indicator lights and warnings, · Throughout normal operation the green light will remain illuminated. · 60 minutes after switching on the AFU the amber light will illuminate intermittently and the buzzer will beep for 10 seconds. · After 75 minutes (additional 15 minutes) the amber light will remain illuminated and the buzzer will beep for 10 seconds.

  • Page 12: Donning Procedure

    Donning procedure Make sure the suit has been visually inspected and is suitable for the intended use. Underclothing should be worn beneath the suit. As a minimum, a short sleeve shirt and long trousers or “long underwear” are recommended. Remove all personal affects which may result in damage to the suit (e.g.
  • Page 13 3. Stand up and with the dressing assistant supporting the weight of the AFU at the rear of the suit, fasten the internal waist belt securely (fig. 12). If necessary adjust the belt until comfortable. 4. Lift the suit up above waist level and connect the drinking tube that runs from the headspace to the tube on the re-hydration pack (figs.
  • Page 14 6. The dressing assistant should now switch on the AFU to ensure that breathing air is supplied to the wearer (fig. 17). NB NEVER attempt to wear a PRPS without switching on the AFU and ensuring the green light is permanently illuminated (see indicator lights and warnings).
  • Page 15 8. The wearer should duck forwards and the assistant should pull the hood of the suit over the head (figs.19 & 20). NB It may be necessary to re-adjust the helmet after this stage. Ensure that the knitted neck seal sits evenly around the wearer's neck.
  • Page 16 11. When fully donned the suit should appear as in figs.23 & 24. Fig.24 Fig.23...

  • Page 17: Decontamination Procedures

    Decontamination procedures Do not remove the PRPS, remove the filters or turn off the Jupiter™ AFU until you have vacated the contaminated area. Preliminary washing by means of a high pressure shower will remove most of the contaminant from the outer surface of the suit sufficient to allow the wearer to undress from the garment.
  • Page 18 4. The wearer should duck forwards so that the dressing assistant can lift the hood of the suit up and over the wearer’s head. Note: It is likely that if a safety helmet is being worn this will automatically come away from the wearer’s head and remain in the head space of the suit.

  • Page 19: Emergency Self Doffing Procedure

    3. Undo the AFU belt and unfasten the helmet chin strap (if worn). 4. Exit the suit. IMPORTANT: Respirex will only be able to clean, service, sanitize, retest and repack used PRPS systems once there is documentary confirmation that the equipment is chemically and biologically safe to handle.

  • Page 20: Disposal Of Tychem®Tk

    Disposal of Tychem®TK. Whilst the exact composition of the fabric is confidential to the manufacturer, it is known that Tychem TK. consists of polymers which do not contain halogens in their structural formula. After use, Tychem TK. can either be incinerated without harm to the environment, or can be buried in a responsible manner.

  • Page 21: Sizing

    Th e following pictograms designate the range of height & chest sizes suitable for specifi c sizes of PRPS suit, check your body measurements and select the correct size of suit. Body measure- ments in cm (inch). Warning: Incorrect size selection could lead to a reduced level of protection.

  • Page 22: Permeation Performance

    Permeation Performance The following test results indicate resistance to permeation against each of the 15 liquid chemicals in the standardised test battery ASTM F1001-99a. All tests carried out under laboratory conditions by independent accredited laboratories in accordance with EN369:1993 and EN374-4:1993, unless otherwise stated.

  • Page 23: Physical Properties Of Tychem®Tk. Material

    Physical Properties Of Tychem®TK. Material Minimum Class Tested In Required for Class Property Accordance With Manufacturers Achieved Specification EN14325 : 2004 Abrasion resistance clause 4.4.1/ 4.4.2 EN14325 : 2004 Tensile strength clause 4.9 EN14325 : 2004 Flex cracking resistance Clause 4.5 Flex cracking resistance EN14325 : 2004 at low temperatures...
  • Page 24 RESPIREX INTERNATIONAL LTD, Unit F Kingsfield Business Centre, Philanthropic Road, Redhill, Surrey. RH1 4DP ENGLAND. Tel. 44 (0) 1737 778600 Fax. 44(0) 1737 779441 Email. info@respirex.co.uk Article 10 and Article 11B Type Examination By : BSI Davy Avenue, Knowhill Milton Keynes MK5 8PP ENGLAND Notified Body No.
