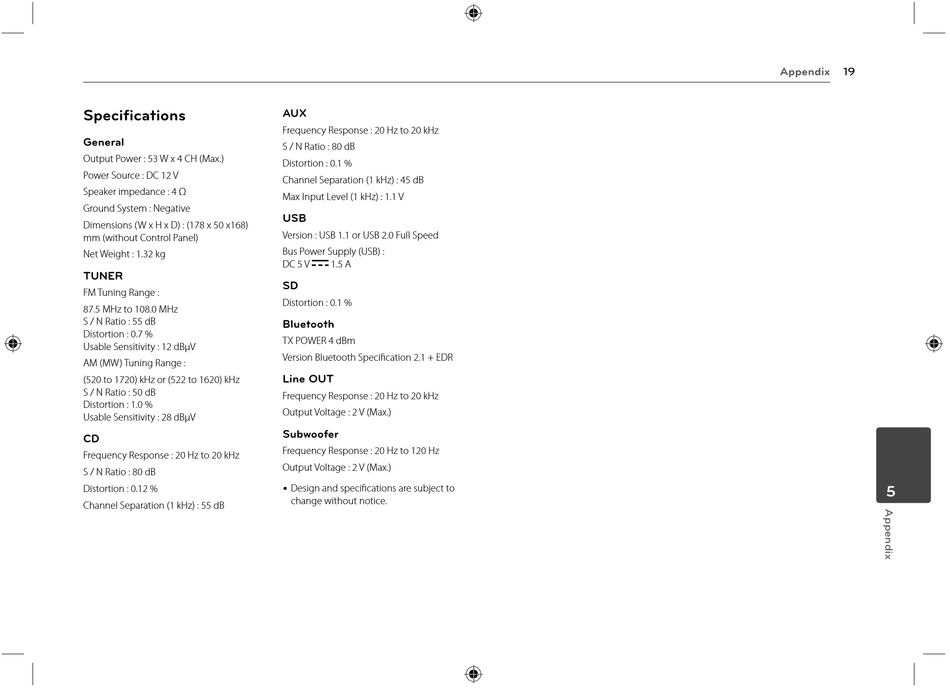

Specifications
General
Output Power : 53 W x 4 CH (Max.)
Power Source : DC 12 V
Speaker impedance : 4 Ω
Ground System : Negative
Dimensions (W x H x D) : (178 x 50 x168)
mm (without Control Panel)
Net Weight : 1.32 kg
TUNER
FM Tuning Range :
87.5 MHz to 108.0 MHz
S / N Ratio : 55 dB
Distortion : 0.7 %
Usable Sensitivity : 12 dBμV
AM (MW) Tuning Range :
(520 to 1720) kHz or (522 to 1620) kHz
S / N Ratio : 50 dB
Distortion : 1.0 %
Usable Sensitivity : 28 dBμV
CD
Frequency Response : 20 Hz to 20 kHz
S / N Ratio : 80 dB
Distortion : 0.12 %
Channel Separation (1 kHz) : 55 dB
AUX
Frequency Response : 20 Hz to 20 kHz
S / N Ratio : 80 dB
Distortion : 0.1 %
Channel Separation (1 kHz) : 45 dB
Max Input Level (1 kHz) : 1.1 V
USB
Version : USB 1.1 or USB 2.0 Full Speed
Bus Power Supply (USB) :
DC 5 V
1.5 A
SD
Distortion : 0.1 %
Bluetooth
TX POWER 4 dBm
Version Bluetooth Specifi cation 2.1 + EDR
Line OUT
Frequency Response : 20 Hz to 20 kHz
Output Voltage : 2 V (Max.)
Subwoofer
Frequency Response : 20 Hz to 120 Hz
Output Voltage : 2 V (Max.)
 Design and specifi cations are subject to
change without notice.
Appendix
19
