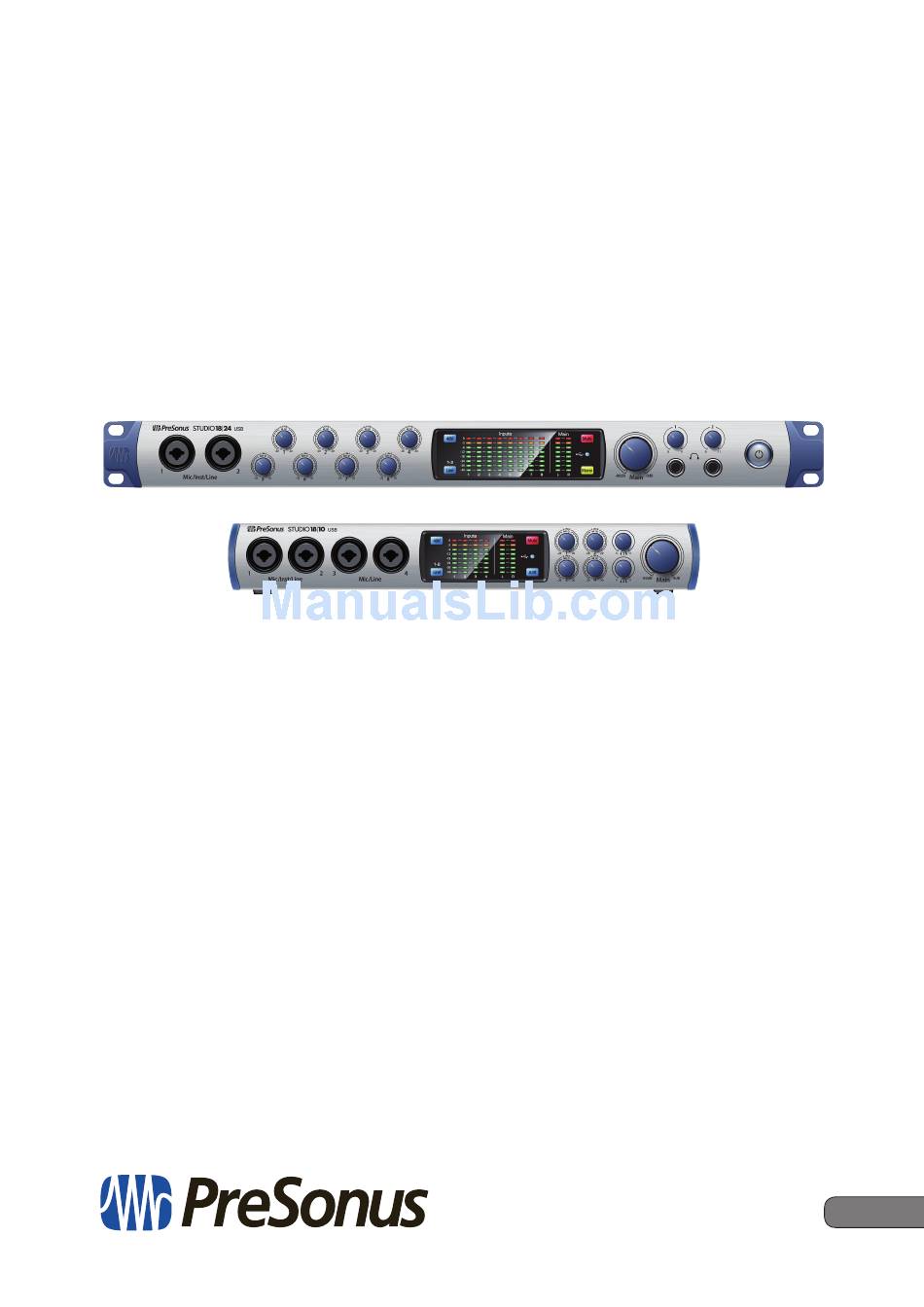

- Page 1 Studio 1824 and 1810 High-definition USB 2.0 Audio Interfaces Owner’s Manual ® English www.presonus.com...
-
Page 2: Table Of Contents
Introduction — 1 Setting Up Studio One — 19 What is in the Box — 1 5.2.1 Configuring Audio Devices — 20 Companion PreSonus Products — 2 5.2.2 Configuring MIDI Devices — 20 Hookup — 3 Creating a New Song — 24 Front Panel Connections and Controls —... -
Page 3: Overview
Throughout this manual, you will find Power User Tips that can quickly make you a Studio-series expert. This manual covers the features and functions of both the Studio 1824 and the Studio 1810. Where differences occur, the Studio 1824 features will be called out first, followed by the Studio 1810. -
Page 4: Companion Presonus Products
Companion PreSonus Products Thanks for choosing PreSonus! As a solutions company, we believe the best way to take care of our customers (that’s you) is to ensure that you have the best possible experience from the beginning of your signal chain to the end. To achieve this goal, we’ve prioritized seamless integration throughout every design phase of these... -
Page 5: Hookup
Front Panel Connections and Controls Microphone/Instruments/Line Inputs. Your Studio-series interface is equipped with PreSonus XMAX microphone preamplifiers for use with all types of microphones. The XMAX has a Class A input buffer, followed by a dual-servo gain stage. This arrangement results in ultra-low noise and wide gain control, allowing you to boost signals without increasing background noise. -
Page 6: Front Panel Connections And Controls
Power Button and Sync light (Studio 1824 only). The lighted ring around the power button of your Studio 1824 is a clock source indicator. It lets you know if your unit is receiving word clock correctly. •... -
Page 7: Back Panel Connections
S/PDIF device as your master clock. See Section 4.1 for details. ADAT – S/MUX Input (Studio 1810 and Studio 1824) and Output (Studio 1824 only). These are the ADAT – Dual S/MUX connections for your external digital devices. - Page 8 Studio Series 1810 and 1824 Back Panel Connections Owner’s Manual BNC Output (Studio 1824 only). This connection allows the Studio 1824 to transmit word clock to other digital audio devices so that it can function as the master clock for your studio environment (recommended).
-
Page 9: Connection Diagram
Hookup Studio Series 1810 and 1824 Connection Diagram Owner’s Manual Connection Diagram 2.3.1 Studio 1824 See Studio 18|24 box for computer requirements Vea los requerimientos de hardware en la caja de Studio 18|24 Systemvoraussetzungen siehe Studio 18|24 Packungsaufdruck Voir la boîte de la Studio 18|24 pour les configura-... -
Page 10: Studio 1810
Hookup Studio Series 1810 and 1824 Connection Diagram Owner’s Manual 2.3.2 Studio 1810 DigiMax-series preamps or other compatible hardware Preamplificadores DigiMax u otro hardware compatible DigiMax-Verstärkern und anderen kompatiblen Geräten Préamplis de la série DigiMax ou d’autres appareils compatibles See Studio 1810 box for computer requirements Vea los requerimientos de hardware en la caja de... -
Page 11: Connecting To A Computer
UC Surface are included in the Universal Control installer for macOS and Windows. You can download the installer from your My PreSonus user account. To begin, you must first visit My.PreSonus.com and create or log into your user account and register your Studio-series. Once registered, all software downloads will be available from within your My PreSonus user account. -
Page 12: Using The Studio-Series Interfaces With Popular Audio Applications
1. Launch Ableton Live 2. Go to Options | Preferences | Audio 3. Choose Driver Type: Asio | Audio Device: ASIO PreSonus Studio (1824 or 1810) 4. Go to Input Config: Enable and select the desired Input channels. 5. Go to Output Config: Enable and select the desired Output channels. - Page 13 8. Go to Options | Audio... and click on the General tab. 9. Set the Playback Timing Master to “PreSonus Studio (1824 or 1810)... DAW Out 1. ” 10. Set the Recording Timing Master to “PreSonus Studio (1824 or 1810)... Mic/Inst 1. ” Steinberg Cubase 1. Launch Cubase.
-
Page 14: Uc Surface Monitor Control Software
UC Surface Launch Window Universal Control is a powerful hardware-management application for all PreSonus interface products. It allows you to view any PreSonus interface product connected to your computer or your computer’s network. When Universal Control is launched, you will see the Launch window. -
Page 15: Uc Surface Launch Window
• Preferences. Sets language and appearance options (see below). • Rescan Network. Scans the network and local transport bus (USB or FireWire) for all supported PreSonus products. • Language. Sets the language (English, French, German, Korean, Simplified Chinese, or Spanish). - Page 16 UC Surface Monitor Control Software Studio Series 1810 and 1824 UC Surface Launch Window Owner’s Manual From Universal Control, you can enable or disable Loopback and pick the streams on which the loopback audio will be recorded. When Loopback is enabled and “Merge Loopback with 1/2” is selected, the audio from another application will be recorded with the audio source connected to analog inputs 1 and 2 on your Studio-series interfaces.
-
Page 17: Uc Surface Controls
UC Surface Monitor Control Software Studio Series 1810 and 1824 UC Surface Controls Owner’s Manual UC Surface Controls UC Surface allows you to create four separate mixes of your input channels and every DAW return. These low-latency mixes give you the ability to monitor your inputs with minimal latency. -
Page 18: Channel Controls
UC Surface Monitor Control Software Studio Series 1810 and 1824 UC Surface Controls Owner’s Manual Channel Controls 4.2.1 Selected Channel Name. Double-click on the name to customize it. This field follows the currently selected channel. Channel Color. UC Surface allows you color-code your channels, click here to select a custom color. -
Page 19: The Settings Page
UC Surface Monitor Control Software Studio Series 1810 and 1824 The Settings Page Owner’s Manual The Settings Page The Settings page allows you to configure your Studio-series. To open the configuration settings page, click on the Settings button in the upper right-hand corner of the screen. -
Page 20: Studio One Artist Quick Start
PreSonus audio interfaces also have access to advanced functions in Studio One’s exclusive Z-Mix feature for PreSonus interfaces. Power User Tip: As a valued PreSonus customer, you are also eligible for a discount upgrade to Studio One Professional. For more details on the Studio One upgrade program for PreSonus customers, please visit http://studioone.presonus.com/. -
Page 21: Setting Up Studio One
“Install. ” The content will automatically begin to download and install from your My PreSonus user account. Power User Tip: You may be prompted to enter your My PreSonus user account information. Clicking “Remember Credentials” will allow you to have immediate access to any content you purchase from the PreSonus Marketplace. -
Page 22: Configuring Audio Devices
1. In the middle of the Start page, you will see the Setup area. Studio One Artist automatically scans your system for all available drivers and select a driver. By default, it will choose a PreSonus driver if one is available. Power User Tip: If your device has zero-latency monitoring functionality from within Studio One, you will see the Z-mix icon. - Page 23 Make sure you have connected the MIDI Out of your external MIDI controller to a MIDI In on your PreSonus audio interface (if available) or other MIDI interface. If you are using a USB MIDI controller, connect it to your computer and power it on.
- Page 24 Studio One Artist Quick Start Studio Series 1810 and 1824 Setting Up Studio One Owner’s Manual 3. From the menu on the left, select your MIDI controller from the list of manufacturers and models. If you do not see your MIDI controller listed, select New Keyboard.
- Page 25 MIDI keyboard controller, take a moment to configure your sound module. Make sure you have connected the MIDI in of your external sound module to the MIDI Out of your PreSonus audio interface (if available) or another MIDI interface. 1. In the External Devices window, click the Add button 2.
-
Page 26: Creating A New Song
Studio One Artist Quick Start Studio Series 1810 and 1824 Creating a New Song Owner’s Manual 4. In the Send To menu, select the MIDI interface output from which Studio One Artist will send MIDI data to your sound module. Click OK and close the External Devices window. -
Page 27: Configuring Your I/O
Audio I/O. 2. Click on the Audio I/O Setup tab. 3. From the Inputs tab, you can enable any or all of the inputs on your PreSonus audio interface you’d like available to you. We recommend that you create a mono input for each of the inputs on your interface. -
Page 28: Creating Audio & Midi Tracks
Creating a New Song Owner’s Manual 4. Click on the Outputs tabs to enable any or all of the outputs on your PreSonus audio interface. In the lower right corner, you will see the Audition select menu. This allows you to choose the output from which you will audition audio files prior to importing them into Studio One Artist. -
Page 29: Recording An Audio Track
Song. 5.3.3 Recording an Audio Track 1. To begin recording, create an audio track from the Add Tracks window and set its input to Input 1 on your PreSonus Audio Interface and connect a microphone to the same input. -
Page 30: Adding Virtual Instruments And Plug-In Effects To Your Song
Studio One Artist Quick Start Studio Series 1810 and 1824 Creating a New Song Owner’s Manual 2. Select Record Enable on the track. Turn up the Input 1 level on your audio interface while speaking/singing into the microphone. You should see the input meter in Studio One Artist react to the input. -
Page 31: Monitor Mixing With Z-Mix
Monitor Mixing with Z-Mix PreSonus interface customers can set up zero-latency monitor mixes using Studio One’s unique Z-Mix feature. This feature takes over the monitor mix control software for the Studio-series interfaces and provides level and pan control from within Studio One. -
Page 32: Z-Mix Functions
Studio One Artist Quick Start Studio Series 1810 and 1824 Monitor Mixing with Z-Mix Owner’s Manual Z-Mix Functions 5.4.1 Once you have created a Cue Mix output, you will notice a special Send object in the channels of the Console. This Send object is called a Z-Mix object. In the Small Console view, Z-Mix objects appear in the far left column of the extended channel. - Page 33 Studio One Artist Quick Start Studio Series 1810 and 1824 Monitor Mixing with Z-Mix Owner’s Manual To enable zero-latency hardware monitoring, click on the “Z” in the output channel strip. 1. Activate Button. To completely remove any channel from a Z-Mix, simply deactivate the Z-Mix object for that channel.
-
Page 34: Technical Information
Technical Information Studio Series 1810 and 1824 Specifications Owner’s Manual Technical Information Specifications General Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz Converter Resolution 24-bit Converter Dynamic Range A/D 114 dB Converter Dynamic Range D/A 114 dB Microphone Inputs Maximum Level +16 dBu, min gain Gain Range... -
Page 35: Specifications
Technical Information Studio Series 1810 and 1824 Specifications Owner’s Manual Headphone Outputs Maximum Power 150 mW/channel (60Ω load) Frequency Response 20 Hz - 20 kHz (unity gain) Dynamic Range 103 dB (A-weighted, 1 kHz, unity gain) THD + N 0.250% (1 kHz, 150 mW, unity gain) Impedance Working Range 32Ω... -
Page 36: Warranty
PreSonus-branded products under normal use. This Limited Warranty applies only to hardware products manufactured by or for PreSonus that can be identified by the PreSonus trademark, trade name, or logo affixed to them. Exclusions and Limitations: This warranty does not cover the following: 1. -
Page 37: Warranty Information
PreSonus will repair or replace, at our sole and absolute option, products covered by this warranty at no charge for labor or materials. If the product must be shipped to PreSonus for warranty service, the customer must pay the initial shipping charges. PreSonus will pay the return shipping charges. - Page 38 Owner’s Manual How to Get Warranty Service (outside of USA): 1. You must have an active user account with PreSonus and your hardware must be on file with your account. If you do not have an account, please go to: http:// www.presonus.com/registration...
- Page 39 Integration, and XMAX are trademarks or registered trademarks of PreSonus Audio Electronics, Inc. Capture, Impact, Mixverb Presence, RedLightDist, SampleOne, Studio One, and Tricomp are trademarks or registered trademarks of PreSonus Software Ltd. Mac and Mac OS are registered trademarks of Apple, Inc., in the U.S. and other countries. Windows is a registered trademark of Microsoft, Inc., in the U.S.
- Page 40 Studio 1824 and 1810 High-definition USB 2.0 Audio Interfaces Owner’s Manual 18011 Grand Bay Ct. • Baton Rouge, ® Louisiana 70809 USA• 1-225-216-7887 Part# 70-12000080-A www.presonus.com...
