- Page 1 Century 125ie MANUEL DE PROPRIEÉTAIRE OWNER’S MANUAL MANUAL DEL PROPIETARIO...
- Page 3 …for everyday adventure RIEJU S.A. is grateful for the confidence you have put in their company and would like to congratulate you on your choice of mortorbike. The Century 125ie are the resulted of the long-term experience that RIEJU has had in competitions, which has led to the development of a high performance vehicle.
-
Page 4: Table Of Contents
…for everyday adventure CONTENTS MOTORBIKE DESCRIPTION Rear brake DELIVERY OF THE MOTORCYCLE Brake fluid level and brake pad wear IDENTIFICATION OF THE MOTORBIKE Throttle twist grip ENGINE IDENTIFICATION NUMBER Lights, indicators and warning lamps MAIN ELEMENTS OF THE MOTORBIKE Start switch KEYS Tyres HANDLE BAR SWITCHES... - Page 5 …for everyday adventure RUNNING IN ACCELERATION TO BRAKE (SLOWING DOWN) STOPPING GEAR BOX PEDAL FRONT SUSPENSION REAR SUSPENSION COOLING SYSTEM CHECKING & FILLING THE ENGINE OIL LEVEL CHAIN ADJUSTMENT AND TENSION CLEANING AND STORAGE CLEANING LONG-TIME STORAGE CHECKS BEFORE USING MOTORCYCLE TECHNICAL SPECIFICATIONS &...
-
Page 6: Motorbike Description

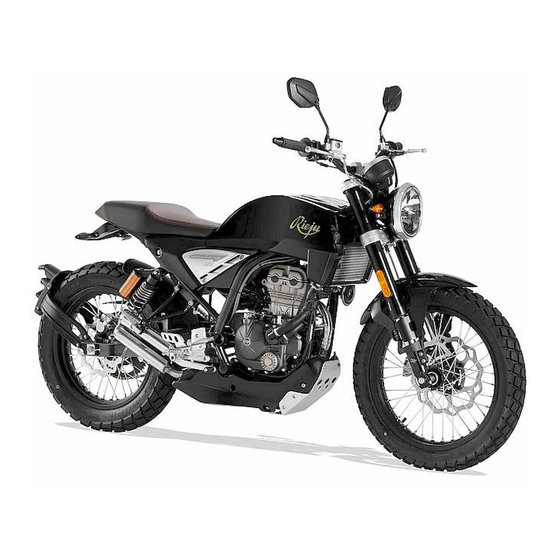

…for everyday adventure MOTORBIKE DESCRIPTION This motorbike has a 124c.c. single cylinder; liquid cooled four stroke motor. With a piston diameter of 47,0 mm and it has a 58,0 mm bore. The motor has an ignition electronic system, and a high-tension coil. Engine power is delivered to final drive chain via a Multiple metal clutch with constant pressure springs, submerged in an oil bath. -
Page 7: Delivery Of The Motorcycle
WARRANTY REGISTRATION – complete the necessary information, pass a copy to the owner, and return a copy immediately to your RIEJU distributor. OPERATION - Explain the functions & correct handling of the motorcycle. WARNINGS - Explain the importance of warning labels to ensure a long life of the motorcycle. - Page 8 GEAR LEVER ADJUSTMENT- Adjust to the correct height for the user. WARNING: Changes on the bike don’t authorized by RIEJU, or use of parts that don’t are ORIGINAL SPARE PARTS from RIEJU on the warranty period. Release RIEJU from any responsibility on the damages produce on the bike and cancel the warranty.
-
Page 9: Identification Of The Motorbike
(Steering head.) is unique to every machine. This number is required to register your vehicle, this chassis or VIN number should be quoted when requesting warranty assistance or genuine Rieju spare parts. ENGINE IDENTIFICATION NUMBER The engine serial number is located on the top, rear side bottom of the engine. -
Page 10: Main Elements Of The Motorbike
…for everyday adventure MAIN ELEMENTS OF THE MOTORBIKE KEYS With this model, you will be given a set of keys, which are used for the Ignition switch/Steering lock. HANDLE BAR SWITCHES 1-. Indicator Switch This has 3 positions: in the centre position it is deactivated, to indicate right it must be moved to the right and to indicate left it must be moved to the left. -
Page 11: Horn Button
…for everyday adventure 2-. Horn button Press the button to activate the horn. 3-. Main and dip beam light switch This switch has two positions: when it’s down the dip beam is on and in the upper position the main beam is illuminated. -
Page 12: Clutch Lever
…for everyday adventure CLUTCH LEVER The clutch lever is situated on the left-hand side of the handlebar. To activate it, pull the lever towards the grip or handlebar. FRONT BRAKE LEVER The front brake lever is situated on the right-hand side of the handlebar. -
Page 13: Gear Box Pedal
…for everyday adventure GEAR BOX PEDAL This is situated underneath the left part of the motor, it is activated with the foot taking it all the way and then letting it go back to its’ original position before changing gear again. To put the motorbike into first gear, the pedal has to be pressed downwards. -
Page 14: Routine Testing
If there is air in the system the brakes will need to be bled. WARNING: Bled the baking system will do by one professional, Rieju recommend do this operation by your official RIEJU dealer. Century 125 ie... -
Page 15: Rear Brake
If the pads are not worn out, top up the brake reservoir with brake fluid. WARNING: Brake fluid is corrosive and will damage paintwork, if spilt wash off with water immediately. TIP: Always remember that the above must be carried out by a RIEJU official service. Century 125 ie... -
Page 16: Throttle Twist Grip
…for everyday adventure Throttle twist grip (1) Ensure it works correctly, by turning the grip and verifying if the free play is correct. The grip should return to closed position when released. Lights, indicators and warning lamps Check operation of all lights, and direction indicators plus the oil warning lamp and petrol reserve panel lights. -
Page 17: Tyres
…for everyday adventure Tyres The tyre pressure directly effect the road holding ride comfort PRESSURES and braking distance, the, therefore check the tyre pressures FRONT REAR regularly for your own safety. 100-90-18 130/80-17 TYRE 56 P 1,9 Kg/Cm 2,1 Kg/Cm ADVICE: Make sure that the rim is central and not PRESSURE 190 kPa... -
Page 18: Instrument And Indicators
ATTENTION: Do not use the bike with this warning light on, as this may cause serious damage to the engine, consult your RIEJU dealer as soon as possible. 4.- Headlight Main beam light ( This indicator comes on when the headlights are on main beam. -
Page 19: Fuel Lamp
7.- Engine warning lamp ( This indicator comes on when on fail is detected on the engine. ATTENTION: Consult your RIEJU dealer as soon as possible. 8.- Oil Pressure Warning lamp ( This indicator comes on when the engine is low on oil,. -
Page 20: Motorbike Operation
…for everyday adventure MOTORBIKE OPERATION It is very important to know how to operate your vehicle correctly. ATTENTION: Remember that you must not leave the motor running in an enclosed area, as the toxic gas from the exhaust could cause serious health problems. STARTING AND RIDING Open the petrol tap. -
Page 21: Running In
ATTENTION: As indicate on the Service Manual you must done the first Service at 500 Km in your Official Rieju Workshop. Is essential done the services indicates on the Service Manual and enquire the signature and stamp of the Workshop at time to pick up the bike. Don’t make the service as the Km indicates is reason for loss the vehicle warranty. -
Page 22: To Brake (Slowing Down)
…for everyday adventure TO BRAKE (SLOWING DOWN) C lose the throttle; activate the front and rear brakes simultaneously, increasing the pressure progressively. WARNING: Sudden braking can cause skidding. STOPPING Close the throttle and activate both brakes simultaneously and when the vehicle has reduced speed, Pull in the clutch lever all the way. -
Page 23: Front Suspension
…for everyday adventure FRONT SUSPENSION The front suspension consists of a hydraulic fork which has been crafted to the highest standards of technology and design. • Upside down fork of Ø40 mm. REAR SUSPENSION The rear suspension consists of two gas-assisted hydraulic shock absorber with separate gas reservoir and spring preload adjustment via the nut located on the shock absorber spring. -
Page 24: Cooling System
…for everyday adventure COOLING SYSTEM The radiator is mounted on the front of the motorbike below the headlamp; The radiator propose is to maintain a constant engine temperature by cooling the hot water which is pumped around the engine ADVICE: To check the level of coolant, undo the expansion tank cap and check that they has coolant, if it is dry carefully undo the radiator cap and top up until the middle of the expansion tank. -
Page 25: Checking & Filling The Engine Oil Level
(a). Oil below advised level, fill to the correct level. ADVICE: See technical specifications to check the oil recommend by RIEJU. WARNING: Drive with the bike at minimum level (a) can damage the engine. The damages produce by this cause it will not admit as warranty. -
Page 26: Chain Adjustment And Tension
…for everyday adventure CHAIN ADJUSTMENT AND TENSION The motorcycle must be positioned vertically with its wheels on the firmly on the ground. The chain must be adjusted to have a tolerance of 30 to 40 mm. At the midpoint between the output gear and the rear sprocket (see picture). -
Page 27: Cleaning And Storage
4- Remove the degreasing agent along with the dirt using a low pressure water source such as a hosepipe. ATTENTION: Rieju accepts no responsibility for the use of degreasing agents which stain and/or cause deterioration to the motorbikes components. Rieju accepts no responsibility for any possible damage resulting from the use of pressurized water to clean the motorbike. -
Page 28: Long-Time Storage
…for everyday adventure 5- After all dirt has been washed off; the surfaces should be washed with warm water and mild detergent soap. 6-Remove any soap and with cold water and dry all surfaces. Clean the seat with vinyl upholstery cleaner. -
Page 29: Checks Before Using Motorcycle
…for everyday adventure CHECKS BEFORE USING MOTORCYCLE Check the following points before using your motorcycle ITEMS TO BE CHECKED CHECK-UP IF NECESSARY… Accelerator grip Movement Adjustment Tyres Pressure and wear Pump up or replace Battery Charge level Charge Steering The softness of the steering, the flexibility of the movement, that does not present slacks Lights and indicators Work correctly... -
Page 30: Technical Specifications & Characteristics
…for everyday adventure TECHNICAL SPECIFICATIONS AND CHARACTERISTICS COMPONENT SPECIFICATIONS ENGINE Type 4 stroke water cooled Engine capacity 124 cm Model cylinders 1 inclined forwards Piston size 47,0x58,0mm Compression ratio 12,0:1 Starting system Electrical PETROL Type Unleaded petrol OIL FILTER Type Paper OIL PUMP Type... - Page 31 When filter is not removed 1,0 l when filter is removed 1,1 l WATER PUMP Type Mechanical SPARK PLUG Type NGK/CR9EB Electrode Clearance 0,6-0,7mm Advice: Contact your authorized RIEJU workshop in case of any problem or breakdown of the vehicle. Century 125 ie...
-
Page 32: Maintenance
…for everyday adventure MAINTENANCE MAINTENANCE OPERATIONS 500 Km 3500 km 6500 Km 9500 Km 12500 Km Brake system checks Transmission oil level checks Oil filter it will changed too Chain tension and wear checks C & L C & L C &... - Page 33 …for everyday adventure MAINTENANCE OPERATIONS 500 Km 3500 km 6500 Km 9500 Km 12500 Km Check the electrical System Valves adjustment Inspect radiator liquid levels Inspect exhaust system Check terminals and battery condition Check oil pump operation Tyre C:CONTROL; R: REPLACEMENT; L:LUBRICATION; L=CLEANING CAUTION: Maintenance schedule can change on function of the bike use, conduction, environmental conditions, etc…...
