Operating the S mix

Typical Set-up

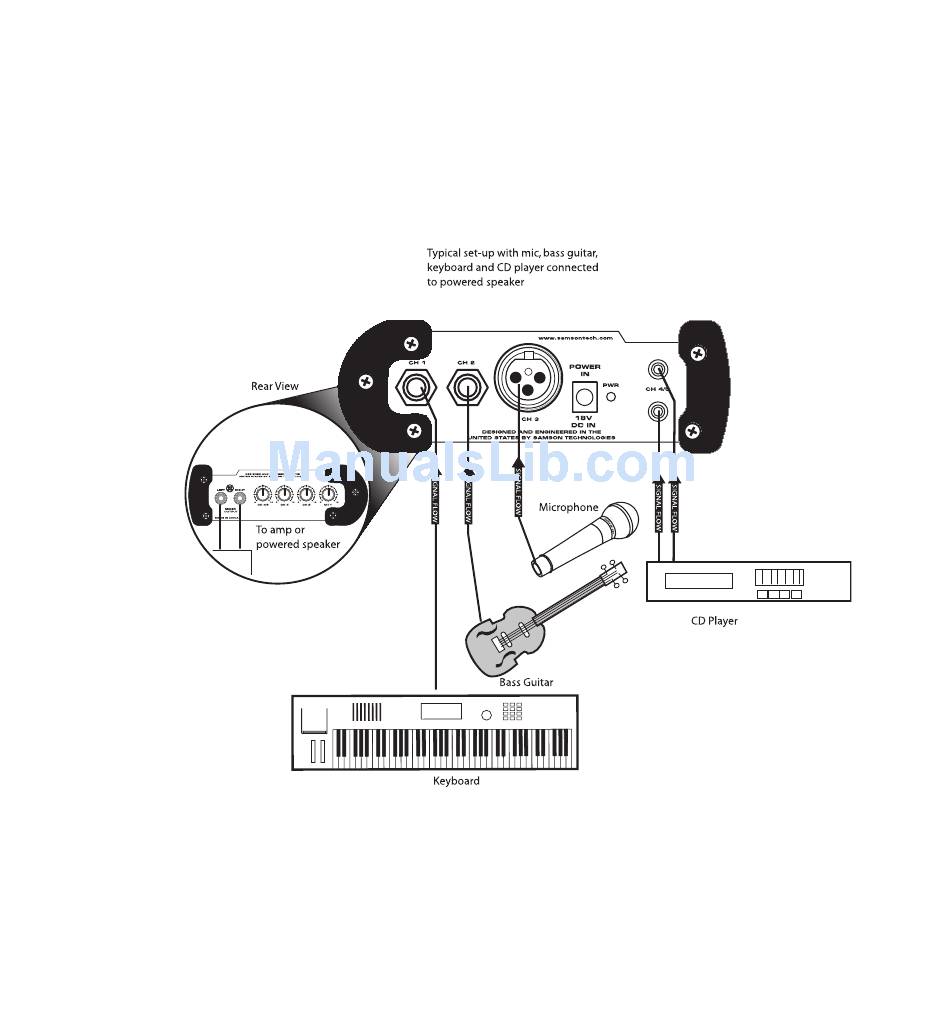

The diagram below shows a typical set-up for a small band using the S mix miniature
mixer. The vocalist's microphone is connected to the channel 3 mic input, a bass guitar is
connected to channel 2 and channel 1 has a keyboard connected. For background tracks,
a CD player is connected to the channel 4/5's stereo RCA inputs.

Creating a Mix

Now that you have connected your instruments and other sound sources to the S mix
inputs you can begin to create your mix. The best way to do this is to adjust one channel
at a time. Slowly raise the level control for the first input until you have reached the desired
level. Now, repeat the same for each additional input. You may want to go back and slight-
ly raise or lower an individual channel until you have set the balance between all the con-
nected inputs. Then, you have your perfect mix!
