  • Page 1 5 CHANNEL MIXER...

  • Page 2: Table Of Contents

    Setting up the S mix Connecting the Input Signals Typical Set-up Creating a mix Specifications Wiring Guide Copyright 2003, Samson Technologies Corp. Printed January 2003 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com...

  • Page 3: Introduction And Features

    Thank you for purchasing the S mix, miniature mixer by Samson Audio! The S mix is a 5-channel compact mixer packed with high-end mixer features. The S mix features a balanced microphone input on an XLR connector and includes phantom power for connecting condenser microphones.

  • Page 4: Front And Rear Panel Layout

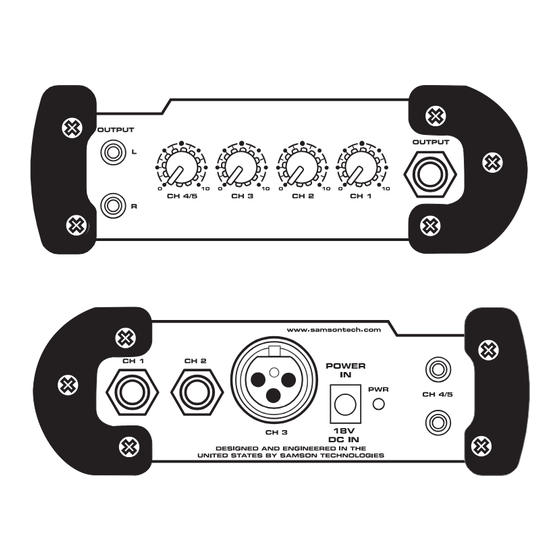

    S mix Front and Rear Panel Layout Front Panel Layout L & R RCA OUTPUT - Left and Right main mix OUTPUT on RCA con- nectors. CHANNEL 4/5 VOLUME - Control knob used to adjust the level of inputs 4 and 5. Rear Panel Layout CHANNEL 1 INPUT- 1/4-inch input for con- necting Line/Instrument level signals.

  • Page 5: Operating The S Mix

    Setting up the S mix The basic procedure for setting up and using your S mix miniature mixer takes only a few minutes. Remove all packing materials (save them in case of need for future service) and check to make sure that you remove the supplied AC/DC power adapter. Note: Before plugging in and turning on, remember the “last on, first off”...
  • Page 6 Operating the S mix Connecting Inputs Signals to the S mix The S mix provides the capability of receiving signals from microphone, instrument and line level devices. Super-Z Line Inputs Channel 1 and 2 inputs are Super-Z, line/instrument level inputs on 1/4-inch phone con- nectors.

  • Page 7: Typical Set-Up

    Operating the S mix Typical Set-up The diagram below shows a typical set-up for a small band using the S mix miniature mixer. The vocalist’s microphone is connected to the channel 3 mic input, a bass guitar is connected to channel 2 and channel 1 has a keyboard connected. For background tracks, a CD player is connected to the channel 4/5’s stereo RCA inputs.

  • Page 8: Specifications

    1/4” jack unbalanced Left and Right Inputs RCA, unbalanced input Left and Right Outputs RCA, unbalanced output Wiring Guide Phone: 1-800-3-SAMSON (1-800-372-6766) S mix Specifications - continued Mono, Instrument Level Output Input Impedance (Inst Chn.) Output Impedance Maximum Input Level...
